B&M Hi-Tek Deep Trans Pan for GM 6L80E (Camaro) Transmission - 70391
B&M Hi-Tek Deep Trans Pan for GM 6L80E (Camaro) Transmission - 70391 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Fitment
Fitment
Delivery and Shipping
Delivery and Shipping
Same day shipping, if ordered by 9:00 AM ET M-F
*Select products are made to order and ship within 4 business days.
Warranty Information
Warranty Information
Customer service is our top priority and because we value your time and energy we ask you to visit our Contact Us page and reach out so that we may assist you in finding the correct warranty for your product. Please include your name, the name on the order, the order number, and the SKU of the product to ensure the quickest and most accurate response to your inquiry.
Description
Description
Overview:

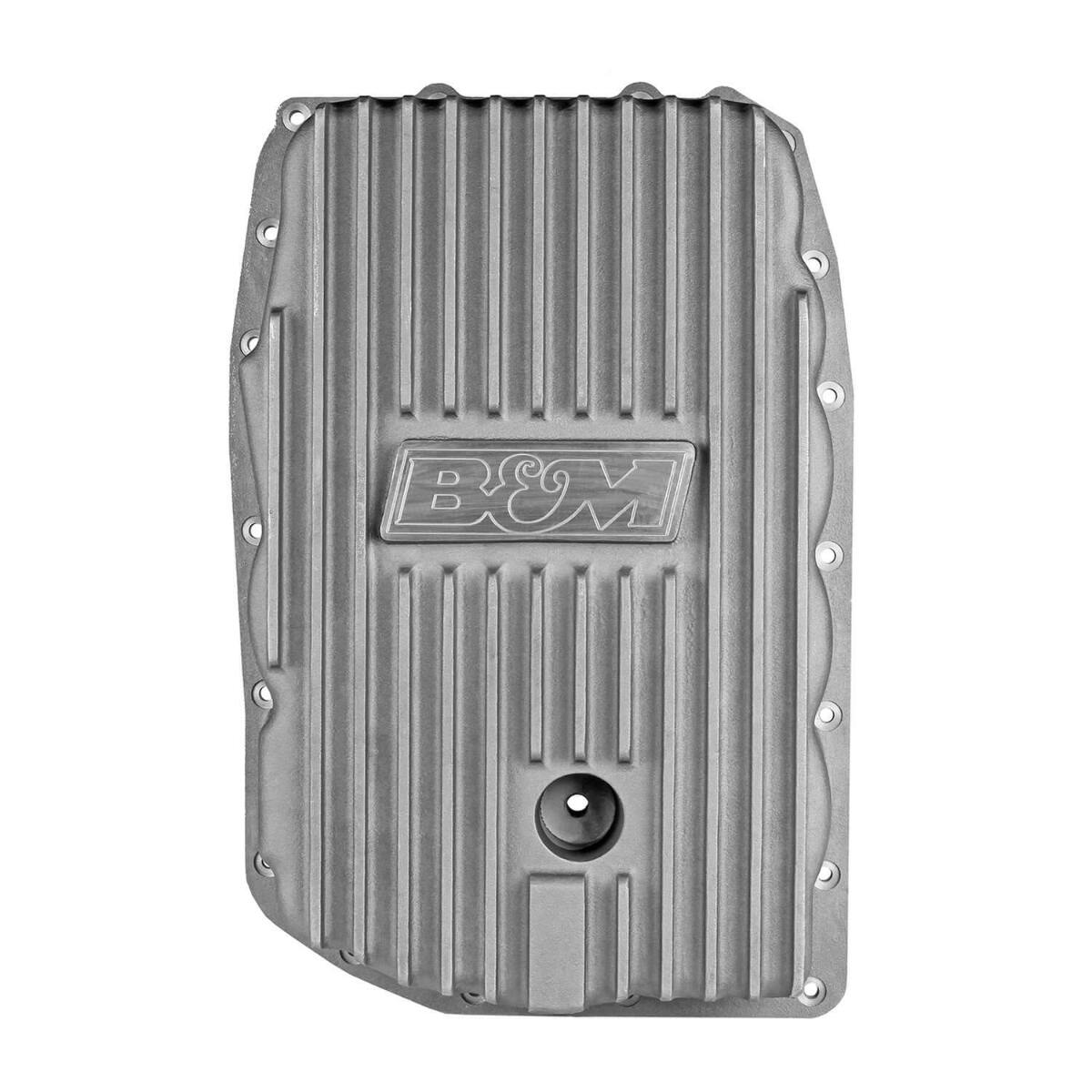

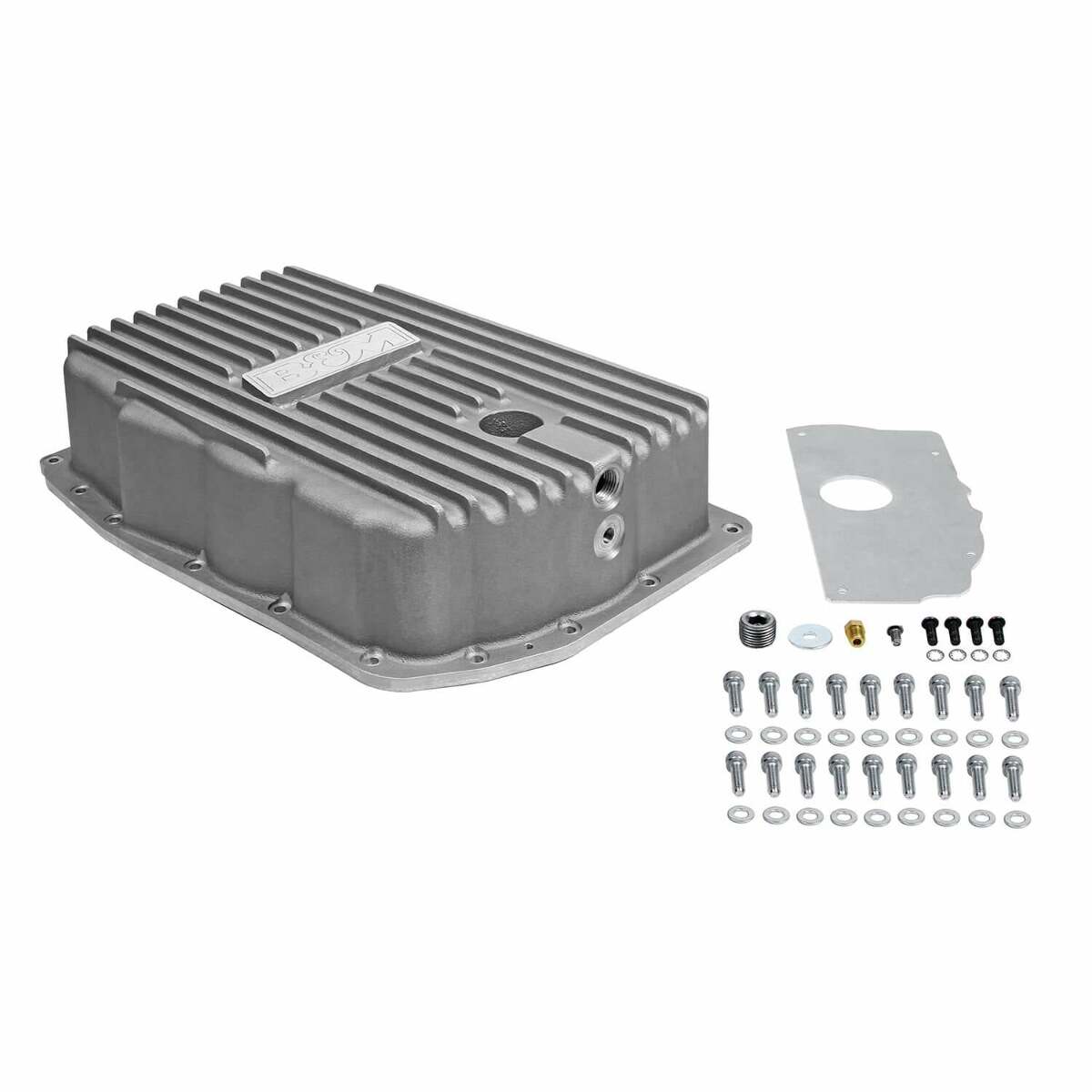

Our Hi-Tek deep transmission pans are constructed from A356-T6 aluminum and are cast with thick internal and external fins, adding additional strength and increased cooling properties. The deep pan design increases fluid capacity by 1.8-quarts over the stock O.E. pan. All these features combined help dissipate heat quicker netting lower transmission and fluid temperatures prolonging the life of your transmission, transmission fluid and corresponding components. Other features for this popular pan include a drain port with magnetic drain plug for clean and easy servicing. Also includes 1/8 inch npt temperature sensor port for easily adding a temp gauge for monitoring transmission temperatures while daily driving, towing or racing. Includes detailed instructions with all necessary hardware for an easy at home installation. Note: Does not fit GM Truck/SUV 6L80E transmissions.
Features:
- Drain Port with Magnetic Drain Plug for Easy Servicing
- Thick Fins for Strength and Improved Cooling
- Increases Fluid Capacity by 1.8-quarts
- Features Temperature Sensor Port
- A356-T6 Aluminum Construction
- Over 65 Years of B&M Quality
- Lifetime Limited Warranty
- Includes Hardware
- Easy Installation
Application:
| Year | Make | Model | Submodel | Engine Size |
|---|---|---|---|---|
| 2010 - 2015 | Chevrolet | Camaro | SS | |
| 2008 - 2009 | Pontiac | G8 | GT | |
| 2009 | Pontiac | G8 | GXP |
Specs:
| Additional Fluid Capacity (qts) | 1.8 |
|---|---|
| Brand | B&M |
| California Proposition 65 Chemical Name | Chromium (hexavalent compounds) |
| California Proposition 65 Required | Yes |
| Color | Gray |
| Cooling Efficiency | 30% over stock |
| Drain Plug Included | Yes |
| Emission Code | 5 |
| Filter Included | No |
| Gasket Included | No |
| Material | K-Alloy SP (Proprietary AluminumAlloy) |
| Mounting Hardware | Yes |
| Pan Hang Over Stock | 3/4 in |
| Product Type | Automatic Transmission Oil Pan |
| Style | Deep |
| Temperature Sensor Bung | Yes |
| Transmission Type | GM 6L80E Camaro |
| Warning | California Proposition 65 |
