Earls GM LS Oil Cooler Block Off Plate with 1/8 NPT Port - LS0020ERL
Earls GM LS Oil Cooler Block Off Plate with 1/8 NPT Port - LS0020ERL is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Fitment
Fitment
Delivery and Shipping
Delivery and Shipping
Same day shipping, if ordered by 9:00 AM ET M-F
*Select products are made to order and ship within 4 business days.
Warranty Information
Warranty Information
Customer service is our top priority and because we value your time and energy we ask you to visit our Contact Us page and reach out so that we may assist you in finding the correct warranty for your product. Please include your name, the name on the order, the order number, and the SKU of the product to ensure the quickest and most accurate response to your inquiry.
Description
Description
Overview:

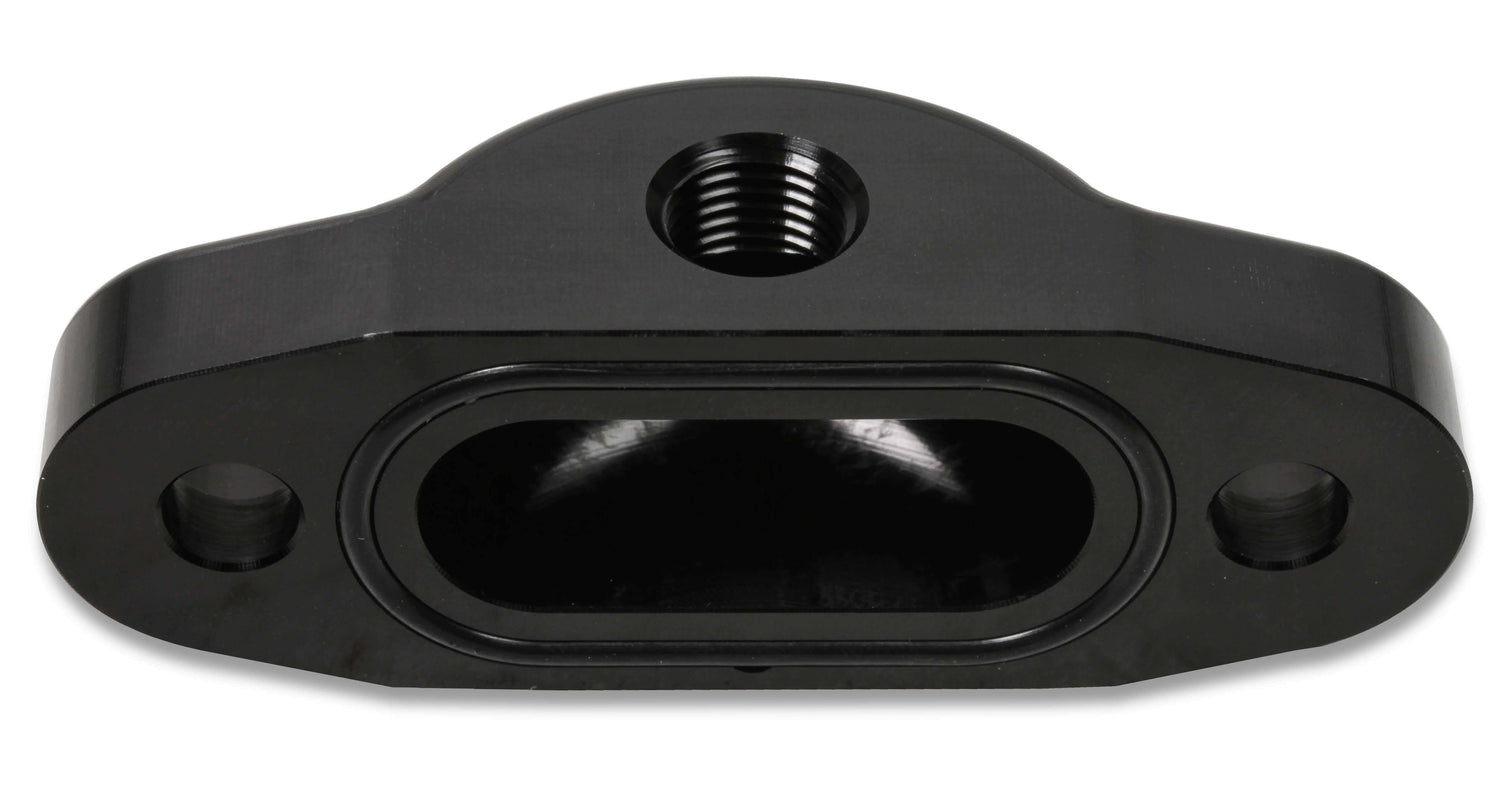

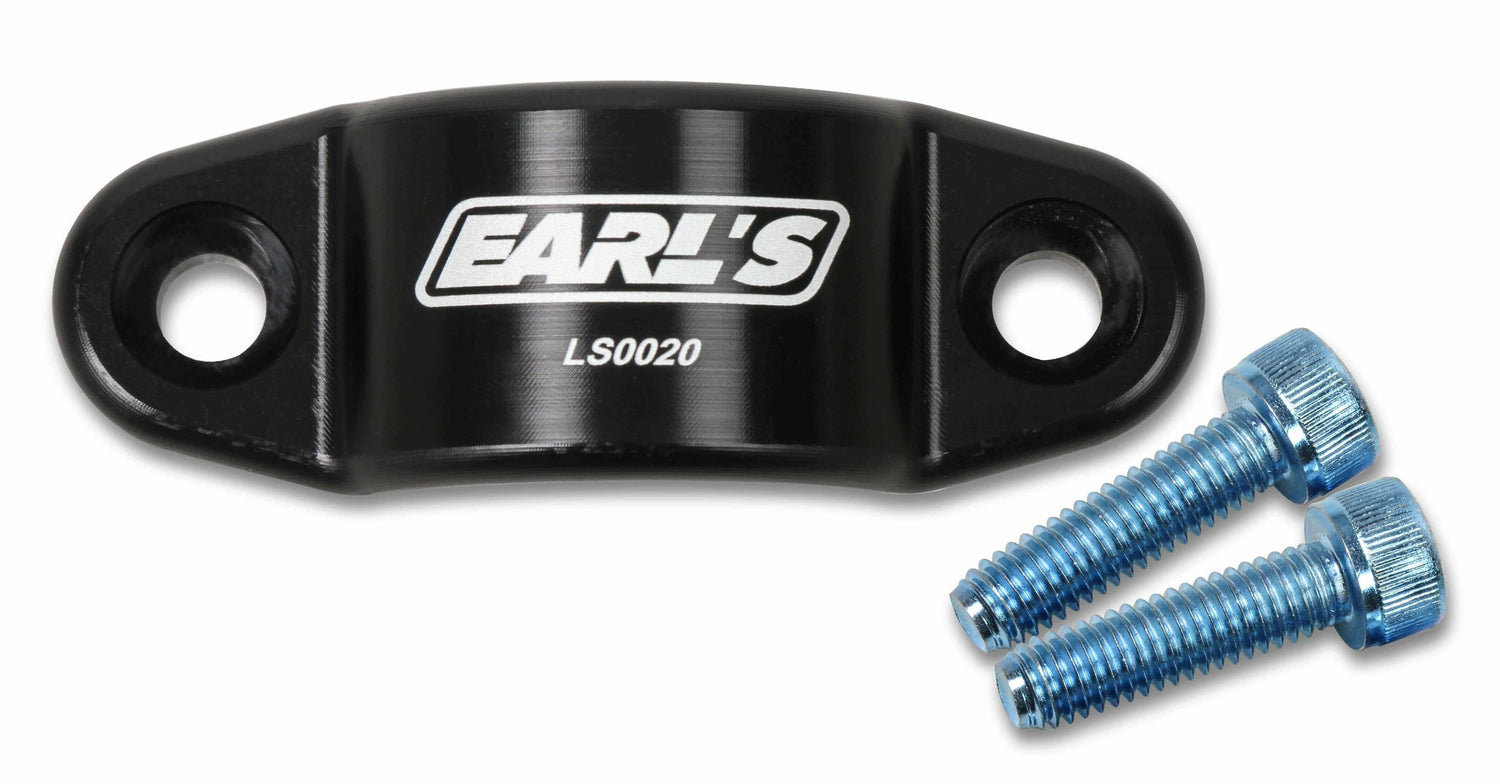

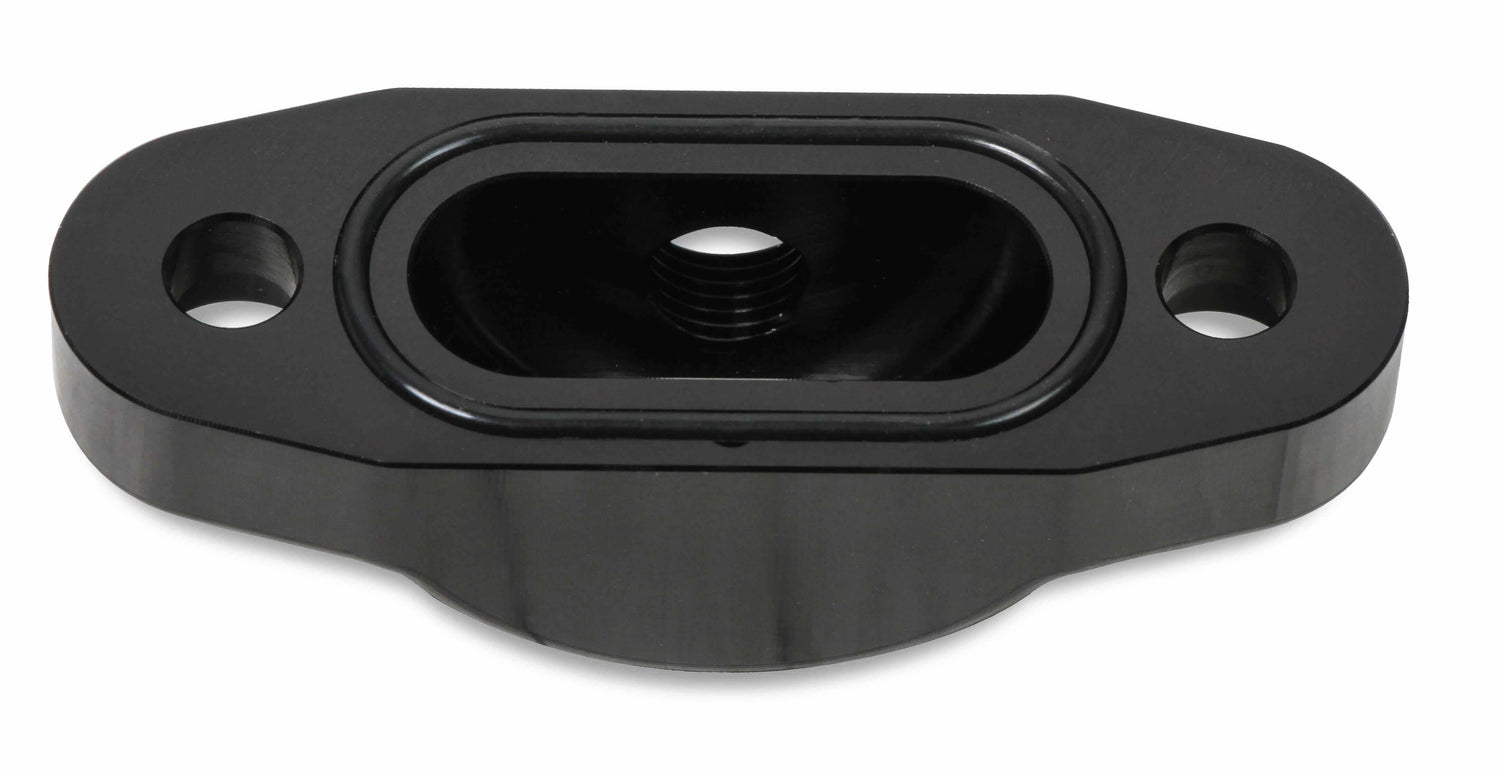

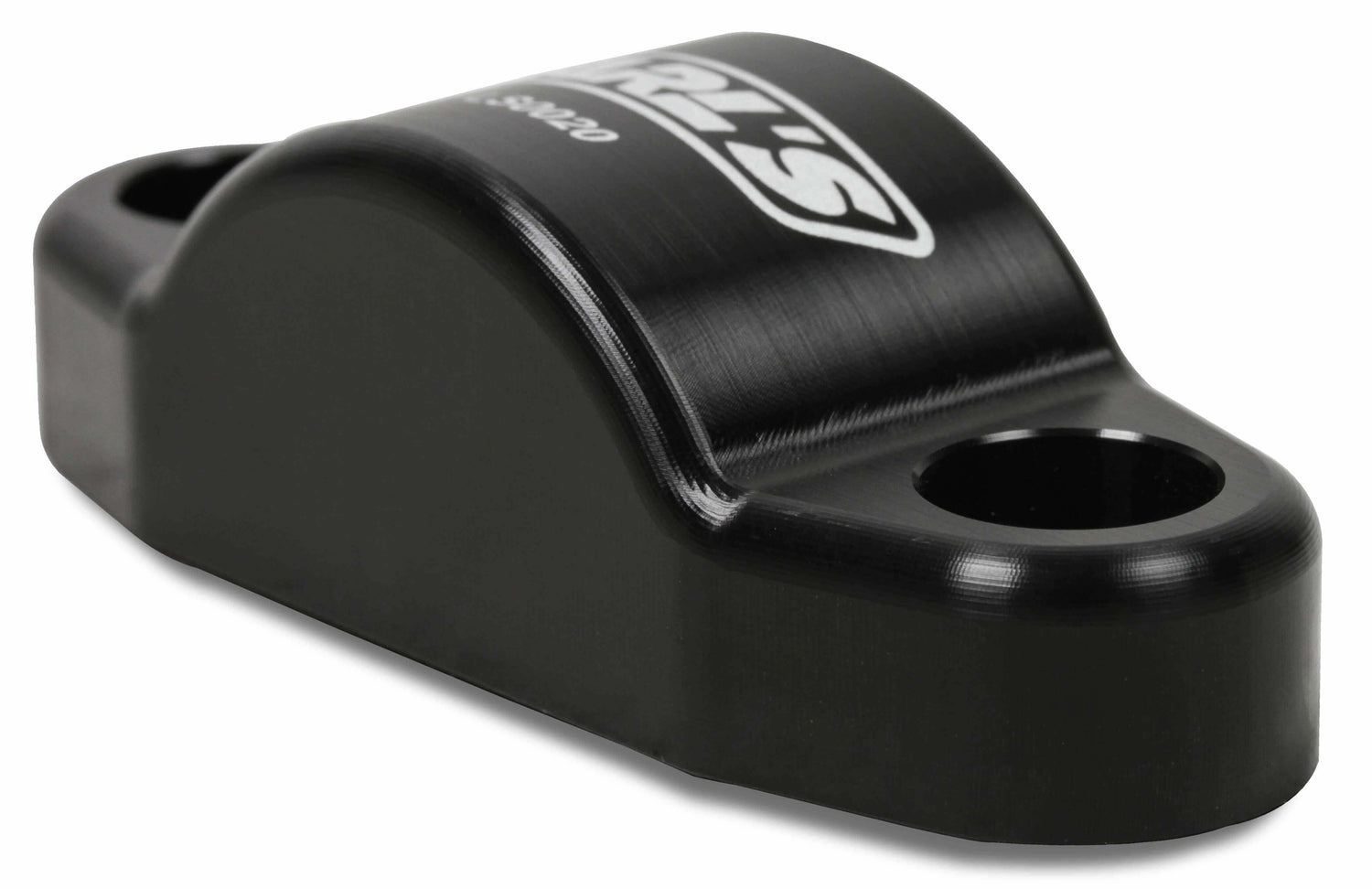

Earl's GM LS Oil Cooler Block-Off is a billet cover that has an extra 1/8" NPT port that can be used for an oil pressure gauge or a turbo oil supply port. The 1/8" port is located on the top for extra header clearance. Includes billet cover, O-ring seal (no gasket required), and mounting hardware. Black anodized finish. Made in the USA.
Features:
- Billet Aluminum w/ Black Anodized Finish
- O-Ring Seal – Doesn’t Require a Gasket
- 1/8” NPT Port That Can Be Used for Oil Pressure Gauge or Turbo Oil Supply Port

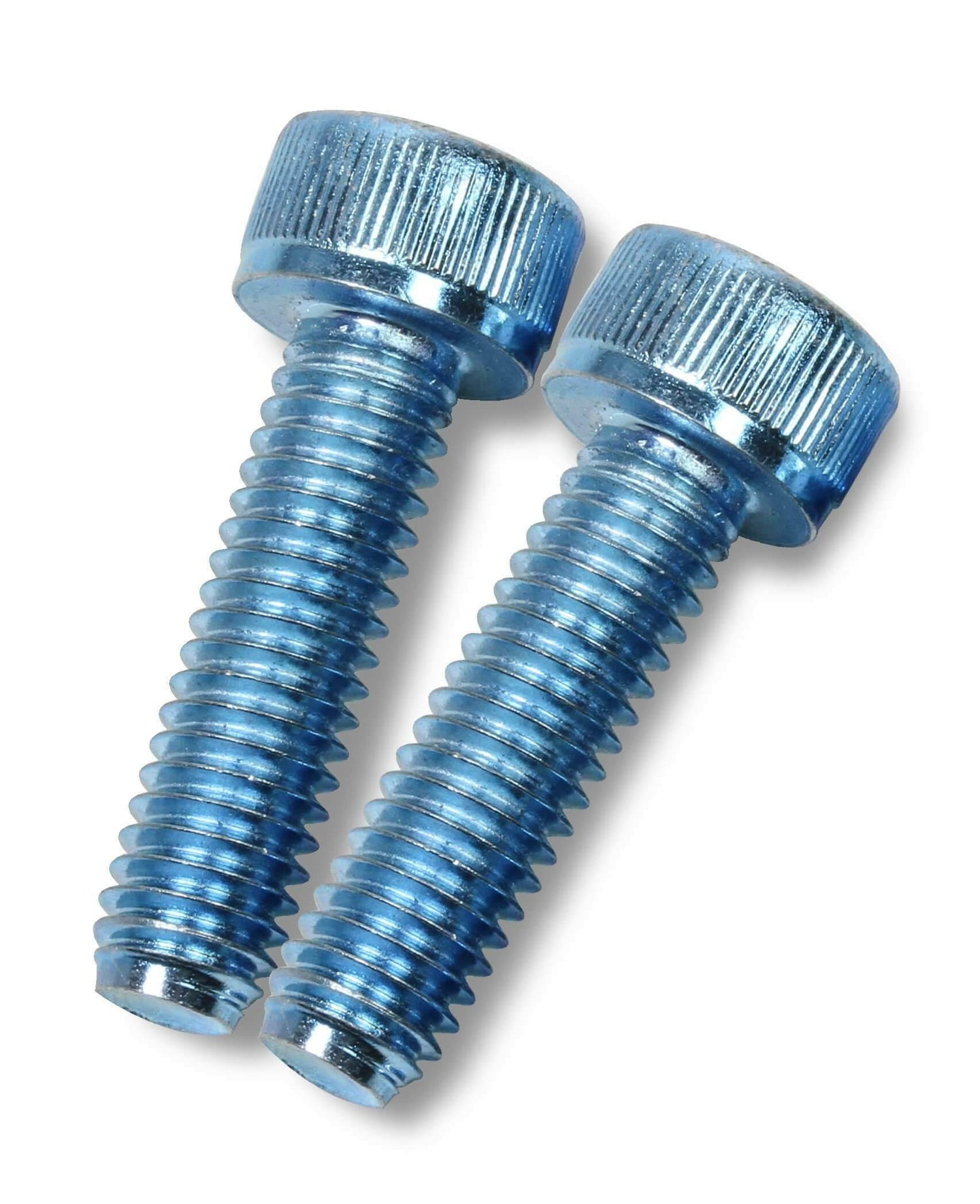

- Includes Block-Off Plate, O-Ring, and Mounting Screws
- Fits Most GM LS Oil Pans
- Made in the USA
Application:
| Year | Make | Model | Submodel | Engine Size |
|---|---|---|---|---|
| 1998 - 2002 | Chevrolet | Camaro | Z28 | 350/5.7 V8 |
| 1998 - 2002 | Chevrolet | Camaro | Z28 SS | 350/5.7 V8 |
| 2001 - 2004 | Chevrolet | Corvette | Base | 350/5.7 V8 |
| 2003 | Chevrolet | Corvette | 50th Anniversary Edition | 350/5.7 V8 |
| 2003 | Chevrolet | Corvette | 50th Anniversary Edition Pace Car | 350/5.7 V8 |
| 2001 - 2004 | Chevrolet | Corvette | Z06 | 350/5.7 V8 |
| 1997 - 2005 | Chevrolet | Corvette | / | |
| 2008 | Chevrolet | Corvette | 427 Limited Edition Z06 | 427/7 V8 |
| 2006 - 2009 | Chevrolet | Trailblazer | SS | 364/6 V8 |
| 2001 - 2004 | Avanti | II | / | |
| 2008 - 2009 | Buick | Allure | Super | 325/5.3 V8 |
| 2008 - 2009 | Buick | LaCrosse | Super | 325/5.3 V8 |
| 2008 - 2013 | Chevrolet | Corvette | Base | 376/6.2 V8 |
| 2006 - 2013 | Chevrolet | Corvette | Z06 | 427/7 V8 |
| 2009 - 2013 | Chevrolet | Corvette | ZR1 | 376/6.2 V8 |
| 2009 | Pontiac | G8 | GXP | 376/6.2 V8 |
| 2006 - 2009 | Chevrolet | Impala | SS | 325/5.3 V8 |
| 2010 - 2015 | Chevrolet | Camaro | SS | 376/6.2 V8 |
| 2010 - 2013 | Chevrolet | Corvette | Grand Sport | 376/6.2 V8 |
| 2011 | Chevrolet | Corvette | Z06 Carbon | 427/7 V8 |
| 2013 | Chevrolet | Corvette | 427 | 427/7 V8 |
| 2014 | Chevrolet | SS | / | |
| 2014 - 2015 | Chevrolet | Camaro | Z/28 | 427/7 V8 |
| 2015 - 2017 | Chevrolet | SS | 376/6.2 V8 | |
| 1998 - 2002 | Pontiac | Firebird | Formula | 350/5.7 V8 |
| 1998 - 2002 | Pontiac | Firebird | Trans Am | 350/5.7 V8 |
| 2004 - 2005 | Cadillac | CTS | V | 346/5.7 V8 |
| 2004 - 2006 | Pontiac | GTO | / | |
| 2005 - 2006 | Chevrolet | SSR | / | |
| 2005 - 2008 | Pontiac | Grand Prix | GXP | 325/5.3 V8 |
| 2006 - 2007 | Cadillac | CTS | V | 364/6 V8 |
| 2006 - 2007 | Chevrolet | Corvette | Base | 364/6 V8 |
| 2006 - 2007 | Chevrolet | Monte Carlo | SS | 325/5.3 V8 |
Specs:
| Adapter Type | Oil Cooler Block-Off |
|---|---|
| Brand | Earls |
| Emission Code | 5 |
| Finish | Anodized Black |
| Material | 6061 Aluminum |
| Port Size | 1/8" NPT |
| Product Line | Premium |
| Product Type | Oil Cooler Block-Off |
