Earl's Performance | SKU:
230512ERL
Earls UltraPro Ball Valve -12 AN Male to Male - 230512ERL
$205.95 USD
Unit price
/
Unavailable
Earls UltraPro Ball Valve -12 AN Male to Male - 230512ERL is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Fitment
Fitment
Warranty Information
Warranty Information
Customer service is our top priority and because we value your time and energy we ask you to visit our Contact Us page and reach out so that we may assist you in finding the correct warranty for your product. Please include your name, the name on the order, the order number, and the SKU of the product to ensure the quickest and most accurate response to your inquiry.
Description
Description
Overview:

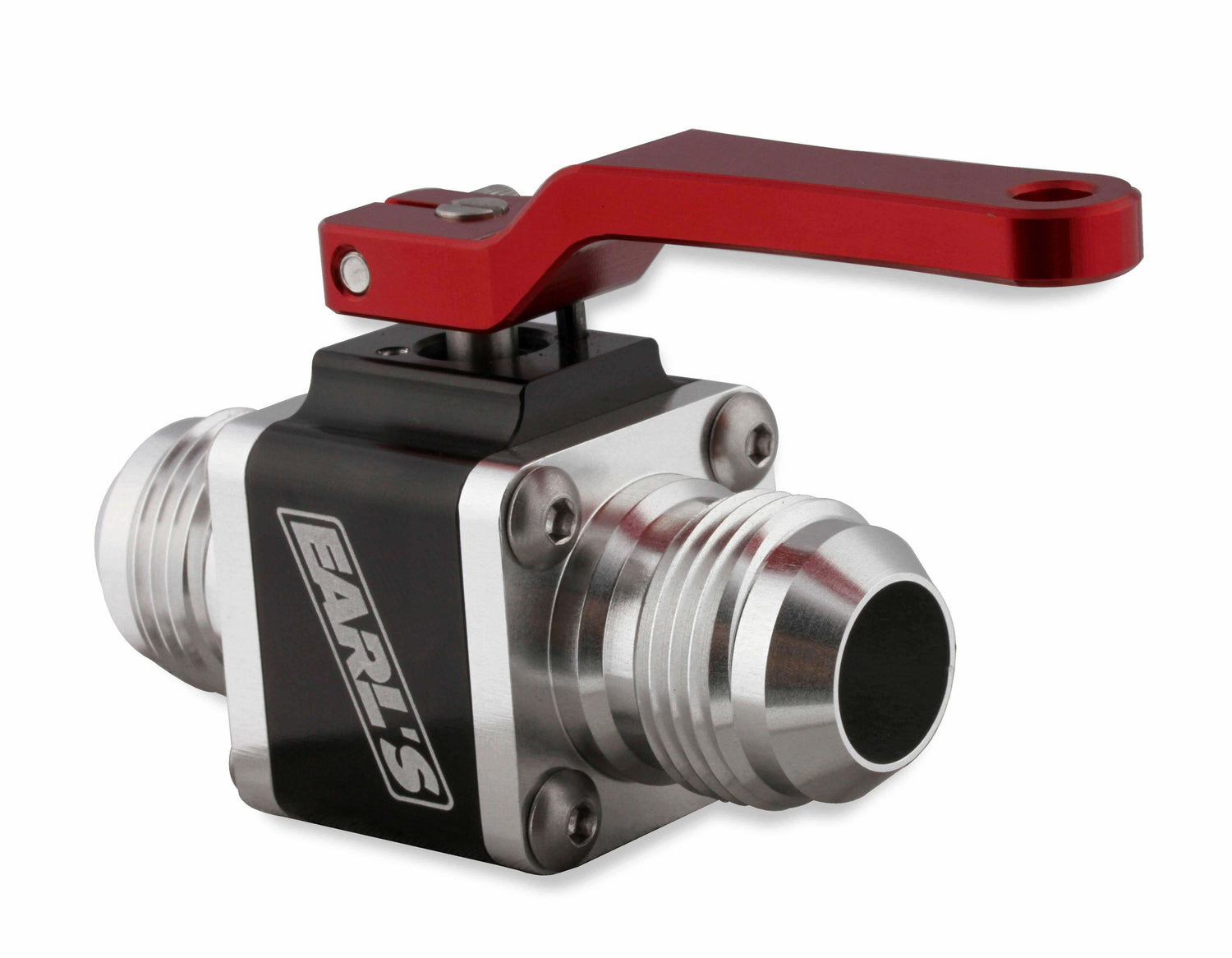

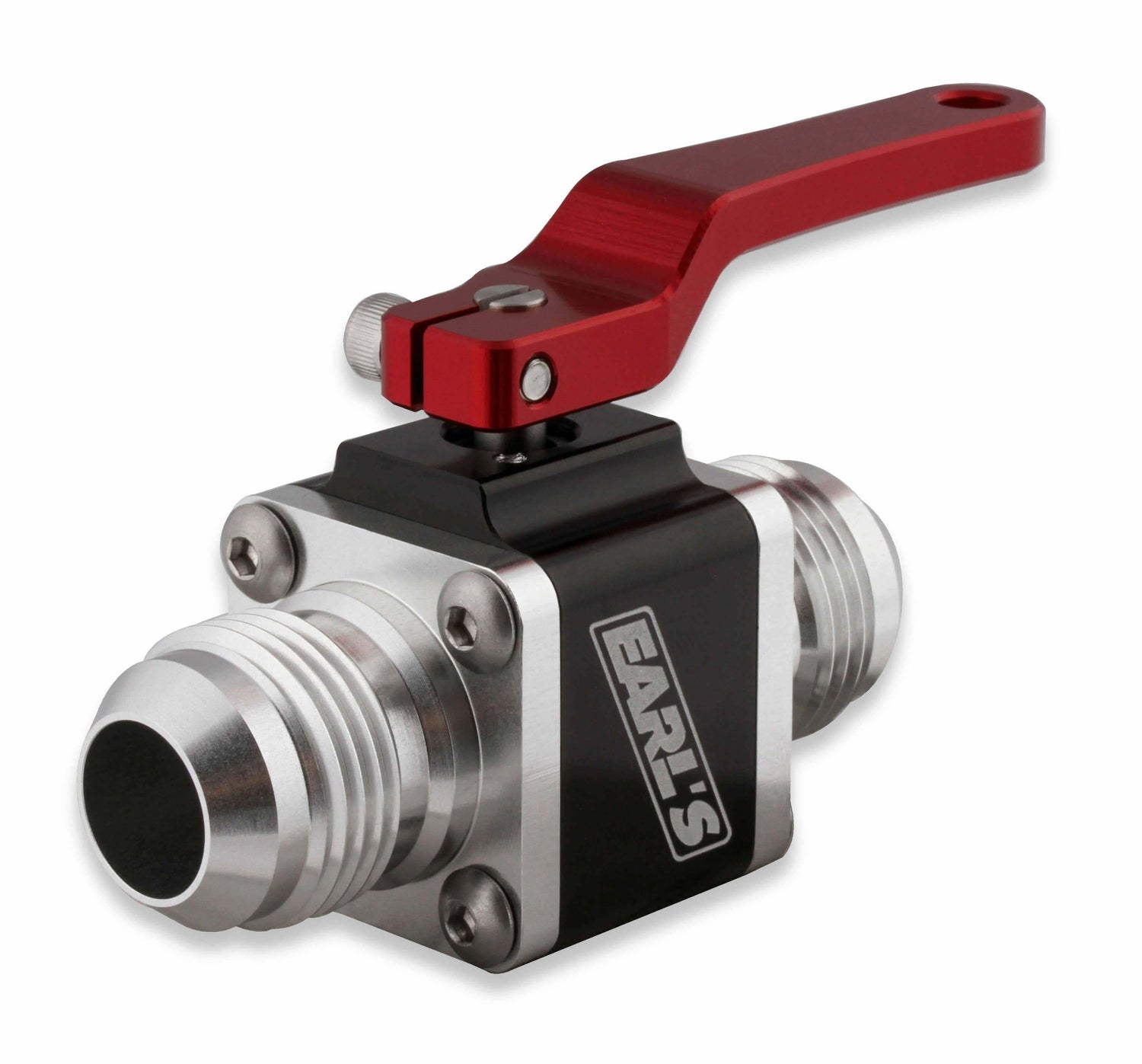

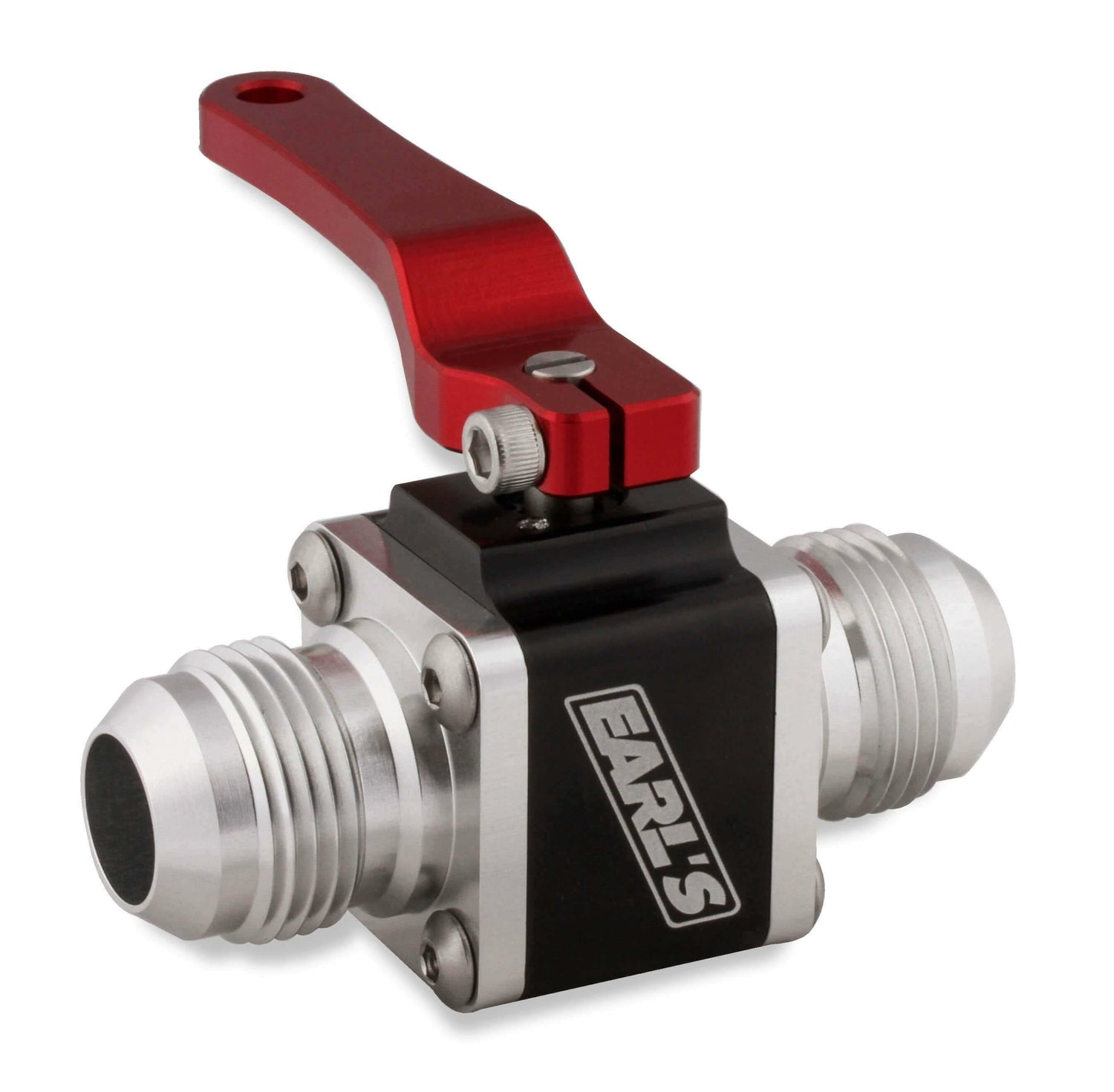

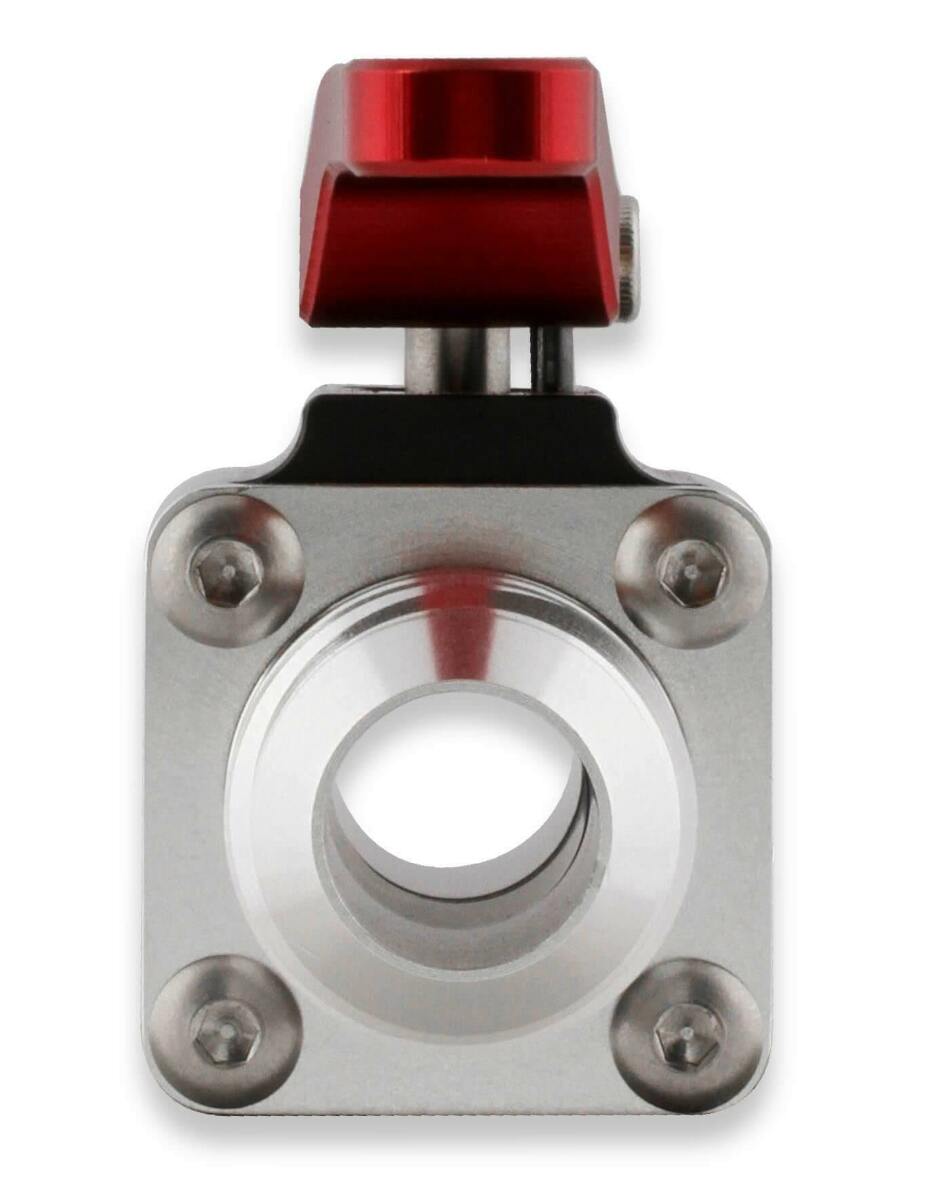

Earl's UltraPro ball valves are ideal for all racing applications & provide full uninterrupted flow when opened. The lightweight modular design is easy to rebuild and can be panel mounted using optional billet mounting brackets. The glass reinforced PTFE seals are compatible with gasoline, racing fuels, methanol, alcohol, E85, oil, water & coolant. The small body valves are available in -6 & -8 AN sizes, and the large body valves are available in -10 & -12 AN sizes (choose from male/male, or male/female styles). Attractive clear & black anodized finish w/ red handle. The handle features a 1/4" hole for cable operation & is curved outward from the body for easy operation w/ extra finger clearance (even w/ racing gloves). These racing ball valves are ideal for use in most fuel and oil systems (i.e. fuel shut-off valves, oil accumulators/accusump™ systems, and many other applications).Features:
- Light Weight Aluminum Billet Construction – 6061-T6 Aluminum & Stainless Steel Components
- Hard Coated PTFE Aluminum Ball
- Design Provides Full Uninterrupted Flow When Opened
- Finish: Anodized in Clear & Black w/ Red Handle
- Glass Reinforced PTFE Seals – Compatible w/ Methanol, Alcohol, Race Gas, Pump Gas, E85, Bio-Fuels, Diesel, Oil, ATF, and Coolant
- Small Body in -6 & -8 AN Sizes – Overall Dimensions: 2.73” Long x 1.05” Wide x 1.78” Tall
- Large Body in -10 & -12 AN Sizes – Overall Dimensions: 3.25” Long x 1.45” Wide x 2.42” Tall
- Choose from Male/Male, or Male/Female Styles

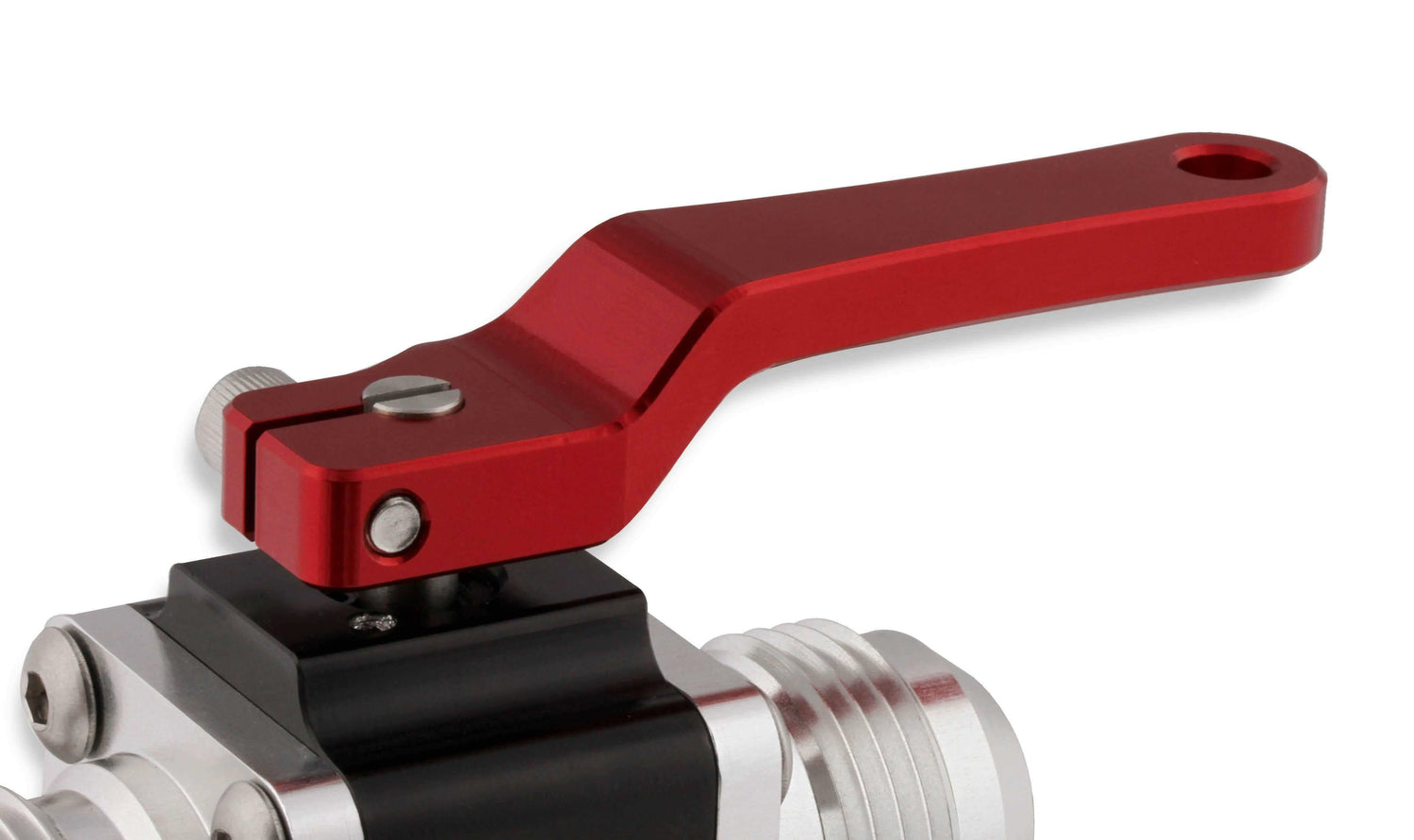

- Curved Handle Provides Extra Finger Clearance – Even w/ Racing Gloves
- Easy Panel Mounting w/ Optional Mounting Brackets (Clockable Every 90 Degrees)
- Maximum Recommended Working Pressure: 200 PSI
- Clamshell Packaging – Ideal for Retail Display
- Ideal for All Racing Applications – Including Fuel & Oil Systems
Application:
| Year | Make | Model | Submodel | Engine Size |
|---|---|---|---|---|
| Universal |
Specs:
| Adapter AN Size ( A ) | 12 AN MALE |
|---|---|
| Adapter AN Size ( B ) | 12 AN MALE |
| Adapter Type | Shut-Off Valve |
| Ball Material | Aluminum w/ Hard PTFE Coating |
| Brand | Earls |
| Emission Code | 5 |
| Finish | Anodized Clear, Black & Red |
| Fluid Type | Automatic Transmission Fluid |
| Fluid Type | Bio-Fuels |
| Fluid Type | Coolant |
| Fluid Type | Diesel |
| Fluid Type | E85 |
| Fluid Type | Methanol/Alcohol |
| Fluid Type | Oil |
| Fluid Type | Pump Gas |
| Fluid Type | Race Gas |

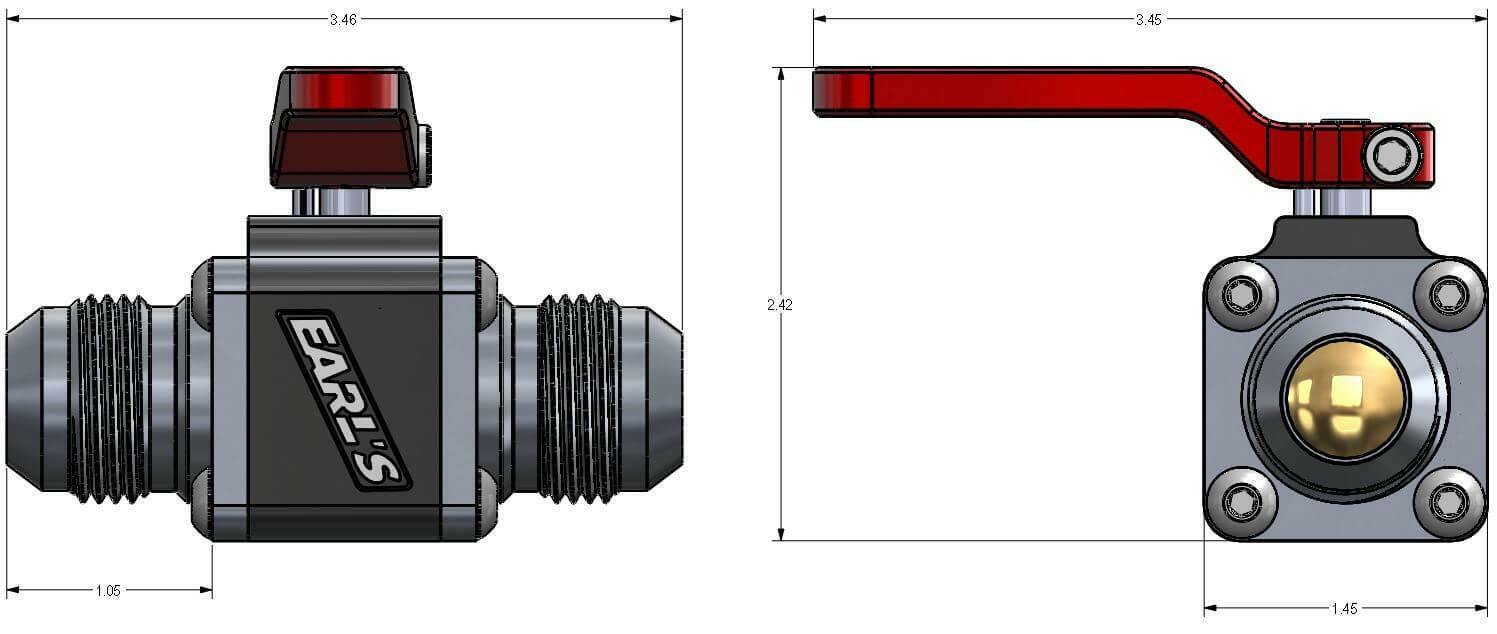

| Height | 2.42" |
| Material | 6061 Aluminim |
| Max Working PSI | 200 PSI |
| Overall Length | 3.46" |
| Product Type | UltraPro Ball Valve |
| Seal Material | Glass Reinforced PTFE |
| Size | Large Body |
| Warning | California Proposition 65 |
| Width | 1.45" |
| Width - With Handle | 3.45" |
