Holley | SKU: 553-109

Holley EFI Digital Dash Standalone Kits 553-109

Name: Holley EFI Digital Dash Standalone Kits 553-109
Brand: Holley
SKU: 553-109
Price: 1301.95 USD
Availability: InStock

$1,301.95 USD

Fitment

Delivery and Shipping

Same day shipping, if ordered by 9:00 AM ET M-F

*Select products are made to order and ship within 4 business days.

Warranty Information

Customer service is our top priority and because we value your time and energy we ask you to visit our Contact Us page and reach out so that we may assist you in finding the correct warranty for your product. Please include your name, the name on the order, the order number, and the SKU of the product to ensure the quickest and most accurate response to your inquiry.

Description

HOLLEY STAND ALONE DIGITAL DASH

Have you been looking for a dash solution for your vehicle, but just cannot find anything you like or that is cost effective? No need to look any further as Holley has created a full color touch screen dash that includes sensors for monitoring basic engine parameters as well as a GPS speedometer all in a cost effective package! Holley's stand-alone digital dash has great features such as; a weather resistant aluminum housing for durability, multiple gauge and indicator type selections, customizable screen and gauge layouts and a virtual switch panel just to name a few. With the integrated 3 axis accelerometer and data-logging, the dash is ideal for anything from a JR dragster to Sportsman racing. It is also equally at home in a daily driver, or a show winning roadster.

Features:

Compact, customizable dash for use in a variety of applications

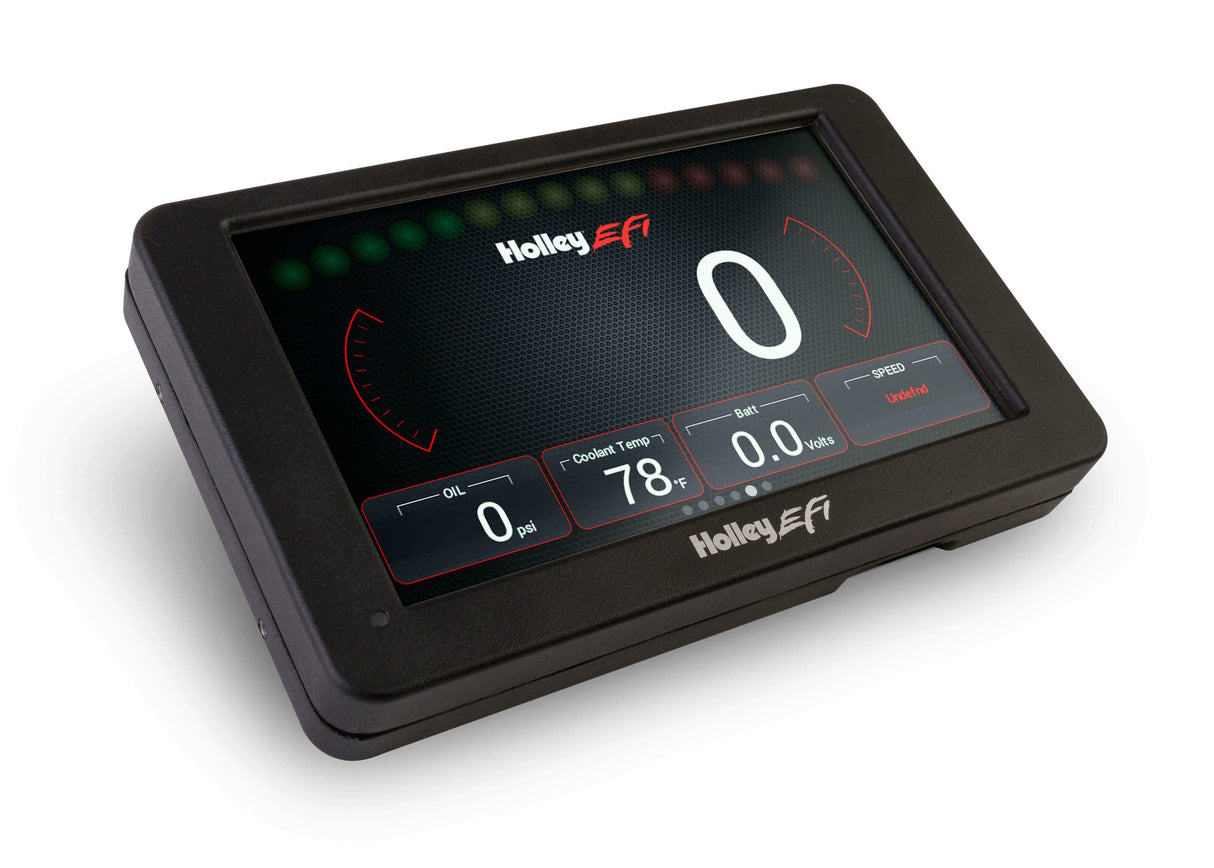

7” low glare, high brightness, high contrast, full color touch screen for easy viewing even in full sun
800x480 resolution with auto brightness and dimming
Operating voltage min 8V - 20V
Includes USB GPS for Speedometer display with a magnetic base for a quick and clean install
Weather resistant aluminum housing with flexible mounting options
Completely customizable layouts, with multiple default configurations to get you running in no time!
Multiple gauge & indicator types with limitless customization options
Quickly toggle between multiple active screens (tune, warm-up, race, drive, etc.)
Virtual Switch Panel (replaces the need for physical switches) *2 switched ground outputs to be added to trigger an external relay*
Retains the same gauge customization flexibility as the EFI dash, but now allows use with any vehicle
Powerful data log software provides in-depth analysis (10 samples/sec) of all inputs and outputs, including the integrated 3 axis accelerometer and USB GPS-no need for separate data logging boxes
Built in Data logging playback allows you to view your last run on the fly
A variety of additional sensors are available for use with the dash, including fuel pressure, nitrous pressure, boost, with more to come!
Pair with a Holley EFI LED Light Bar (PN 553-107) for a truly customizable solution!
User definable warnings for any input
Configurable progressive shift lights and light bar
Expandable internal storage on micro SD card
Free Software and Firmware upgrades, providing a future proof display solution

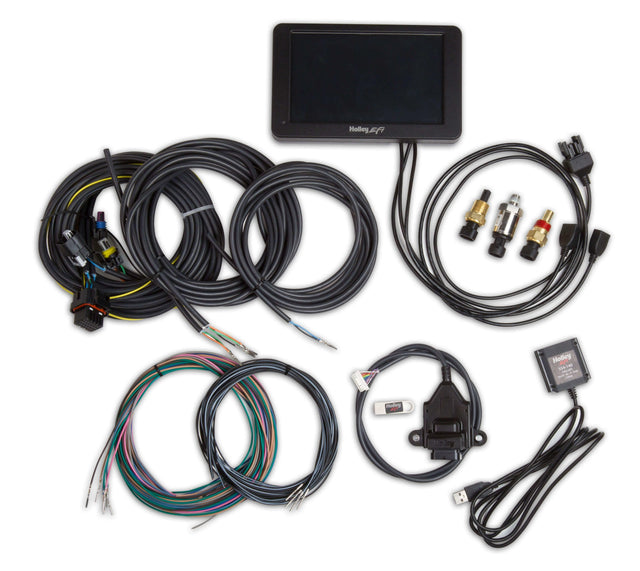

Included parts: Standalone digital dash kit with I/O adapter, USB memory stick, terminated vehicle harness, oil pressure sensor, CTS sensor, MAT sensor, USB GPS

Application

Universal

Specs

Brand	Holley EFI
Depth	1"
Emission Code	5
Height	4.625"
Product Type	EFI Part
Screen Size	7" Diagonal
Screen Type	Resistive touch screen
Width	7.5"
Part Number	553-109
