Mr. Gasket | SKU:
7704MRG

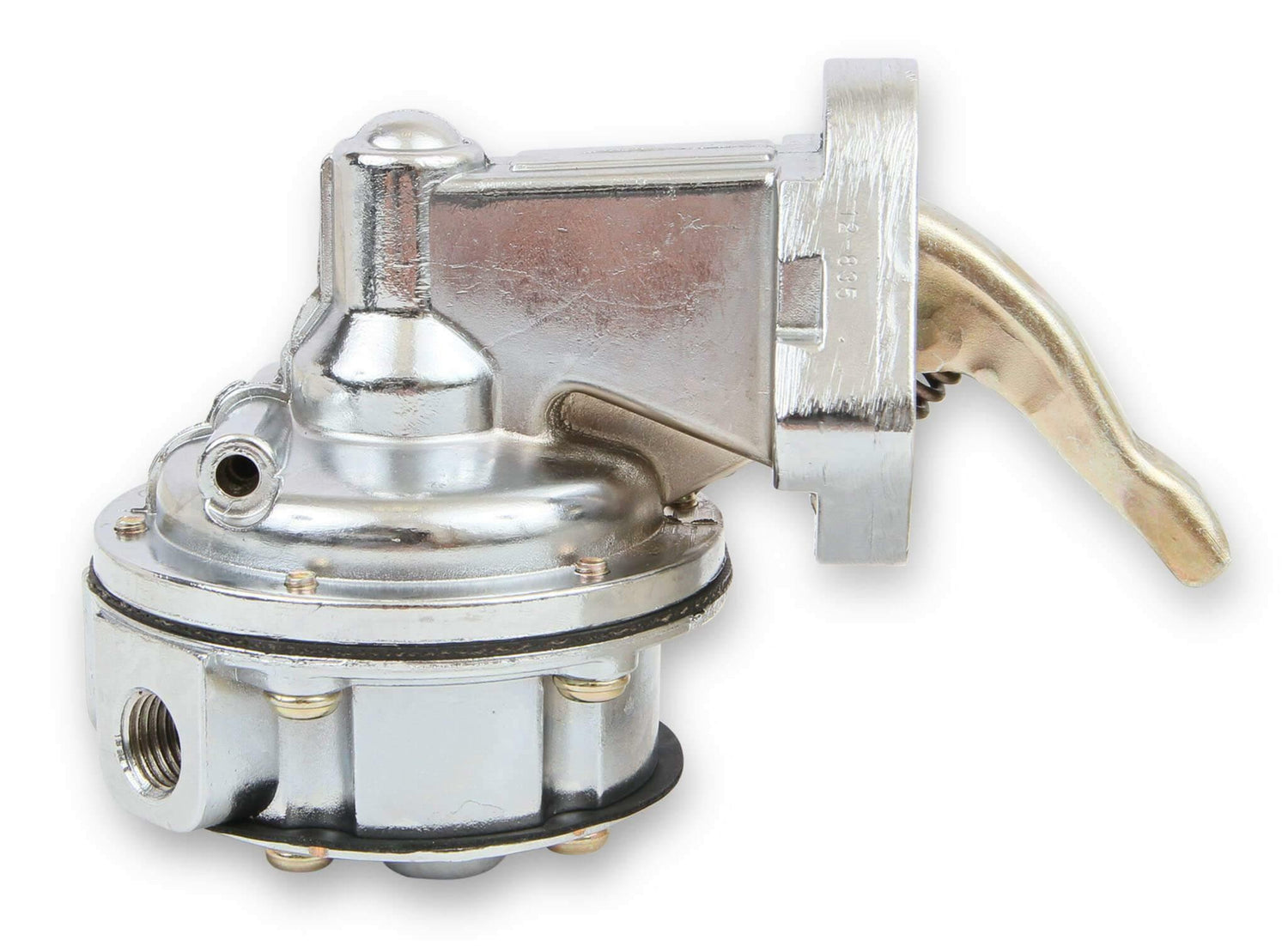

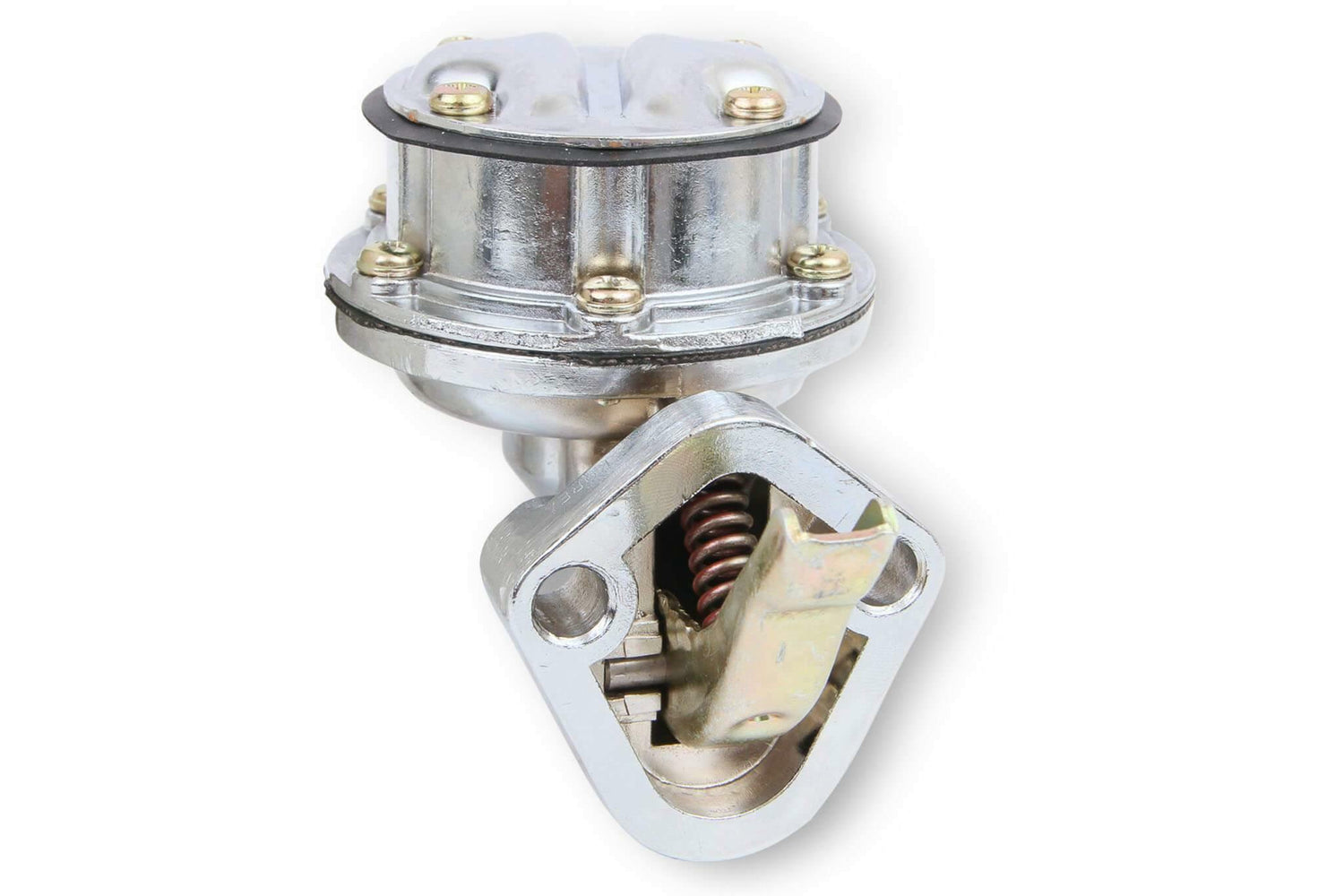

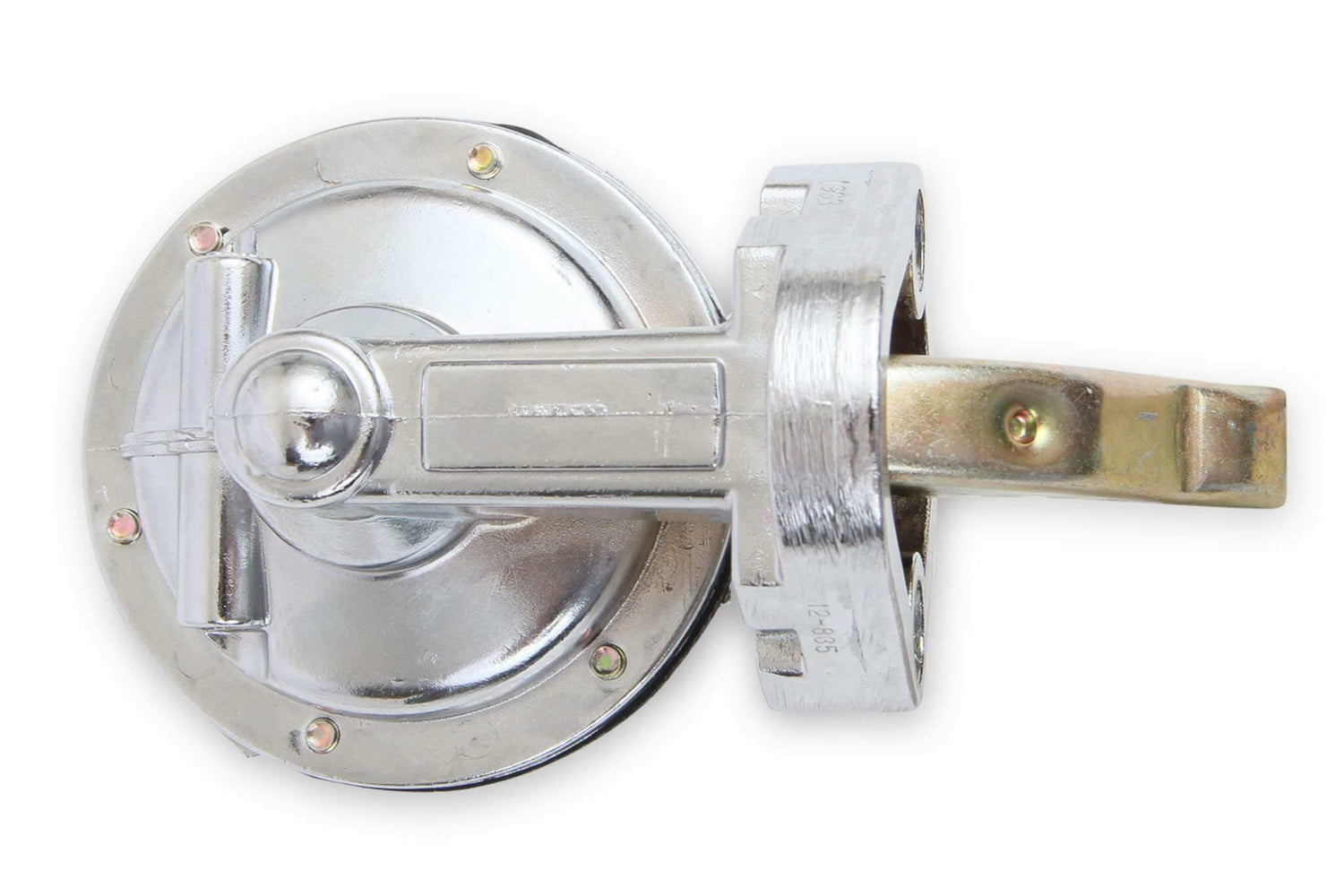

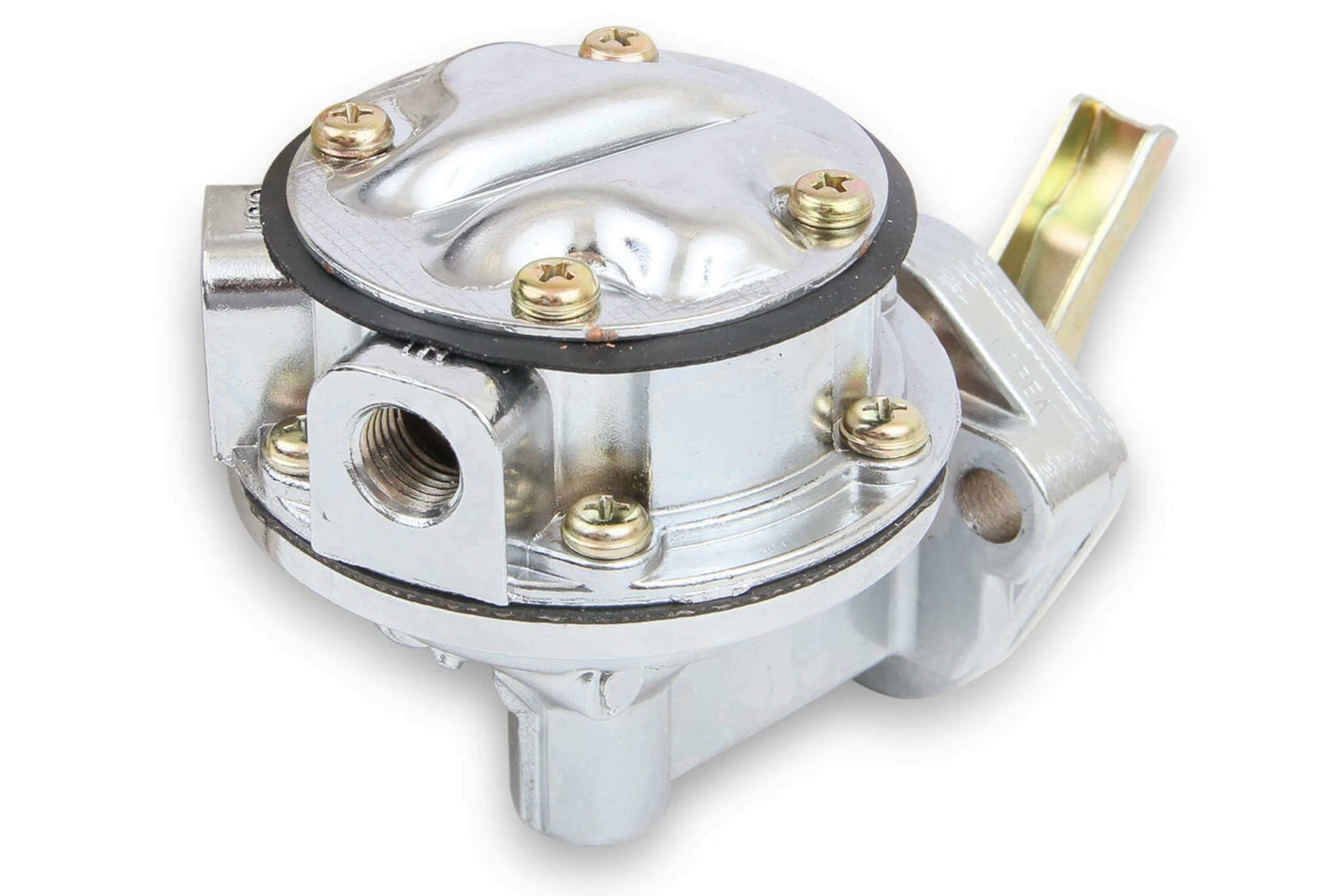

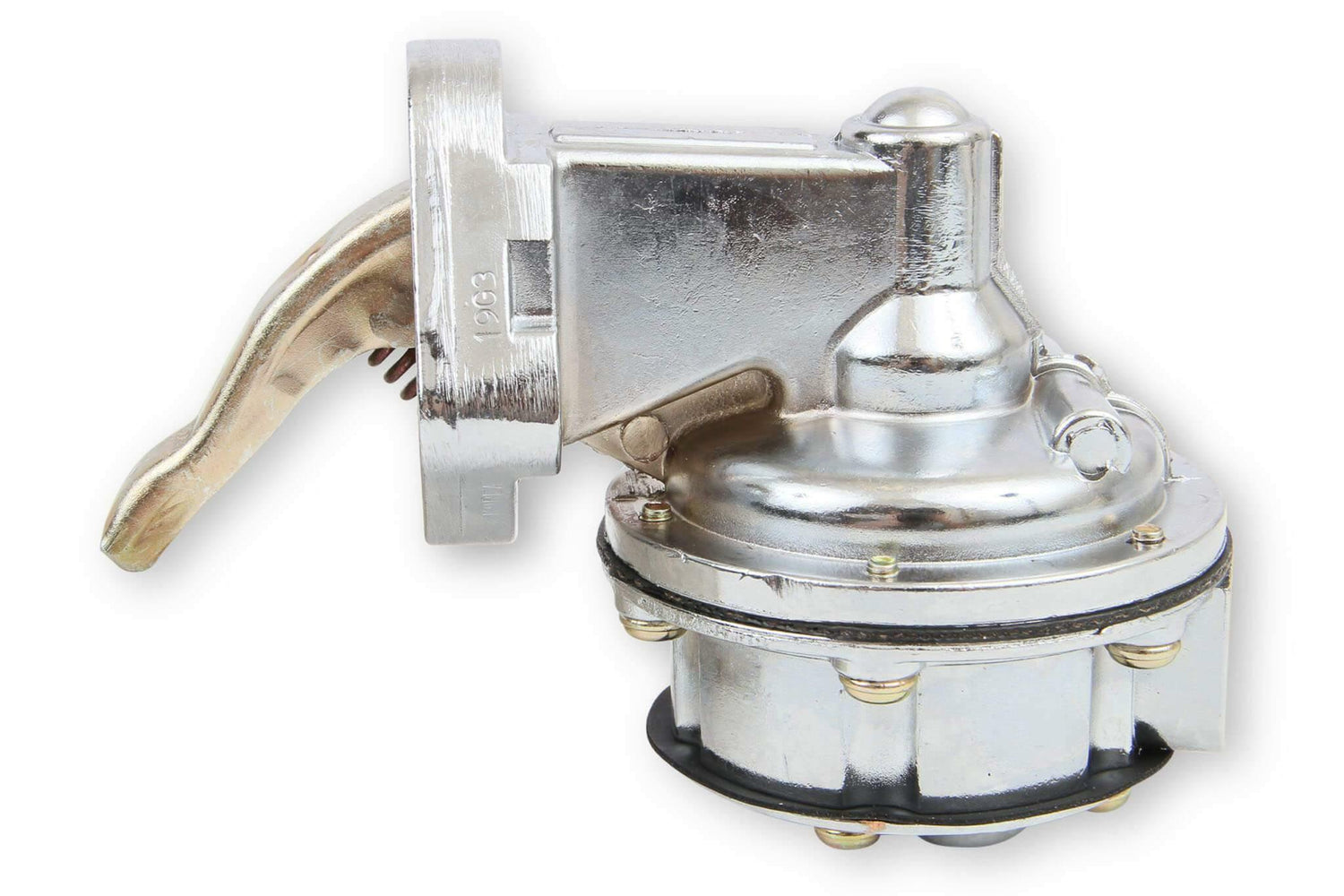

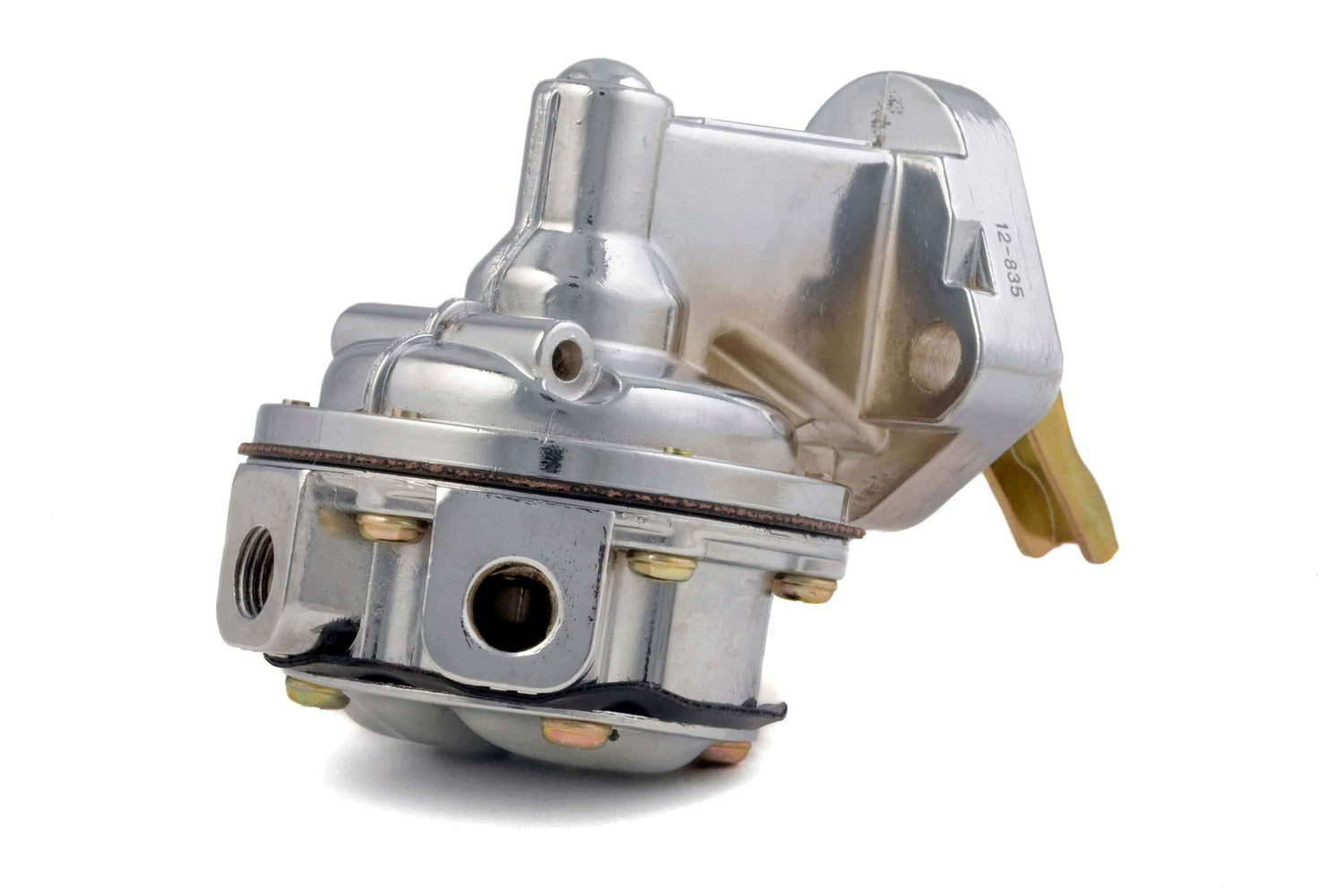

Mr. Gasket 80 GPH Mechanical Fuel Pump - 7704MRG
$107.05 USD
Unit price
/
Unavailable
Mr. Gasket 80 GPH Mechanical Fuel Pump - 7704MRG is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Fitment
Fitment
Delivery and Shipping
Delivery and Shipping
Same day shipping, if ordered by 9:00 AM ET M-F
*Select products are made to order and ship within 4 business days.
Warranty Information
Warranty Information
Customer service is our top priority and because we value your time and energy we ask you to visit our Contact Us page and reach out so that we may assist you in finding the correct warranty for your product. Please include your name, the name on the order, the order number, and the SKU of the product to ensure the quickest and most accurate response to your inquiry.
Description
Description
Overview:
Mr. Gasket mechanical fuel pumps range from 80 to 110 GPH (gallons per hour) in many various applications to cover most Chevrolet, Ford, Chrysler and Pontiac V-8 engines. Suitable for street use and high output racing applications when a mechanical pump is desired or required.
Features:
- Street Performance
- Flows 80 GPH free flow
- Shutoff pressure pre-set at 7.5 PSI
- Fuel pressure regulator is not required due to built-in shutoff
- Heavy duty construction for continuous high rpm operation
- Lower pump body can be clocked in different positions to tailor to your specific orientation needs
- Inlet & outlet tapped for 1/4" NPT
Application:
| Year | Make | Model | Submodel | Engine Size |
|---|---|---|---|---|
| 1973 - 1974 | Chevrolet | Blazer | 454/7.4 V8 | |
| 1969 | Chevrolet | Brookwood | 396/6.5 V8 | |
| 1969 | Chevrolet | Brookwood | 427/7 V8 | |
| 1970 - 1972 | Chevrolet | Brookwood | 454/7.4 V8 | |
| 1970 - 1972 | Chevrolet | Brookwood | 402/6.6 V8 | |
| 1968 - 1969 | Chevrolet | C10 Pickup | 396/6.5 V8 | |
| 1970 - 1972 | Chevrolet | C10 Pickup | 402/6.6 V8 | |
| 1973 - 1974 | Chevrolet | C10 Pickup | 454/7.4 V8 | |
| 1968 - 1969 | Chevrolet | C10 Suburban | 396/6.5 V8 | |
| 1970 - 1972 | Chevrolet | C10 Suburban | 402/6.6 V8 | |
| 1973 - 1980 | Chevrolet | C10 Suburban | 454/7.4 V8 | |
| 1968 - 1969 | Chevrolet | C20 Pickup | 396/6.5 V8 | |
| 1970 - 1972 | Chevrolet | C20 Pickup | 402/6.6 V8 | |
| 1973 - 1974 | Chevrolet | C20 Pickup | 454/7.4 V8 | |
| 1968 - 1969 | Chevrolet | C20 Suburban | 396/6.5 V8 | |
| 1970 - 1972 | Chevrolet | C20 Suburban | 402/6.6 V8 | |
| 1973 - 1986 | Chevrolet | C20 Suburban | 454/7.4 V8 | |
| 1968 - 1969 | Chevrolet | C30 Pickup | 396/6.5 V8 | |
| 1970 - 1972 | Chevrolet | C30 Pickup | 402/6.6 V8 | |
| 1973 - 1974 | Chevrolet | C30 Pickup | 454/7.4 V8 | |
| 1967 - 1969 | Chevrolet | Camaro | 396/6.5 V8 | |
| 1969 | Chevrolet | Camaro | 427/7 V8 | |
| 1970 - 1972 | Chevrolet | Camaro | 402/6.6 V8 | |
| 1966 - 1969 | Chevrolet | Caprice | 396/6.5 V8 | |
| 1966 - 1969 | Chevrolet | Caprice | 427/7 V8 | |
| 1977 - 1986 | Chevrolet | K30 | 454/7.4 V8 | |
| 1973 - 1975 | Chevrolet | Laguna | 454/7.4 V8 | |
| 1973 - 1975 | Chevrolet | Malibu | 454/7.4 V8 | |
| 1970 - 1975 | Chevrolet | Monte Carlo | 454/7.4 V8 | |
| 1987 - 1988 | Chevrolet | R30 | 454/7.4 V8 | |
| 1989 | Chevrolet | R3500 | 454/7.4 V8 | |
| 1987 - 1988 | Chevrolet | V30 | 454/7.4 V8 | |
| 1989 | Chevrolet | V3500 | 454/7.4 V8 | |
| 1975 - 1978 | GMC | C15 | 454/7.4 V8 | |
| 1979 - 1980 | GMC | C1500 | 454/7.4 V8 | |
| 1975 - 1978 | GMC | C15 Suburban | 454/7.4 V8 | |
| 1979 - 1980 | GMC | C1500 Suburban | 454/7.4 V8 | |
| 1975 - 1978 | GMC | C25 | 454/7.4 V8 | |
| 1979 - 1986 | GMC | C2500 | 454/7.4 V8 | |
| 1975 - 1978 | GMC | C25 Suburban | 454/7.4 V8 | |
| 1979 - 1986 | GMC | C2500 Suburban | 454/7.4 V8 | |
| 1968 - 1969 | Chevrolet | K30 Pickup | 396/6.5 V8 | |
| 1973 - 1985 | Chevrolet | K20 Suburban | 454/7.4 V8 | |
| 1973 - 1974 | Chevrolet | K30 Pickup | 454/7.4 V8 | |
| 1970 - 1972 | Chevrolet | K30 Pickup | 402/6.6 V8 | |
| 1970 - 1975 | Chevrolet | Bel Air | 454/7.4 V8 | |
| 1976 - 1978 | Chevrolet | K5 Blazer | 454/7.4 V8 | |
| 1975 - 1980 | Chevrolet | C10 | 454/7.4 V8 | |
| 1975 - 1986 | Chevrolet | C20 | 454/7.4 V8 | |
| 1975 - 1986 | Chevrolet | C30 | 454/7.4 V8 | |
| 1970 - 1976 | Chevrolet | Caprice | 454/7.4 V8 | |
| 1970 - 1975 | Chevrolet | El Camino | 454/7.4 V8 | |
| 1976 | Chevrolet | G20 | 454/7.4 V8 | |
| 1975 - 1976 | Chevrolet | G30 | 454/7.4 V8 | |
| 1970 - 1976 | Chevrolet | Impala | 454/7.4 V8 | |
| 1976 - 1980 | Chevrolet | K10 | 454/7.4 V8 | |
| 1976 - 1978 | Chevrolet | K20 | 454/7.4 V8 | |
| 1968 - 1969 | GMC | K15/K1500 Pickup | 396/6.5 V8 | |
| 1970 - 1972 | GMC | K15/K1500 Suburban | 402/6.6 V8 | |
| 1970 - 1972 | GMC | K15/K1500 Pickup | 402/6.6 V8 | |
| 1968 - 1969 | GMC | K15/K1500 Suburban | 396/6.5 V8 | |
| 1973 - 1974 | GMC | K15/K1500 Suburban | 454/7.4 V8 | |
| 1970 - 1972 | GMC | K25/K2500 Pickup | 402/6.6 V8 | |
| 1968 - 1969 | GMC | K25/K2500 Pickup | 396/6.5 V8 | |
| 1973 - 1974 | GMC | K25/K2500 Pickup | 454/7.4 V8 | |
| 1968 - 1969 | GMC | K25/K2500 Suburban | 396/6.5 V8 | |
| 1970 - 1972 | GMC | K25/K2500 Suburban | 402/6.6 V8 | |
| 1973 - 1974 | GMC | K25/K2500 Suburban | 454/7.4 V8 | |
| 1968 - 1969 | GMC | K35/K3500 Pickup | 396/6.5 V8 | |
| 1970 - 1972 | GMC | K35/K3500 Pickup | 402/6.6 V8 | |
| 1973 - 1974 | GMC | K35/K3500 Pickup | 454/7.4 V8 | |
| 1971 - 1975 | GMC | Sprint | 454/7.4 V8 | |
| 1971 - 1975 | GMC | Sprint | 402/6.6 V8 | |
| 1968 - 1969 | Pontiac | Acadian | 396/6.5 V8 | |
| 1970 - 1971 | Pontiac | Acadian | 454/7.4 V8 | |
| 1969 - 1970 | Chevrolet | Nova | 396/6.5 V8 | |
| 1965 - 1969 | Pontiac | Beaumont | 396/6.5 V8 | |
| 1966 - 1969 | Pontiac | Laurentian | 396/6.5 V8 | |
| 1966 - 1969 | Pontiac | Parisienne | 396/6.5 V8 | |
| 1965 - 1969 | Pontiac | Strato-Chief | 396/6.5 V8 | |
| 1969 | Chevrolet | Estate | 427/7 V8 | |
| 1970 | Chevrolet | Estate | 402/6.6 V8 | |
| 1970 | Pontiac | Laurentian | 454/7.4 V8 | |
| 1969 | Chevrolet | Estate | 396/6.5 V8 | |
| 1970 | Pontiac | Parisienne | 454/7.4 V8 | |
| 1970 | Pontiac | Strato-Chief | 454/7.4 V8 | |
| 1970 | Chevrolet | Estate | 454/7.4 V8 | |
| 1969 | Chevrolet | Kingswood | 396/6.5 V8 | |
| 1969 | Chevrolet | Kingswood | 427/7 V8 | |
| 1970 - 1972 | Chevrolet | Kingswood | 454/7.4 V8 | |
| 1970 - 1972 | Chevrolet | Kingswood | 402/6.6 V8 | |
| 1965 - 1967 | Chevrolet | Malibu | 396/6.5 V8 | |
| 1970 - 1972 | Chevrolet | Monte Carlo | 402/6.6 V8 | |
| 1970 - 1972 | Chevrolet | Nova | 402/6.6 V8 | |
| 1970 - 1971 | Chevrolet | Nova | 454/7.4 V8 | |
| 1969 | Chevrolet | Townsman | 396/6.5 V8 | |
| 1969 | Chevrolet | Townsman | 427/7 V8 | |
| 1970 - 1972 | Chevrolet | Townsman | 454/7.4 V8 | |
| 1970 - 1972 | Chevrolet | Townsman | 402/6.6 V8 | |
| 1970 - 1972 | GMC | C15/C1500 Pickup | 402/6.6 V8 | |
| 1975 - 1978 | GMC | C35 | 454/7.4 V8 | |
| 1979 - 1986 | GMC | C3500 | 454/7.4 V8 | |
| 1975 - 1976 | GMC | G25 | 454/7.4 V8 | |
| 1976 | GMC | G35 | 454/7.4 V8 | |
| 1973 - 1976 | GMC | Jimmy | 454/7.4 V8 | |
| 1976 | GMC | K15 | 454/7.4 V8 | |
| 1980 | GMC | K1500 | 454/7.4 V8 | |
| 1976 - 1978 | GMC | K25 | 454/7.4 V8 | |
| 1976 - 1977 | GMC | K25 Suburban | 454/7.4 V8 | |
| 1979 - 1986 | GMC | K3500 | 454/7.4 V8 | |
| 1987 - 1989 | GMC | R3500 | 454/7.4 V8 | |
| 1987 - 1989 | GMC | V3500 | 454/7.4 V8 | |
| 1963 - 1969 | Chevrolet | Bel Air | 427/7 V8 | |
| 1965 - 1969 | Chevrolet | Bel Air | 396/6.5 V8 | |
| 1970 - 1972 | Chevrolet | Bel Air | 402/6.6 V8 | |
| 1963 - 1969 | Chevrolet | Biscayne | 427/7 V8 | |
| 1965 - 1969 | Chevrolet | Biscayne | 396/6.5 V8 | |
| 1970 - 1972 | Chevrolet | Biscayne | 454/7.4 V8 | |
| 1970 - 1972 | Chevrolet | Biscayne | 402/6.6 V8 | |
| 1970 - 1972 | Chevrolet | Caprice | 402/6.6 V8 | |
| 1965 - 1970 | Chevrolet | Chevelle | 396/6.5 V8 | |
| 1970 - 1973 | Chevrolet | Chevelle | 454/7.4 V8 | |
| 1970 - 1972 | Chevrolet | Chevelle | 402/6.6 V8 | |
| 1968 | Chevrolet | Chevy II | 396/6.5 V8 | |
| 1965 | Chevrolet | Corvette | 396/6.5 V8 | |
| 1966 - 1969 | Chevrolet | Corvette | 427/7 V8 | |
| 1970 - 1974 | Chevrolet | Corvette | 454/7.4 V8 | |
| 1966 - 1970 | Chevrolet | El Camino | 396/6.5 V8 | |
| 1970 - 1972 | Chevrolet | El Camino | 402/6.6 V8 | |
| 1973 - 1974 | Chevrolet | G10 Van | 454/7.4 V8 | |
| 1973 - 1974 | Chevrolet | G20 Van | 454/7.4 V8 | |
| 1973 - 1974 | Chevrolet | G30 Van | 454/7.4 V8 | |
| 1963 - 1969 | Chevrolet | Impala | 427/7 V8 | |
| 1965 - 1969 | Chevrolet | Impala | 396/6.5 V8 | |
| 1970 - 1972 | Chevrolet | Impala | 402/6.6 V8 | |
| 1968 - 1969 | Chevrolet | K10 Pickup | 396/6.5 V8 | |
| 1973 - 1974 | Chevrolet | K10 Pickup | 454/7.4 V8 | |
| 1970 - 1972 | Chevrolet | K10 Pickup | 402/6.6 V8 | |
| 1970 - 1972 | Chevrolet | K10 Suburban | 402/6.6 V8 | |
| 1968 - 1969 | Chevrolet | K10 Suburban | 396/6.5 V8 | |
| 1973 - 1974 | Chevrolet | K10 Suburban | 454/7.4 V8 | |
| 1970 - 1972 | Chevrolet | K20 Pickup | 402/6.6 V8 | |
| 1968 - 1969 | Chevrolet | K20 Pickup | 396/6.5 V8 | |
| 1973 - 1974 | Chevrolet | K20 Pickup | 454/7.4 V8 | |
| 1968 - 1969 | Chevrolet | K20 Suburban | 396/6.5 V8 | |
| 1970 - 1972 | Chevrolet | K20 Suburban | 402/6.6 V8 | |
| 1973 - 1974 | GMC | C15/C1500 Pickup | 454/7.4 V8 | |
| 1968 - 1969 | GMC | C15/C1500 Pickup | 396/6.5 V8 | |
| 1968 - 1969 | GMC | C15/C1500 Suburban | 396/6.5 V8 | |
| 1970 - 1972 | GMC | C15/C1500 Suburban | 402/6.6 V8 | |
| 1973 - 1974 | GMC | C15/C1500 Suburban | 454/7.4 V8 | |
| 1968 - 1969 | GMC | C25/C2500 Pickup | 396/6.5 V8 | |
| 1970 - 1972 | GMC | C25/C2500 Pickup | 402/6.6 V8 | |
| 1973 - 1974 | GMC | C25/C2500 Pickup | 454/7.4 V8 | |
| 1968 - 1969 | GMC | C25/C2500 Suburban | 396/6.5 V8 | |
| 1970 - 1972 | GMC | C25/C2500 Suburban | 402/6.6 V8 | |
| 1973 - 1974 | GMC | C25/C2500 Suburban | 454/7.4 V8 | |
| 1968 - 1969 | GMC | C35/C3500 Pickup | 396/6.5 V8 | |
| 1970 - 1972 | GMC | C35/C3500 Pickup | 402/6.6 V8 | |
| 1973 - 1974 | GMC | C35/C3500 Pickup | 454/7.4 V8 | |
| 1973 - 1974 | GMC | G35/G3500 Van | 454/7.4 V8 | |
| 1973 - 1974 | GMC | K15/K1500 Pickup | 454/7.4 V8 |
Specs:
| Application | Chevrolet Big Block |
|---|---|
| Brand | Mr. Gasket |
| Color | Silver |
| Emission Code | 5 |
| Free Flow GPH | 80 |
| Fuel Type | Gasoline |
| Inlet Size | 1/4 inch NPT |
| Material | Aluminum |
| Outlet Size | 1/4 inch NPT |
| Product Type | Fuel Pump |
| Warning | California Proposition 65 |
| Warranty | Limited 90 Day |
