MSD Ignition 7330 7AL-3 Ignition Control
MSD Ignition 7330 7AL-3 Ignition Control is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Fitment
Fitment
Delivery and Shipping
Delivery and Shipping
Same day shipping, if ordered by 9:00 AM ET M-F
*Select products are made to order and ship within 4 business days.
Warranty Information
Warranty Information
Customer service is our top priority and because we value your time and energy we ask you to visit our Contact Us page and reach out so that we may assist you in finding the correct warranty for your product. Please include your name, the name on the order, the order number, and the SKU of the product to ensure the quickest and most accurate response to your inquiry.
Description
Description
Overview:

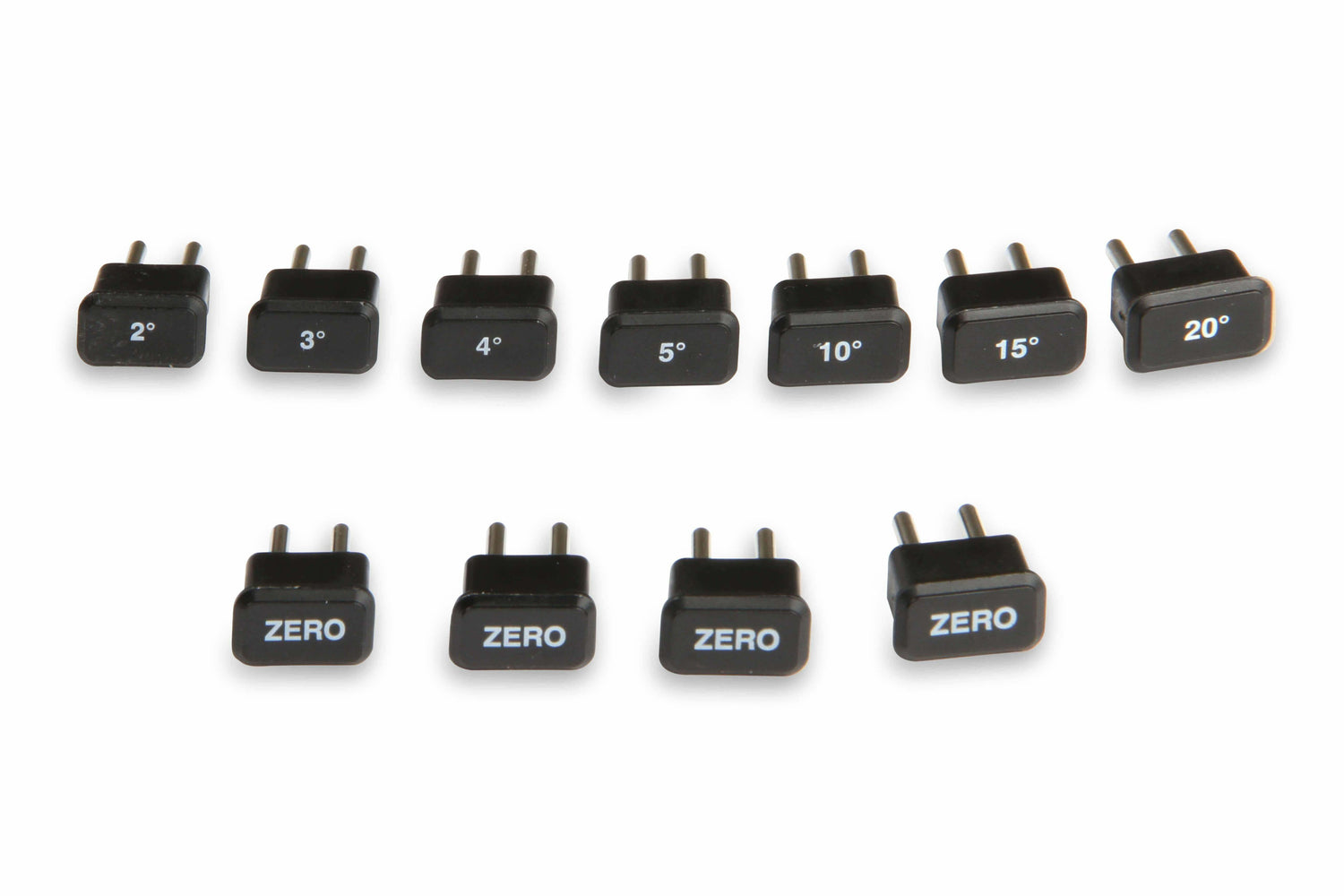

For racers that want adjustments at their fingertips, the 7AL-3 is the right choice. The 7AL-3 packs high voltage with four step retards, three rev limits and an rpm switch. All of the features are adjusted using plug-in modules including the 3-Step Rev Control and Multi-Step Retard. The Rev Control gives you the ability to set one rev limit for the burnout, another for the staging rpm limit and a third for use top end engine protection in the event of driveline failure. For nitrous fans, there are four separate stages that can be activated independently yet add up together. Plus there's an RPM Activated Switch for precise control over a circuit. Something new is that the start retard is now adjustable with plug-in modules giving you better control over the amount of retard pulled out during cranking. The unit is supplied with a variety of rpm and timing modules. It is has a foot print that fits into the red 7AL-3's mount.
Features:
Application:
| Year | Make | Model | Submodel | Engine Size |
|---|---|---|---|---|
| Universal |
Specs:
| Brand | MSD |
|---|---|
| Current Draw | 6 Amps Per 6,000 RPM; 12 Amps at 12,000 RPM |
| Emission Code | 4 |
| Primary Voltage | 570 Volts |
| Product Type | Ignition |
| RPM Range | 14,000 RPM with 14.4 Volts |
| Secondary Voltage | 50,000 Volts |
| Spark duration | 20 Deg Crankshaft Rotation |
| Spark Energy | 160 mJ/spark |
| Voltage Required | 12-18 Volts, Negative Ground |
| Warning | California Proposition 65 |
| Warranty | Limited 1 Year Warranty |
| Weight and Size | 4.85 lbs.,8.25"L x 3.75"W x 5.75"H |
