Jeep Wrangler 1997-2006 Brake Line Fitment Guide

NOTE 1: This guide is intended as a reference for selecting the correct kits from our catalog but please do note that it may not be absolute and the best way to confirm information is to check the parts actually installed on your vehicle!

NOTE 2: Most kits are available in Steel (Rubber for Hoses) or Stainless Steel, just add “OM” or “SS” to the end of the SKUs listed below!

To shop for these kits CLICK HERE!



Front Brake Line Kits:

• WKT0355: 1997-2006. Models WITHOUT ABS!

Intermediate (Front to Rear) Brake Line Kits:

• WIN0355: 1997-2006. TJ Models Only (93.4 in Wheelbase). Models WITHOUT ABS!


• WIN0356: 2004-2006. Unlimited (LJ) Models Only (103.4 in Wheelbase). Models WITHOUT ABS!

Rear Axle Brake Line Kits:

• WRA0355: 1997-2006. Rear Drum Brakes. Dana 35 Rear Axle, See Figure 1 Below!


• WRA0356: 2003-2006. Rear Disc Brakes. Dana 35 Rear Axle, See Figure 1 Below! Includes Rear Brake Hoses!


• WRA0357: 1997-2006. Rear Drum Brakes. Dana 44 Rear Axle, See Figure 1 Below!

Complete Brake Line Kits:

• CBK0007: 1997-2006. TJ Models Only (93.4 in Wheelbase). Models WITHOUT ABS! Rear Drum Brakes. Dana 35 Rear Axle, See Figure 1 Below!
  Contains: WKT0355, WIN0355, and WRA0355

Front Brake Hoses:

• FLH38895: 1997-2006. Left (Driver). Standard Height Suspension. Rubber.


• FLH38894: 1997-2006. Right (Passenger). Standard Height Suspension. Rubber.


• FLH622066: 1997-2006. Left (Driver). Extra 4 Inches Added to Hose for Lift Kits! Rubber.


• FLH622065: 1997-2006. Right (Passenger). Extra 4 Inches Added to Hose for Lift Kits! Rubber.



Complete Brake Hose Kits:

• HSK0049SS: 1997-2006. TJ Models Only! Rear Drum Brakes. Models WITHOUT ABS! Standard Height Suspension. Braided Stainless Steel.



Figure 1: Dana 35 versus Dana 44 Rear Axle

• Dana 35: The Dana 35 Rear Axle is standard on all TJ models from 1997-2006 (excluding Rubicon trim package).




• Dana 44: The Dana 44 Rear Axle is standard on all TJ models with the Rubicon trim package (2003-2006), the 2004-½-2006 Unlimited (LJ) models, and was an option on 4.0L TJ Models (1997-2006).







Credits:

Thank you to https://wranglertjforum.com/ for the excellent guide on Front and Rear Axle differences!

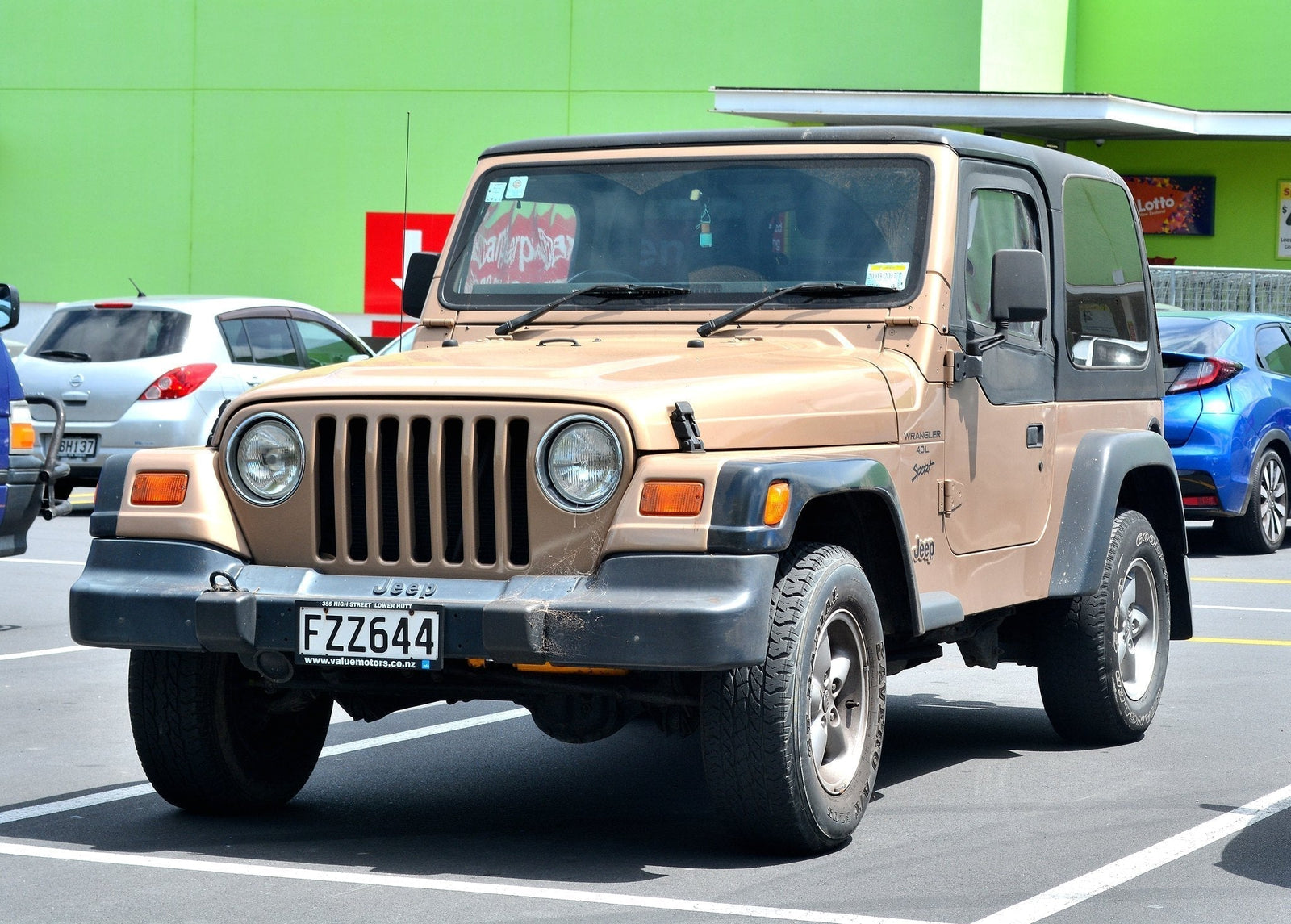

The featured image of a Jeep Wrangler is "1999 Jeep Wrangler Sport" by GPS 56 and the original can be found at this link: https://www.flickr.com/photos/91807507@N03/32630359046/
