2018-2025 Can-Am Maverick X3 MBR Race Suspension Kit - Front and Rear ADS
2018-2025 Can-Am Maverick X3 MBR Race Suspension Kit - Front and Rear ADS is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Fitment
Fitment
Warranty Information
Warranty Information
Customer service is our top priority and because we value your time and energy we ask you to visit our Contact Us page and reach out so that we may assist you in finding the correct warranty for your product. Please include your name, the name on the order, the order number, and the SKU of the product to ensure the quickest and most accurate response to your inquiry.
Description
Description

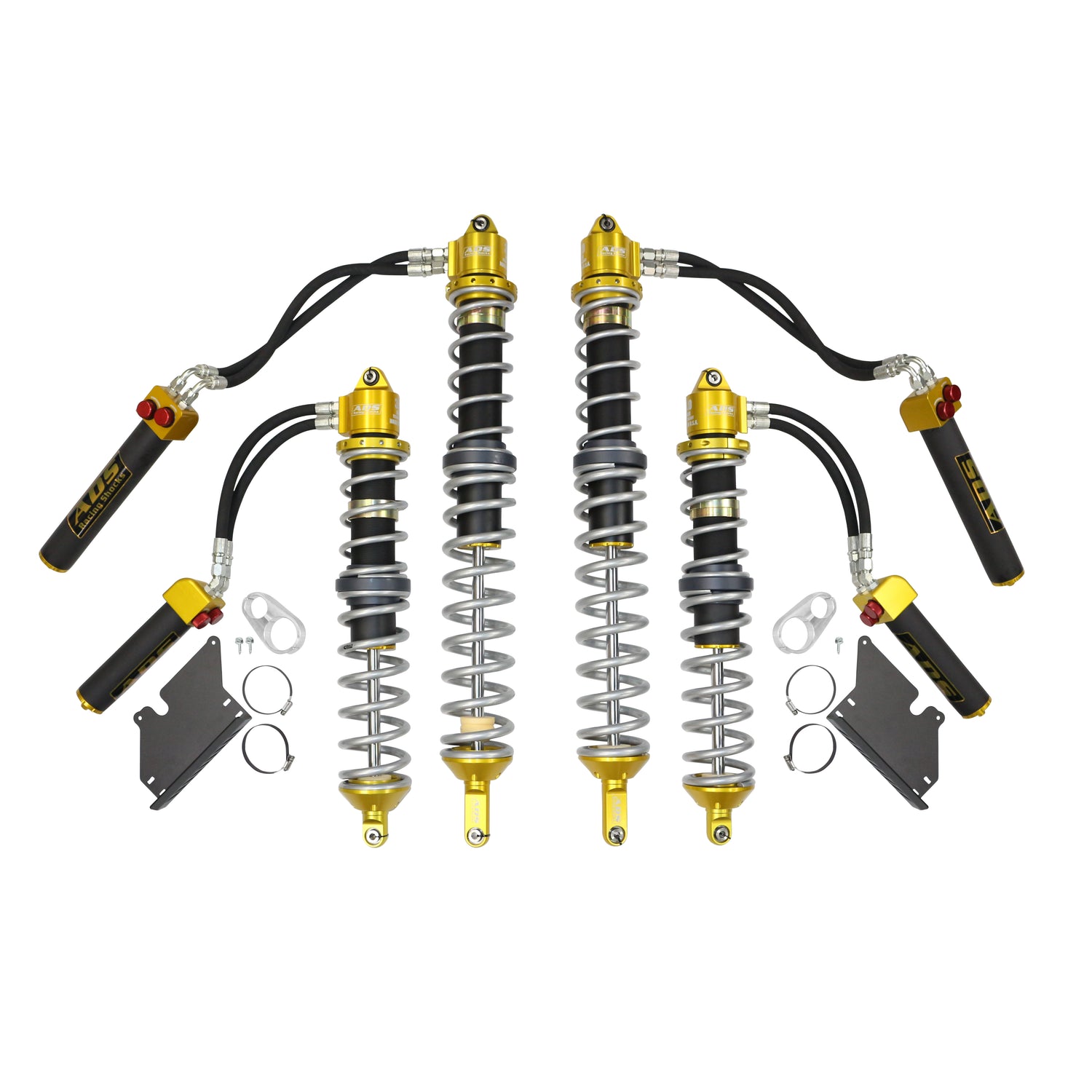

ADS Direct Fit MBR Race Suspension Kit - Front and Rear

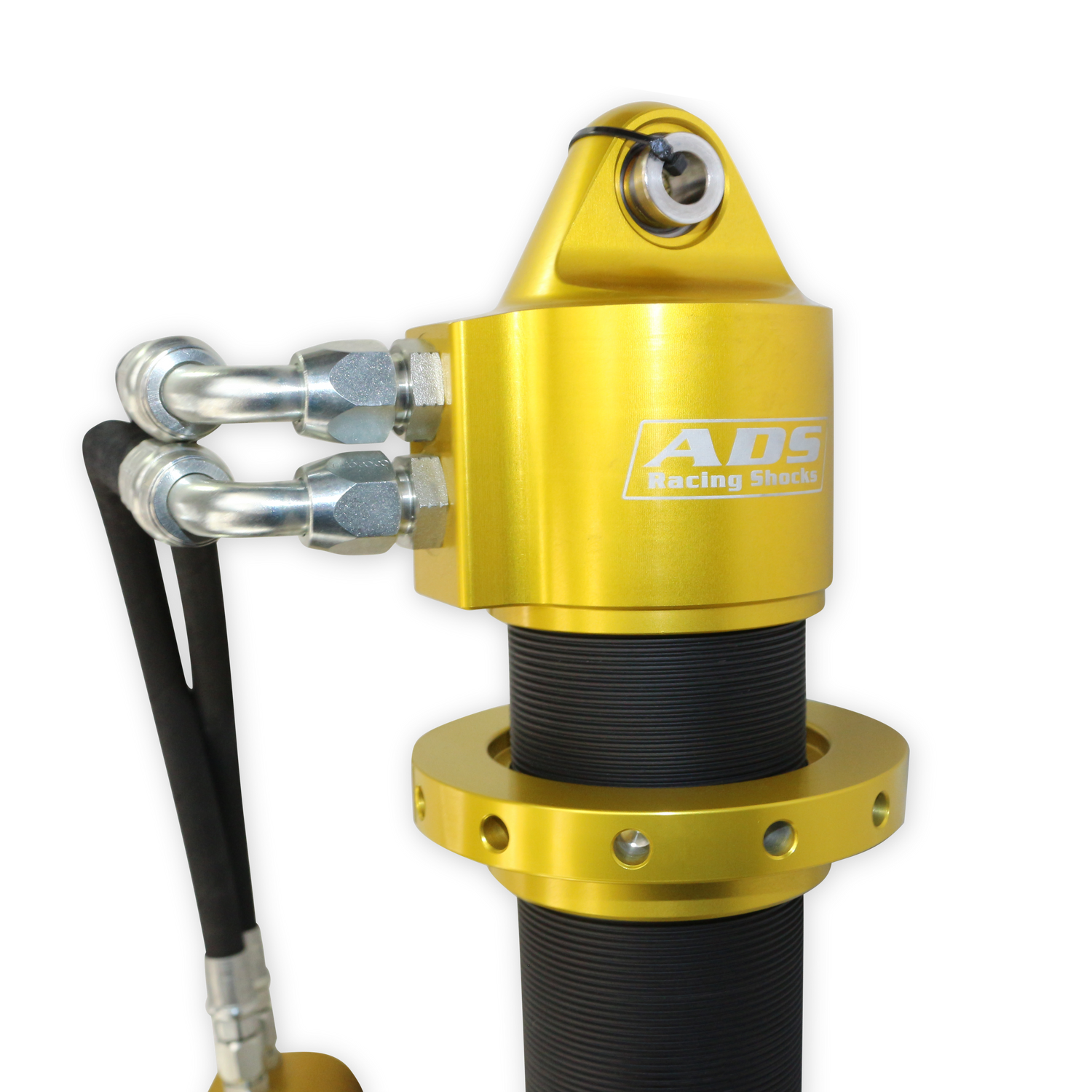

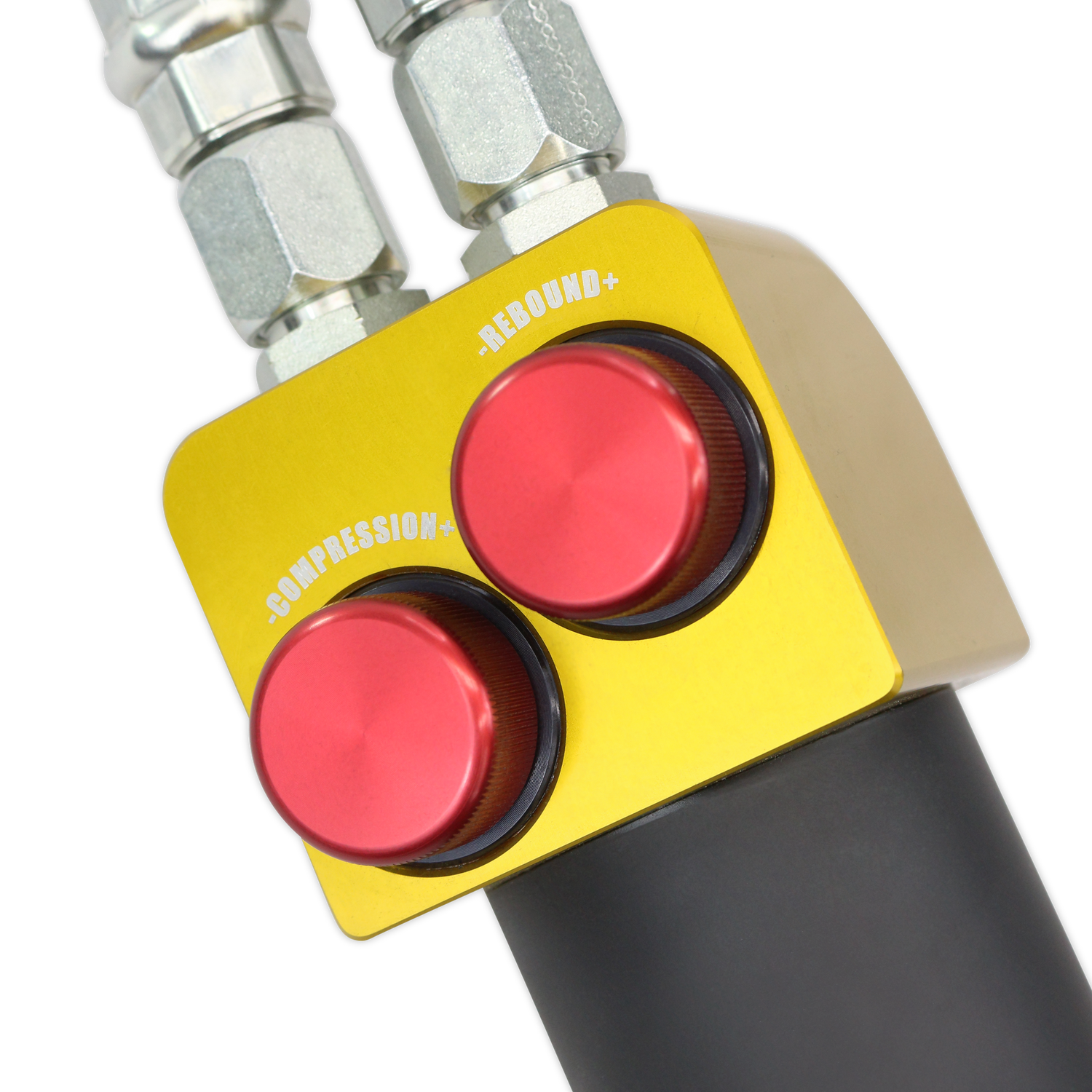

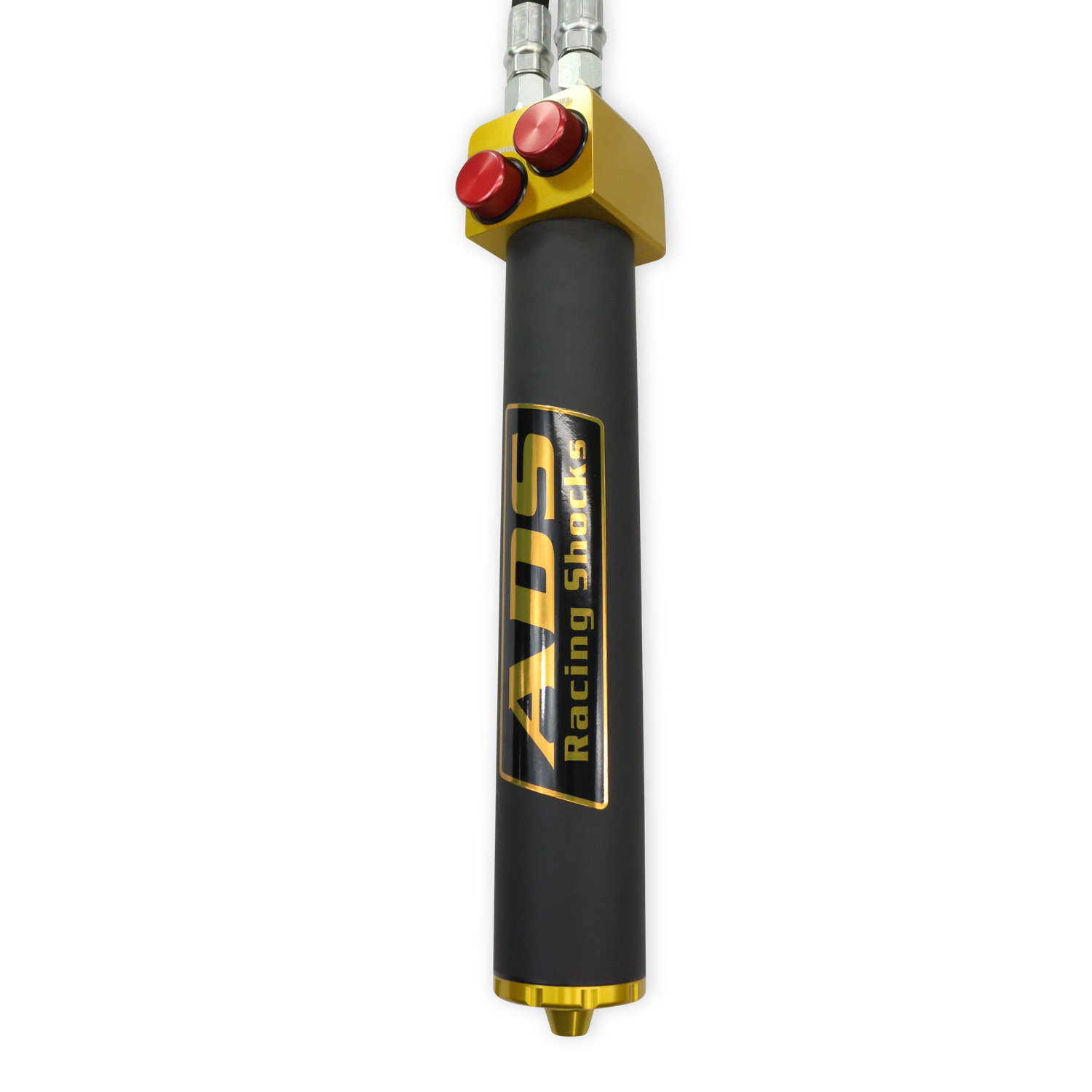

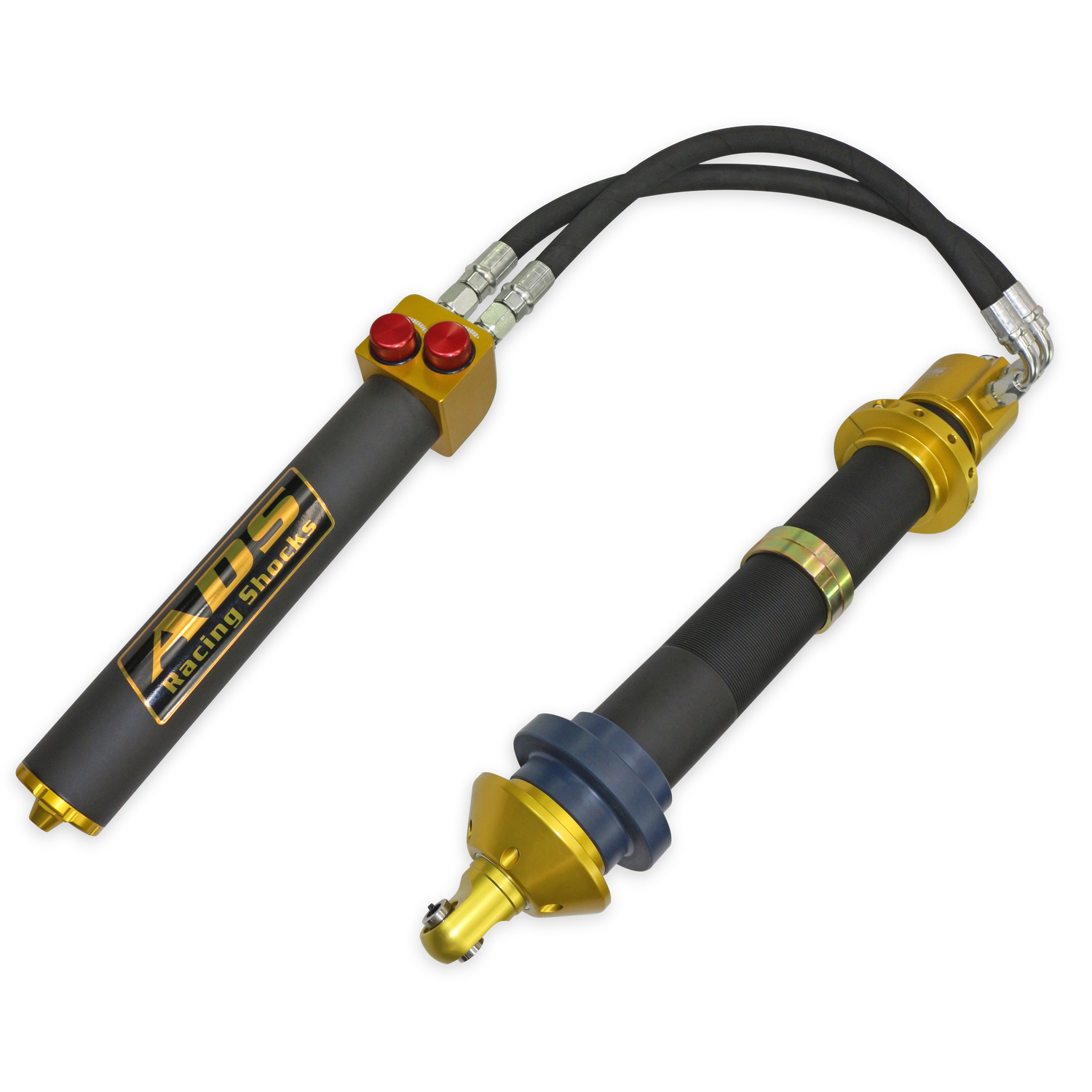

MBR technology, or Multi-Stage Bypass Ring, embodies a genuine multi-stage bypass system where each zone is independently adjustable via a positive stop helix system. This design ensures ample flow, similar to 7-tube External bypasses on 16" stroke variations, and internal free bleed ports enable tuners to optimize the damping curve for specific vehicle needs. A true top-out zone provides both mechanical and hydraulic damping, guarding against shock damage during full extension in harsh conditions, although the use of limit straps is recommended for racing and severe use. Additionally, the 4-way adjustable reservoir allows independent high and low-speed adjustments for compression and rebound events. A dual hose system establishes a genuine recirculating fluid path to the reservoir, maximizing fluid cooling with internal diverters ensuring fluid flow across the entire shock body for enhanced cooling efficiency. Each unit undergoes vacuum bleeding and features full synthetic fluid to reduce fade and extend product life.
Specifications
- Air Adjustable: No
- Bladder Heavy Duty Crimping Rings Included: No
- Bladder Sleeve(s) Included: No
- Bladder(s) Included: No
- Brand: ADS
- Bushing Color: No
- Bushing Inside Diameter: 5/8
- Bushing Material: Heim
- Bushing Outside Diameter: 1 3/16
- California Proposition 65: No
- Category: Suspension
- Coil Spring Color: Silver
- Coil Spring Insulator(s) Included: Yes
- Coil Spring Material: Mild Steel
- Emission Code: 6
- Front Shocks Compressed Length: 21.48
- Front Shocks Relaxed Length: 31.8
- Grade Type: Performance
- part type: Suspension Kit
- Product Type: UTV Coilover Kit
- Qty: Sold with front pair and rear pair
- Rear Shocks Compressed Length: 27
- Rear Shocks Relaxed Length: 41.5
- Springs Included: Yes
- Strut Mount Insulator(s) Included: No
- Sub Category: Suspension, Springs and Related Components
- Suspension Type: Spring
- Warning: California Proposition 65
