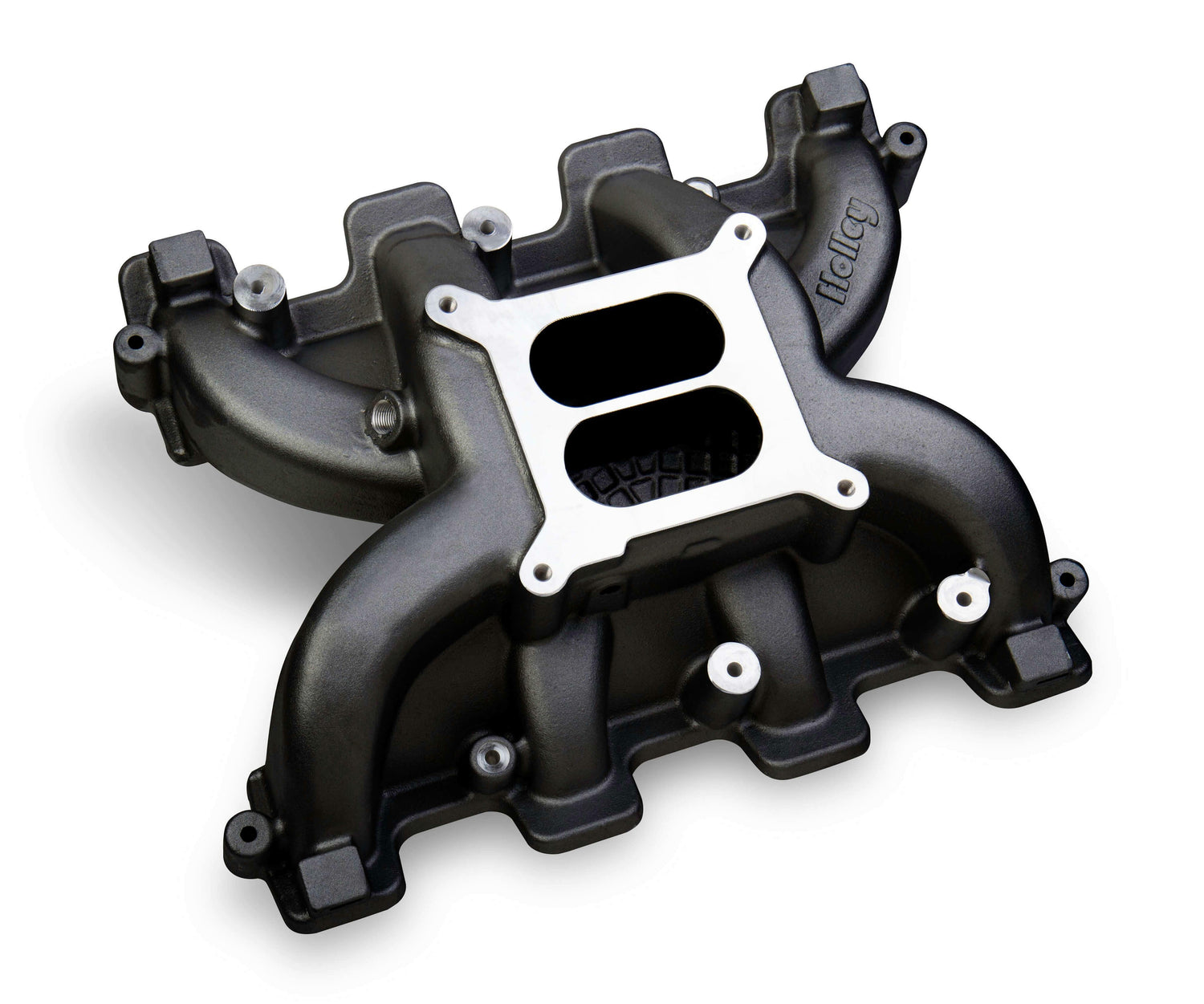

Got an LS engine to get running? Nothing is easier than bolting on a carburetor. Holley's dual plane carbureted intake for GM's LS engines will help you get on the streets quick! Its dual plane design makes it perfect for low end torque, yet it still pulls all the way to 6,500 RPM! Our O–ring cylinder head mounting flange gaskets provide an OEM style seal and make installation a snap. Bolt one on today!


  • 1500-6500 RPM power band
  • 4150 Square bore flange
  • Optimized runner layout and constant cross sectional area - broad torque curve, best vehicle performance from 1500-6500 RPM
  • Minimum carb flange height means it fits in vehicles with minimal or no hood modifications
  • Great for carbureted or throttle body EFI street applications
  • Cast aluminum construction and efficient casting design for light weight, consistent wall thicknesses and improved casting quality
  • Weighs 15.14 lbs.

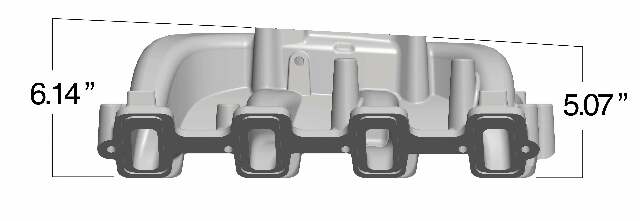

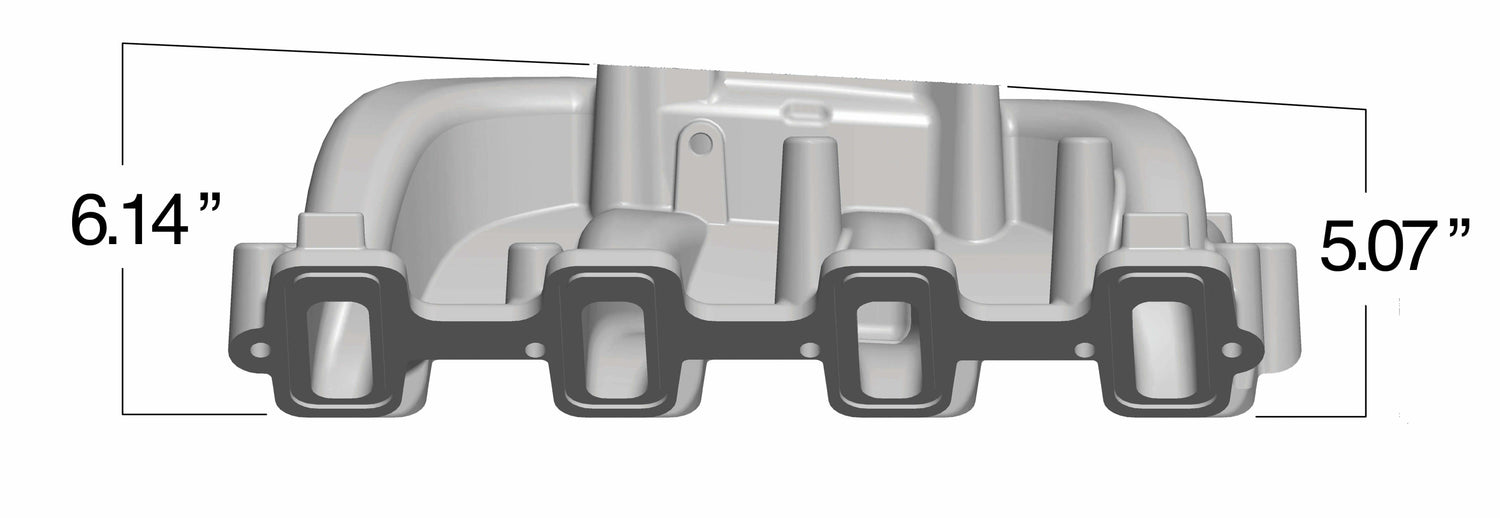

  • Height (front) - 5.07" from front lifter valley cover to carb mounting flange
  • Height (rear) - 6.14" from rear lifter valley cover to carb mounting flange
  • Port size - 2.72" height x 1" wide
  • Mounting flange gasket type - O-ring
  • Includes Viton® O-rings - Viton® is a registered trademark of DuPont Performance Elastomers

Year Make Model Submodel Engine Size
1997 - 2004 Chevrolet Corvette 350/5.7L V8
1998 - 2002 Chevrolet Camaro 350/5.7L V8
2005 - 2007 Chevrolet Corvette 364/6L V8
2004 - 2005 Cadillac CTS 346/5.7L V8

Brand Holley
Construction Cast
Emission Code 3
Engine GM LS1/LS2/LS6
Finish Black
Front Height 5.07 inch
Fuel System Type Carb
Manifold Type Dual Plane
Product Type Manifold
Rear Height 6.14 inch
RPM Power Band 1500-6500
Warranty Limited 90 Day
