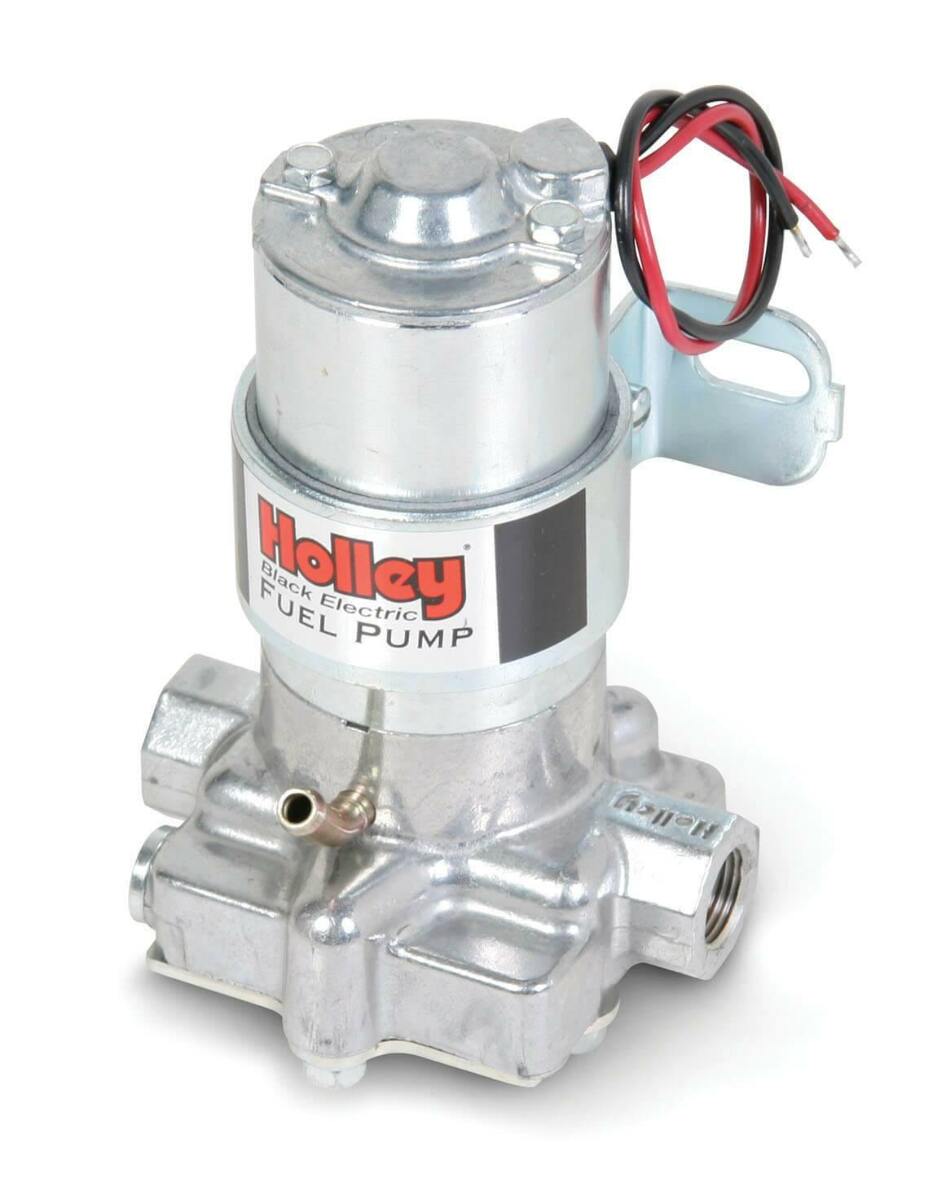

140 GPH Black® Electric Fuel Pump - 712-815-1
140 GPH Black® Electric Fuel Pump - 712-815-1 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Fitment
Fitment
Warranty Information
Warranty Information
Customer service is our top priority and because we value your time and energy we ask you to visit our Contact Us page and reach out so that we may assist you in finding the correct warranty for your product. Please include your name, the name on the order, the order number, and the SKU of the product to ensure the quickest and most accurate response to your inquiry.
Description
Description
Overview:
The world famous Red®, Blue® and Black® fuel pumps are the most recognized performance pumps of all times. They have been powering racing legends and street enthusiasts alike since the early 70's. Their time proven rotor/vane design is known to get the job done in an affordable package. Designed with a fume tube for marine use and meets U.S. Coast Guard regulations.
Features:
- Tumble polished billet look
- Lower housing casting designed for enhanced fuel flow.
- Improved design for street/strip applications
- Distinctive “Black” logo
- Compatible with alcohol or methanol fuels
- Not designed for use on aircraft of any type.
- Flows 140 GPH (free flow)
- Flows 120 GPH at 9 psi
- Maximum pressure is 14 psi
- 3/8” NPT inlet and outlet ports
- Fuel pressure regulator is required (recommend Holley P/N 12-704 for gasoline & P/N 12-707 for alcohol)
- Motor draws only 4 amps current
- 7 1/2 amp fuse recommended
- Provides constant fuel flow with no pulsation
- Has externally accessible pressure relief valve (max 14 psi)
- Rotor/vane pump design is more tolerant of contaminated fuels
- Weighs only 3 lbs
- Includes mounting bracket
- Repair kits are readily available
- Can be serviced from the pump end
- Use of safety shut-off switch, P/N 12-810, strongly recommended
- Not designed or recommended for use with fuel injection systems
- Meets U.S. Coast Guard regulations
- Includes Fuel/vapor tube
Application:
| Year | Make | Model | Submodel | Engine Size |
|---|---|---|---|---|
| Universal |
Specs:
| Application | Marine |
|---|---|
| Bracket Color | Silver |
| Brand | Holley |
| Emission Code | 5 |
| Free Flow GPH | 140 |
| Free Flow LPH | 530 |
| Fuel Pump Type | Electric |
| Fuel System | Carbureted |
| Fuel Type | Gasoline |
| Fuel Type | Methanol |
| Inlet Size | 3/8 inch NPT |
| Material | Aluminum |
| Motor Finish | Silver |
| Outlet Size | 3/8 inch NPT |
| Product Type | Fuel Pump |
| Pump Body Color | Silver |
| Warning | California Proposition 65 |
| Warranty | Limited 90 Day |
