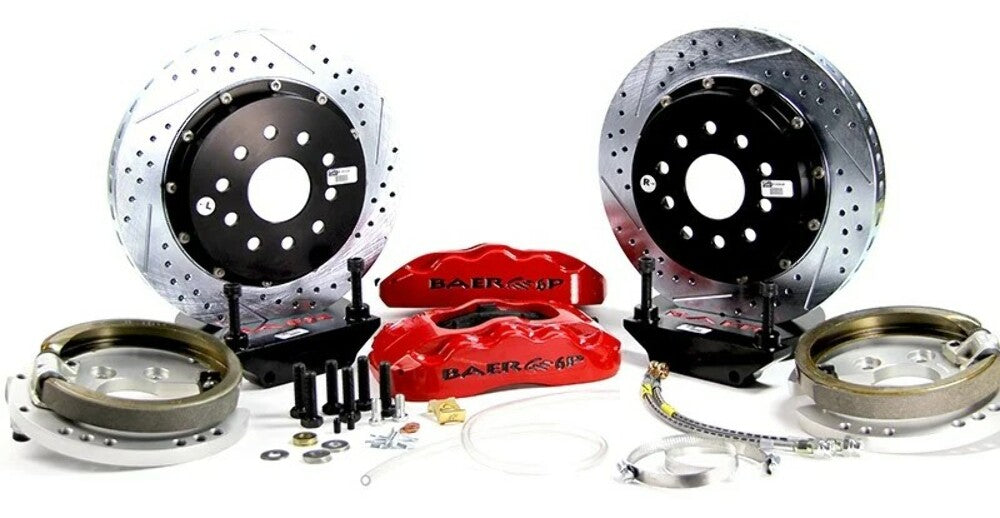

1960-1974 C10 Pickup Pro+ Brake System Rear 4302504R
1960-1974 C10 Pickup Pro+ Brake System Rear 4302504R is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Fitment
Fitment
Warranty Information
Warranty Information
Customer service is our top priority and because we value your time and energy we ask you to visit our Contact Us page and reach out so that we may assist you in finding the correct warranty for your product. Please include your name, the name on the order, the order number, and the SKU of the product to ensure the quickest and most accurate response to your inquiry.
Description
Description
Fits 1960-87 Chevy/GMC C10 2WD Trucks w/OE Large Pattern 10/12 Bolt C-clip (BIH) Housing Ends, 6 Lug (6x5.5"BC)
Features:
- 2-Piece, 6-Piston, 6P Caliper Manufactured in Phoenix, AZ
- CNC Machined from US Sourced Forged or Billet Aluminum
- Powder Coated Finish
- Stainless Steel Pistons, Abutments and Noise Suppression Clips
- Staggered Pistons to Minimize Uneven Pad Wear
- Dual Seals, Dust/Weather & Pressure
- 2-Piece Slot, Drilled, Zinc-Plate Rotor w/Billet Aluminum Hat
Specs:
| Applications | GM C10 Trucks 60-87 |
|---|---|
| Axle | Rear |
| Brand | Baer Brakes |
| Caliper | 6P |
| Caliper Color | Red |
| Disc Brake Caliper (Rear) Piston Quantity | 6 |
| Disc Brake Caliper (Rear) Type | Floating |
| Disc Brake Pad FMSI Number | D0731 |
| Disc Brake Rotor (Rear) Construction | Vented |
| Disc Brake Rotor (Rear) Outside Diameter | 14.000IN |
| Emission Code | 6 |
| Export Description | Brake Components |
| Fitment Notes | w/OE Large Pattern 10/12 Bolt C-clip (BIH) Housing Ends, 6 Lug (6x5.5"BC) |
| Grade Type | Performance |
| Hose Material | Stainless Steel |
| Includes Park Brake | Yes |
| Includes Park Brake Cables | No |
| Lug Count | 6 Lug |
| Min Wheel Dia (verify using template) | 18IN |
| Product Line | 14 Inch Pro+ |
| Product Type | 14 Inch Pro+ Rear Brake Kit |
| Prop 65 (C, R or CR) | CR |
| Prop 65 - Long Label | WARNING: This product can expose you to chemicals including Toluene Diisocyanate, and Nickel which are known to the State of California to cause cancer. For more information, visit www.P65Warnings.ca.gov |
| Prop 65 - Short Label | WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov |
| Prop 65 Yes/No | Yes |
| Rotor Thickness | 1.150IN |
| Rotor Type | 2-Piece |
| Surface Type | Slotted, Drilled & Zinc Plated |
| System Notes | Fits 60-87 GM truck large pattern OE 10/12 Bolt C-clip (BIH) Housing Ends |
| Template | Q135P |
| Title | Pro+ Brake System Rear |
| Wheel Lug/Bolt Pattern | 6x5.50 |
Application:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1960-1974 | Chevrolet | C10 Pickup | |
| 1975-1986 | Chevrolet | C10 | |
| 1967-1986 | Chevrolet | C10 Suburban | |
| 1987 | Chevrolet | R10 | |
| 1987-1988 | Chevrolet | R10 Suburban | |
| 1960-1965 | GMC | 1000 Series | |
| 1967-1974 | GMC | C15/C1500 Pickup | |
| 1967-1974 | GMC | C15/C1500 Suburban | |
| 1960-1966 | GMC | Suburban | |
| 1966 | GMC | 1000 | |
| 1979-1986 | GMC | C1500 Suburban | |
| 1987-1988 | GMC | R1500 Suburban | |
| 1975-1978 | GMC | C15 Suburban |
