1960-1974 C10 Pickup Track4 Brake System Front 4301597MG
1960-1974 C10 Pickup Track4 Brake System Front 4301597MG is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Fitment
Fitment
Warranty Information
Warranty Information
Customer service is our top priority and because we value your time and energy we ask you to visit our Contact Us page and reach out so that we may assist you in finding the correct warranty for your product. Please include your name, the name on the order, the order number, and the SKU of the product to ensure the quickest and most accurate response to your inquiry.
Description
Description

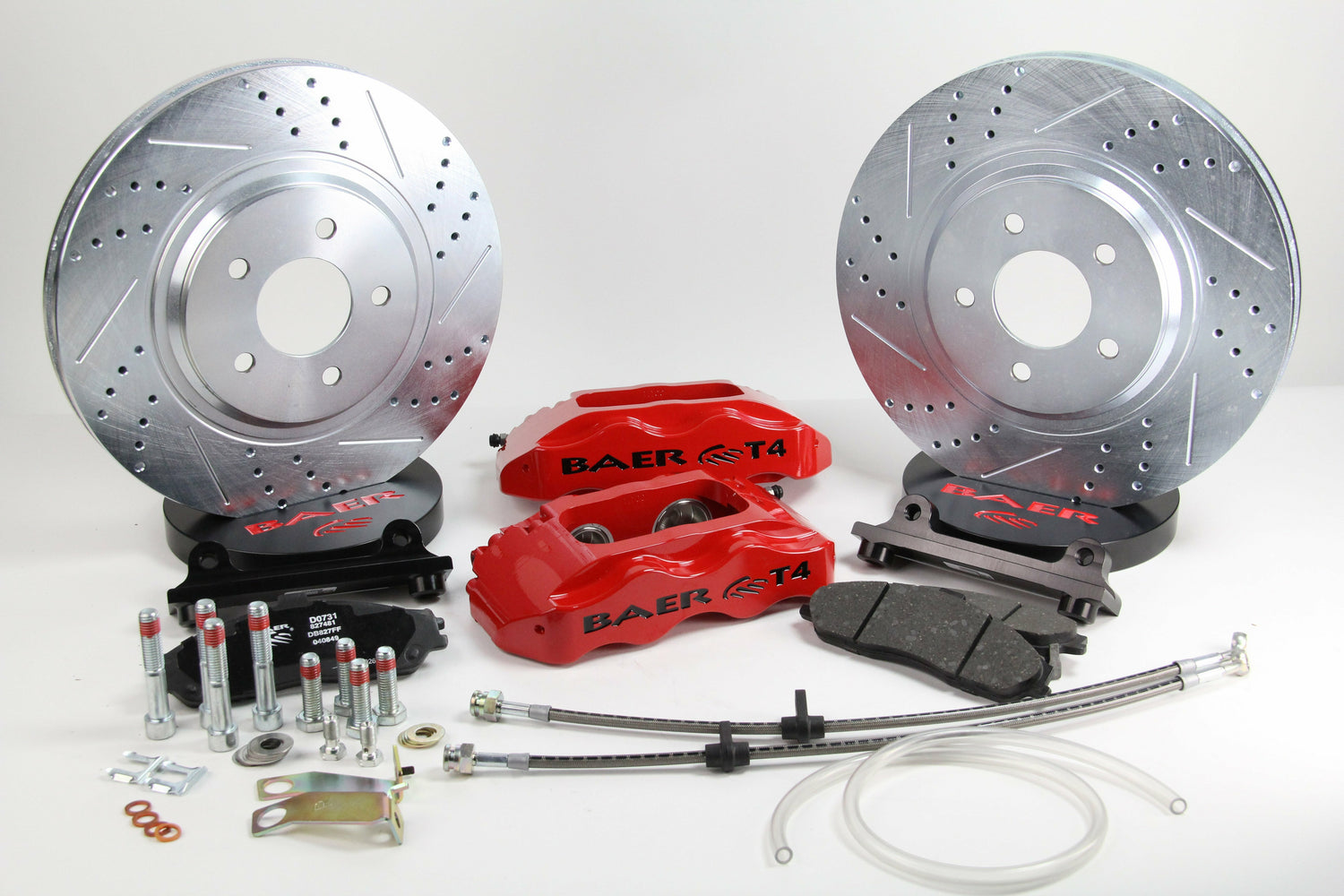

Fits 1960-87 Chevy/GMC 2WD 1/2 Ton Trucks w/Wilwood C10 Aluminum Modular Pro Spindles
Features:
- 2-Piece, 4-Piston, T4 Caliper Manufactured in Phoenix, AZ
- CNC Machined from US Sourced Forged or Billet Aluminum
- Powder Coated Finish
- Stainless Steel Pistons, Abutments and Noise Suppression Clips
- Staggered Pistons to Minimize Uneven Pad Wear
- Dual Seals, Dust/Weather & Pressure
- 1-Piece Slot, Drilled, Zinc-Plate Rotor
Specs:
| Applications | GM C10 Trucks 60-87 |
|---|---|
| Axle | Front |
| Brand | Baer Brakes |
| Caliper | T4 |
| Caliper Color | Monster Green |
| Disc Brake Caliper (Front) Piston Quantity | 4 |
| Disc Brake Caliper (Front) Type | Fixed |
| Disc Brake Pad FMSI Number | D0749 |
| Disc Brake Rotor (Front) Construction | Vented |
| Disc Brake Rotor (Front) Outside Diameter | 13.000IN |
| Emission Code | 6 |
| Export Description | Brake Components |
| Fitment Notes | w/Wilwood C10 Aluminum Modular Pro Spindles |
| Grade Type | Performance |
| Hose Material | Stainless Steel |
| Lug Count | 5 Lug |
| Min Wheel Dia (verify using template) | 17IN |
| Product Line | 13 Inch Track4 |
| Product Type | 13 Inch Track 4 Front Brake Kit |
| Prop 65 (C, R or CR) | CR |
| Prop 65 - Long Label | WARNING: This product can expose you to chemicals including Toluene Diisocyanate, and Nickel which are known to the State of California to cause cancer. For more information, visit www.P65Warnings.ca.gov |
| Prop 65 - Short Label | WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov |
| Prop 65 Yes/No | Yes |
| Rotor Thickness | 1.100IN |
| Rotor Type | 1-Piece |
| Spindle Type | Wilwood C10 Alum Modular Pro |
| Spindles Included | No |
| Surface Type | Slotted, Drilled & Zinc Plated |
| System Notes | Fits Wilwood C10 Aluminum Modular Pro hub pack spindles. Bolt on hub packs not included (Does NOT fit CPP X10 Spindle) |
| Template | Q082H |
| Title | Track4 Brake System Front |
| Wheel Lug/Bolt Pattern | 5x5.00 |
Application:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1960-1974 | Chevrolet | C10 Pickup | |
| 1960-1966 | Chevrolet | Suburban | |
| 1987-1989 | Chevrolet | Suburban | |
| 1975-1986 | Chevrolet | C10 | |
| 1967-1986 | Chevrolet | C10 Suburban | |
| 1960-1966 | GMC | 3000 | |
| 1967-1974 | GMC | C15/C1500 Pickup | |
| 1979-1986 | GMC | C1500 | |
| 1975-1978 | GMC | C15 |
