1963-1974 Chevrolet C10 Pickup Baer Brakes 13" Classic Series Front Brake Kit 4301680R
1963-1974 Chevrolet C10 Pickup Baer Brakes 13" Classic Series Front Brake Kit 4301680R is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Fitment
Fitment
Warranty Information
Warranty Information
Customer service is our top priority and because we value your time and energy we ask you to visit our Contact Us page and reach out so that we may assist you in finding the correct warranty for your product. Please include your name, the name on the order, the order number, and the SKU of the product to ensure the quickest and most accurate response to your inquiry.
Description
Description
Fits 1963-87 Chevrolet/GMC 2WD Trucks & SUV's w/CPP 2.5" Drop Nodular Iron Spindle (5 Lug, 5x5BC)

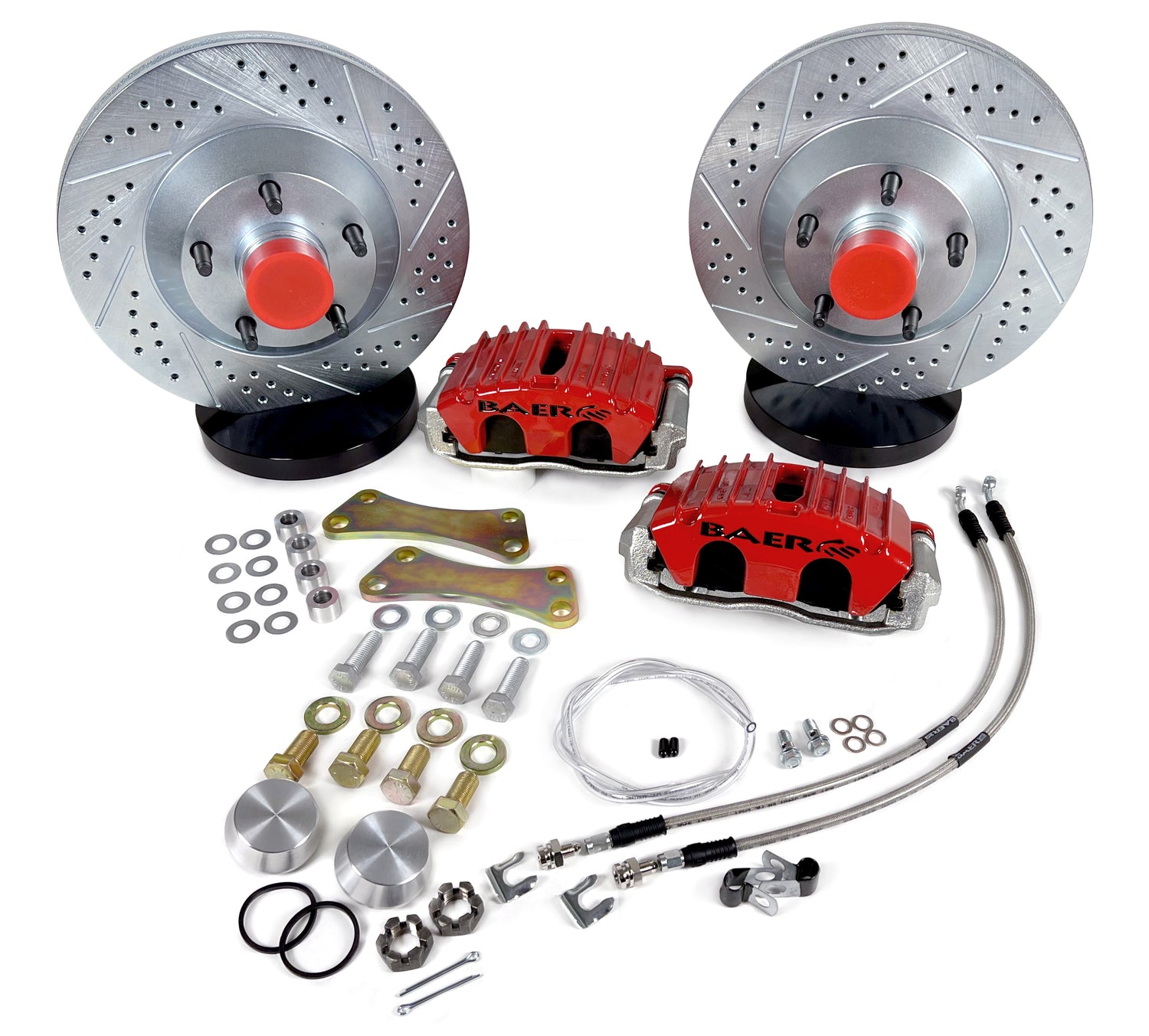

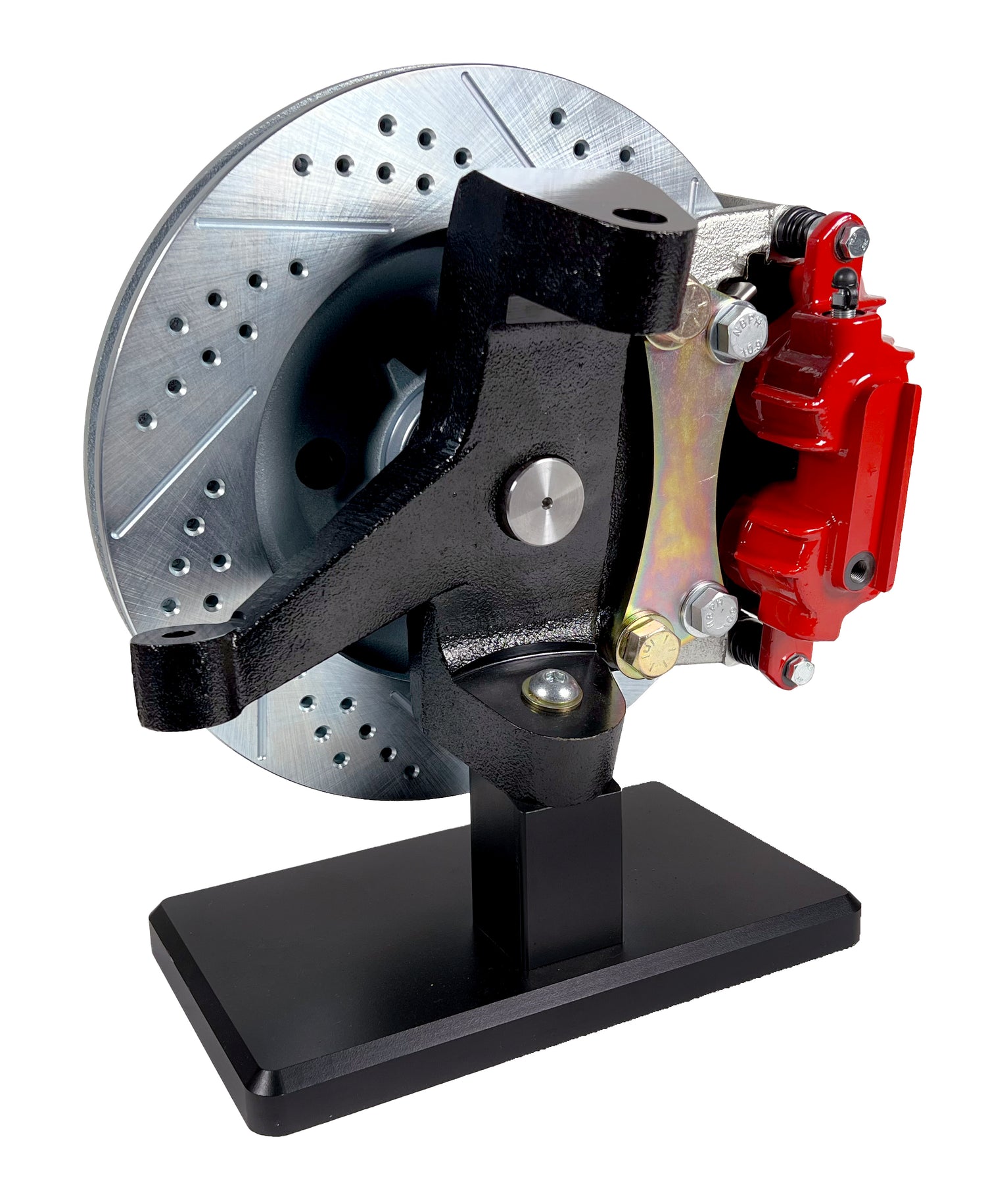

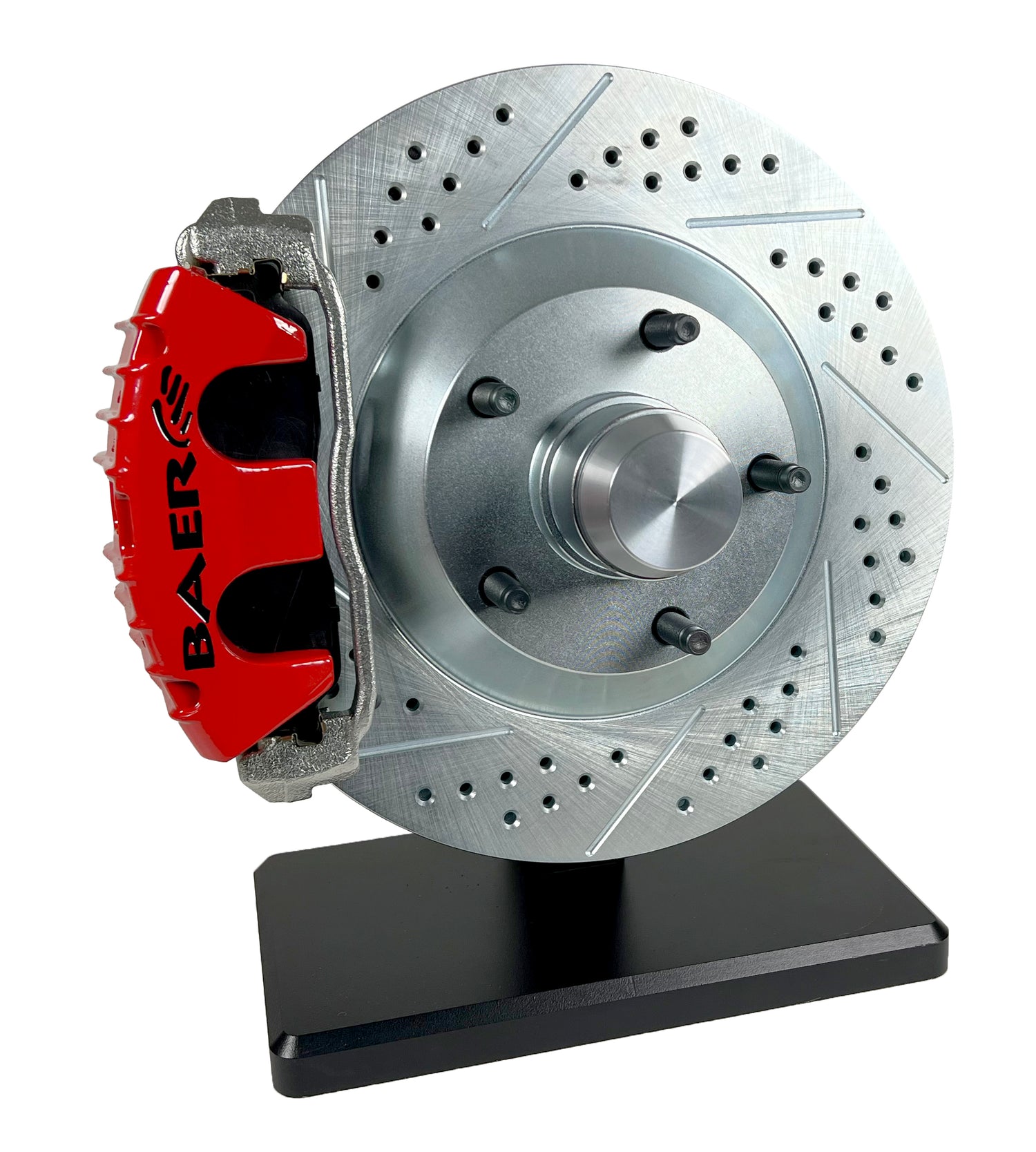

This Classic Series brake kit features an aluminum. 2-piston, pin drive caliper (PDC) mounted to a 13.150", 1-piece slot, drill, zinc plated integral hub rotor and is designed to fit vehicles using the CPP 2.5" nodular iron drop spindles. The caliper comes in a red powder coated finish with the Baer logo painted black, includes dust & weather seal's and uses the popular D0731 pad type. Rotors are ready to install with races installed and bearings packed with Redline synthetic grease. Dust caps, mounting brackets, stainless braided hoses and all necessary hardware are also included. This 13" Classic Series system fits most 17" or larger wheels.
Features:
- Aluminum, 2-Piston, Pin Drive Caliper
- Red Powder Coated Caliper w/Black Baer Logo
- Slot, Drill, Zinc Plated Rotor Finish
- Stainless Braided Brake Hoses
- Uses Common FMSI D0731 Brake Pad
- Modern Brakes for Small Wheels at an Economical Price
Specs:
| Applications | GM C10 Trucks 60-87 |
|---|---|
| Axle | Front |
| Brand | Baer Brakes |
| Caliper | 2 PDC |
| Caliper Color | Red |
| Category | Brakes |
| Disc Brake Caliper (Front) Piston Quantity | 2 |
| Disc Brake Caliper (Front) Type | Floating |
| Disc Brake Pad FMSI Number | D0731 |
| Disc Brake Rotor (Front) Construction | Vented |
| Disc Brake Rotor (Front) Outside Diameter | 13.150 |
| Emission Code | 6 |
| Export Description | Brake Components |
| Fitment Notes | w/CPP 2.5 inch Drop Modular Spindle (5 Lug, 5x5BC) |
| Grade Type | Performance |
| Hose Material | Stainless Steel |
| Lug Count | 5 Lug |
| Min Wheel Dia (verify using template) | 17 |
| Product Line | Classic |
| Product Type | 13 Inch Classic Front Brake Kit |
| Prop 65 (C, R or CR) | CR |
| Prop 65 - Long Label | WARNING: This product can expose you to chemicals including Toluene Diisocyanate, and Nickel which are known to the State of California to cause cancer. For more information, visit www.P65Warnings.ca.gov |
| Prop 65 - Short Label | WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov |
| Prop 65 Yes/No | Yes |
| Rotor Thickness | 1.150 |
| Rotor Type | 1-Piece Integral Hub |
| Surface Type | Slotted, Drilled & Zinc Plated |
| Title | Classic Series Front Brake Kit |
| Wheel Lug/Bolt Pattern | 5x5.00 |
| Wheel Stud Size | 1/2-20 x 2.25 inch |
Application:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1963-1974 | Chevrolet | C10 Pickup | |
| 1975-1986 | Chevrolet | C10 | |
| 1967-1986 | Chevrolet | C10 Suburban | |
| 1987 | Chevrolet | R10 | |
| 1987-1988 | Chevrolet | R10 Suburban | |
| 1966 | GMC | 1500 | |
| 1963-1965 | GMC | 1500 Series | |
| 1967-1974 | GMC | C15/C1500 Pickup | |
| 1967-1974 | GMC | C15/C1500 Suburban | |
| 1963-1966 | GMC | Suburban | |
| 1979-1986 | GMC | C1500 | |
| 1979-1986 | GMC | C1500 Suburban | |
| 1975-1978 | GMC | C15 | |
| 1975-1978 | GMC | C15 Suburban |
