1964-1972 Chevrolet Chevelle Front Disc Brake Conversion Kit Black Baer Brakes 4301605B
1964-1972 Chevrolet Chevelle Front Disc Brake Conversion Kit Black Baer Brakes 4301605B is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Fitment
Fitment
Warranty Information
Warranty Information
Customer service is our top priority and because we value your time and energy we ask you to visit our Contact Us page and reach out so that we may assist you in finding the correct warranty for your product. Please include your name, the name on the order, the order number, and the SKU of the product to ensure the quickest and most accurate response to your inquiry.
Description
Description
Overview:

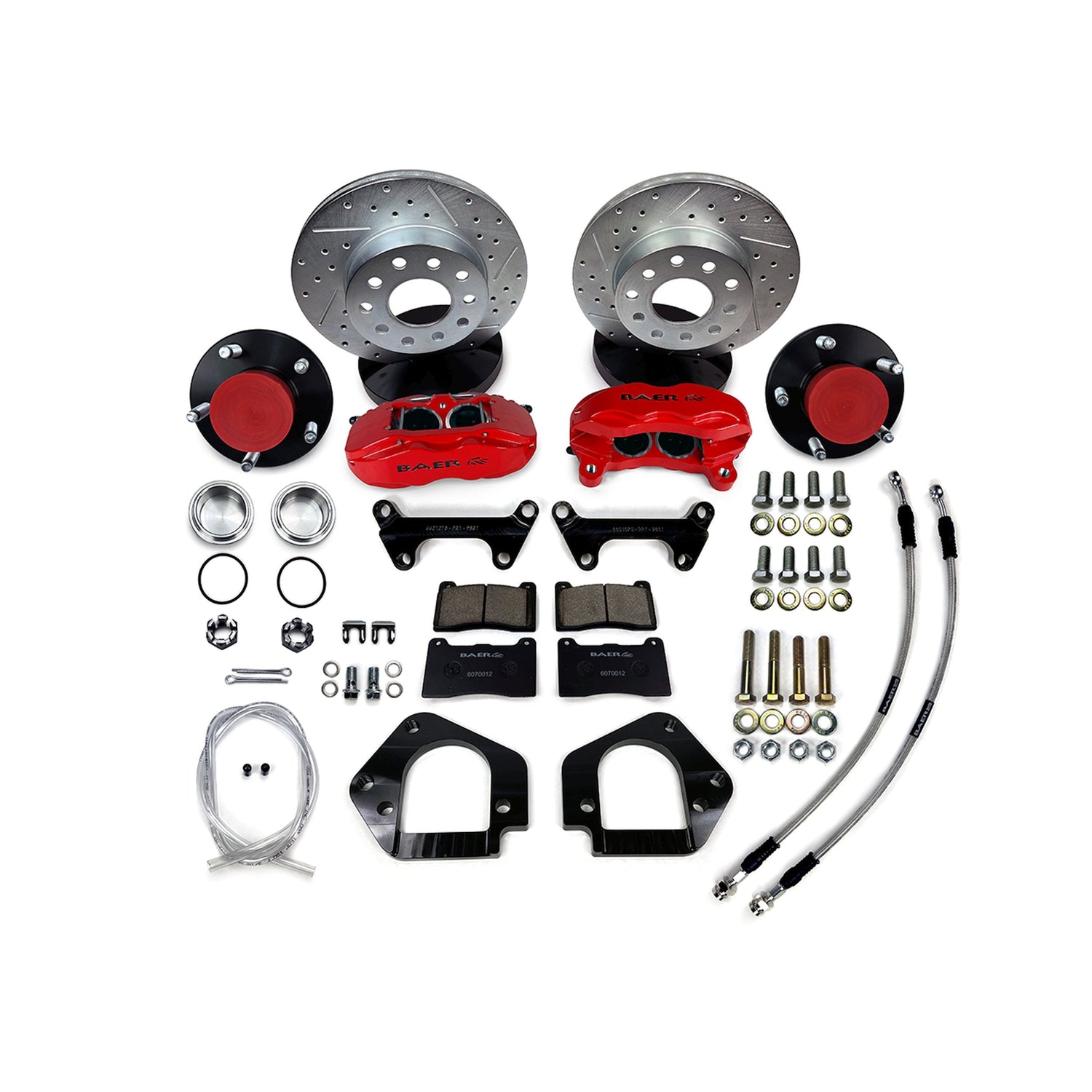

This system features the 4-piston, S4TL caliper mounted to a 11", 1-Piece slot, drill, zinc plated rotor. The S4TL caliper has D.O.T compliant dust and weather seals with a top load design for quick and simple pad changes. Billet aluminum hubs come assembled with premium bearings packed with Redline synthetic grease and billet aluminum dust caps. All mounting brackets, stainless braided hoses and hardware are also included. The 11" SS4 is designed just like Baer's larger systems, but in a smaller package for 15" wheels.
Features:
- 2-Piece, 4-Piston, S4TL, Top Loaded Caliper Manufactured in Phoenix, AZ
- CNC Machined from US Sourced Forged or Billet Aluminum
- Powder Coated Finish
- Hard Anodized Aluminum Pistons, Stainless Steel Abutments and Noise Suppression Clips
- Dual Seals, Dust/Weather & Pressure
- 1-Piece Slot, Drilled, Zinc-Plated Rotor
Applications:
- 1973-1974 Buick Apollo
- 1964-1972 Buick Skylark
- 1964-1969 Buick Special
- 1964-1972 Buick Sportwagon
- 1967-1969 Chevrolet Camaro
- 1964-1972 Chevrolet Chevelle
- 1964-1968 Chevrolet Chevy II
- 1964-1972 Chevrolet El Camino
- 1970-1972 Chevrolet Monte Carlo
- 1969-1974 Chevrolet Nova
- 1971-1972 GMC Sprint
- 1964-1971 Oldsmobile 442
- 1964-1972 Oldsmobile Cutlass
- 1966-1972 Oldsmobile Cutlass Supreme
- 1964-1972 Oldsmobile F85
- 1973-1974 Oldsmobile Omega
- 1964-1972 Oldsmobile Vista Cruiser
- 1967-1969 Pontiac Firebird
- 1964-1972 Pontiac GTO
- 1964-1972 Pontiac LeMans
- 1964-1970 Pontiac Tempest
- 1971-1974 Pontiac Ventura
- Must use 15" or larger wheels!
- Increases track width .200" Per Side on OE drum spindles
- Because of the abundance of wheel companies and styles, it is impossible for Baer to guarantee fit of their brake systems into a specific wheel style and/or manufacturer. To verify fitment, we recommend using the template specific to the system you are interested in and compare it to the wheel of choice.
- Axle: Front
- Brand: Baer Brakes

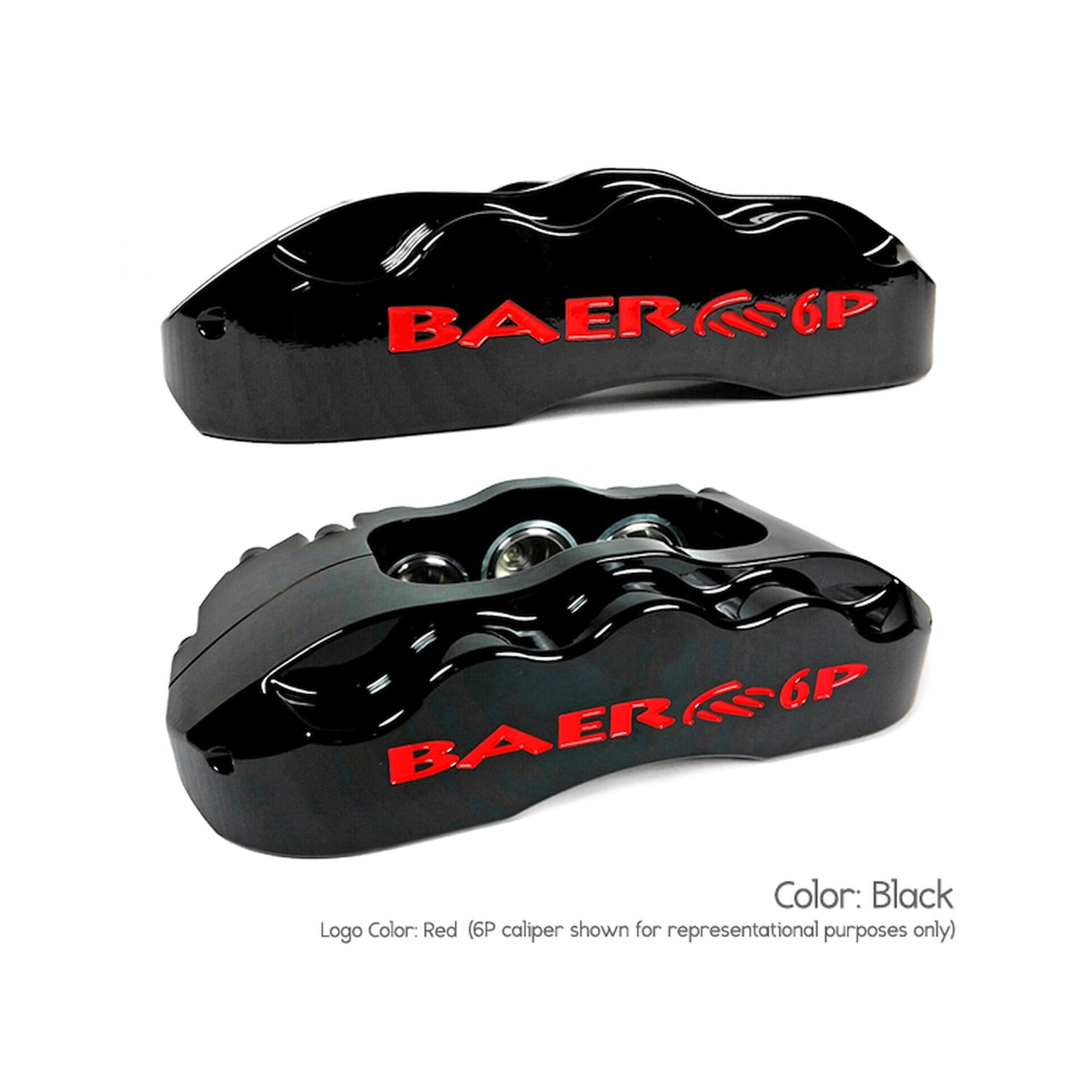

- Caliper: S4TL
- Caliper Color: Black
- Disc Brake Caliper (Front) Piston Quantity: 4
- Disc Brake Caliper (Front) Type: Fixed
- Disc Brake Pad FMSI Number: 6070012
- Disc Brake Rotor (Front) Construction: Vented
- Disc Brake Rotor (Front) Outside Diameter: 11 in
- Emission Code: 6
- Fitment Notes: w/OE, DSE, Heidt's, Fatman, Ridetech & L&H Drop Spindles
- Grade Type: Performance
- Hose Material: Steel Braided
- Lug Count: 5 Lug
- Minimum Wheel Diameter (verify using template): 15 in
- Part Type: Disc Brake Upgrade Kit
- Prop 65 - Long Label: WARNING: This product can expose you to chemicals including Toluene Diisocyanate, and Nickel which are known to the State of California to cause cancer. For more information, visit www.P65Warnings.ca.gov
- Prop 65 Yes/No: Yes
- Rotor Thickness: 1.02 in
- Rotor Type: 1-Piece
- Solid Or Vented Type Rotor: Vented
- Spindle Type: GM AFX (also fits DSE, Heidt's, Fatman, Ridetech & L&H 2" drop spindles)
- Spindles Included: No
- Surface Type: Slotted, Drilled & Zinc Plated
- System Notes: Widens track .200" a side on stock front drum brake cars
- Template: ST125A
- Title: S4 Brake System Front

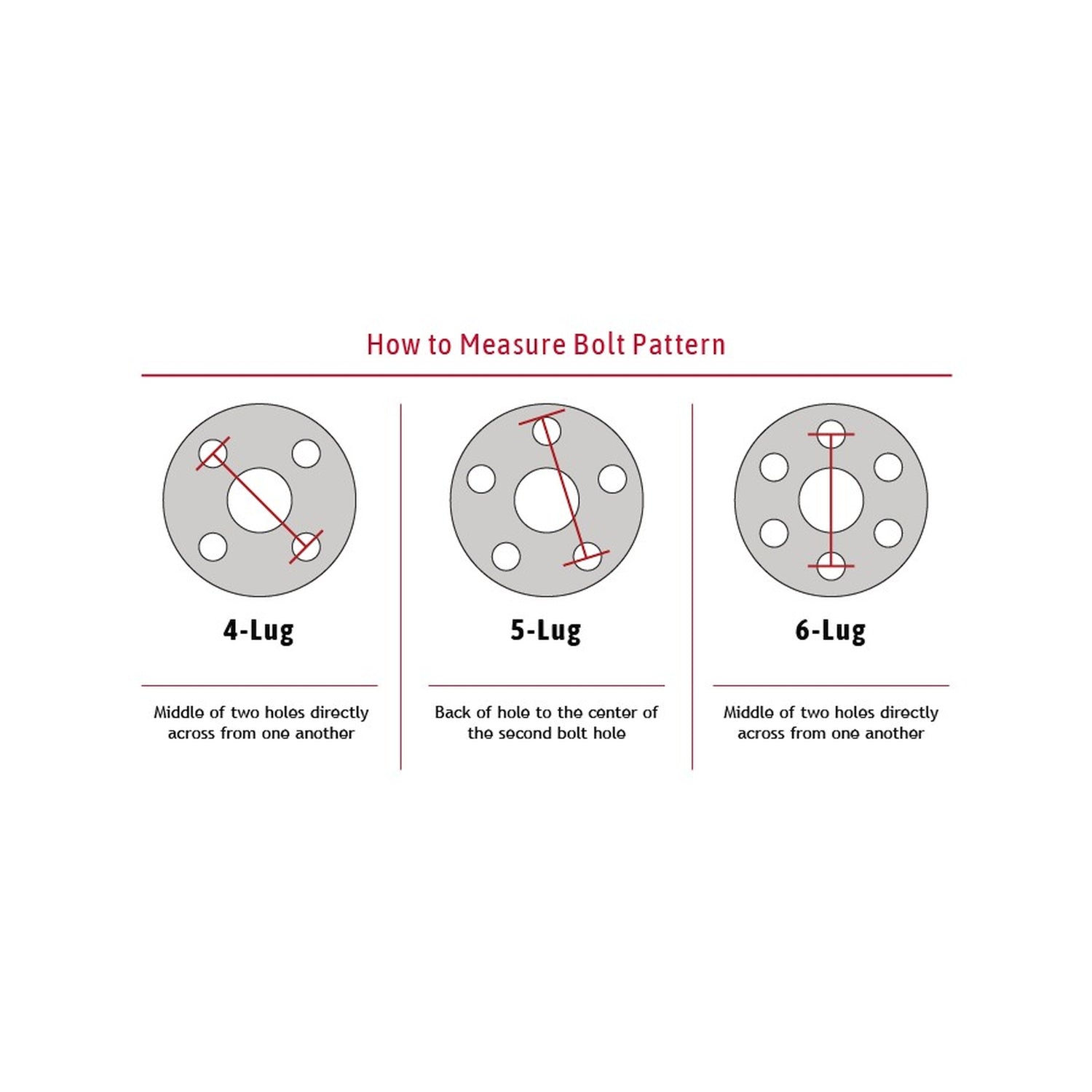

- Wheel Lug/Bolt Pattern: 5x4.75
- Wheel Stud Size: 1/2-20 x 2.25 in
- Part Number: 4301605B
Instructions:
Service Parts:
- Brake Pads - Part Number 6070012
