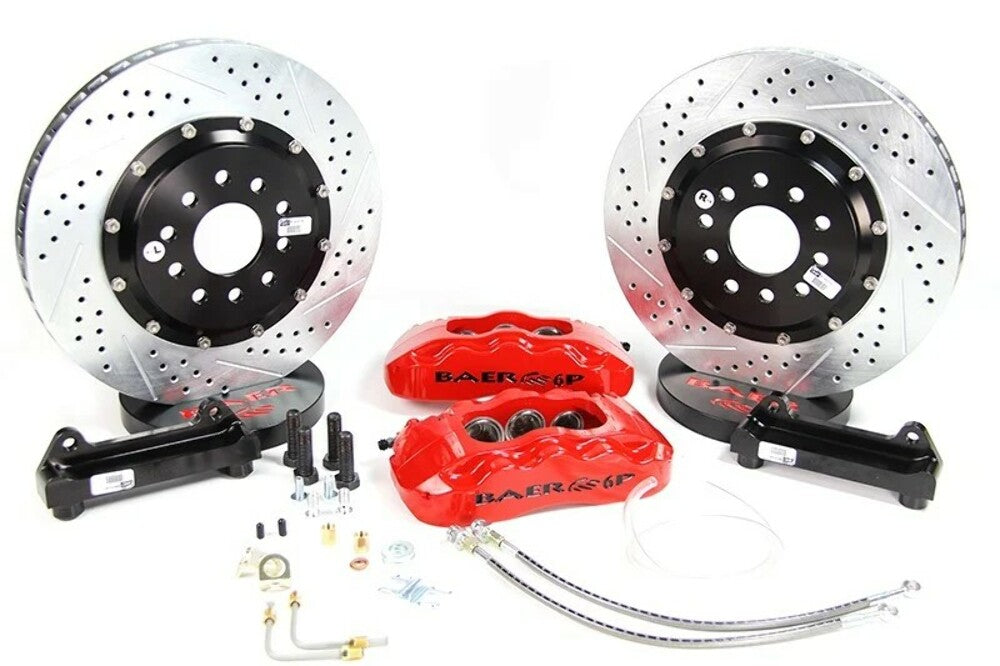

1973-1974 C10 Pickup Pro+ Brake System Front 4301586GB
1973-1974 C10 Pickup Pro+ Brake System Front 4301586GB is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Fitment
Fitment
Warranty Information
Warranty Information
Customer service is our top priority and because we value your time and energy we ask you to visit our Contact Us page and reach out so that we may assist you in finding the correct warranty for your product. Please include your name, the name on the order, the order number, and the SKU of the product to ensure the quickest and most accurate response to your inquiry.
Description
Description
Fits 1973-87 Chevy/GMC 2WD 1/2 Ton Trucks w/DSE Forged Aluminum 2.5" Drop Modular Spindles
Features:
- 2-Piece, 6-Piston, 6P Caliper Manufactured in Phoenix, AZ
- CNC Machined from US Sourced Forged or Billet Aluminum
- Powder Coated Finish
- Stainless Steel Pistons, Abutments and Noise Suppression Clips
- Staggered Pistons to Minimize Uneven Pad Wear
- Dual Seals, Dust/Weather & Pressure
- 2-Piece Slot, Drilled, Zinc-Plate Rotor w/Billet Aluminum Hat
Specs:
| Applications | GM C10 Trucks 60-87 |
|---|---|
| Axle | Front |
| Brand | Baer Brakes |
| Caliper | 6P |
| Caliper Color | Grabber Blue |
| Disc Brake Caliper (Front) Piston Quantity | 6 |
| Disc Brake Caliper (Front) Type | Fixed |
| Disc Brake Pad FMSI Number | D0731 |
| Disc Brake Rotor (Front) Construction | Vented |
| Disc Brake Rotor (Front) Outside Diameter | 13.000IN |
| Emission Code | 6 |
| Export Description | Brake Components |
| Fitment Notes | w/DSE Forged Aluminum Modular Spindles |
| Grade Type | Performance |
| Hose Material | Stainless Steel |
| Lug Count | 5 Lug |
| Min Wheel Dia (verify using template) | 17IN |
| Product Line | 13 Inch Pro+ |
| Product Type | 13 Inch Pro+ Front Brake Kit |
| Prop 65 (C, R or CR) | CR |
| Prop 65 - Long Label | WARNING: This product can expose you to chemicals including Toluene Diisocyanate, and Nickel which are known to the State of California to cause cancer. For more information, visit www.P65Warnings.ca.gov |
| Prop 65 - Short Label | WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov |
| Prop 65 Yes/No | Yes |
| Rotor Thickness | 1.100IN |
| Rotor Type | 2-Piece |
| Spindle Type | DSE Forged Alum Modular 2.5" Drop Spindles |
| Spindles Included | No |
| Surface Type | Slotted, Drilled & Zinc Plated |
| System Notes | Fits DSE 2.5" drop, forged aluminum modular spindles p/n 032090DS. Bolt on hub packs not included. |
| Template | Q072H |
| Title | Pro+ Brake System Front |
| Wheel Lug/Bolt Pattern | 5x4.75/5x5.00 |
Application:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1973-1974 | Chevrolet | C10 Pickup | |
| 1975-1986 | Chevrolet | C10 | |
| 1973-1986 | Chevrolet | C10 Suburban | |
| 1987 | Chevrolet | R10 | |
| 1987-1988 | Chevrolet | R10 Suburban | |
| 1973-1974 | GMC | C15/C1500 Pickup | |
| 1973-1974 | GMC | C15/C1500 Suburban | |
| 1979-1986 | GMC | C1500 | |
| 1979-1986 | GMC | C1500 Suburban | |
| 1987-1988 | GMC | R1500 Suburban | |
| 1975-1978 | GMC | C15 | |
| 1975-1978 | GMC | C15 Suburban | |
| 1987 | GMC | R1500 |
