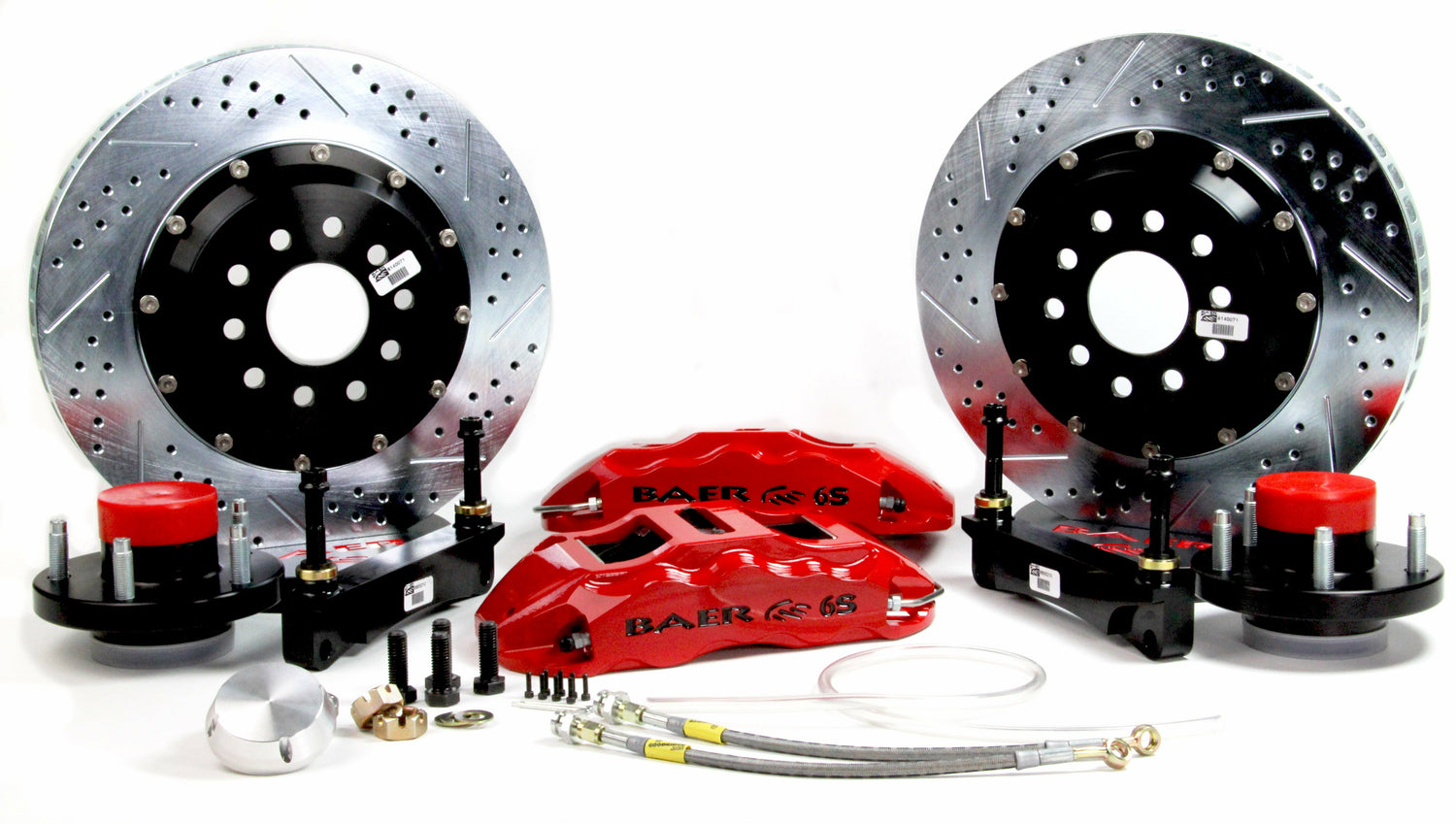

1988-1998 C1500 Extreme+ Brake System Front 4301628CY
1988-1998 C1500 Extreme+ Brake System Front 4301628CY is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Fitment
Fitment
Warranty Information
Warranty Information
Customer service is our top priority and because we value your time and energy we ask you to visit our Contact Us page and reach out so that we may assist you in finding the correct warranty for your product. Please include your name, the name on the order, the order number, and the SKU of the product to ensure the quickest and most accurate response to your inquiry.
Description
Description
Fits 1988-98 Chevy/GMC C1500 2WD Trucks, 92-99 Chevy/GMC C1500 2WD SUV's w/React 2" Drop Spindle
Features:
- 1-Piece Monoblock, 6-Piston, 6S Caliper Manufactured in Phoenix, AZ
- CNC Machined from US Sourced 2618 Aluminum Forging
- Powder Coated Finish
- Stainless Steel Pistons, Abutments and Noise Suppression Clips
- Staggered Pistons to Minimize Uneven Pad Wear
- Dual Seals, Dust/Weather & Pressure
- 2-Piece Slot, Drilled, Zinc-Plate Rotor w/Billet Aluminum Hat
Specs:
| Applications | GM C1500 SUV's 92-99 |
|---|---|
| Applications | GM C1500 Trucks 88-98 |
| Axle | Front |
| Brand | Baer Brakes |
| Caliper | 6S |
| Caliper Color | Comp Yellow |
| Disc Brake Caliper (Front) Piston Quantity | 6 |
| Disc Brake Caliper (Front) Type | Fixed |
| Disc Brake Pad FMSI Number | D1247 |
| Disc Brake Rotor (Front) Construction | Vented |
| Disc Brake Rotor (Front) Outside Diameter | 15.000IN |
| Emission Code | 6 |
| Export Description | Brake Components |
| Fitment Notes | w/React 2" Drop Spindles |
| Grade Type | Performance |
| Hose Material | Stainless Steel |
| Lug Count | 5 Lug |
| Min Wheel Dia (verify using template) | 19IN |
| Product Line | 15 Inch Extreme+ |
| Product Type | 15 Inch Extreme+ Front Brake Kit |
| Prop 65 (C, R or CR) | CR |
| Prop 65 - Long Label | WARNING: This product can expose you to chemicals including Toluene Diisocyanate, and Nickel which are known to the State of California to cause cancer. For more information, visit www.P65Warnings.ca.gov |
| Prop 65 Yes/No | Yes |
| Rotor Thickness | 1.250IN |
| Rotor Type | 2-Piece |
| Spindle Type | React 2" Drop Spindles |
| Spindles Included | No |
| Surface Type | Slotted, Drilled & Zinc Plated |
| System Notes | Designed to be used with React 2" drop spindles |
| Template | N117U |
| Title | Extreme+ Brake System Front |
| Wheel Lug/Bolt Pattern | 5x5.00 |
| Wheel Stud Size | M14-1.50 x 47.5mm |
Application:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1988-1998 | Chevrolet | C1500 | |
| 1992-1999 | Chevrolet | C1500 Suburban | |
| 1995-1999 | Chevrolet | Tahoe | |
| 1988-1998 | GMC | C1500 | |
| 1992-1999 | GMC | C1500 Suburban | |
| 1992-1999 | GMC | Yukon |
