Holley EFI | SKU:
300-653BK
2011-2020 1500 5.7L Holley Gen III Hemi Hi-Ram EFI Manifold Base 300-653BK
Regular price
$898.95 USD
Unit price
/
Unavailable
Shipping calculated at checkout.
2011-2020 1500 5.7L Holley Gen III Hemi Hi-Ram EFI Manifold Base 300-653BK is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Fitment
Fitment
Warranty Information
Warranty Information
Customer service is our top priority and because we value your time and energy we ask you to visit our Contact Us page and reach out so that we may assist you in finding the correct warranty for your product. Please include your name, the name on the order, the order number, and the SKU of the product to ensure the quickest and most accurate response to your inquiry.
Description
Description

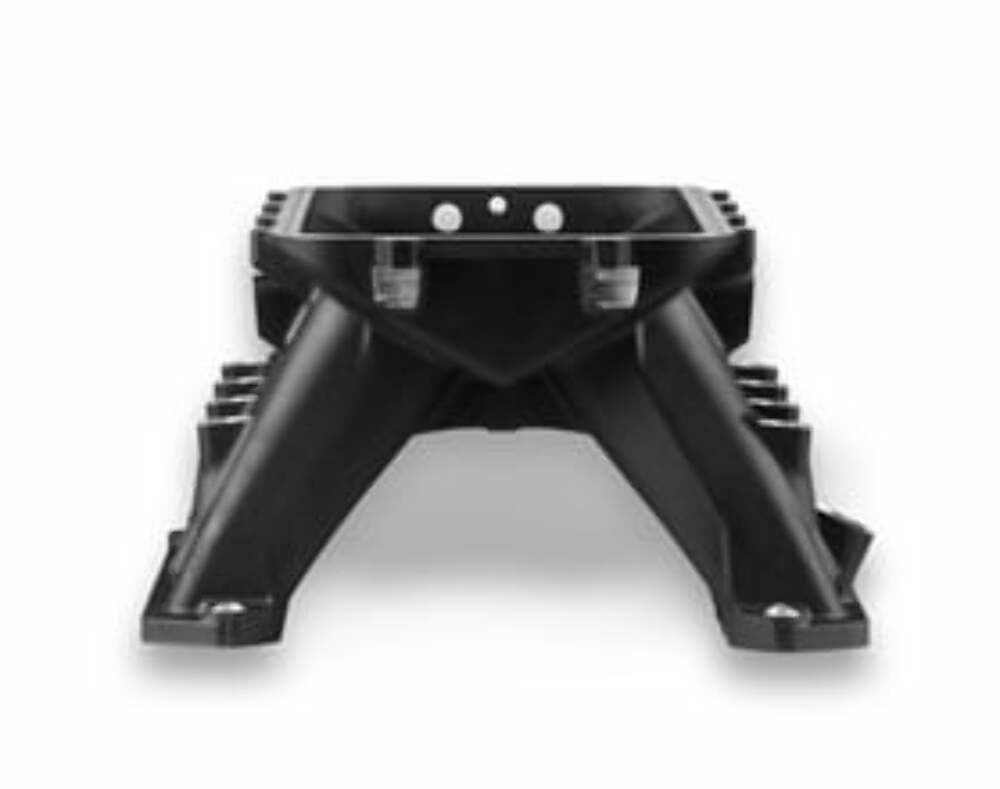

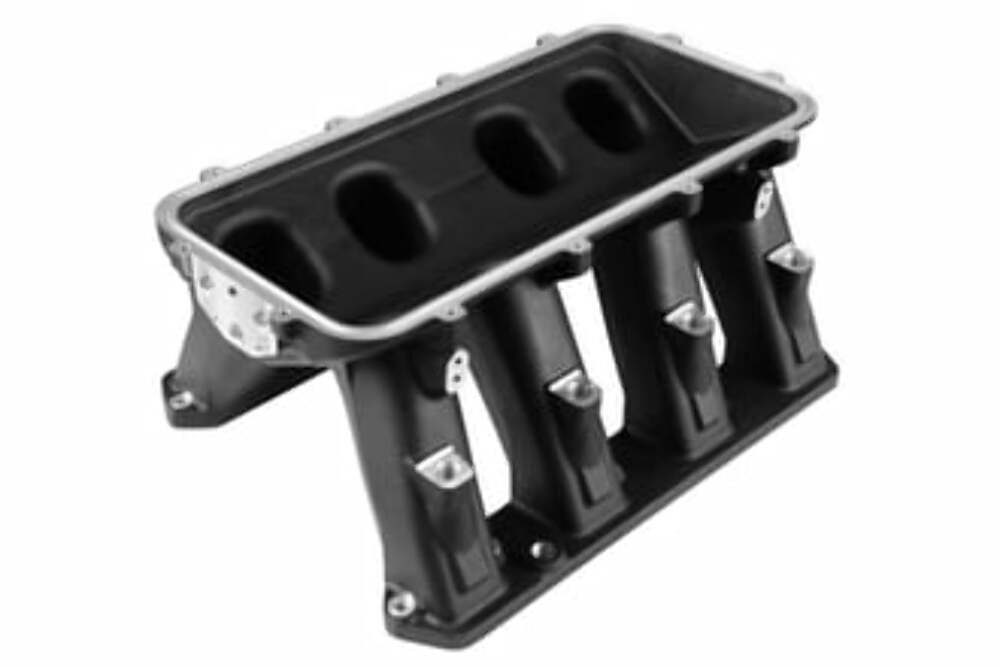

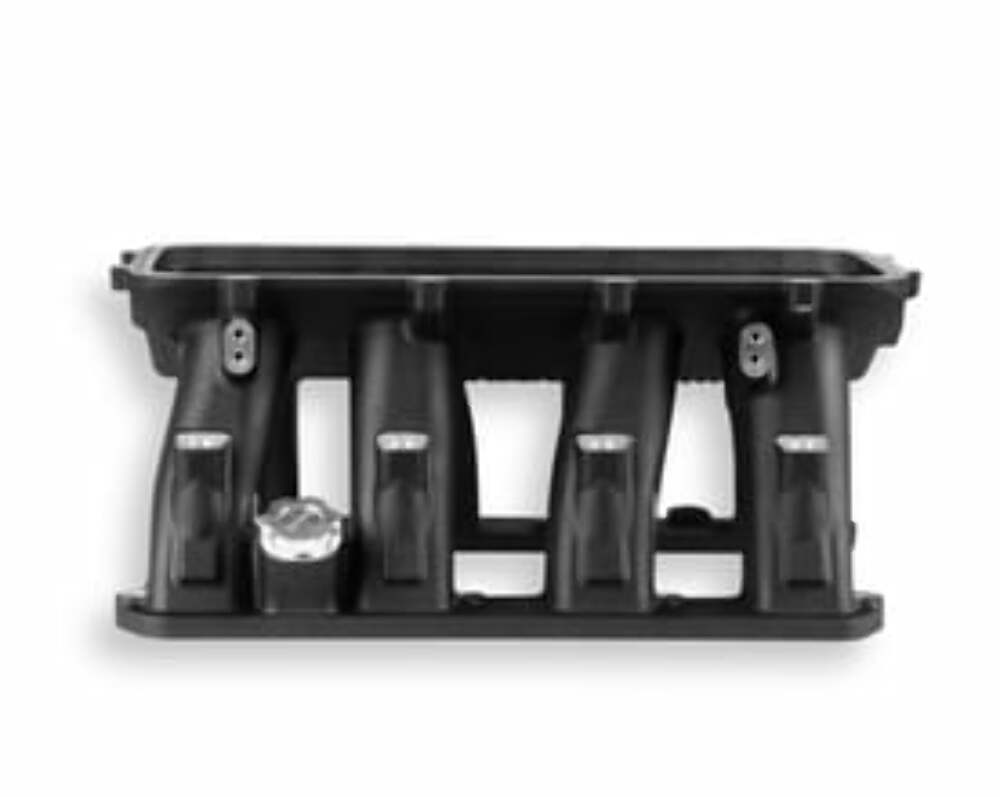

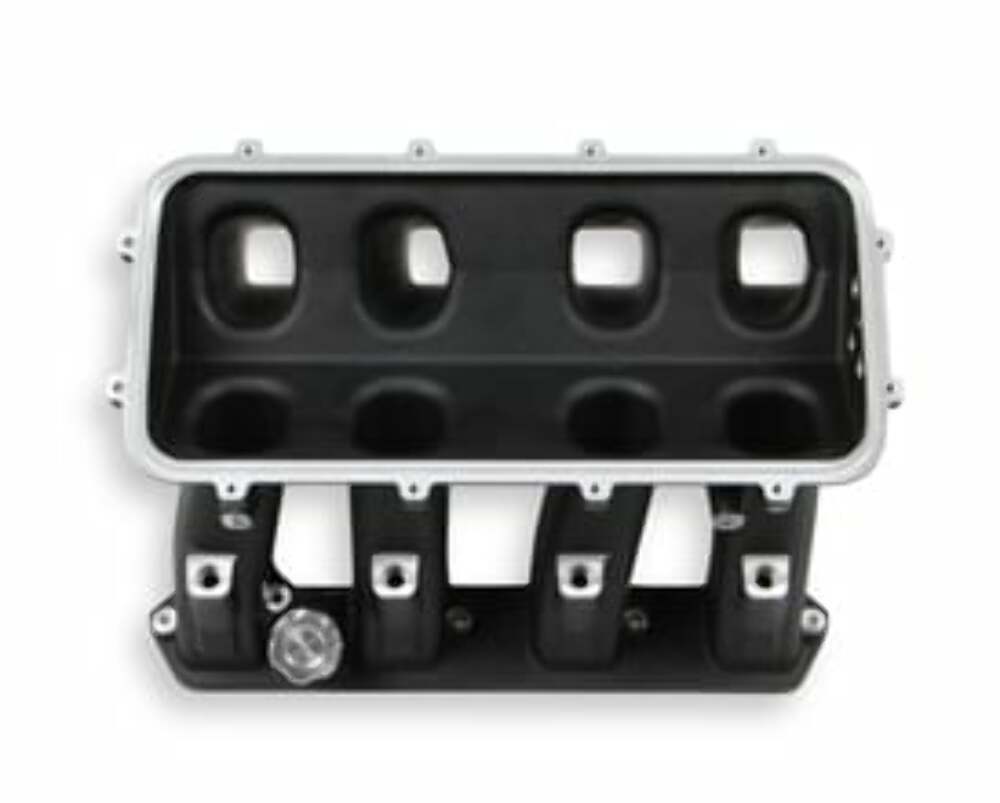

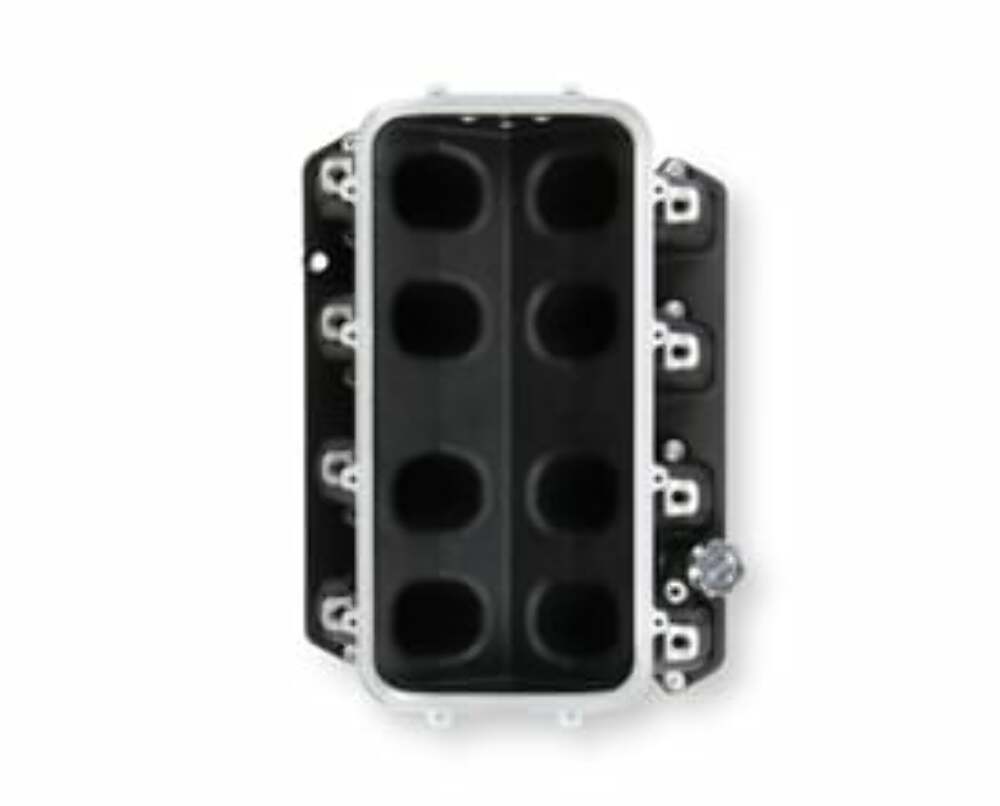

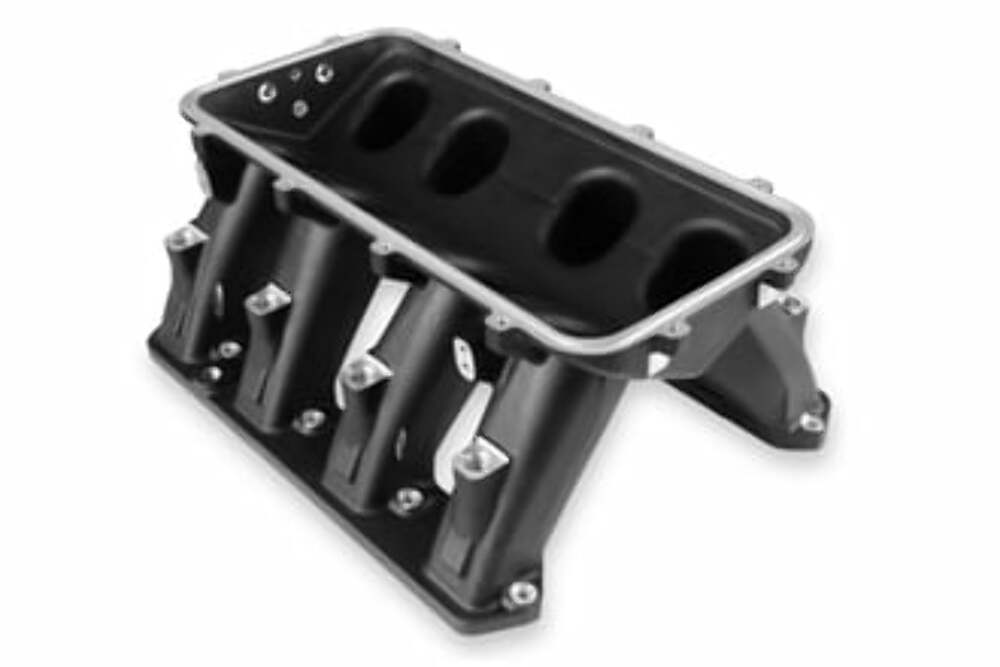

Gen III Hemi EFI Manifold Base - Black Finish - Fits 2009-up 5.7L, 2005-2010 6.1L, and 2011-up 6.4L
Features:
- Add Even More Power to the Gen III Hemi Engine with a Holley Hi-Ram Intake Manifold
- Fits Gen III Hemi Engines w/ Large Intake Ports (1.70? Height x 1.88? Wide) ? fits 2009-up 5.7L, 2005-2010 6.1L, 2011-up 6.4L)
- Cast Aluminum Construction w/ Natural Satin or Black Finish
- Runner Length and the Tapered Cross Section Designed to Perform Well for a Wide Range of Engine Configurations
- Includes EFI Fuel Rails w/ -8 AN O-Ring Fittings & Large Passages to Accommodate High Fuel Flow and Dampen Pressure Pulsations in the Fuel System
- Works with Gen III Hemi Injectors & Bosch EV-1 Style Injectors
- O-Ring Seal to Head ? Large Retained O-rings Offer Superior Original Equipment (OE) Style Sealing & Are Easy to Replace
- Billet Oil Fill Cap ? Attractive Low Profile Design
- Positive Crankcase Ventilation (PVC) Ports w/ Adapter Fittings

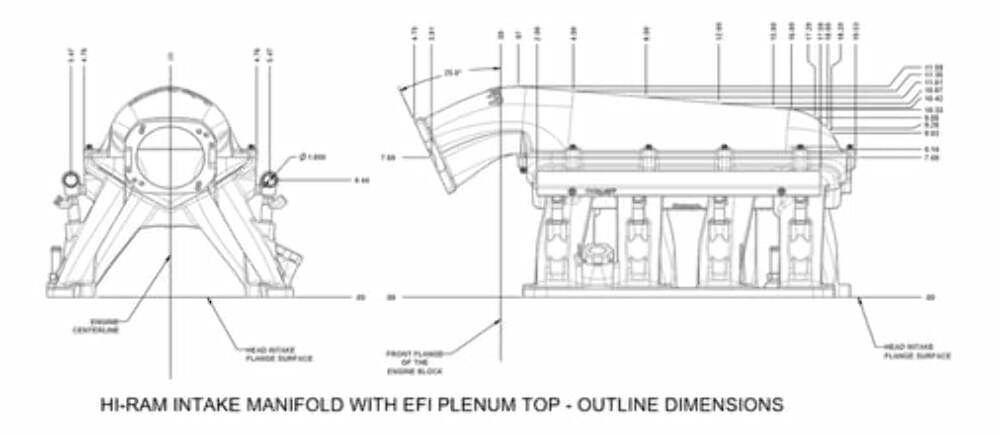

- Overall Height: 11.59?
- Port for OE Style Manifold Absolute Pressure (MAP) Sensor (1 or 2 Bar)
- Cast-In Pads for Adding Nitrous Nozzles
- Manifold Base ? Available Separately for Custom Induction Systems
Specs:
| Basic Operating RPM Range | 1500-7000 RPM |
|---|---|
| Brand | Holley EFI |
| Category Filter | Intake Manifolds |
| Clearance Category | Air and Fuel Delivery |
| Color | Black |
| Construction | Cast |
| Discount Percentage | 26-50% |
| EGR Port | No |
| Emission Code | 3 |
| Engine | GEN 3 HEMI |
| Finish | Black |
| Flange Style | EFI |
| Front Height | 7.69 inch |
| Front Maximum Height | 7.69 IN |
| Fuel System Type | EFI |
| Grade Type | Performance |
| Injector Style Provision | EV-1, Gen III Hemi |
| Intake Port Gasket(s) Included | No |
| Manifold Type | Hi-Ram |
| Material | Aluminum |
| Nitrous Bung(s) Included | No |
| Plenum Finish | Black |
| Port Size | 1.70" x 1.88" |
| Product Type | Intake Manifold Base |
| Rear Height | 7.69 inch |
| Rear Maximum Height | 7.69 IN |
| Removable Runners | No |
| RPM Power Band | 1500-7000 |
| RPM Power Band | 1500-7000 RPM |
| Runner Length | 6.65 inch |
| Sale Category | Air and Fuel Delivery |
| Single Or Dual Plane Type | Single Plane |
| Style | EFI |
| Throttle Body Included | No |
| Type of Component | Lower Manifold |
| Vacuum Ports | (2) 3/8" NPT & (1) 1/4" NPT |
| Warning | California Proposition 65 |
| Warranty | Limited 90 Day |
Application:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2011-2020 | Ram | 1500 | Big Horn |
| 2011-2020 | Ram | 1500 | Laramie Longhorn |
| 2011-2020 | Ram | 1500 | Laramie |
| 2011-2020 | Ram | 1500 | Sport |
| 2011-2020 | Ram | 1500 | Tradesman |
| 2011-2018 | Ram | 1500 | SLT |
| 2011-2018 | Ram | 1500 | Outdoorsman |
| 2011-2018 | Ram | 1500 | ST |
| 2011 | Ram | 1500 | SXT |
| 2013-2019 | Ram | 1500 | SXT |
| 2012-2018 | Ram | 1500 | Express |
| 2012 | Ram | 1500 | Tradesman HD |
| 2013 | Ram | 1500 | R/T |
| 2014-2020 | Ram | 1500 | Lone Star |
| 2014-2018 | Ram | 1500 | Special Service |
| 2020 | Ram | 1500 | Special Service |
| 2014-2018 | Ram | 1500 | Laramie Limited |
| 2015-2020 | Ram | 1500 | Rebel |
| 2015-2020 | Ram | 1500 | Limited |
| 2019-2020 | Ram | 1500 | Laramie Sport |
| 2019-2020 | Ram | 1500 | Longhorn |
| 2011-2019 | Ram | 2500 | SLT |
| 2011-2019 | Ram | 2500 | Laramie |
| 2011-2018 | Ram | 2500 | Outdoorsman |
| 2011-2018 | Ram | 2500 | Laramie Longhorn |
| 2011-2018 | Ram | 2500 | ST |
| 2011-2013 | Ram | 2500 | Power Wagon |
| 2011 | Ram | 2500 | SXT |
| 2013 | Ram | 2500 | SXT |
| 2011 | Ram | 2500 | SLT Sport |
| 2012-2019 | Ram | 2500 | R/T |
| 2012-2016 | Ram | 2500 | Hemi Sport |
| 2013-2018 | Ram | 2500 | Tradesman |
| 2013-2018 | Ram | 2500 | Big Horn |
| 2013-2015 | Ram | 2500 | Lone Star |
| 2014-2020 | Ram | 2500 | Tradesman |
| 2014-2020 | Ram | 2500 | Laramie Limited |
| 2014-2020 | Ram | 2500 | Laramie |
| 2014-2020 | Ram | 2500 | Laramie Longhorn |
| 2014-2020 | Ram | 2500 | Power Wagon |
| 2014-2020 | Ram | 2500 | Big Horn |
| 2014-2019 | Ram | 2500 | ST |
| 2014-2019 | Ram | 2500 | Outdoorsman |
| 2014-2019 | Ram | 2500 | SLT |
| 2014-2017 | Ram | 2500 | Laramie Limited |
| 2014-2015 | Ram | 2500 | Lone Star |
| 2019-2020 | Ram | 2500 | Lone Star |
| 2016-2020 | Ram | 2500 | Limited |
| 2016-2017 | Ram | 2500 | Limited |
| 2017-2019 | Ram | 2500 | Sport |
| 2017 | Ram | 2500 | SLT HD |
| 2017 | Ram | 2500 | Laramie HD |
| 2018-2019 | Ram | 2500 | SLT HD |
| 2018 | Ram | 2500 | Limited Tungsten |
| 2018 | Ram | 2500 | Limited Tungsten HD |
| 2019-2020 | Ram | 2500 | HD Limited |
| 2020 | Ram | 2500 | HD Limited Rambox |
| 2011-2018 | Ram | 3500 | ST |
| 2011-2018 | Ram | 3500 | SLT |
| 2011-2017 | Ram | 3500 | Laramie |
| 2011 | Ram | 3500 | SXT |
| 2013 | Ram | 3500 | SXT |
| 2013-2018 | Ram | 3500 | Tradesman |
| 2013-2018 | Ram | 3500 | Big Horn |
| 2013-2017 | Ram | 3500 | Laramie Longhorn |
| 2013-2015 | Ram | 3500 | Lone Star |
| 2017 | Ram | 3500 | Lone Star |
| 2014-2020 | Ram | 3500 | Tradesman |
| 2014-2020 | Ram | 3500 | SLT |
| 2014-2020 | Ram | 3500 | Laramie Longhorn |
| 2014-2020 | Ram | 3500 | Big Horn |
| 2014-2020 | Ram | 3500 | Laramie |
| 2014-2019 | Ram | 3500 | ST |
| 2014-2017 | Ram | 3500 | Laramie Limited |
| 2014-2015 | Ram | 3500 | Lone Star |
| 2017 | Ram | 3500 | Lone Star |
| 2019-2020 | Ram | 3500 | Lone Star |
| 2016-2020 | Ram | 3500 | Limited |
| 2016-2020 | Ram | 3500 | Laramie Limited |
| 2016-2017 | Ram | 3500 | Limited |
| 2011-2018 | Ram | 4000 | Base |
| 2017-2020 | Ram | 4000 | PL |
| 2017-2020 | Ram | 4000 | P |
| 2017-2018 | Ram | 4000 | Crew |
| 2019-2020 | Ram | 4000 | Crew |
| 2019-2020 | Ram | 1500 Classic | ST |
| 2019-2020 | Ram | 1500 Classic | SLT |
| 2019-2020 | Ram | 1500 Classic | Warlock |
| 2019-2020 | Ram | 1500 Classic | Express |
| 2019-2020 | Ram | 1500 Classic | Tradesman |
| 2019 | Ram | 1500 Classic | Lone Star |
| 2019 | Ram | 1500 Classic | Special Service |
| 2019 | Ram | 1500 Classic | Big Horn |
| 2005-2010 | Chrysler | 300 | C SRT8 |
| 2009-2020 | Chrysler | 300 | C |
| 2009-2010 | Chrysler | 300 | C Lujo |
| 2012-2013 | Chrysler | 300 | C Lujo |
| 2010 | Chrysler | 300 | S |
| 2012-2020 | Chrysler | 300 | S |
| 2012-2014 | Chrysler | 300 | SRT8 |
| 2013-2014 | Chrysler | 300 | C Luxury |
| 2013 | Chrysler | 300 | SRT8 Core |
| 2015-2017 | Chrysler | 300 | C Platinum |
| 2017-2019 | Chrysler | 300 | Hemi |
| 2009 | Chrysler | Aspen | Limited |
| 2009 | Chrysler | Aspen | Limited Hybrid |
| 2009-2010 | Dodge | Ram 1500 | TRX |
| 2009-2010 | Dodge | Ram 1500 | ST |
| 2009-2010 | Dodge | Ram 1500 | Sport |
| 2009-2010 | Dodge | Ram 1500 | TRX4 |
| 2009-2010 | Dodge | Ram 1500 | SLT |
| 2009-2010 | Dodge | Ram 1500 | Laramie |
| 2009-2010 | Dodge | Ram 2500 | SXT |
| 2009-2010 | Dodge | Ram 2500 | ST |
| 2009-2010 | Dodge | Ram 2500 | SLT |
| 2009-2010 | Dodge | Ram 2500 | Laramie |
| 2009-2010 | Dodge | Ram 2500 | Power Wagon |
| 2009 | Dodge | Ram 2500 | Crew |
| 2010 | Dodge | Ram 2500 | TRX |
| 2009 | Dodge | Ram 3500 | SLT |
| 2009 | Dodge | Ram 3500 | Laramie |
| 2009 | Dodge | Ram 3500 | ST |
| 2009 | Dodge | Ram 3500 | SXT |
| 2008-2010 | Dodge | Challenger | SRT8 |
| 2009-2020 | Dodge | Challenger | R/T |
| 2011-2014 | Dodge | Challenger | SRT8 |
| 2011-2012 | Dodge | Challenger | SRT |
| 2014 | Dodge | Challenger | SRT |
| 2012-2014 | Dodge | Challenger | R/T Classic |
| 2014 | Dodge | Challenger | Base |
| 2015-2019 | Dodge | Challenger | Scat Pack |
| 2015-2018 | Dodge | Challenger | SRT 392 |
| 2015-2016 | Dodge | Challenger | R/T Plus |
| 2016-2020 | Dodge | Challenger | R/T Scat Pack |
| 2016 | Dodge | Challenger | 392 Hemi Scat Pack Shaker |
| 2016 | Dodge | Challenger | R/T Plus Shaker |
| 2016 | Dodge | Challenger | R/T Shaker |
| 2017-2018 | Dodge | Challenger | T/A 392 |
| 2017-2018 | Dodge | Challenger | R/T 392 |
| 2017-2018 | Dodge | Challenger | T/A |
| 2018 | Dodge | Challenger | Edicion Especial |
| 2019-2020 | Dodge | Challenger | R/T Scat Pack Widebody |
| 2019 | Dodge | Challenger | Scat Pack 392 |
| 2006-2010 | Dodge | Charger | SRT8 |
| 2007-2008 | Dodge | Charger | SRT8 Super Bee |
| 2009-2020 | Dodge | Charger | R/T |
| 2009-2013 | Dodge | Charger | SE |
| 2012-2020 | Dodge | Charger | Pursuit |
| 2012-2020 | Dodge | Charger | Enforcer |
| 2012-2014 | Dodge | Charger | SRT8 |
| 2015-2018 | Dodge | Charger | R/T Scat Pack |
| 2015-2018 | Dodge | Charger | SRT 392 |
| 2015-2016 | Dodge | Charger | R/T Road & Track |
| 2017-2019 | Dodge | Charger | Daytona R/T |
| 2017-2018 | Dodge | Charger | Daytona 392 |
| 2017-2018 | Dodge | Charger | R/T 392 |
| 2017-2018 | Dodge | Charger | Daytona |
| 2019-2020 | Dodge | Charger | Scat Pack 392 |
| 2019-2020 | Dodge | Charger | Scat Pack |
| 2009 | Dodge | Durango | Limited |
| 2014-2016 | Dodge | Durango | Limited |
| 2009 | Dodge | Durango | Limited Hybrid |
| 2009 | Dodge | Durango | SE |
| 2009 | Dodge | Durango | SLT |
| 2011-2020 | Dodge | Durango | R/T |
| 2011-2020 | Dodge | Durango | Citadel |
| 2011-2013 | Dodge | Durango | Crew |
| 2012-2020 | Dodge | Durango | Special Service |
| 2012-2013 | Dodge | Durango | Crew Luxe |
| 2012-2013 | Dodge | Durango | Crew Plus |
| 2017-2018 | Dodge | Durango | GT |
| 2018-2020 | Dodge | Durango | Enforcer |
| 2018-2020 | Dodge | Durango | SRT |
| 2018-2020 | Dodge | Durango | Pursuit |
| 2006-2008 | Dodge | Magnum | SRT8 |
| 2009-2010 | Jeep | Commander | Limited Premium |
| 2009-2010 | Jeep | Commander | Limited |
| 2009 | Jeep | Commander | Overland |
| 2010 | Jeep | Commander | Sport |
| 2006-2010 | Jeep | Grand Cherokee | SRT8 |
| 2009-2020 | Jeep | Grand Cherokee | Limited |
| 2009-2013 | Jeep | Grand Cherokee | Limited Premium |
| 2009 | Jeep | Grand Cherokee | Overland |
| 2011-2020 | Jeep | Grand Cherokee | Overland |
| 2010-2013 | Jeep | Grand Cherokee | Laredo |
| 2010 | Jeep | Grand Cherokee | S Limited |
| 2010 | Jeep | Grand Cherokee | SRT |
| 2010 | Jeep | Grand Cherokee | North Edition |
| 2012-2015 | Jeep | Grand Cherokee | SRT8 |
| 2012-2013 | Jeep | Grand Cherokee | Laredo X |
| 2012 | Jeep | Grand Cherokee | Overland Summit |
| 2013-2020 | Jeep | Grand Cherokee | SRT |
| 2014-2020 | Jeep | Grand Cherokee | Summit |
| 2017-2020 | Jeep | Grand Cherokee | Trailhawk |
| 2017-2020 | Jeep | Grand Cherokee | Limited Lujo Advance |
| 2017-2020 | Jeep | Grand Cherokee | Summit Elite Platinum |
| 2017-2019 | Jeep | Grand Cherokee | Blindada |
| 2017 | Jeep | Grand Cherokee | Limited Lujo |
| 2018-2020 | Jeep | Grand Cherokee | High Altitude |
| 2018-2020 | Jeep | Grand Cherokee | Limited Lujo V8 |
| 2019-2020 | Jeep | Grand Cherokee | Limited X |
