2012-2018 F-150 Extreme+ Brake System Rear 4262688GB
2012-2018 F-150 Extreme+ Brake System Rear 4262688GB is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Fitment
Fitment
Warranty Information
Warranty Information
Customer service is our top priority and because we value your time and energy we ask you to visit our Contact Us page and reach out so that we may assist you in finding the correct warranty for your product. Please include your name, the name on the order, the order number, and the SKU of the product to ensure the quickest and most accurate response to your inquiry.
Description
Description

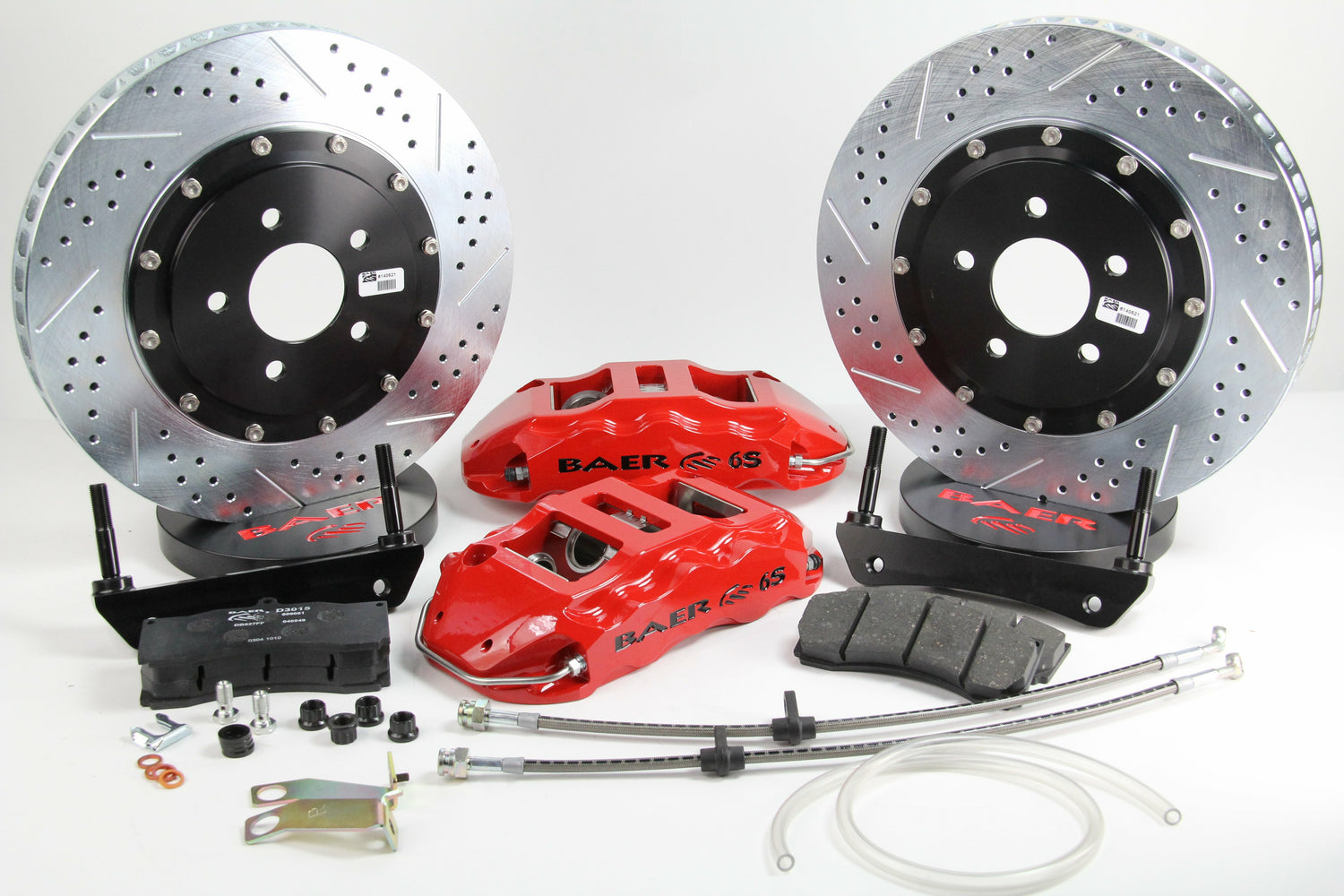

Fits 2012-18 Ford F150 & F150 Raptor 2/4wd Trucks w/Manual Park Brake
Features:
- 1-Piece Monoblock, 6-Piston, 6S Caliper Manufactured in Phoenix, AZ
- CNC Machined from US Sourced 2618 Aluminum Forging
- Powder Coated Finish
- Stainless Steel Pistons, Abutments and Noise Suppression Clips
- Staggered Pistons to Minimize Uneven Pad Wear
- Dual Seals, Dust/Weather & Pressure
- 2-Piece Slot, Drilled, Zinc-Plate Rotor w/Billet Aluminum Hat
Specs:
| Applications | Ford Raptor 12-18 |
|---|---|
| Applications | Ford F150 12-18 |
| Axle | Rear |
| Brand | Baer Brakes |
| Caliper | 6S |
| Caliper Color | Grabber Blue |
| Disc Brake Caliper (Rear) Piston Quantity | 6 |
| Disc Brake Caliper (Rear) Type | Floating |
| Disc Brake Pad FMSI Number | D1247 |
| Disc Brake Rotor (Rear) Construction | Vented |
| Disc Brake Rotor (Rear) Outside Diameter | 15.000IN |
| Emission Code | 6 |
| Export Description | Brake Components |
| Fitment Notes | 4WD |
| Fitment Notes | 2WD |
| Grade Type | Performance |
| Hose Material | Re-uses OE |
| Includes Park Brake | No, Re-uses OE |
| Lug Count | 6 Lug |
| Min Wheel Dia (verify using template) | 19IN |
| Product Line | 15 Inch Extreme+ |
| Product Type | 15 Inch Extreme+ Rear Brake Kit |
| Prop 65 (C, R or CR) | CR |
| Prop 65 - Long Label | WARNING: This product can expose you to chemicals including Toluene Diisocyanate, and Nickel which are known to the State of California to cause cancer. For more information, visit www.P65Warnings.ca.gov |
| Prop 65 - Short Label | WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov |
| Prop 65 Yes/No | Yes |
| Rotor Thickness | 1.250IN |
| Rotor Type | 2-Piece |
| Surface Type | Slotted, Drilled & Zinc Plated |
| System Notes | Designed to be used with 2012-18 F-150 OE rear end and manual park brake (Not compatible with electric park brake) NOTE: Does NOT fit OE Raptor Wheels |
| Template | N125U |
| Title | Extreme+ Brake System Rear |
| Wheel Lug/Bolt Pattern | 6x135mm |
Application:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2012-2018 | Ford | F-150 |
