MSD | SKU:
7566-4

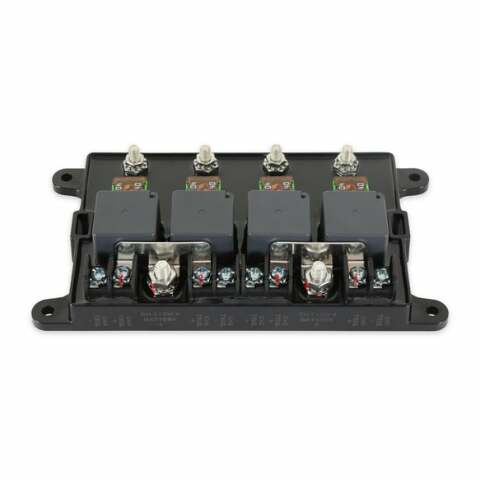

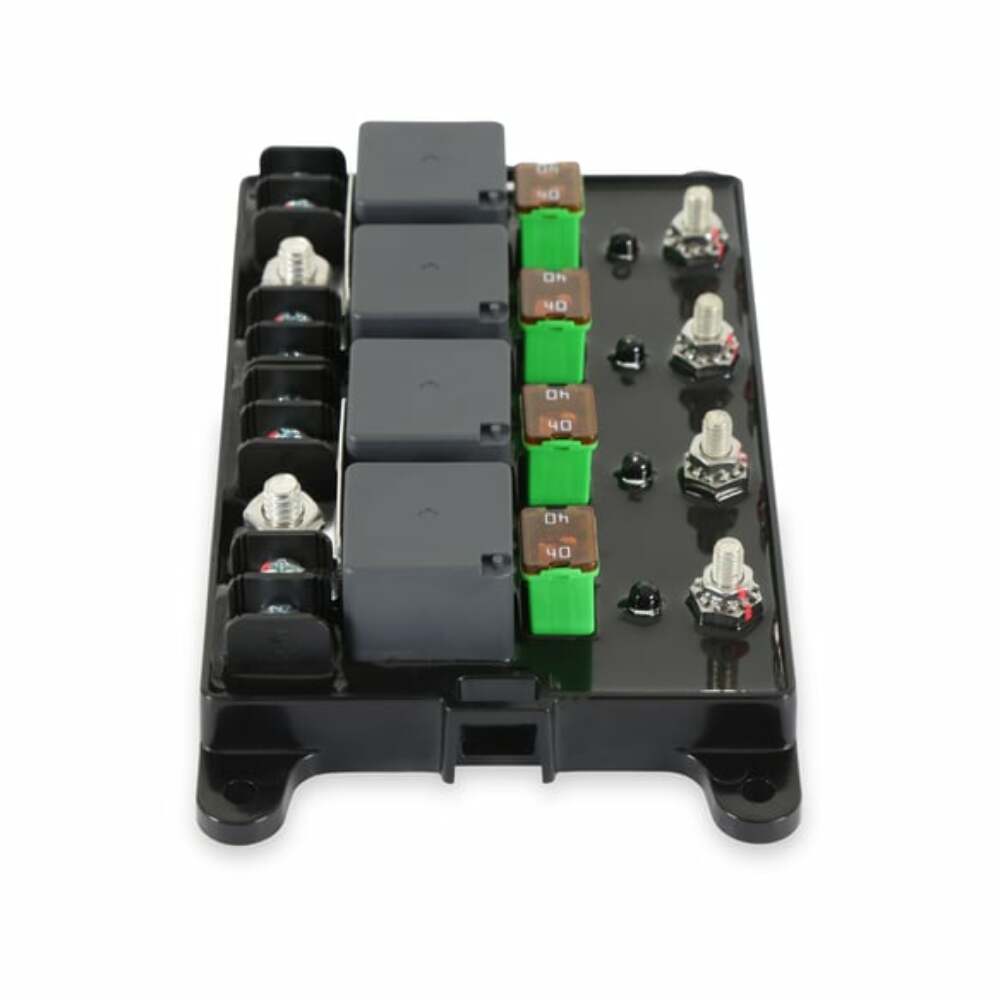

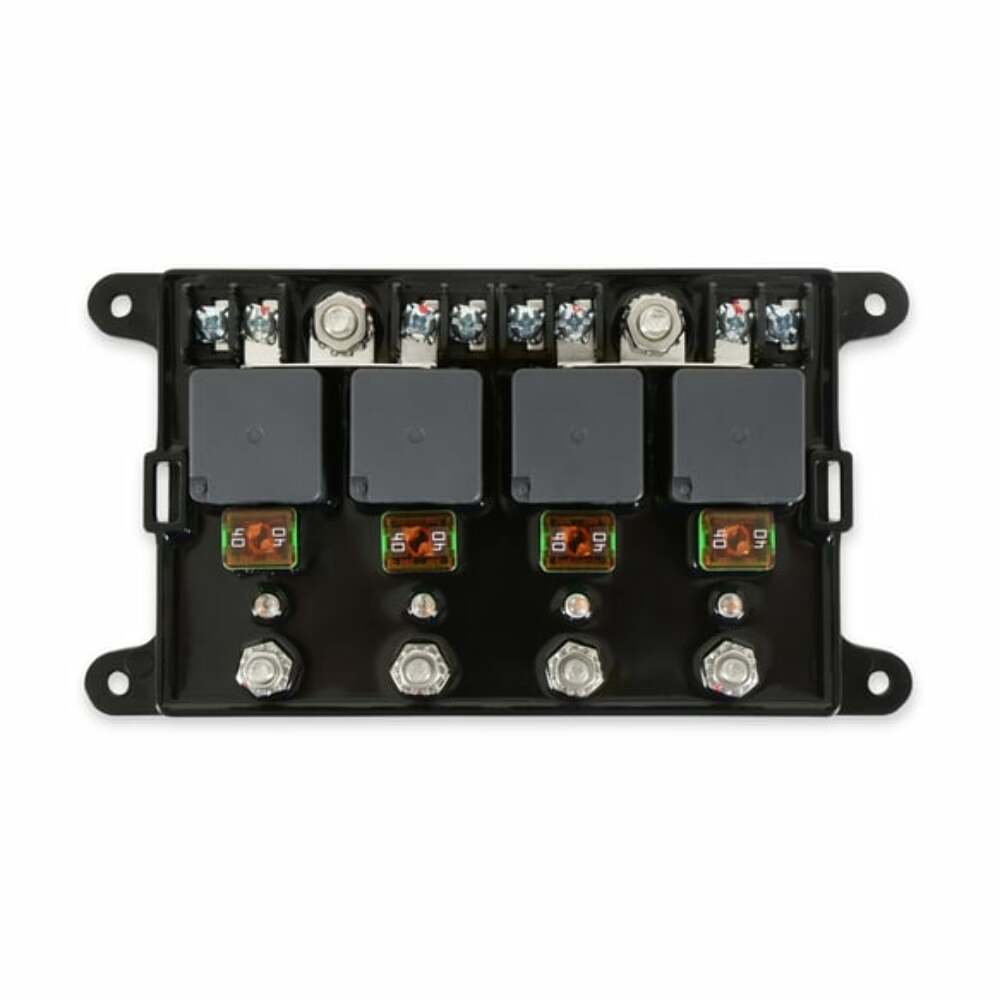

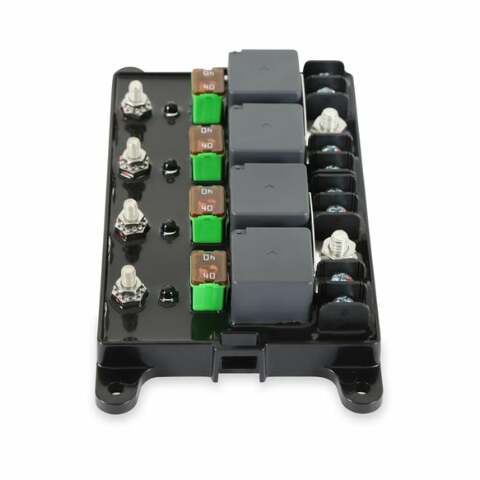

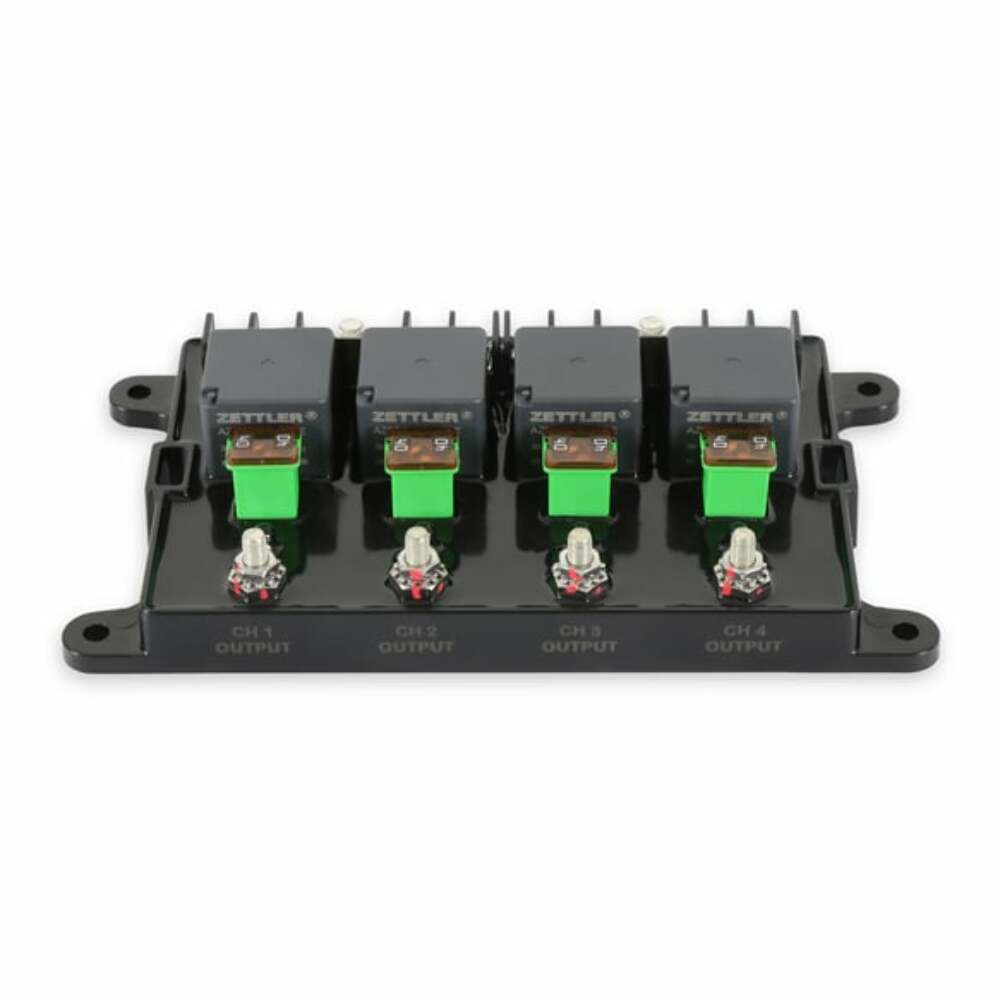

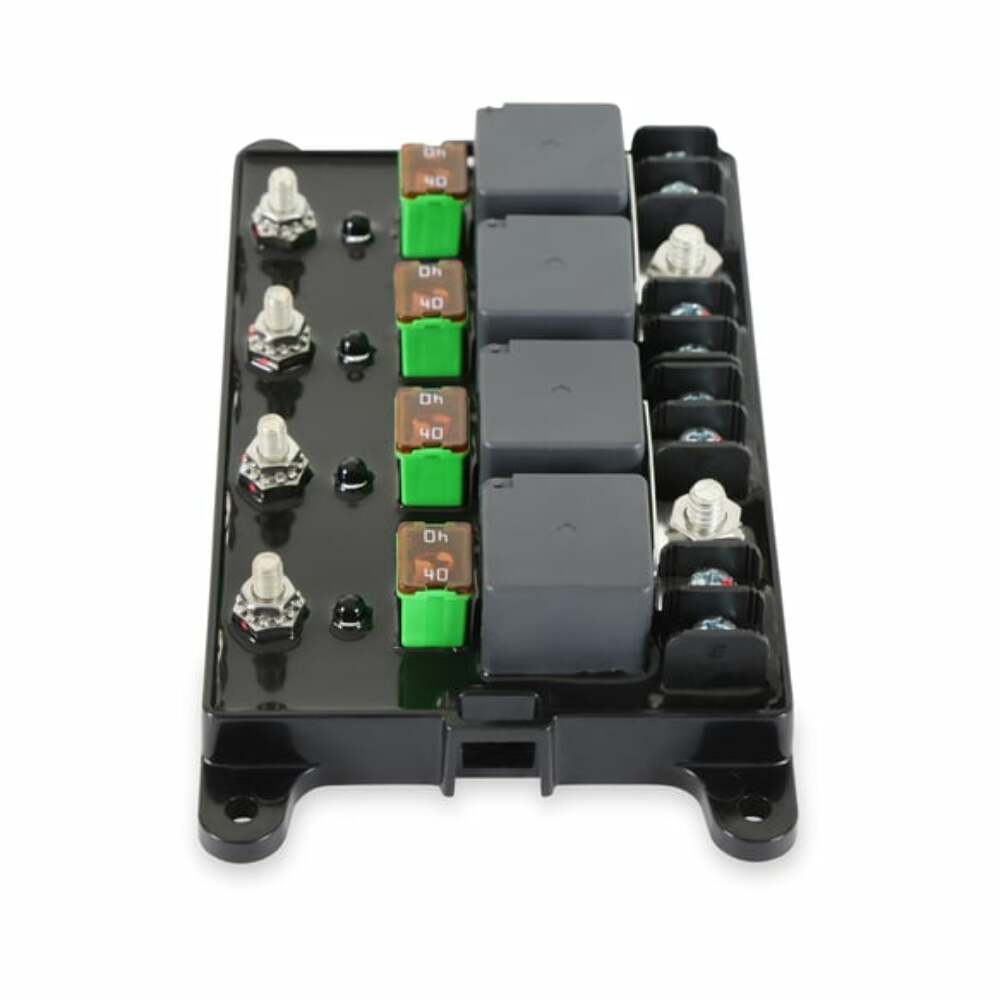

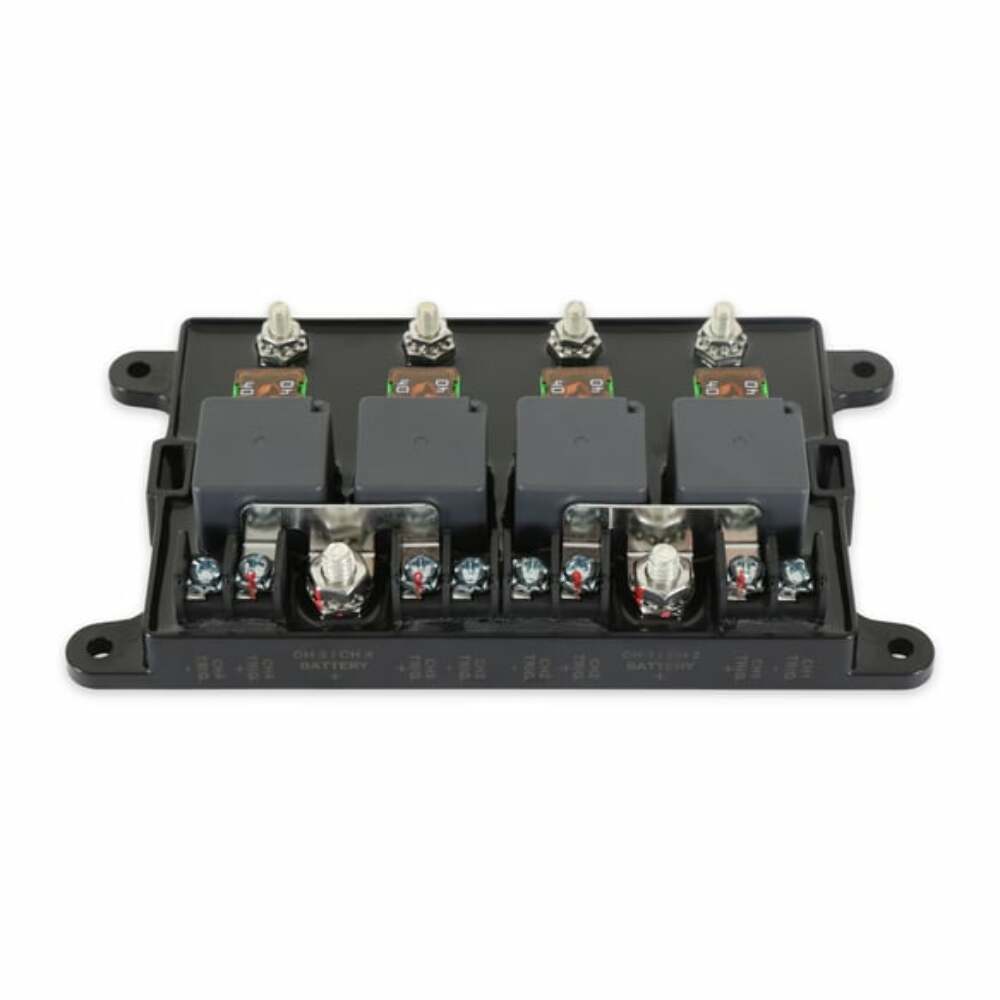

40 Amp 4 Channel Relay Module-7566-4
Regular price
$145.75 USD
Unit price
/
Unavailable
Shipping calculated at checkout.
40 Amp 4 Channel Relay Module-7566-4 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Fitment
Fitment
Warranty Information
Warranty Information
Customer service is our top priority and because we value your time and energy we ask you to visit our Contact Us page and reach out so that we may assist you in finding the correct warranty for your product. Please include your name, the name on the order, the order number, and the SKU of the product to ensure the quickest and most accurate response to your inquiry.
Description
Description
MSD relay modules are designed to be easily installed in most automotive electrical systems where a high amperage relay is needed. These relay modules are perfect use with high amperage electric fuel pumps and high CFM electric cooling fans. Each relay comes with a 40amp fuse, however lower amp fuses can be installed if required. The relay housing comes with a labeled lid that snaps into place providing a clean installation, and protecting the main power stud and triggers from contamination or accidental contact.
Features:
- 7V to 20V supply to fit a wide variety of applications
- Independent 40A outputs, to supply power to most aftermarket fuel pumps and electric fans
- Configurable single-wire activation with Ground (-) input or 12V (+) input, with removal of the Tie-Bar

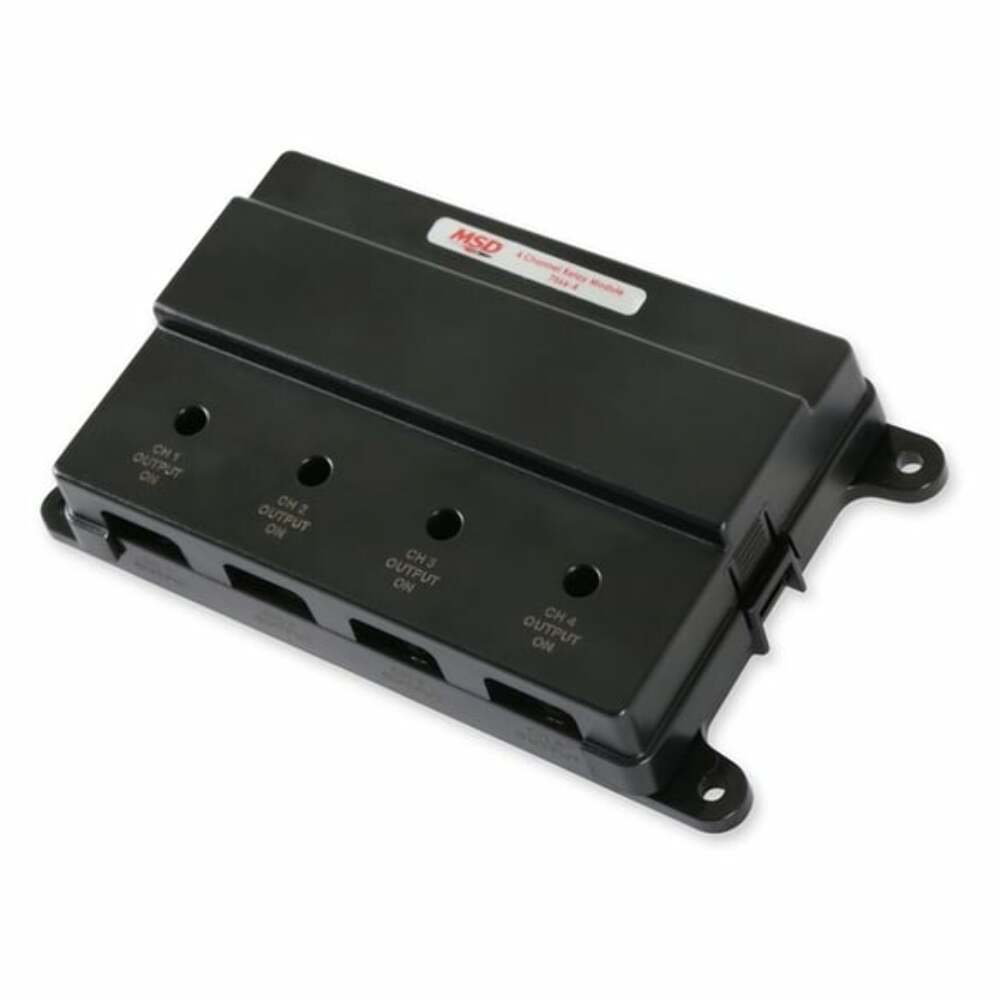

- Removable cover for easy accessibility
- Low profile JCASE fuses provide ample protection in case of a short
- LED status indicators, show you which channel is triggered at a glance
