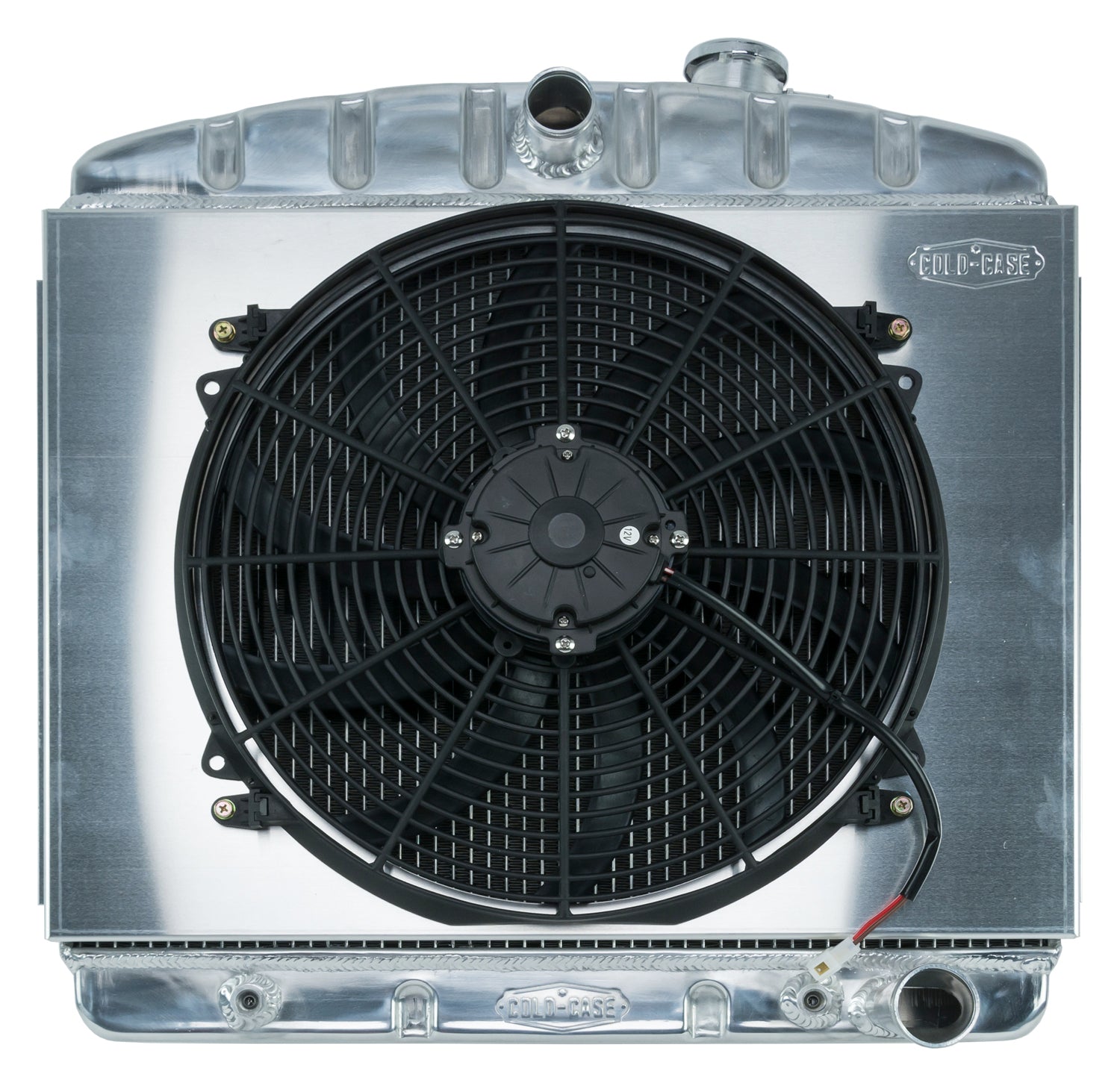

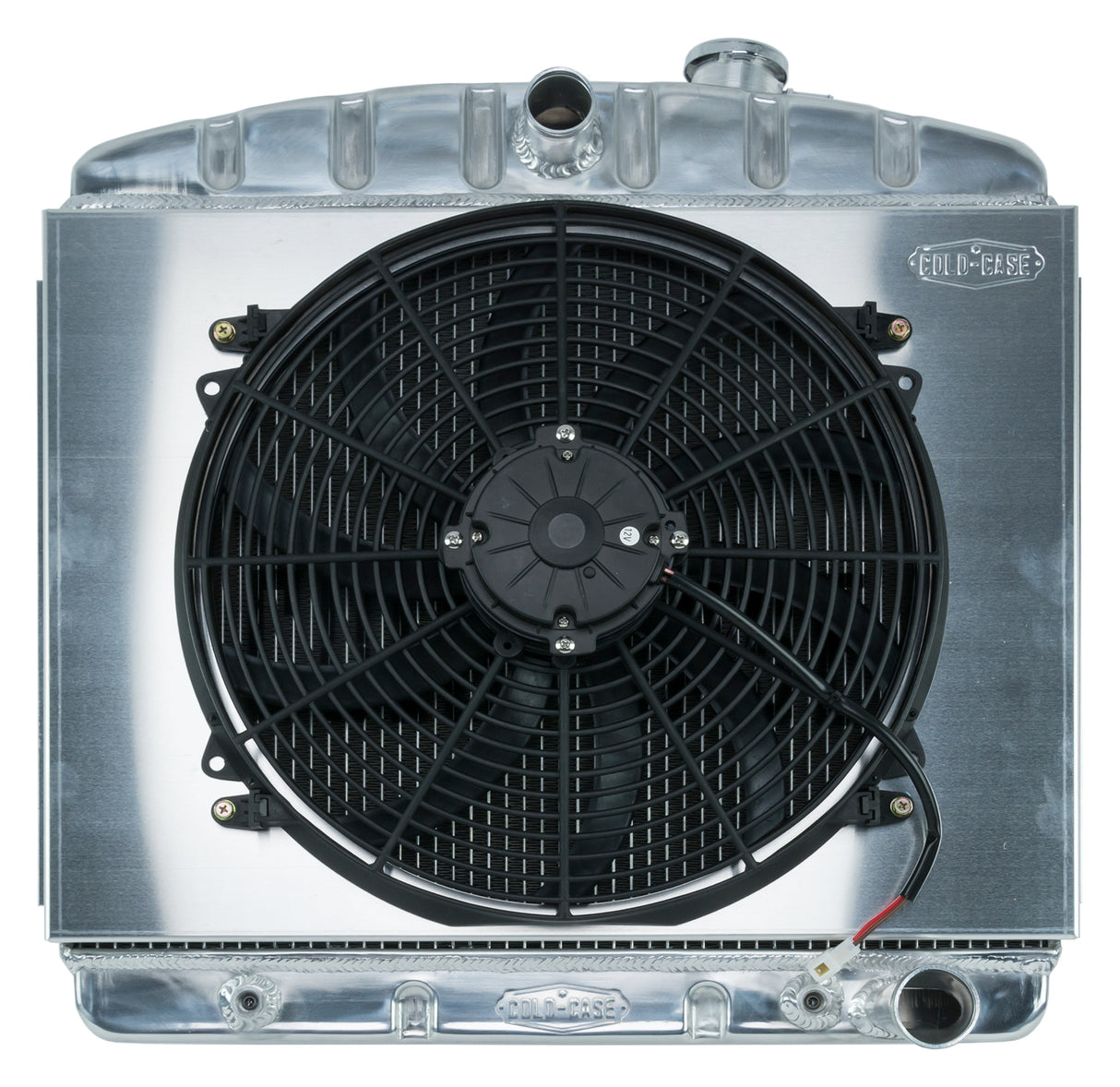

55-57 Tri-5 Chevy Aluminum Radiator And 16 Inch Fan Kit (V8 Mount)
55-57 Tri-5 Chevy Aluminum Radiator And 16 Inch Fan Kit (V8 Mount) is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Fitment
Fitment
Warranty Information
Warranty Information
Customer service is our top priority and because we value your time and energy we ask you to visit our Contact Us page and reach out so that we may assist you in finding the correct warranty for your product. Please include your name, the name on the order, the order number, and the SKU of the product to ensure the quickest and most accurate response to your inquiry.
Description
Description
55-57 Tri-5 Chevy Aluminum Radiator And 16 Inch Fan Kit (V8 Mount). V8 Position cars for mount Behind radiator support. There is not enough space to put a clutch fan on the front of a SB and still mount the radiator in the V8 position. There is a 6 blade stationary and 7 blade flex fan you can use though.
These COLD-CASE radiators are Tig welded 100 percent aluminum and absolutely beautiful. Don't buy a 3 or 4 row aluminum radiator! It doesn't cool as good as these oversize 2 row models.
These radiators are original appearing and have the correct stamping. Once painted, you'd be hard pressed to find a difference over an original versus a COLD-CASE.
- 100 percent TIG welded
- Fan Diameter 16 Inch
- All Aluminum
- Polished OE style tanks
- 16 fins per inch
- Corrugated fins that give more surface area and more thermal transfer
- Pressure tested
- For manual/auto trans
- Direct fitment for 55-57 Chevy (V8 position mount)
- Old Part Number: RPE562K
Radiator Specs
- Core Height 17 inch
- Core Width 22 inch
- Overall Height 23.5 To Cap
- Overall Width 23.5 inch
- Overall Thickness 3 inch
- Tubes (2) 1.25 inch Tubes
- Upper Hose 1.50 inch
- Lower Hose 1.77 inch
