6-Bolt Flange 450 LPH Drop-In EFI 12-141
6-Bolt Flange 450 LPH Drop-In EFI 12-141 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Fitment
Fitment
Warranty Information
Warranty Information
Customer service is our top priority and because we value your time and energy we ask you to visit our Contact Us page and reach out so that we may assist you in finding the correct warranty for your product. Please include your name, the name on the order, the order number, and the SKU of the product to ensure the quickest and most accurate response to your inquiry.
Description
Description

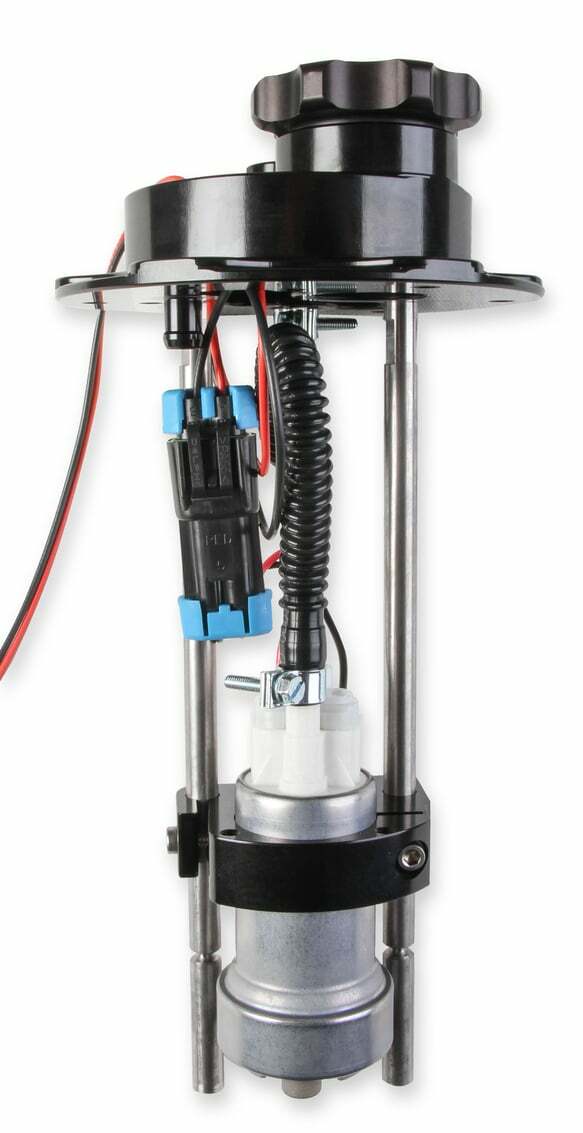

6-Bolt Flange 450 LPH Drop-In EFI
Updating your racing fuel system to EFI is so simple!
NOTES: Fill cap thread is 1 1/2"-12
Features:
- Update your fuel cell to EFI the easy way!
- Designed to drop right into your existing 6 bolt flange fuel cell

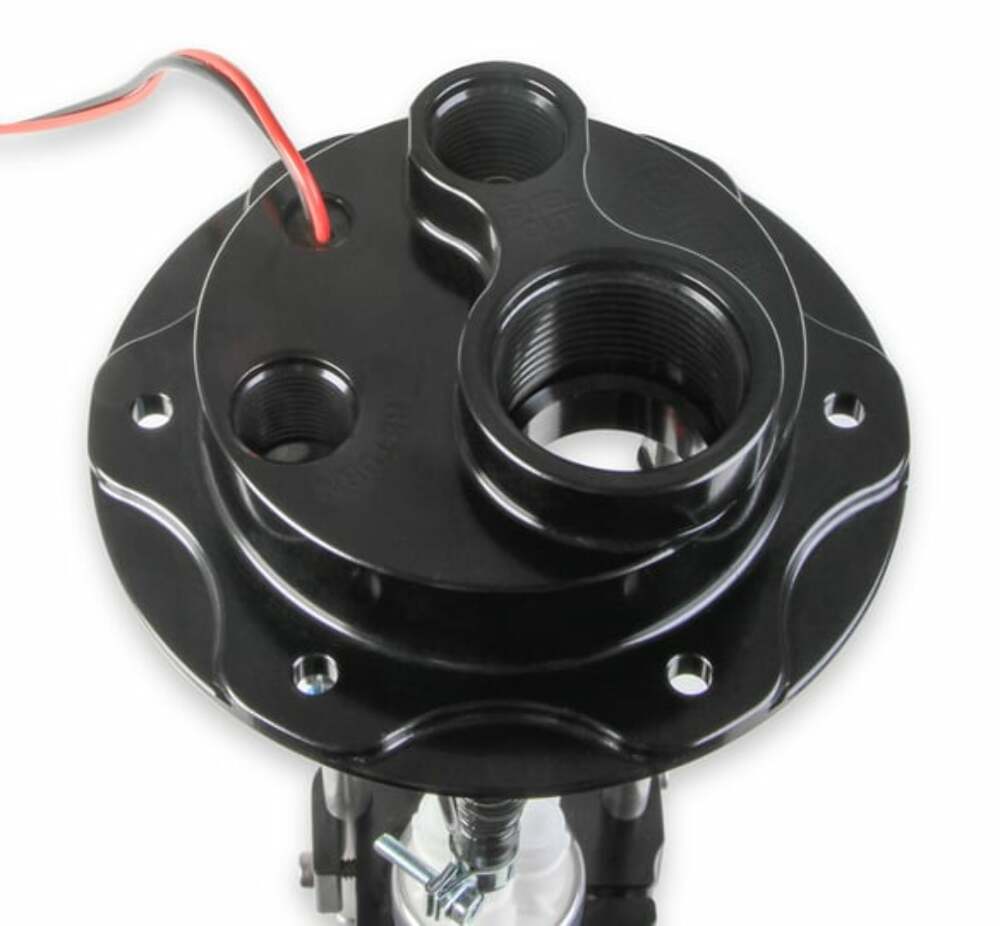

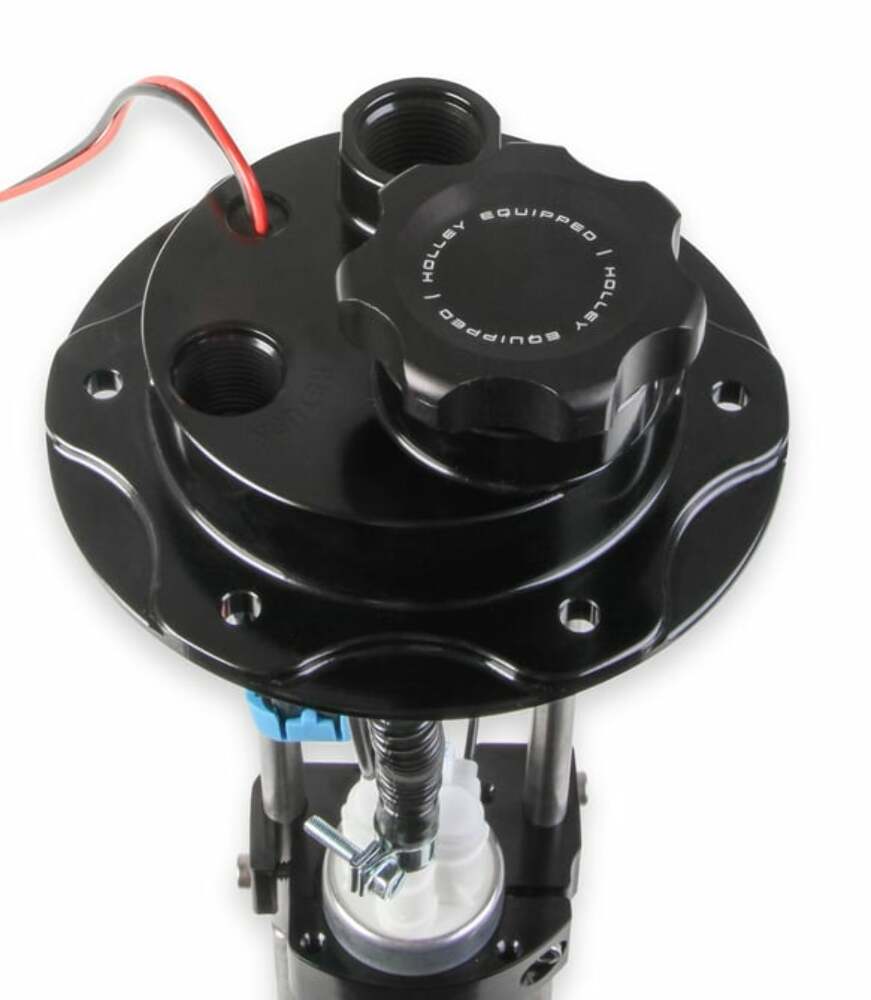

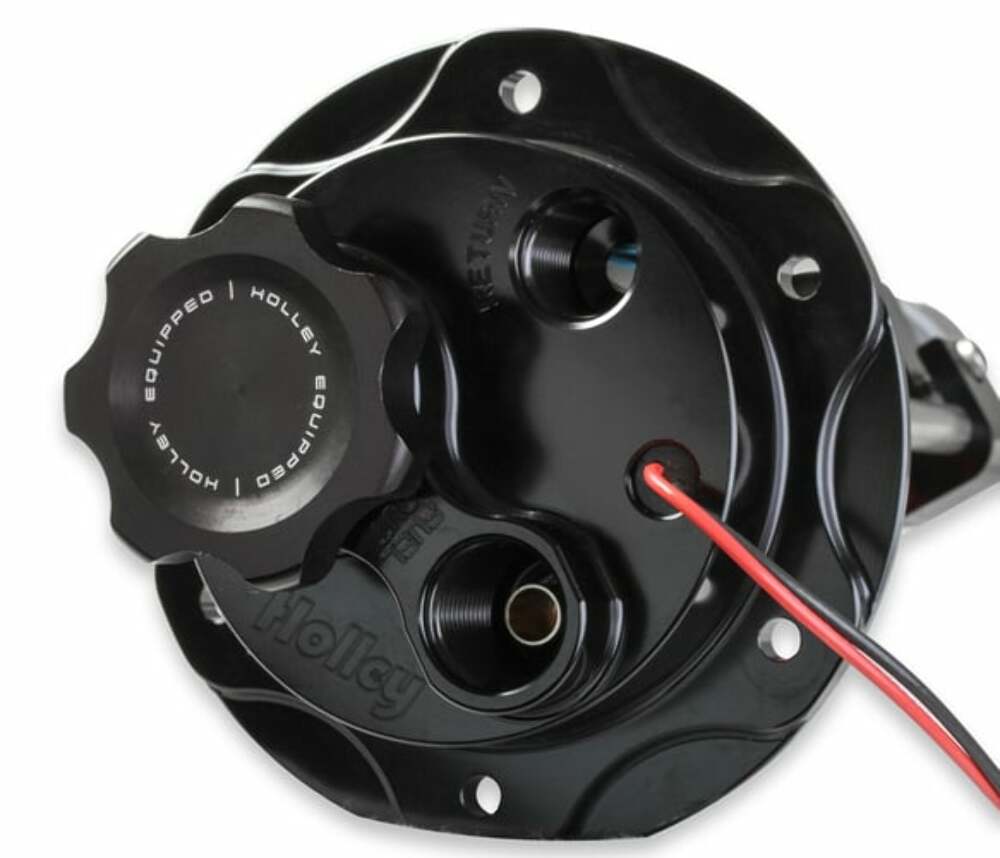

- Billet top flange housing includes an 8AN inlet and 10AN outlet port and a fuel filler cap
- Modules are available with 255 or 450 LPH fuel pumps in single pump configurations
- The pump depth is fully adjustable for fitment in the most popular cell sizes 7.5?-12? deep.
- Supports up to 875 EFI or 1100 Carb HP (@ 60 PSI at 13.5 Volts / 16.9 AMP Draw)
Specs:
| Application | Universal |
|---|---|
| Average Current Draw | 16.9Ampere |
| Average Flow Rating | 450Liters per Hour |
| Brand | Holley |
| Clearance Category | Air and Fuel Delivery |
| Connector Color | Black |
| Connector Gender | Male |
| Connector Quantity | 1 |
| Discount Percentage | 26-50% |
| Emission Code | 5 |
| Flange Style | 6 Bolt |
| Free Flow GPH | 118 |
| Free Flow LPH | 450 |

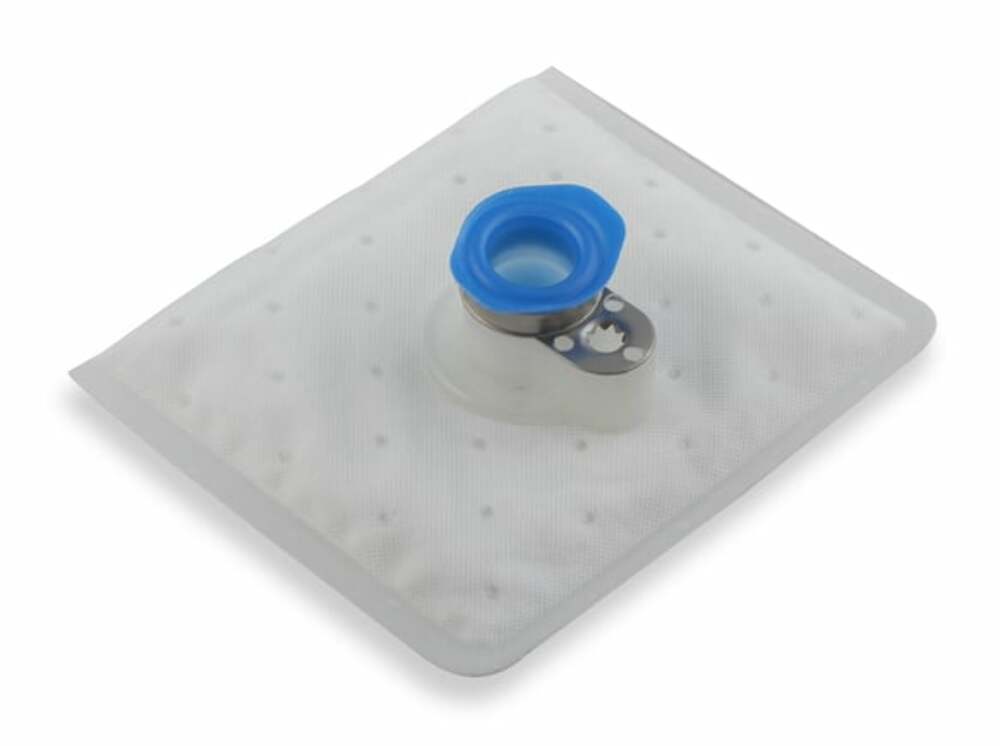

| Fuel Filter Included | Yes |
| Fuel Sending Unit Included | No |
| Fuel Tank Pressure Sensor Included | No |
| Fuel Type | E85, Gasoline |

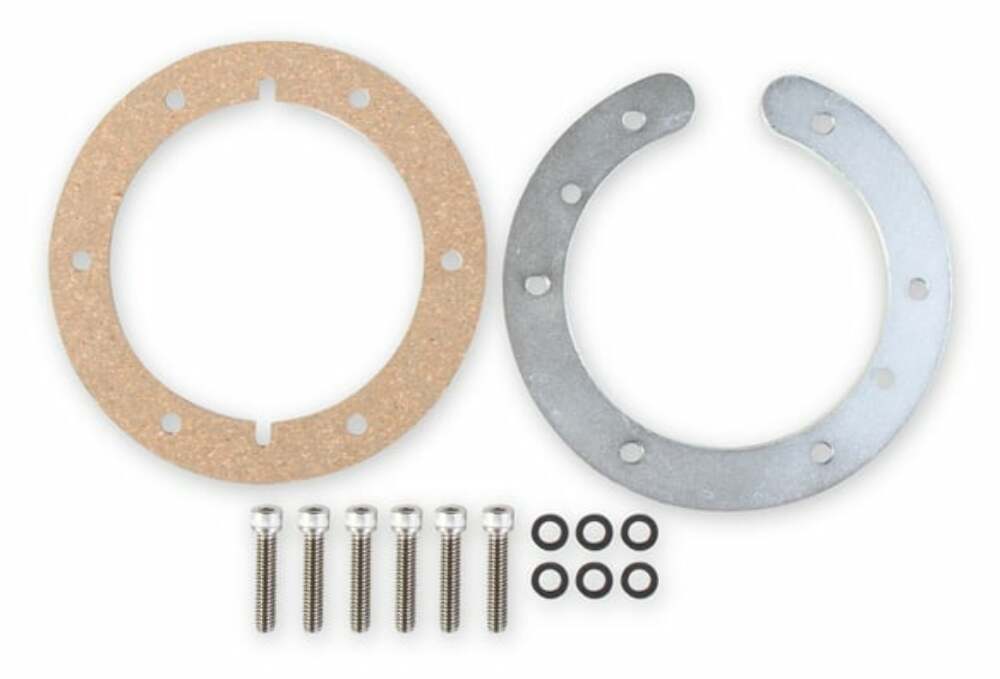

| Gasket Or Seal Included | Yes |
| Gasket Or Seal Material | Cork |
| Grade Type | Performance |
| Height | Adjustable |
| Housing Material | Aluminum |
| In Tank or External | In Tank |
| Inlet Quantity | One |
| Inlet Size | 8 AN |
| Inlet Type | 8 AN ORB |
| Internal Or External Strainer | External |
| Lock Ring Included | Yes |
| Max PSI | 87 |
| Maximum Pressure | 60Pounds per Square Inch |
| Mounting Hardware Included | Yes |
| Negative Ground | Yes |
| Outlet Quantity | One |
| Outlet Size | 10 AN |
| Outlet Type | 10 AN ORB |
| Product Type | Fuel Pump |
| Pump Type | Electric |
| Regulator Included | No |
| Single Or Dual Pump | Single |
| Universal Or Specific Fit | Universal |
| Voltage | 12Volts DC |
| Warning | California Proposition 65 |
| Warranty | Limited 90 Day |
| Wire Harness Included | Yes |
| Wire Quantity | 2 |
