8.2" SBF Ford Hi-Ram EFI Manifold with Side Mount Top 300-306
8.2" SBF Ford Hi-Ram EFI Manifold with Side Mount Top 300-306 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Fitment
Fitment
Warranty Information
Warranty Information
Customer service is our top priority and because we value your time and energy we ask you to visit our Contact Us page and reach out so that we may assist you in finding the correct warranty for your product. Please include your name, the name on the order, the order number, and the SKU of the product to ensure the quickest and most accurate response to your inquiry.
Description
Description

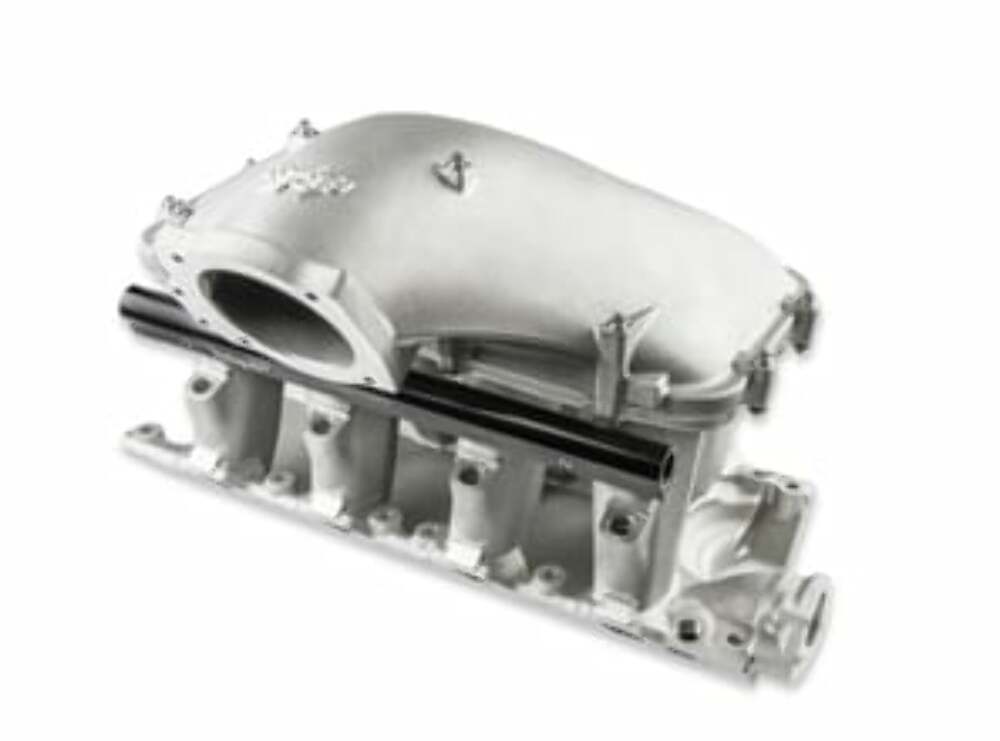

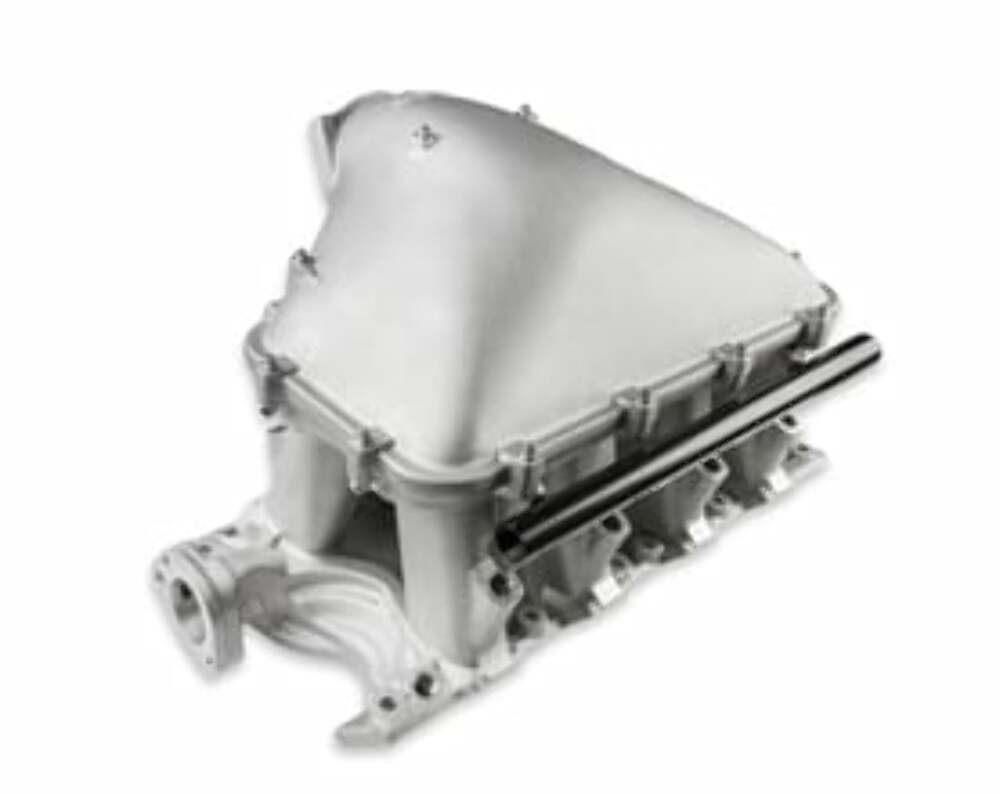

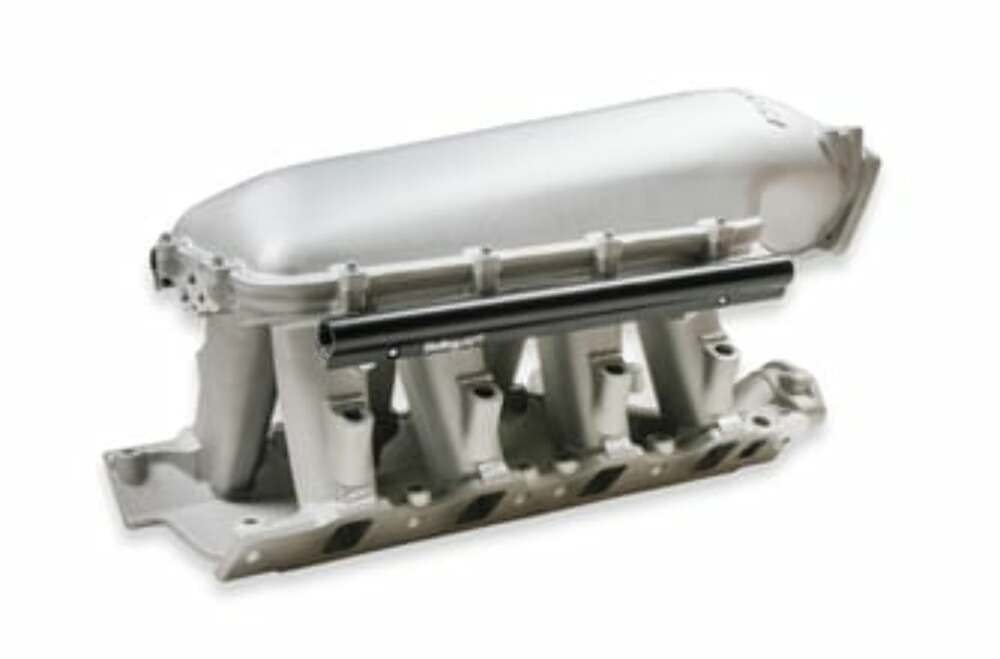

8.2" SBF Ford Hi-Ram Intake Manifold with 95mm 1986-95 Ford 5.0 Throttle Body Flange Side Mount Top.
Features:
- EFI fuel rails are machined for -8AN o-ring fittings with passages large enough to accommodate high fuel flows and dampen pressure pulsations in the fuel system and come standard with EFI Hi-Ram kits.
- Plenum Top Gasket Type ? 3/32? Round O-ring Cord

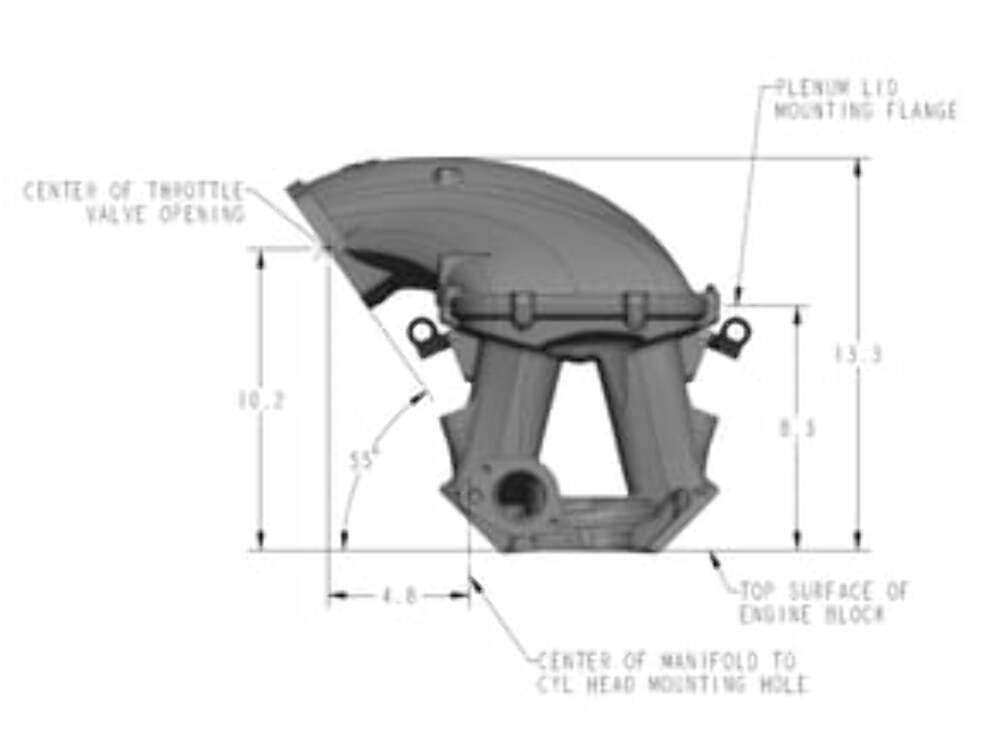

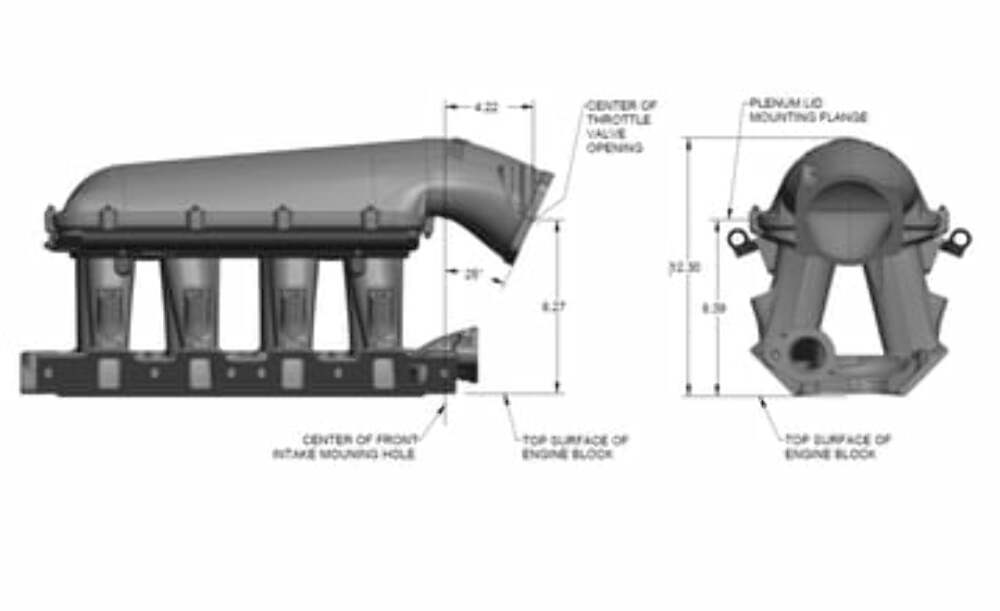

- Manifold is designed for a 8.2" SBF deck height.
- The 8.2 SBF manifold is available to work with 95MM throttle bodies
- Ford 5.0 throttle body fitment
- Lid has been verified to fit under Cervinis 2.5? cowl hood on 1979-1993 Mustangs with 351W & 302W Hi-Ram bases when using motor mounts that retain stock engine locations.

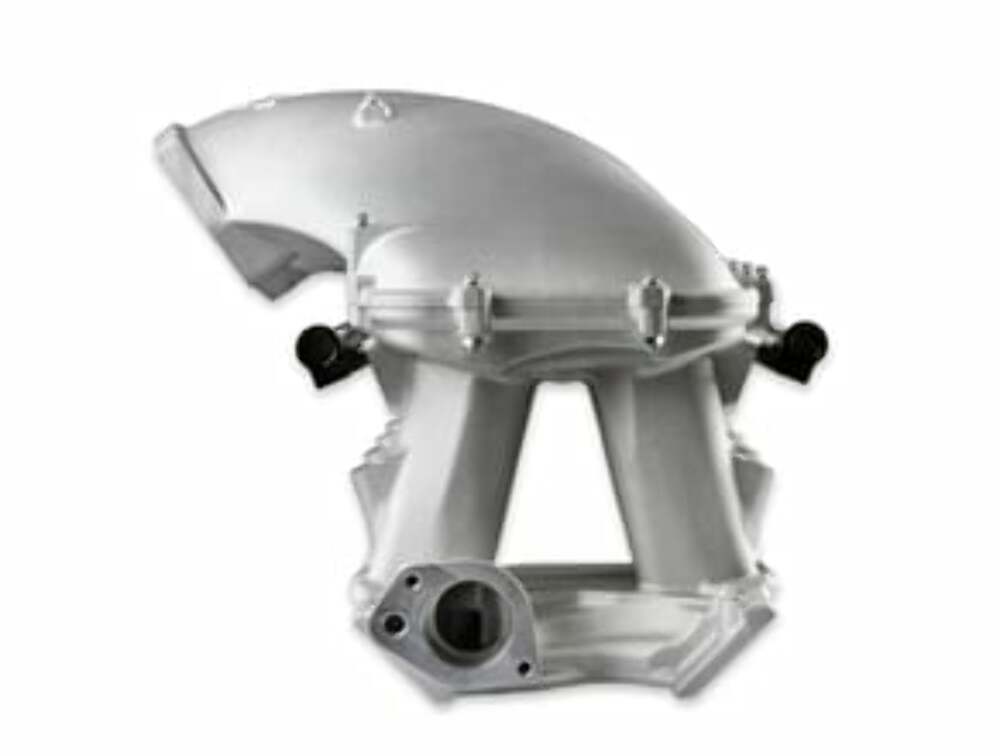

- Designed for side mounted throttle bodies
- Allows room for designing boosted applications
Specs:
| Basic Operating RPM Range | 1500-7000 RPM |
|---|---|
| Brand | Holley EFI |
| Category Filter | Intake Manifolds |
| Clearance Category | Air and Fuel Delivery |
| Color | Natural |
| Construction | Cast |
| Discount Percentage | 26-50% |
| EGR Port | No |
| Emission Code | 3 |
| Engine | Ford Small Block |
| Finish | Satin |
| Flange Style | EFI |
| Fuel System Type | EFI |
| Grade Type | Performance |
| Intake Port Gasket(s) Included | No |
| Manifold Type | Hi-Ram |
| Material | Aluminum |
| Nitrous Bung(s) Included | No |
| Plenum Finish | Natural |
| Port Size | 2.00" x 1.190" |
| Product Type | Intake Manifold |
| Removable Runners | No |
| RPM Power Band | 1500-7000 |
| RPM Power Band | 1500-7000 RPM |
| Sale Category | Air and Fuel Delivery |
| Single Or Dual Plane Type | Single Plane |
| Throttle Body Bore Diameter | 95 MM |
| Throttle Body Included | No |
| Throttle Bore | 95mm |
| Warning | California Proposition 65 |
| Warranty | Limited 90 Day |
Application:
| Year | Make | Model | Submodel |
|---|---|---|---|
