Accel Ignition Coils-15-19 Subaru,Scion&Toyota 2.0L Boxer,Black,4-Pack-140089K-4
Accel Ignition Coils-15-19 Subaru,Scion&Toyota 2.0L Boxer,Black,4-Pack-140089K-4 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Fitment
Fitment
Warranty Information
Warranty Information
Customer service is our top priority and because we value your time and energy we ask you to visit our Contact Us page and reach out so that we may assist you in finding the correct warranty for your product. Please include your name, the name on the order, the order number, and the SKU of the product to ensure the quickest and most accurate response to your inquiry.
Description
Description
Overview:

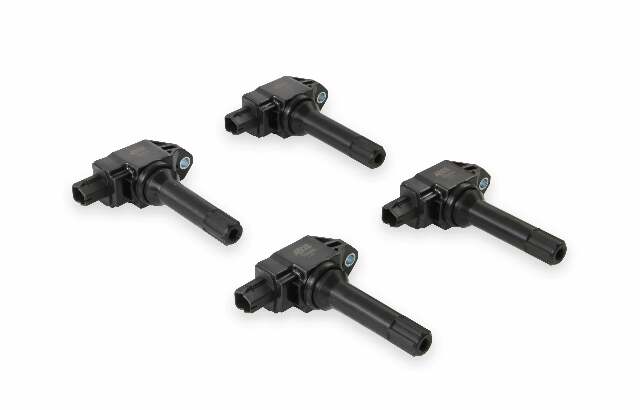

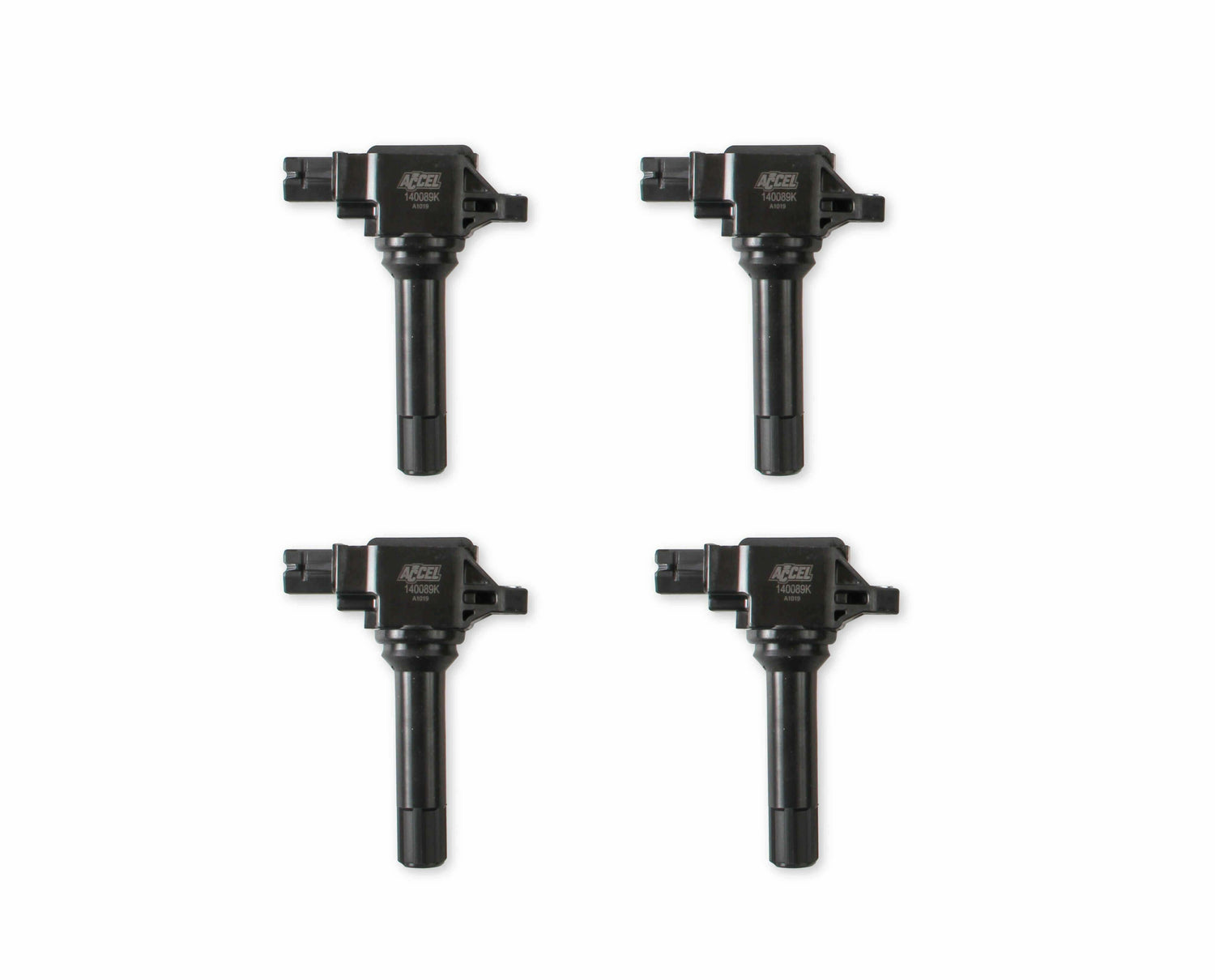

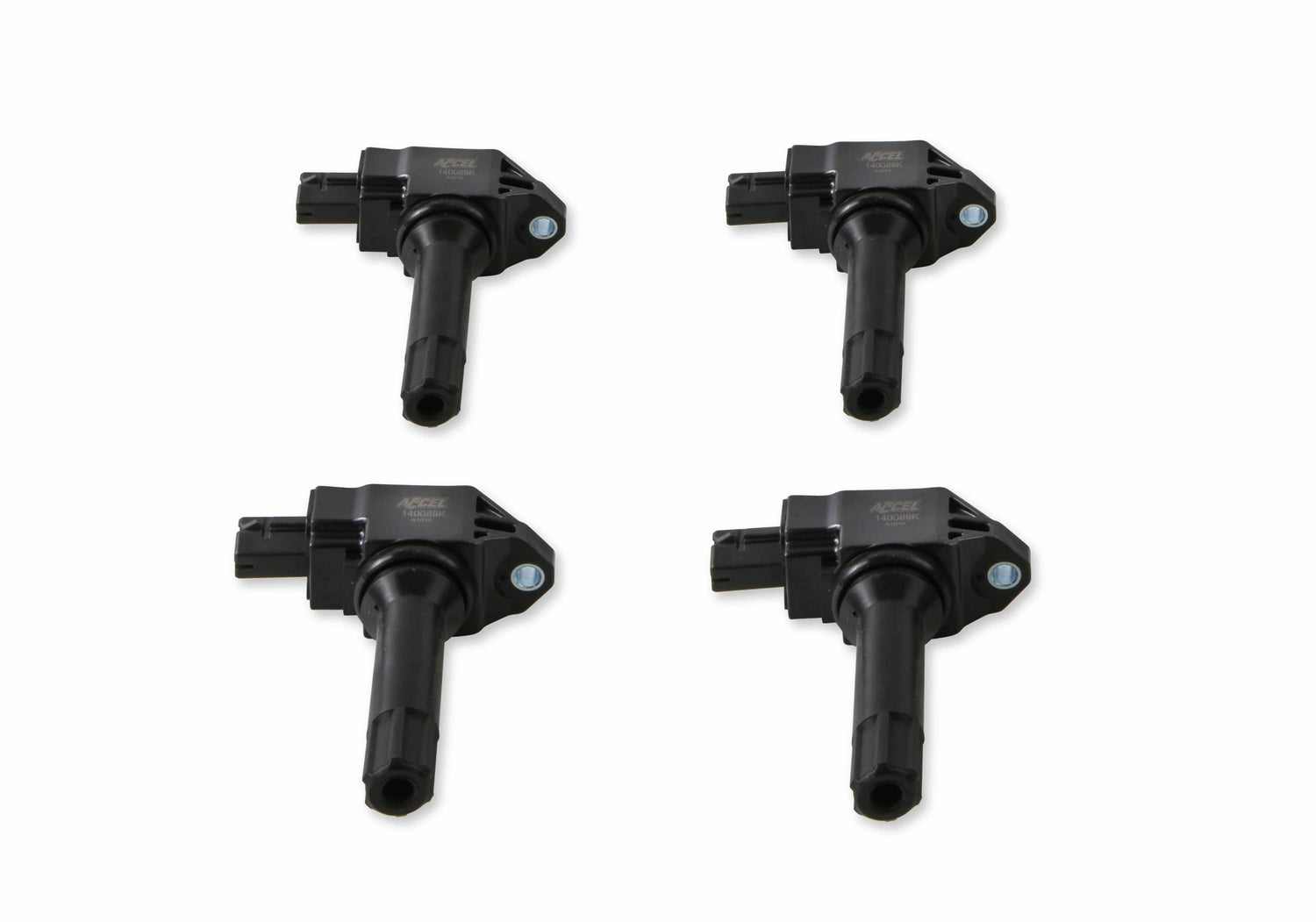

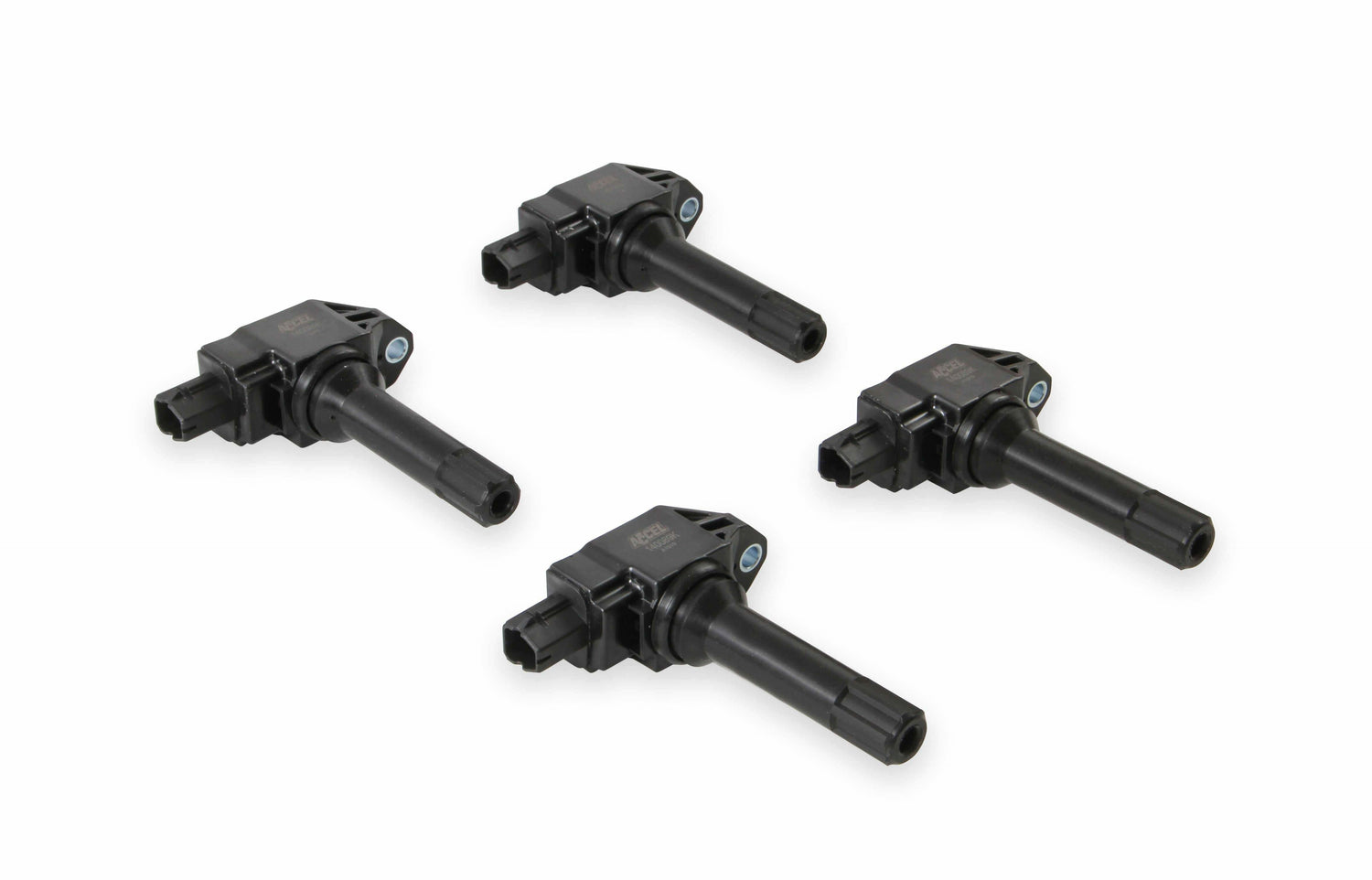

ACCEL Coils are available for the 2.0L Boxer Engine found in the Subaru BRZ, Scion FR-S, and the Toyota 86.
ACCEL Super Coils feature advanced bobbin technology, highly specialized silicon magnetic steel cores, optimized windings, proper resistance and engineered turn ratios that deliver a high performance, quality coil. Specialized high temperature epoxy resists shock and vibration, while increasing thermal conductivity. These are direct high performance replacements for OEM (Original Equipment Manufacturer) coils.
Features:
- Direct bolt-on replacement coil for 2015-2019 Subaru, Scion, Toyota OEM Part # (22433AA730)
- Meets or exceeds Original Equipment (O.E.) specifications
- High temp epoxy resists shock and vibration
- Advanced bobbin technology for maximum output and performance
- OBD II compatible - will not trip a code
- Compatible for the following models equipped with 2.0L engines: BRZ, Crosstrek (Electric/Gas only), FR-S,86 model
Application:
| Year | Make | Model | Submodel | Engine Size |
|---|---|---|---|---|
| 2015 - 2016 | Scion | FR-S | ||
| 2015 - 2019 | Subaru | BRZ | ||
| 2016 - 2019 | Subaru | Crosstrek | ||
| 2017 - 2019 | Toyota | 86 |
Specs:
| Brand | ACCEL |
|---|---|
| Color | Black |
| Emission Code | 2 |
| Inductance | 1.2 mH |
| Maximum Voltage | 46,000 Volts |
| Peak Current | 134 mA |
| Primary Resistance | 0.5 Ohms |
| Product Type | Ignition Coil |
| Quantity | Set of 4 |
| Secondary Resistance | 6.0 K OHMs |
| Spark duration | 1,700 uS |
| Turns Ratio | 3.75069444444444 |
