Aeromotive Fuel System  |  SKU: 11191-BGPL

Electric Fuel Pump High Flow EFI Performance Universal Fit Aeromotive 11191-BGPL

$1,754.79 USD
Shipping calculated at checkout.

The "verify fitment tool" above is for Year, Make, and Model ONLY!

Please see description for full fitment notes!!!

Fitment

Warranty Information

Customer service is our top priority and because we value your time and energy we ask you to visit our Contact Us page and reach out so that we may assist you in finding the correct warranty for your product. Please include your name, the name on the order, the order number, and the SKU of the product to ensure the quickest and most accurate response to your inquiry.

Description

Overview:

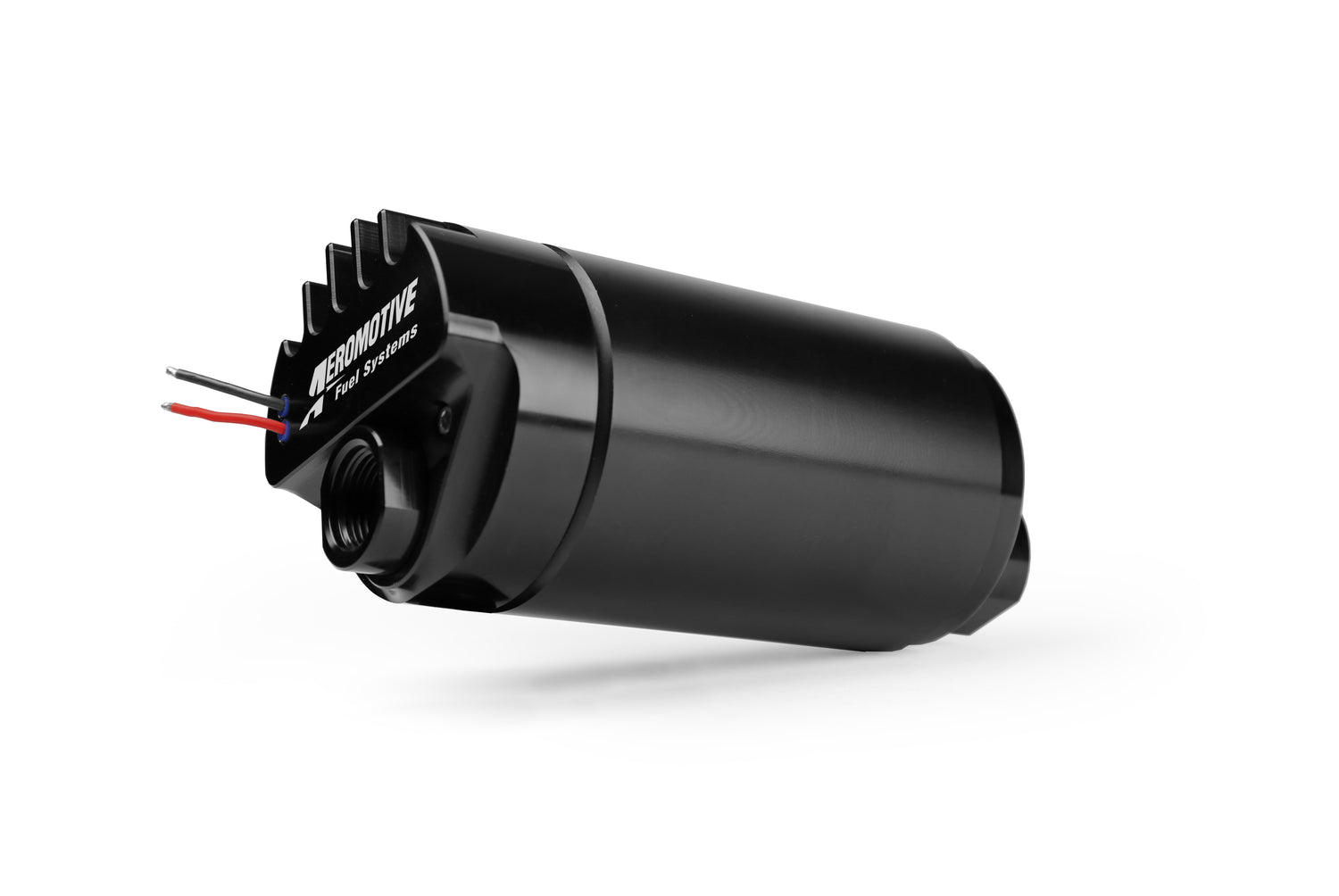

Brushless In-Line 3.5 Spur Gear Pump with Variable Speed Pump Controller

Aeromotive is a true high performance aftermarket manufacturer specializing in fuel delivery and fuel delivery components. Utilizing aerospace tolerances and procedures, three generations of track experience, and a meticulous approach to engineering, Aeromotive Fuel Systems has become the absolute pinnacle of performance fuel delivery.

Features:

  • Fuel injected engines: GAS up to 2400 FWHP – naturally aspirated up to 1800 FWHP – forced air induction
  • Carbureted engines: GAS Up to 2600 FWHP – naturally aspirated Up to 2000 FWHP – forced air induction
  • Fuel injected engines: E85 up to 1680 FWHP – naturally aspirated up to 1260 FWHP – forced air induction
  • Carbureted engines: E85 Up to 1820 FWHP – naturally aspirated Up to 1400 FWHP – forced air induction
  • Fuel injected engines: METHANOL up to 840 FWHP – naturally aspirated up to 630 FWHP – forced air induction
  • Carbureted engines: METHANOL Up to 910 FWHP – naturally aspirated Up to 700 FWHP – forced air induction
  • Lighter than the traditional Pro-Series pump.
  • Reduced current draw at higher, EFI pressures.
  • Extended service life in methanol and ethanol.
  • New integral spur-gear pumping mechanism.
  • 90-PSI continuous operating pressure and up to 150-PSI peak pressure, base plus boost.
  • Integral, external brushless controller for clean installation, cooler fuel and enhanced reliability.
  • This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.
  • ORB-12 inlet and ORB-10 outlet ports.
  • Requires straight 12-VDC to 16-VDC power supply.
  • Not compatible with pulse modulated systems or fuel pump speed controllers.

    • Specs:

  • Brand: Aeromotive Fuel System
  • Carb HP on E85: 1820
  • Carb HP on Gas: 2600
  • EFI HP on E85: 1680
  • EFI HP on Gas: 2400
  • Filter Included: No
  • Fuel Delivery Type: Carburation & Fuel Injection
  • Fuel Sending Unit Included: No
  • Fuel Type: Gas/E85
  • Gasket Or Seal Included: No
  • Grade Type: Performance
  • Inlet Outside Diameter: ORB - 12
  • Inlet Type: Female Thread
  • Integrated Controller: Yes
  • Internal Or External: External
  • Marine Approved: No
  • Maximum Current Draw: 12 @ 40 psi
  • Maximum Flow Rating: 3.5 GPM
  • Maximum Pressure: 90
  • Motor Style: Brushless
  • Mounting Bracket Included: Yes
  • Mounting Hardware Included: No
  • Negative Ground: Yes
  • Outlet Outside Diameter: ORB - 10
  • Outlet Type: Female Thread
  • Prop 65 - Long Label: WARNING: This product can expose you to chemicals including chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.p65warnings.ca.gov
  • Prop 65 (C, R or CR): CR
  • Prop 65 Flag: Yes
  • Pulse Width Modulation Compatible: No
  • Pump Design: Spur Gear
  • Regulator Included: No
  • Seal And Lock Ring Included: No
  • Series: 3.5GPM
  • Strainer Included: No
  • Terminal Quantity: 0
  • Terminal Type: Lead Wire
  • Title: Aeromotive Brushless In-Line 3.5 Spur Gear Pump with Variable Speed Pump Controller
  • Universal Or Specific Fit: Universal
  • Voltage: 12
  • Wire Quantity: 3
  • Wiring Harness Included: No
  • Part Number: 11191

    • Emissions:

    • This Product is LEGAL for Closed Course Competition use or Pre-Emissions Controlled Vehicles ONLY. It is Not Legal for use on any Emissions Controlled Vehicle for Street or Off Highway use.
