Fuel Pump Complete Kit High Flow EFI Performance Universal Fit Aeromotive 17168-BGPL

Overview:

EFI Throttle Body - Phantom 340 & Installation Kit

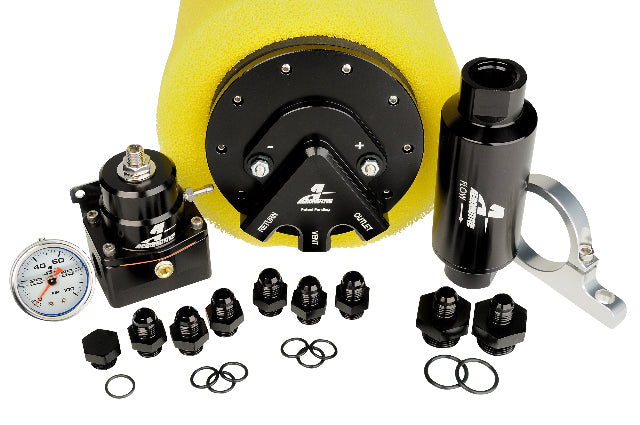

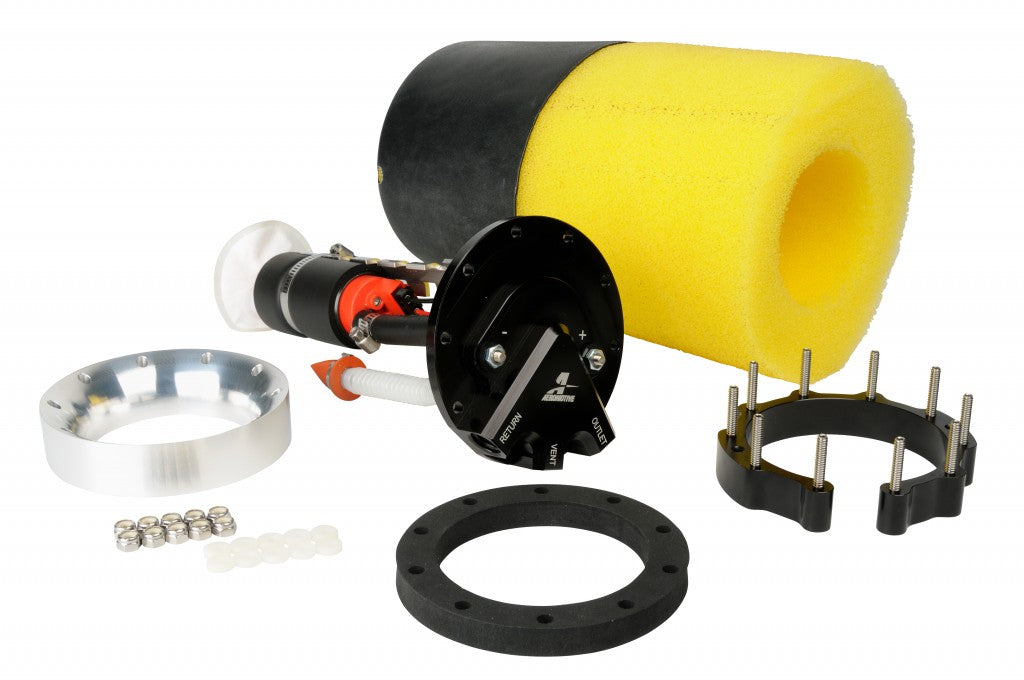

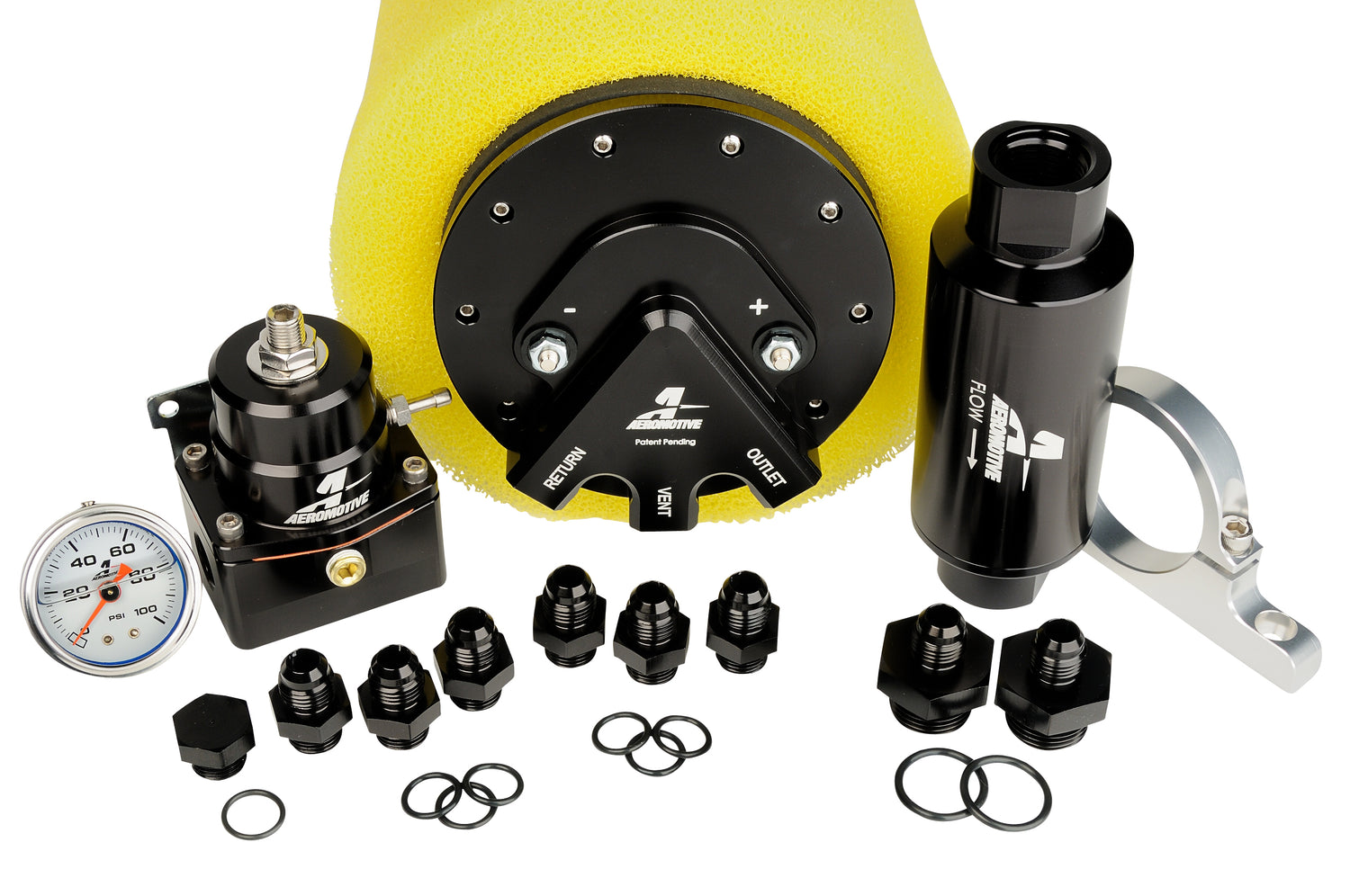

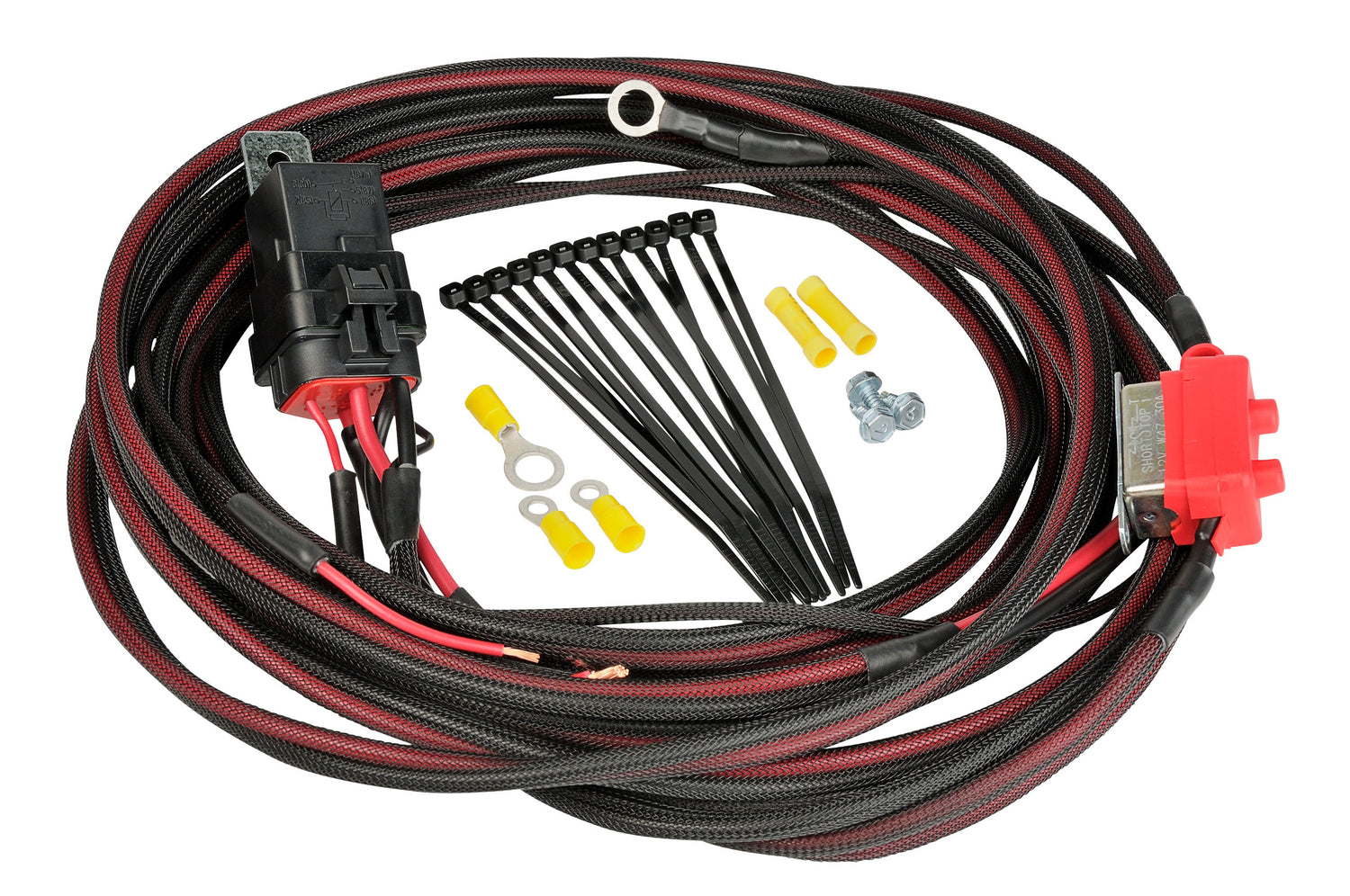

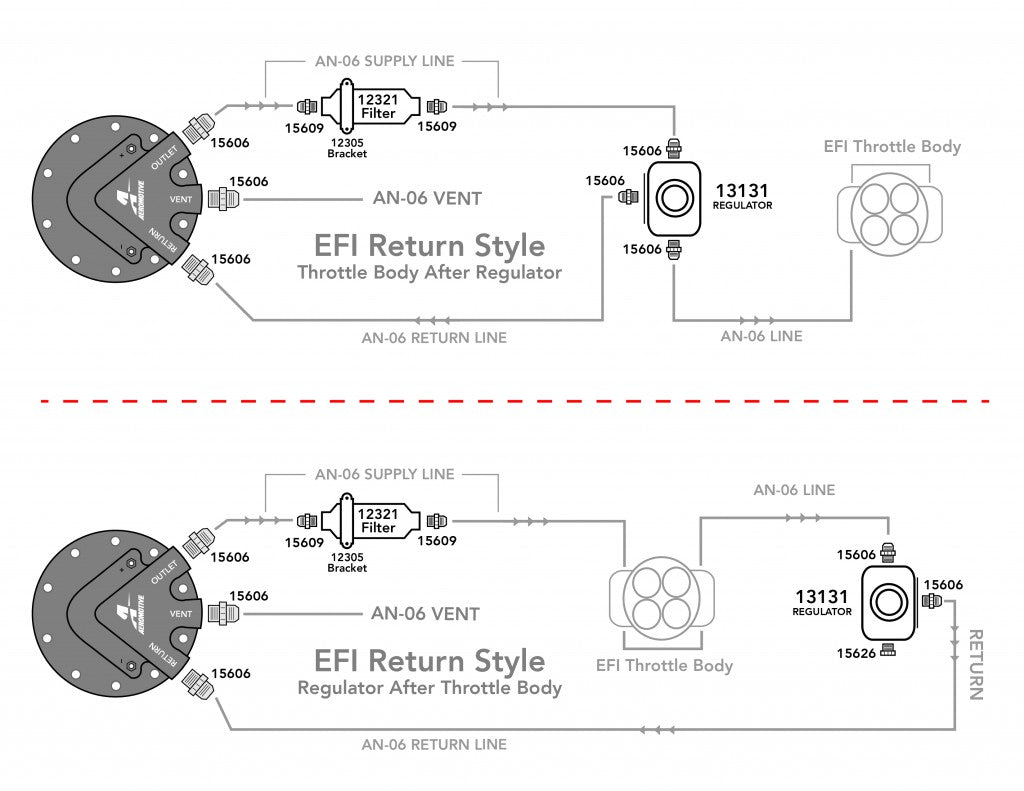

These new Phantom EFI Fuel Systems include all main fuel system components required to create a proper return-style EFI fuel system for engines with today s Hot New Carb to EFI Throttle Body Conversion Systems, including the desired Phantom Baffled Fuel Pump Kit a 340 LPH fuel pump. Each system ships with the a custom black EFI bypass fuel pressure regulator, high-flow billet fuel filter, filter mounting bracket, plus all the required port fittings and o-rings, the deluxe wiring kit (not shown) and Aeromotive fuel pressure gauge. Ideal for popular throttle body EFI conversions systems that make the move to EFI so easy. Suitable for naturally aspirated and blown, EFI engines producing from 300- 700 plus flywheel Horse Power, on the street or at the track. AN-06 Style fuel hose and hose-ends are required for the installation of a fuel supply and return line, sold separately and not included. This kit contains the following parts: 1ea p/n 18688 Phantom 340, 1ea p/n 12321 Filter 10 micron Paper, 1ea p/n 12305 Filter Bracket, 1ea p/n 13131 Fuel Pressure Regulator, 1ea p/n 16307 Fuel Pump Wiring Kit, 6 ea p/n 15606 AN-06 ORB to AN-06 flare, 2 ea p/n 15609 AN-10 ORB to AN-06 flare, 1 ea p/n 15626 AN-06 Port Plug, 1ea p/n 15633 0-100 psi Gauge.

Specs:

Emissions:

• This Product is LEGAL for Closed Course Competition use or Pre-Emissions Controlled Vehicles ONLY. It is Not Legal for use on any Emissions Controlled Vehicle for Street or Off Highway use.

Instructions:

• Click here for installation instructions!
