Carburetor Fuel Log Performance Fuel System Universal Fit Aeromotive 17251-BGPL

Overview:

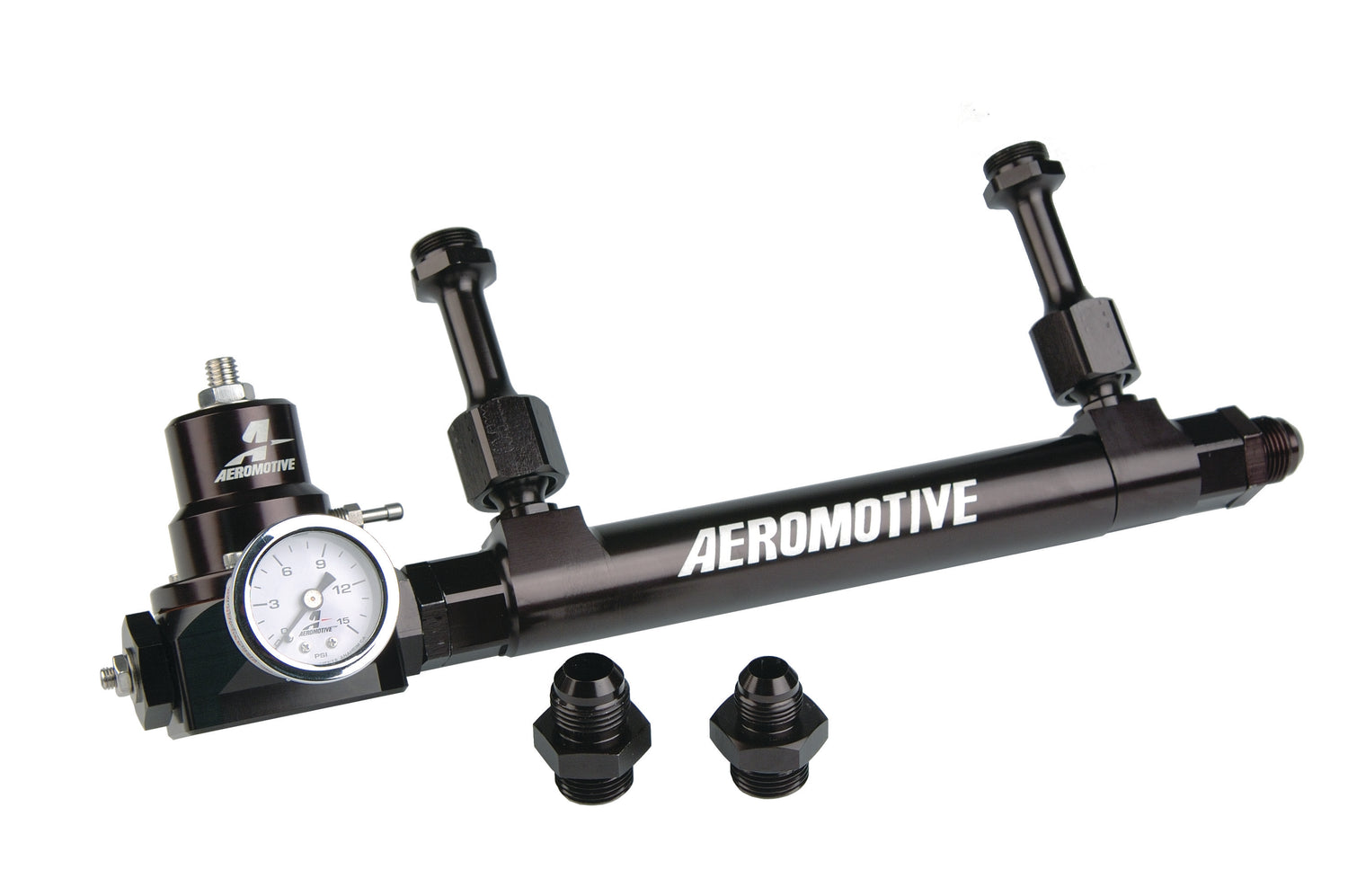

Double Adj. Bypass Fuel Log Kit (Demon style)

Double Adjustable Bypass Fuel Log Kit (P/N 17251). Fits Demon style carburetors. Includes 14202 Dual Action Adjustable Fuel Log, 13214 Double Adjustable Regulator and 15632 Fuel Pressure Gauge. For Demon Style Float Bowls (9/16 x 24 Thread). The new Aeromotive Fuel Log incorporates features never before available. Each carburetor inlet features a ball and socket assembly that swivels +/-20 degrees, allowing additional clearance for throttle stops, nitrous plates and other accessories; then locks in place at the desired position. The telescoping log will fit 4150 or 4500 Dominator (P/N 14201) and Demon (P/N 14202) carburetors. The ORB-10 inlet and outlet ports will feed the hungriest big blocks, and adapt easily to Aeromotive P/N 13212 (A2000 Bypass gasoline) or P/N 13214(Double Adjustable Bypass alcohol) fuel pressure regulators. Carburetor inlets swivel + or 2 0 in all directions. Telescoping center line 7 .700 to 13.450. ORB-10 inlet and outlet ports. (2) 1/8 NPT ports for gauges or pressure transducers. 1.056 / .806 ID bore. Type II bright dip black anodized finish.

Specs:

Emissions:

• This Product is LEGAL for Closed Course Competition use or Pre-Emissions Controlled Vehicles ONLY. It is Not Legal for use on any Emissions Controlled Vehicle for Street or Off Highway use.
