Aeromotive 17254 Carbureted Phantom 340 Kit

Overview:

System, Fuel, Phantom 340, Return Style Carb (Includes Phantom 340, Filter, Filter Bracket, Regulator, Wiring Kit, Gauge, Fittings).

• Phantom Fuel System

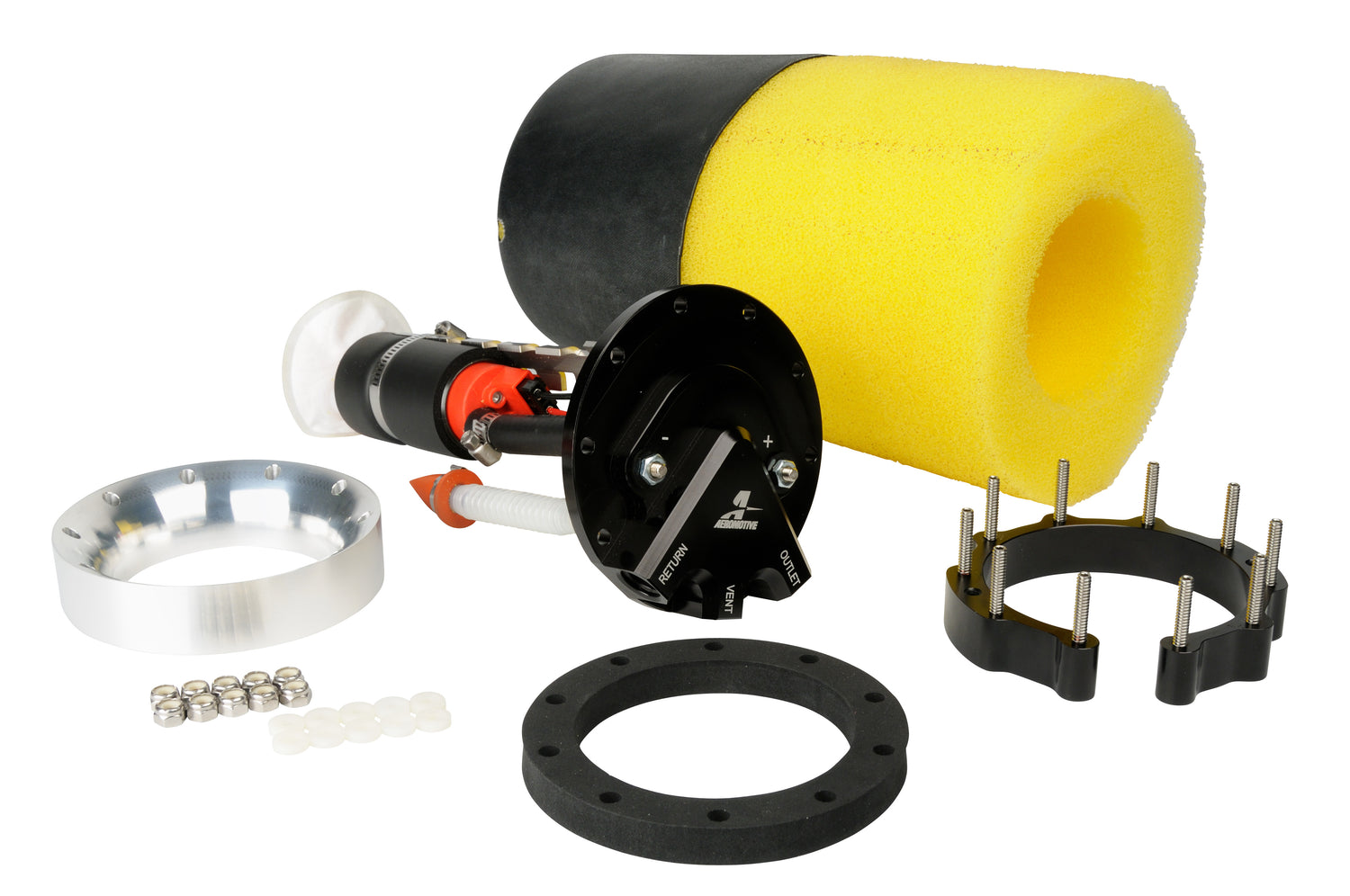

• Includes Phantom Baffled 340 LPH Fuel Pump Kit
• carbureted bypass fuel pressure regulator
• billet fuel filter
• filter mounting bracket
• all the required port fittings and o-rings

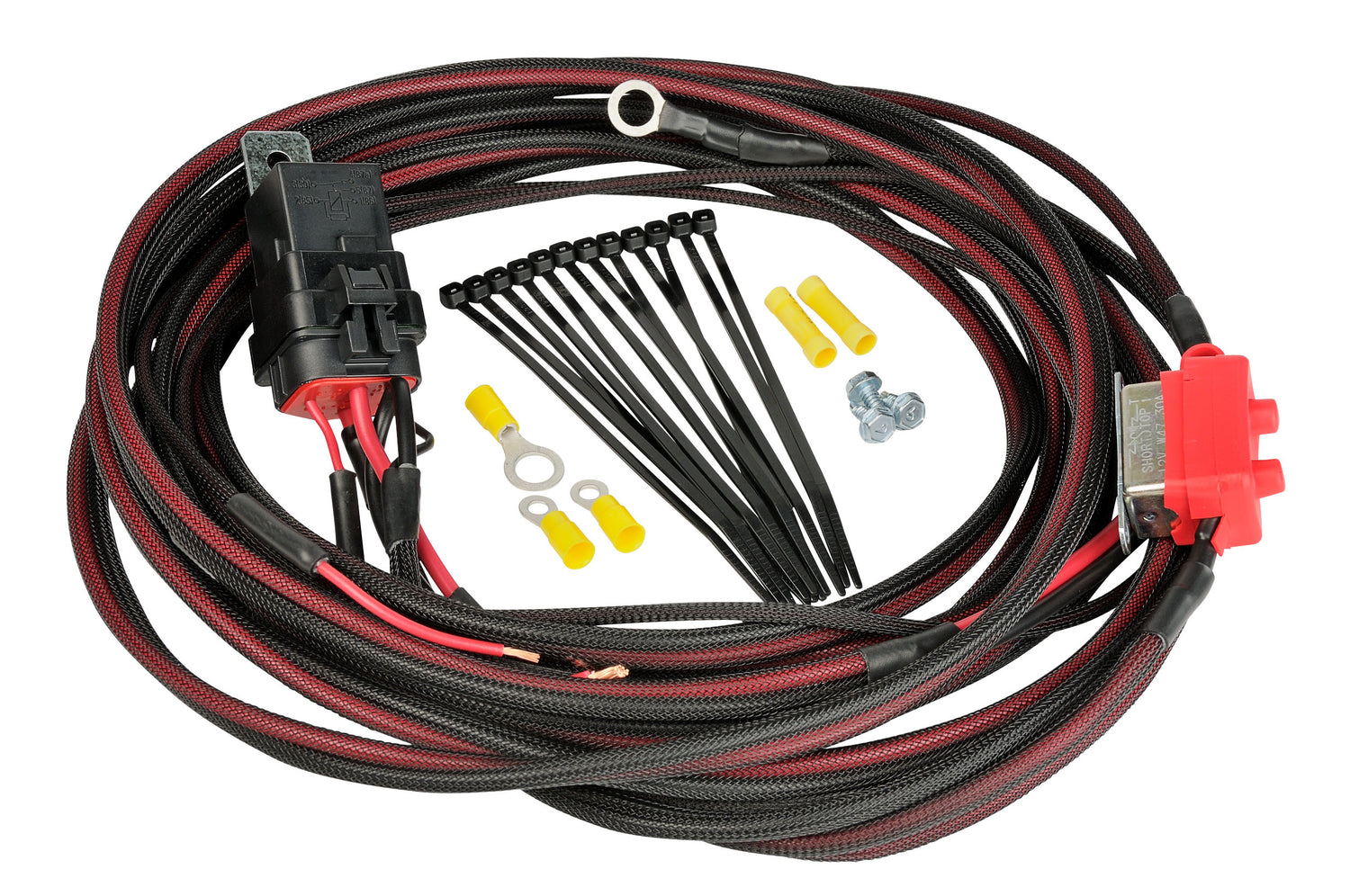

• deluxe wiring kit (not shown) and fuel pressure gauge.

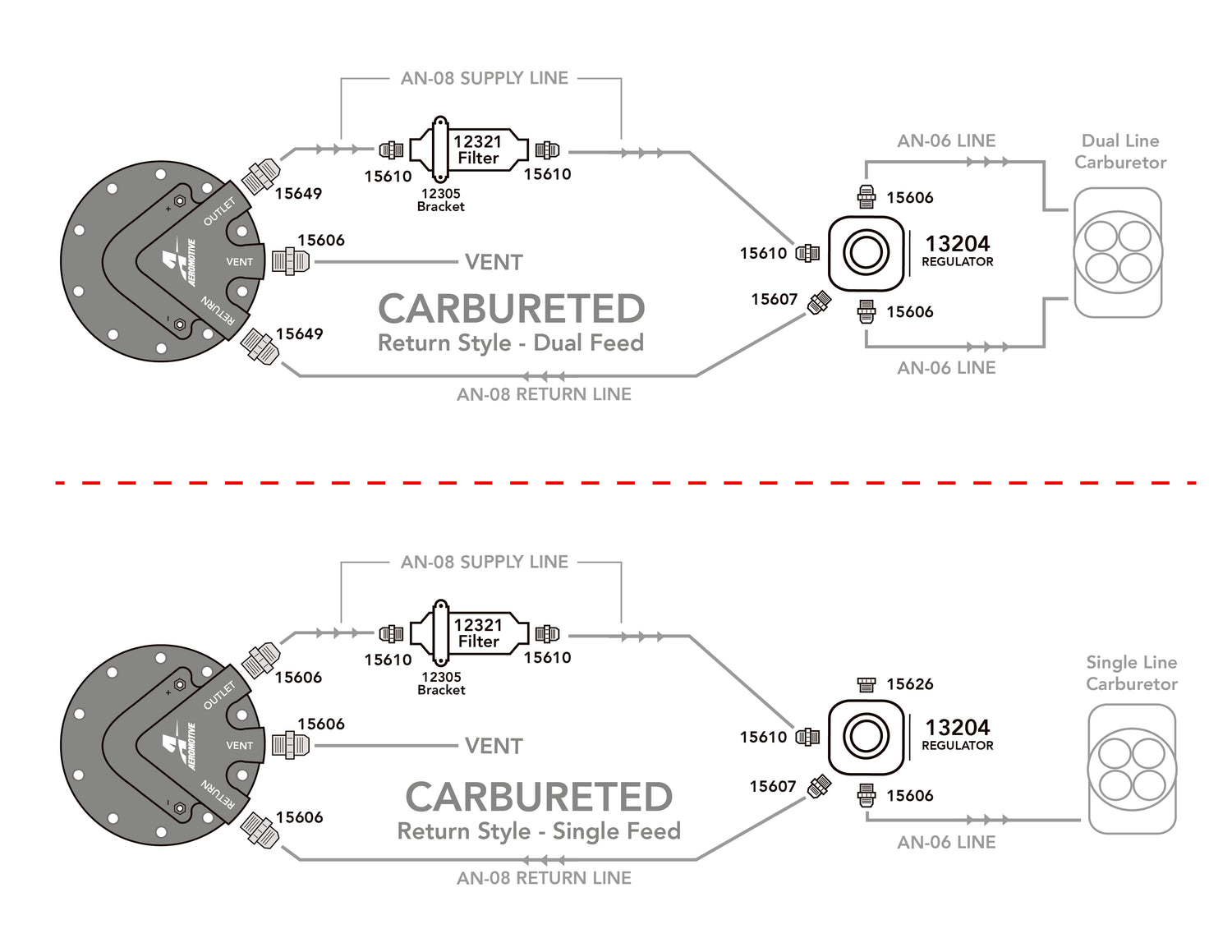

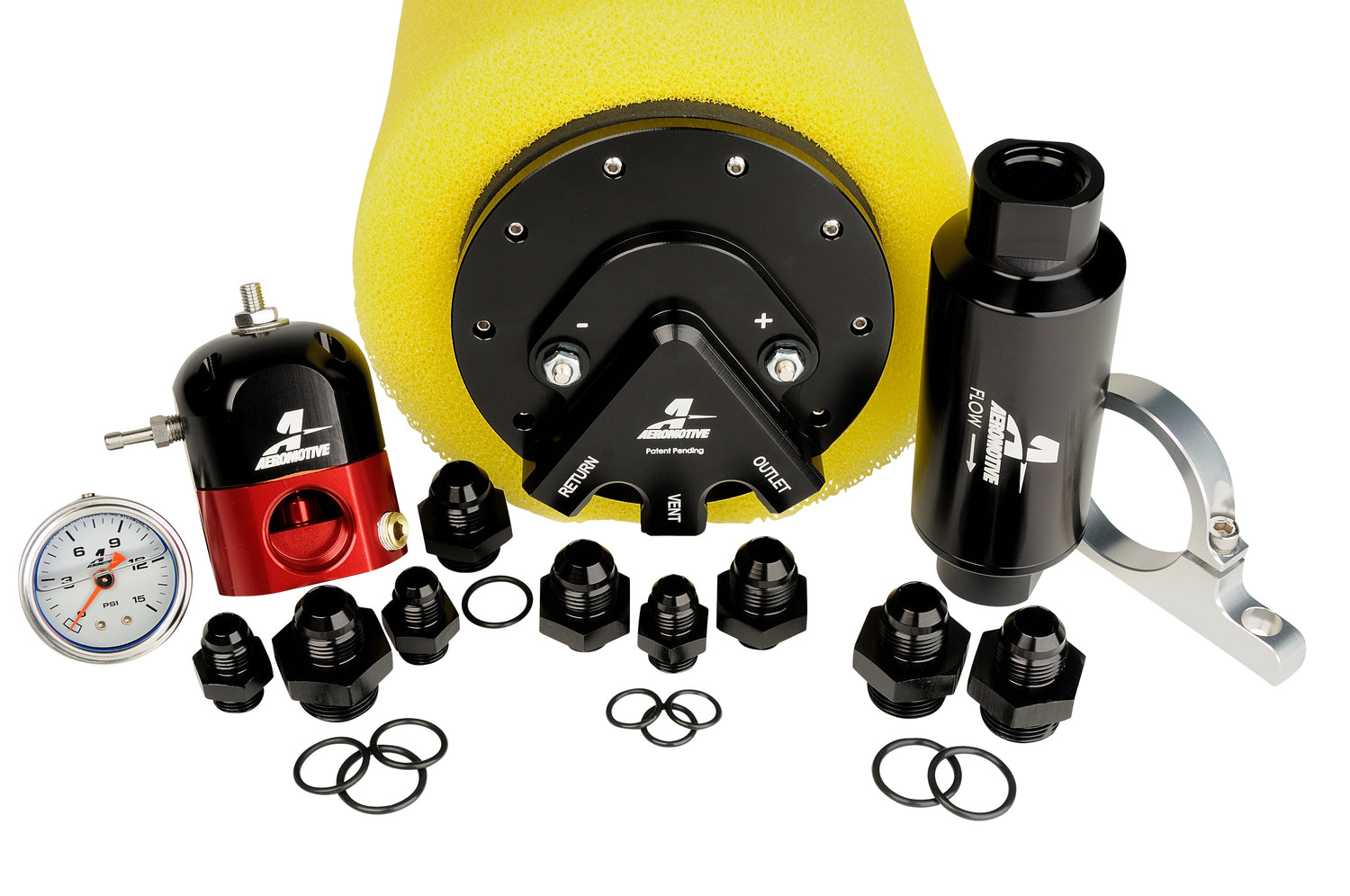

These new Phantom Carbureted Fuel Systems include all main fuel system components required to create a proper carbureted fuel system, including the desired Phantom Baffled Fuel Pump Kit with a 340 LPH fuel pump.? Each system ships with the proper carbureted bypass fuel pressure regulator, high flow billet fuel filter, filter mounting bracket, plus all the required port fittings and o-rings, the deluxe wiring kit (not shown) and Aeromotive fuel pressure gauge. Ideal for naturally aspirated and blown, carbureted engines producing up to 900 plus flywheel Horse Power, on the street or at the track.? AN-08 Style fuel hose and hose-ends are required for the installation of a fuel supply and return line, sold separately and not included. This kit contains the following parts: 1ea p/n 18688 Phantom 340, 1ea p/n 12321 Filter 10 micron Paper, 1ea p/n 12305 Filter Bracket, 1ea p/n 13204 Regulator, Bypass, Carb., 1ea p/n 16307 Fuel Pump Wiring Kit, 3 ea p/n 15606 AN-06 ORB to AN-06 flare, 1 ea p/n 15607 AN-08 ORB to AN-08 flare, 3 ea p/n 15610 AN-10 ORB to AN-08 flare, 1ea p/n 15626 AN-06 Port Plug, 2ea p/n 15649 AN-06 ORB to AN-08 flare, 1 ea p/n 15632 0-15 PSI Pressure Gauge.

Application:

Specs:
