Overview:

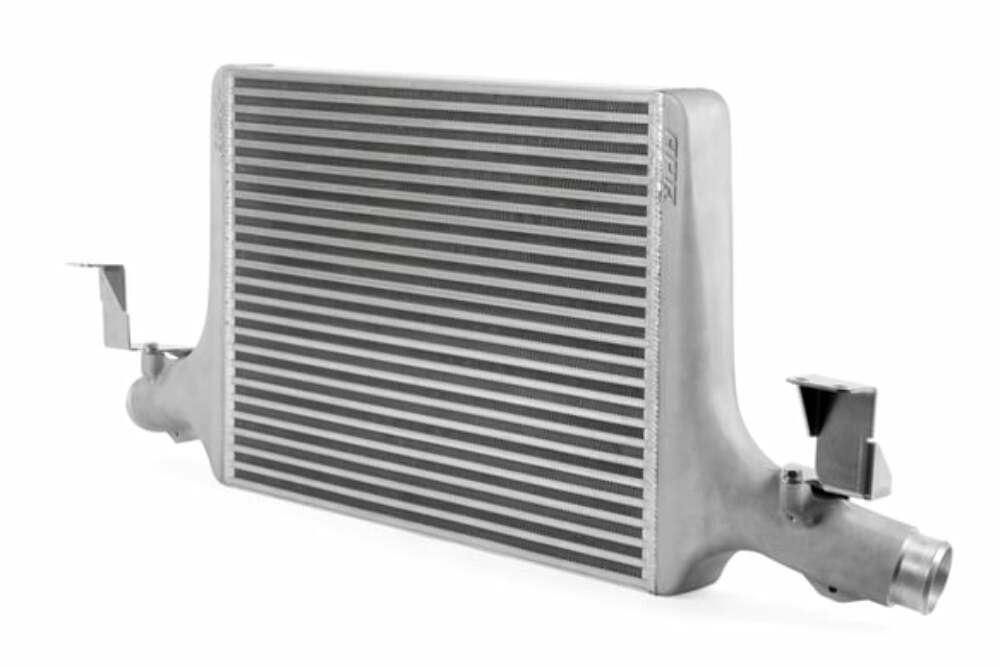

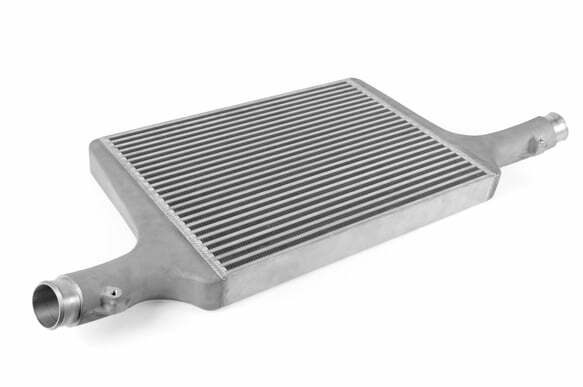

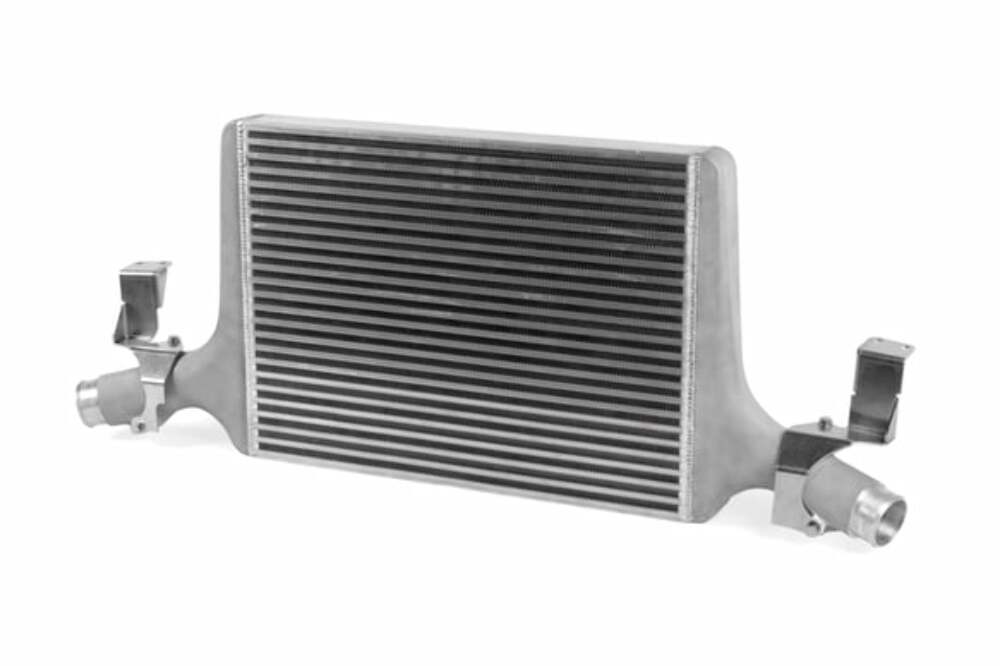

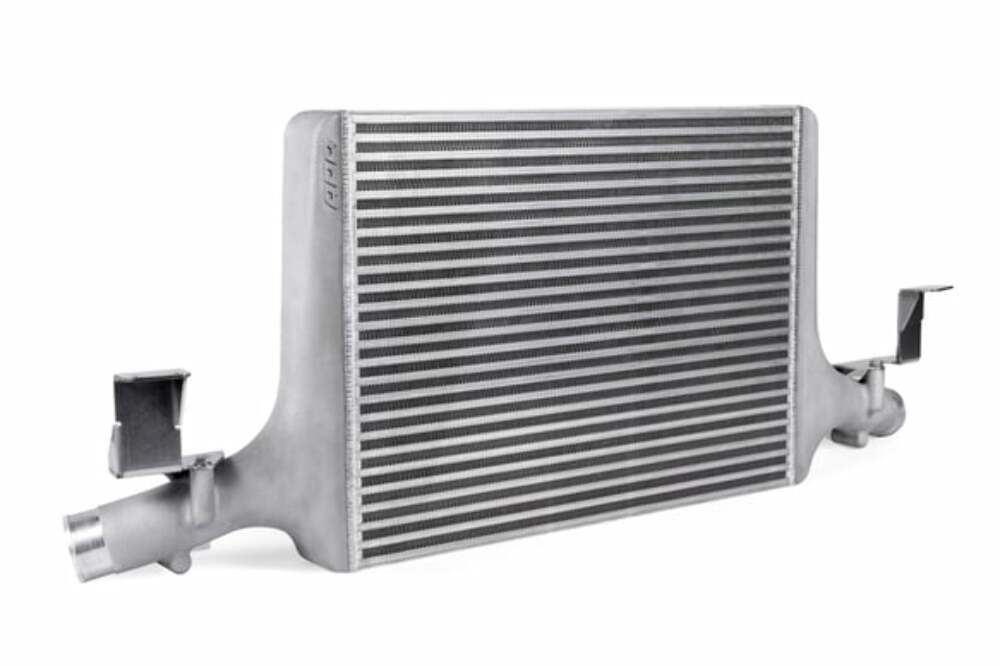

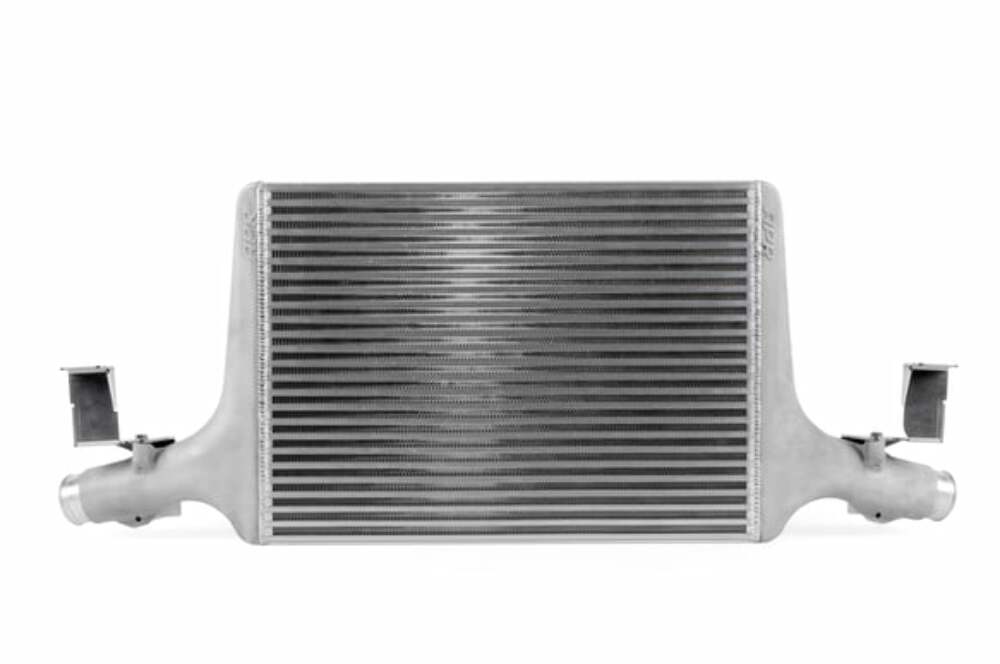

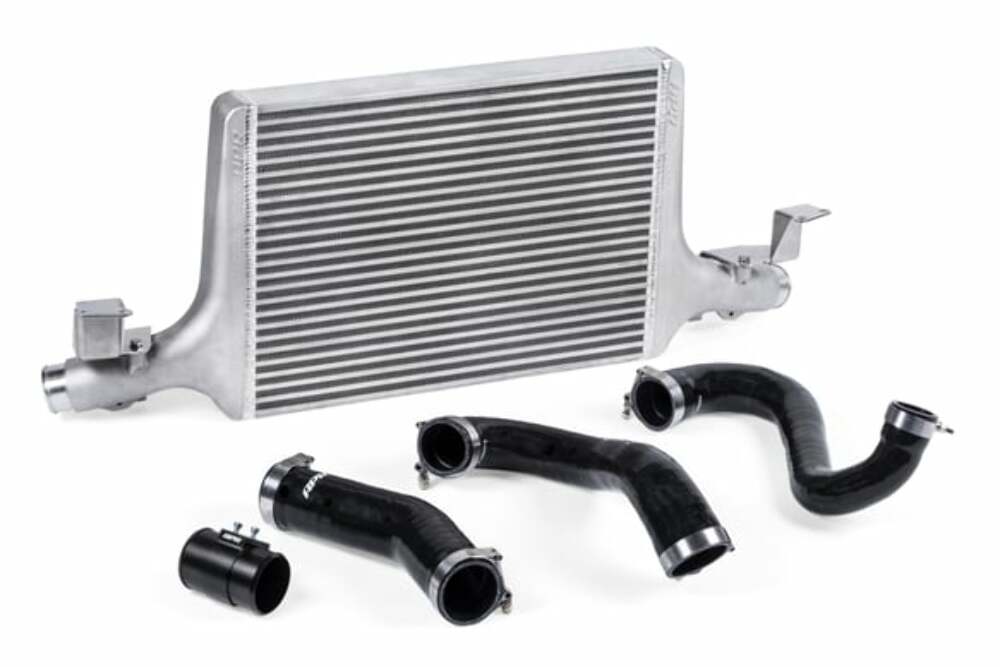

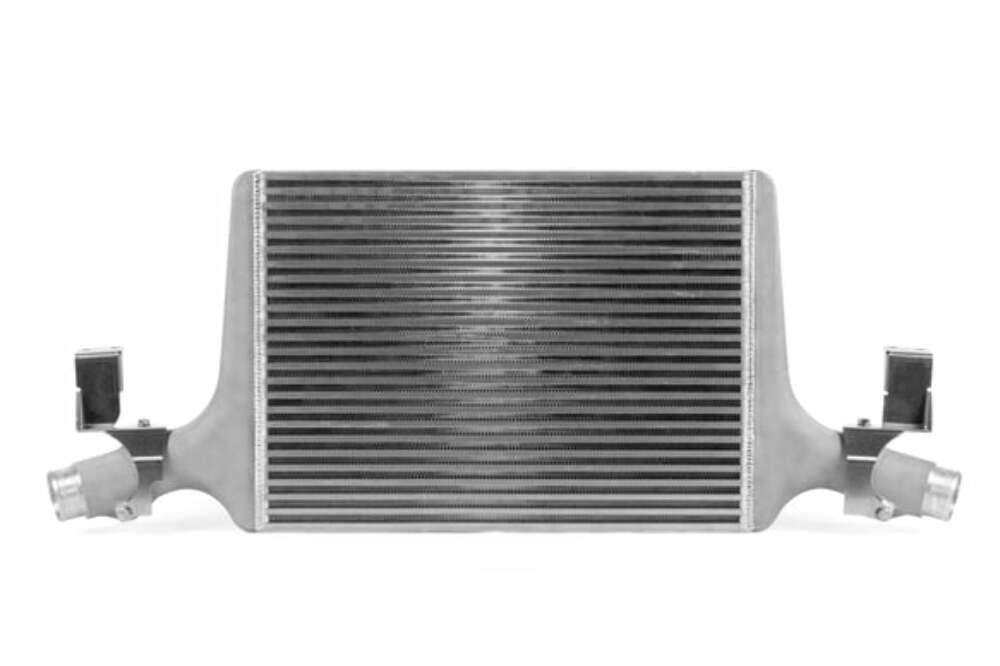

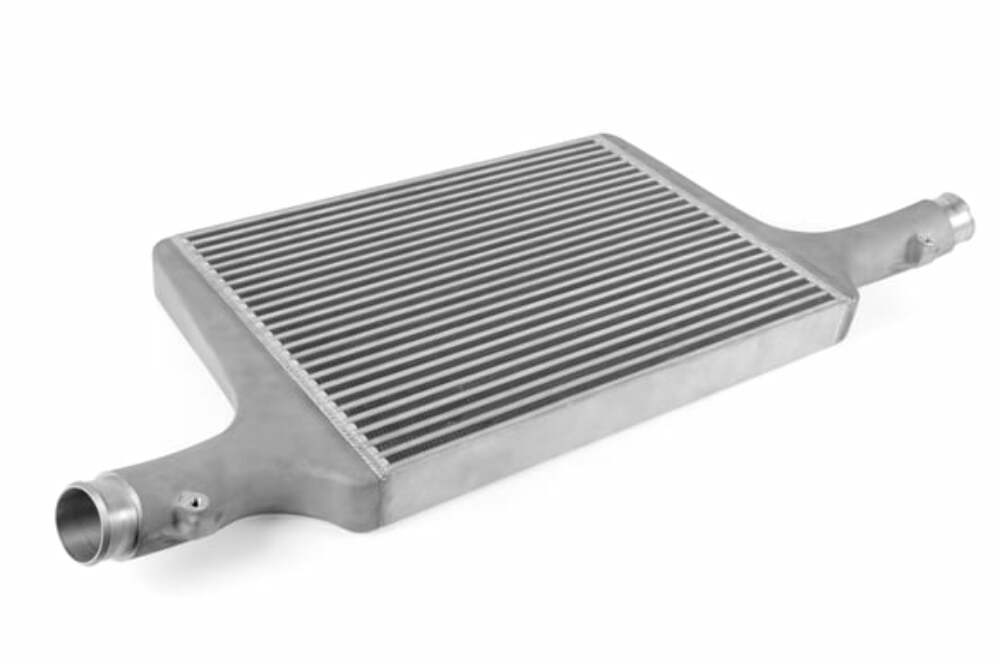

The APR Intercooler System is a massive front mounted upgrade that dramatically reduces intake air temperature (IAT), minimizes heat soak, and provides increased performance! The system is an easy to install, direct bolt-on design, that is recommended at every stage of performance.
Features:
- Dramatically lowers intake air temp (IAT)
- Increases HP while minimizing power-robbing heat soak!
- Retained as high as 45 AWHP compared to the factory system!
- Massive frontal surface area and core volume
- 3.125" x 5.75" x 28.25" - 162.4 in² front. & 507.62 in³ volume - OEM
- 2.250" x 16.2" x 22.00" - 356.4 in² front. & 801.90 in³ volume - APR
- Highly effective core design
- Bar-and-plate core with staggered and louvered fins.
- Rigorous testing determined core style, fin density, and size.
- Low pressure drop + highly effective cooling = high performance!
- Smooth cast end tanks
- Engineered for low turbulence/restriction and maximum flow
- Organically shaped to promote airflow across entire core.
- Pressure tested to prevent power robbing boost leaks.

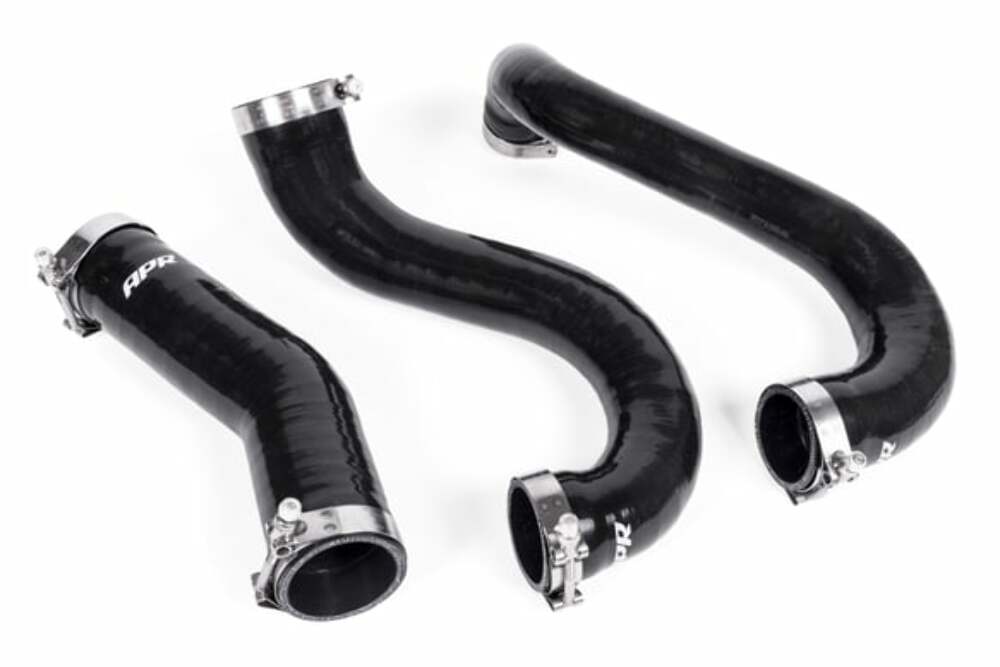

- Silicone inlet and outlet hoses
- Multi-ply silicone design with internal wire reinforcement, fluorosilicone internal protective layer and APR's EZ-Flow stepped design.
- Clampco T-bolt clamps
- Strong, stainless-steel Clampco T-Bolt clamps provide better clamping for increased protection against hose slippage and boost leaks.

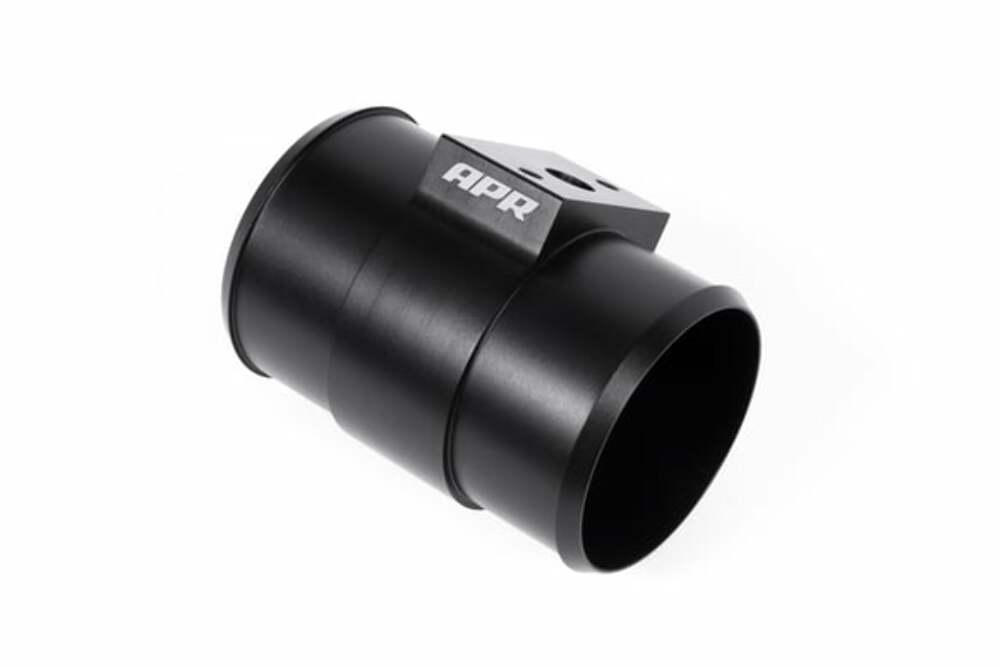

- Billet MAP housing
- Precision CNC-machined for secured sensor placement with an attractive matte-black anodized finish.
- Easy to install
- Simple bolt-on install with no trimming or drilling necessary!
- Designed by engineers with lasers
- With the best equipment and smartest engineers, it just works!
Application:
| Year | Make | Model | Submodel | Engine Size |
|---|---|---|---|---|
| 2019 | Audi | A4 | Titanium | 121/2L L4 |
| 2019 | Audi | A4 Quattro | Ultra sport | 121/2L L4 |
| 2018 - 2019 | Audi | A5 Quattro | Premium | 121/2L L4 |
| 2018 - 2019 | Audi | A5 Quattro | Premium Plus | 121/2L L4 |
| 2018 - 2019 | Audi | A5 Quattro | Prestige | 121/2L L4 |
| 2017 - 2019 | Audi | A4 Quattro | Prestige | 121/2L L4 |
| 2017 - 2019 | Audi | A4 | Premium Plus | 121/2L L4 |
| 2017 - 2019 | Audi | A4 | Prestige | 121/2L L4 |
| 2017 - 2019 | Audi | A4 Quattro | Premium | 121/2L L4 |
| 2017 - 2019 | Audi | A4 Quattro | Premium Plus | 121/2L L4 |
| 2017 - 2019 | Audi | A4 | Premium | 121/2L L4 |
Specs:
| Brand | APR |
|---|---|
| Color | Silver / Natural |
| Cooler Type | Air to Air |
| Core Frontal Area (in^2) | 357.5 |
| Core Height (in) | 16.25 |
| Core Type | Bar and Plate |
| Core Volume (in^3) | 804.38 |
| Core Width (in) | 2.25 |
| Core Width (in) | 22 |
| Direct Fit | Yes |
| Emission Code | 4 |
| End tank Construction | Cast |
| End tank Material | 356-F Aluminum |
| Hose Clamp Type | T-Bolt |
| Hose Type | Silicon |
| Product Type | Charge Air Cooler |
| Warning | California Proposition 65 |
| Welding Type | TIG |
