B&M Hi-Tek Deep Trans Pan for GM 8L90E (Truck) Transmissions - 70396
B&M Hi-Tek Deep Trans Pan for GM 8L90E (Truck) Transmissions - 70396 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Fitment
Fitment
Warranty Information
Warranty Information
Customer service is our top priority and because we value your time and energy we ask you to visit our Contact Us page and reach out so that we may assist you in finding the correct warranty for your product. Please include your name, the name on the order, the order number, and the SKU of the product to ensure the quickest and most accurate response to your inquiry.
Description
Description
Overview:

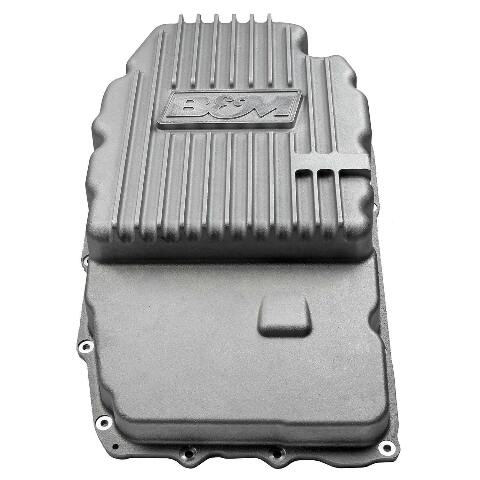

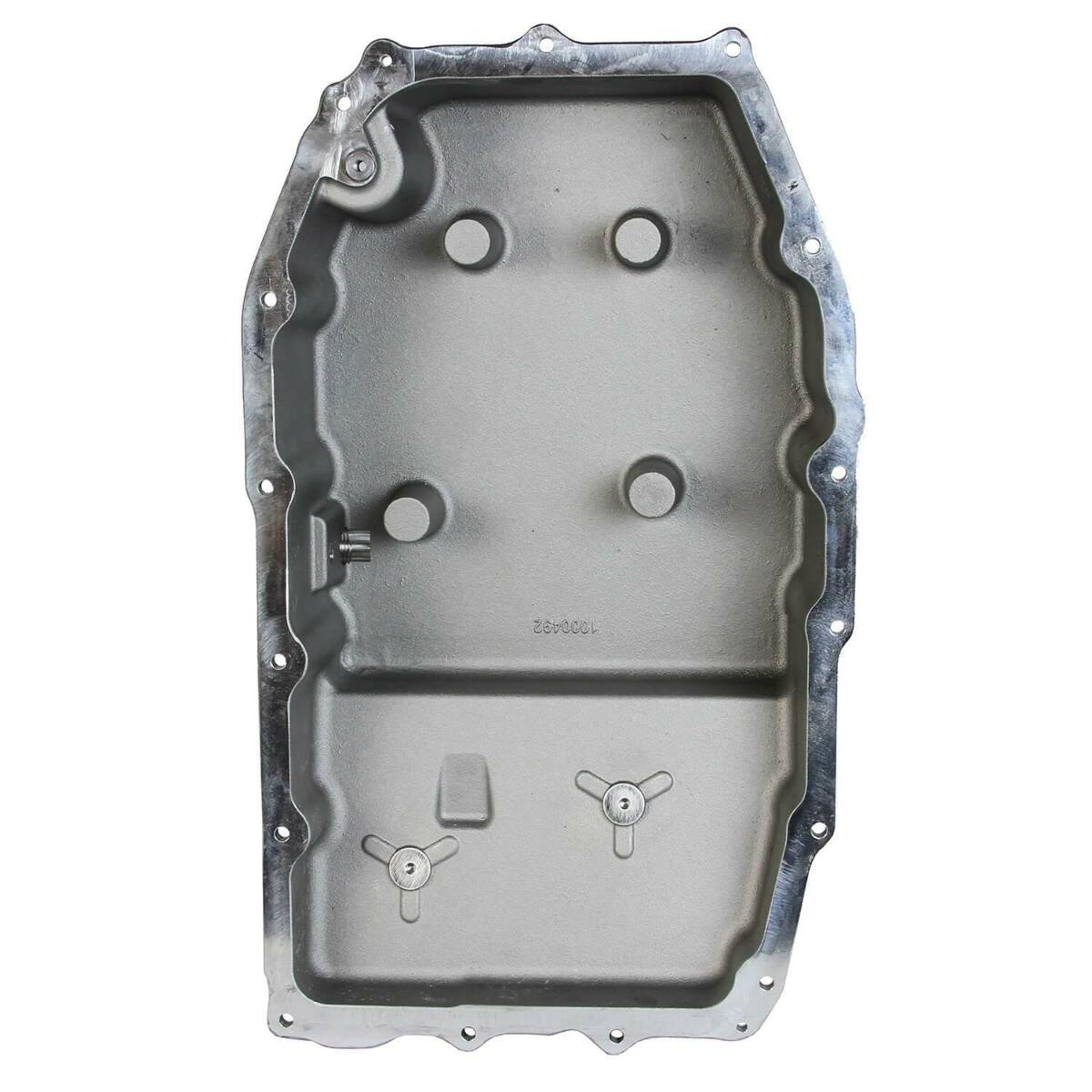

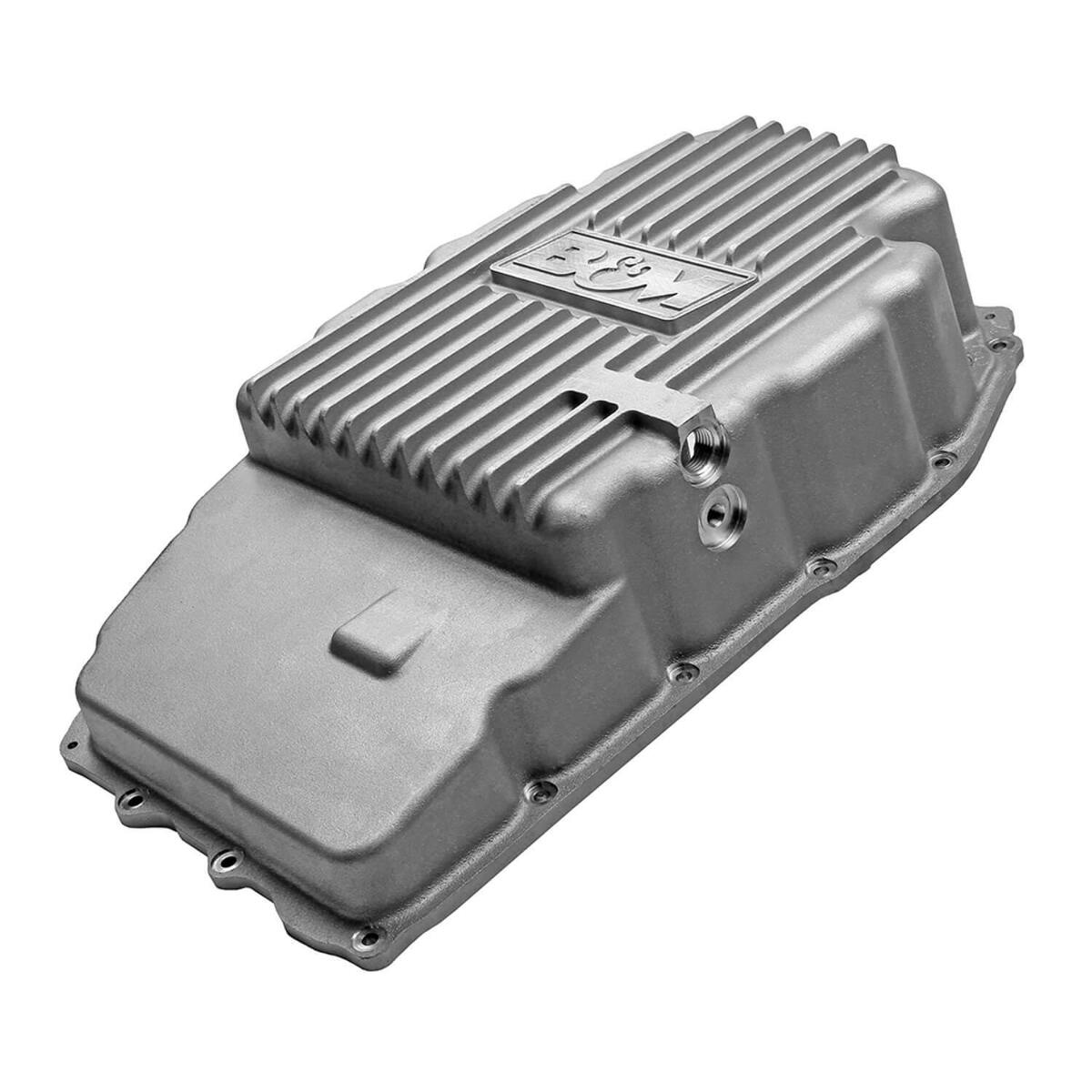

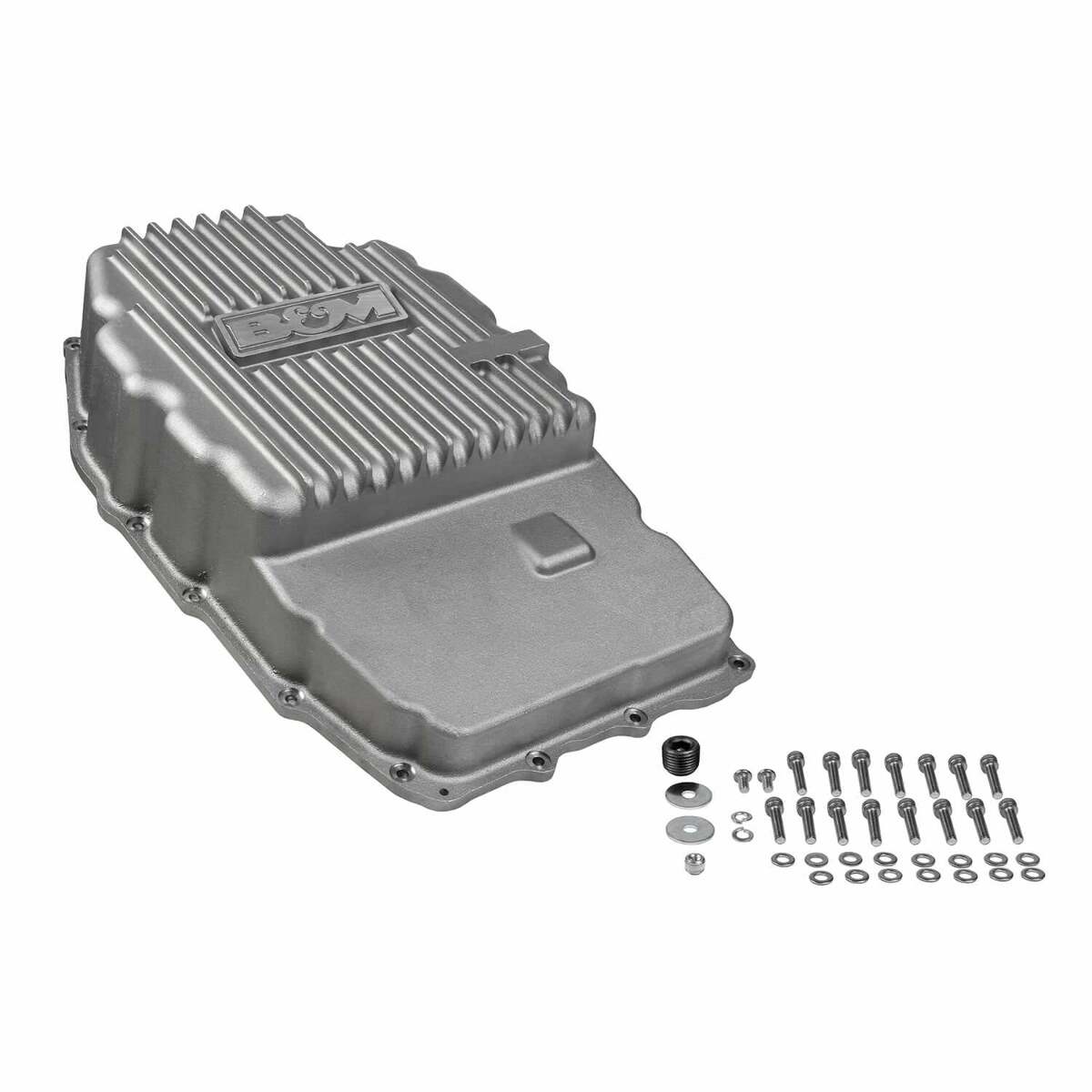

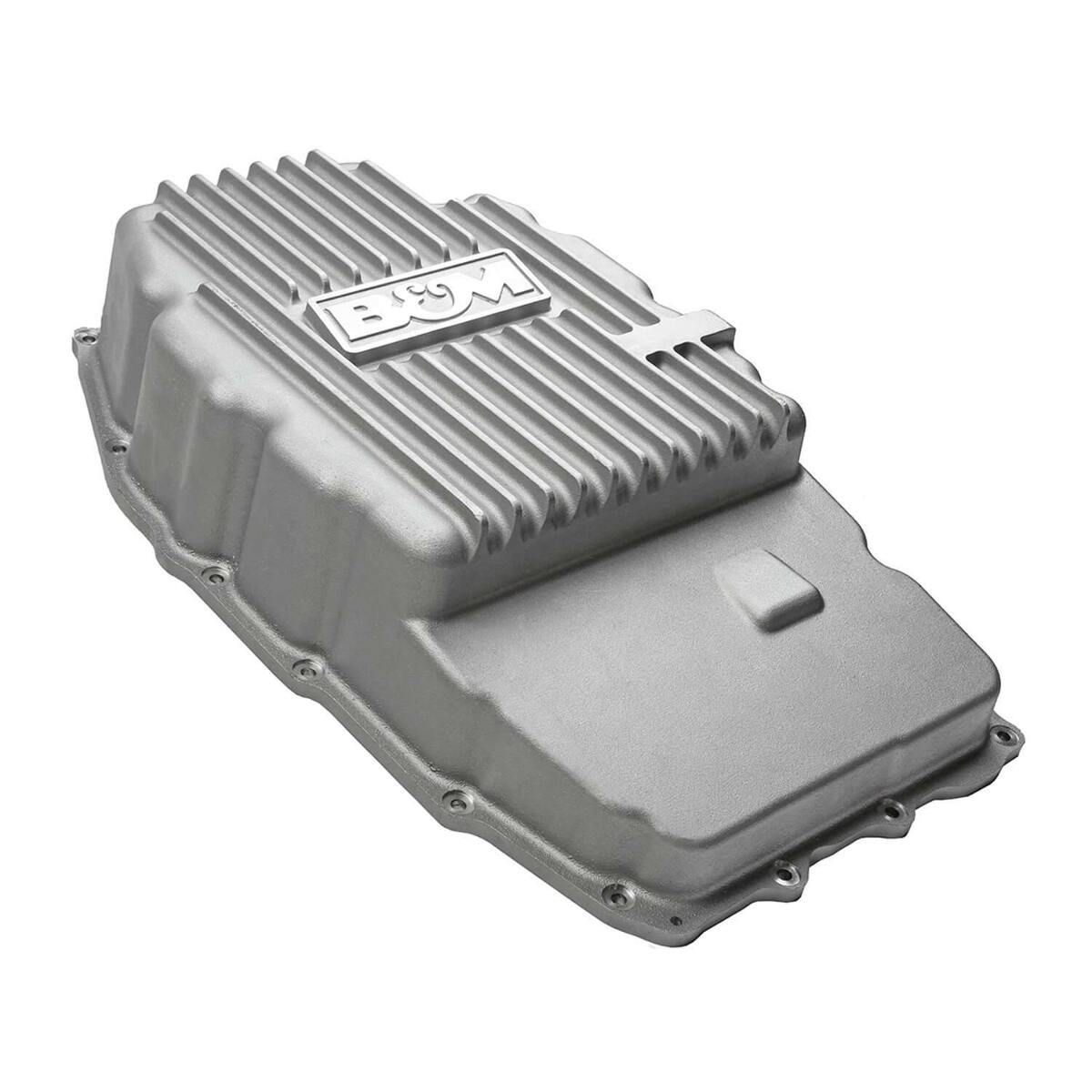

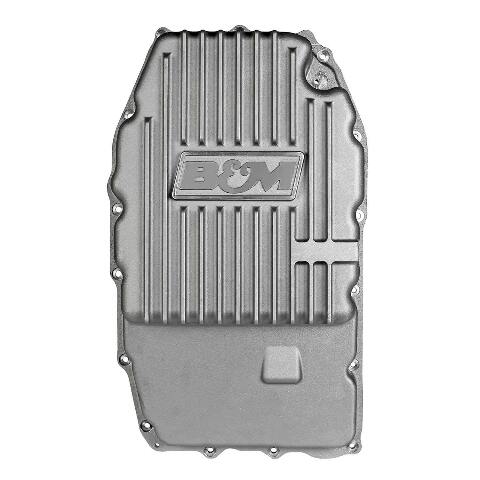

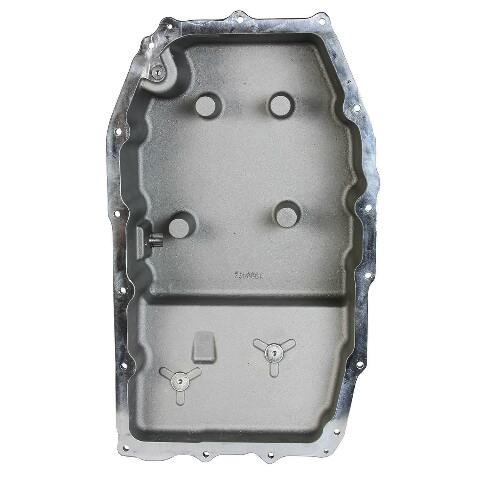

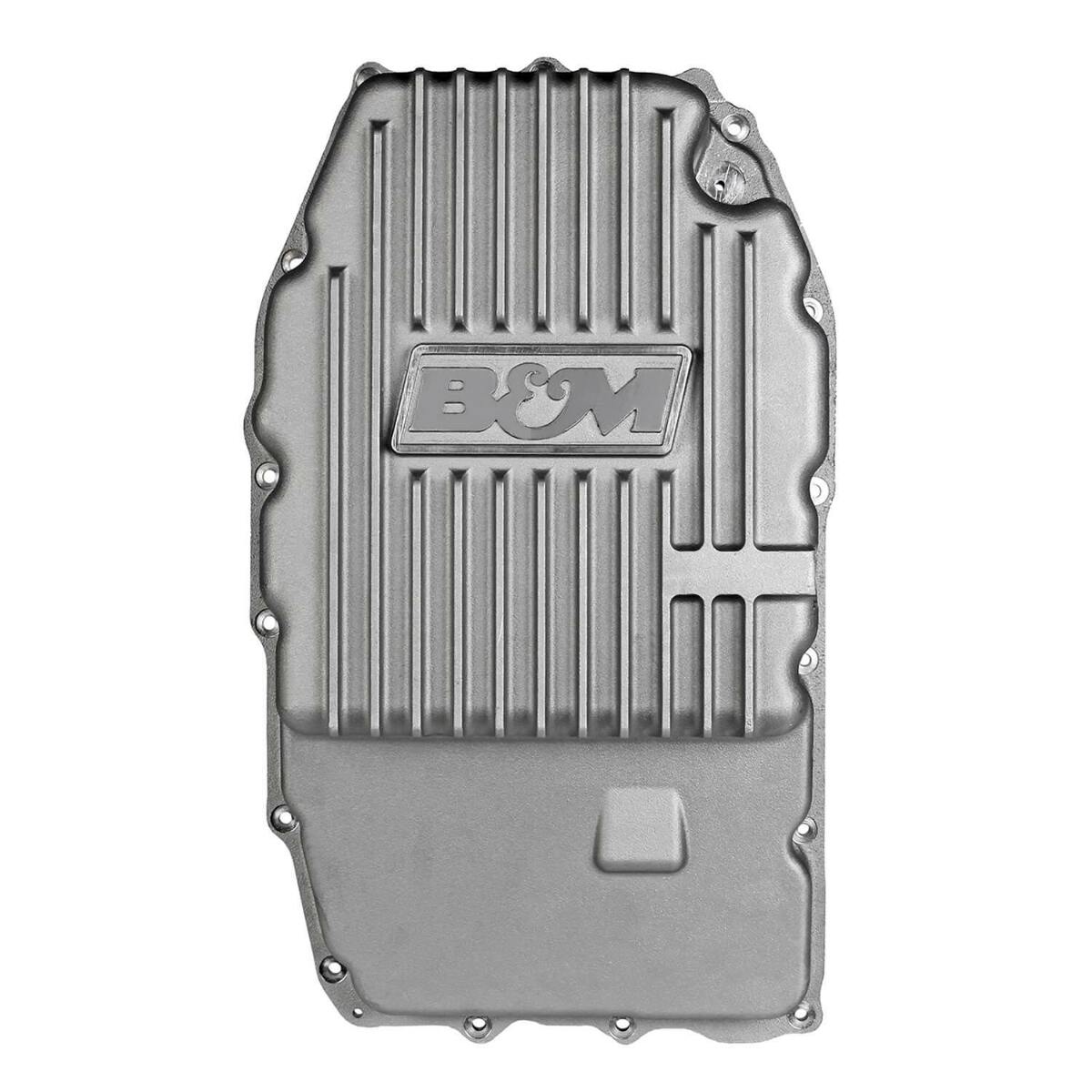

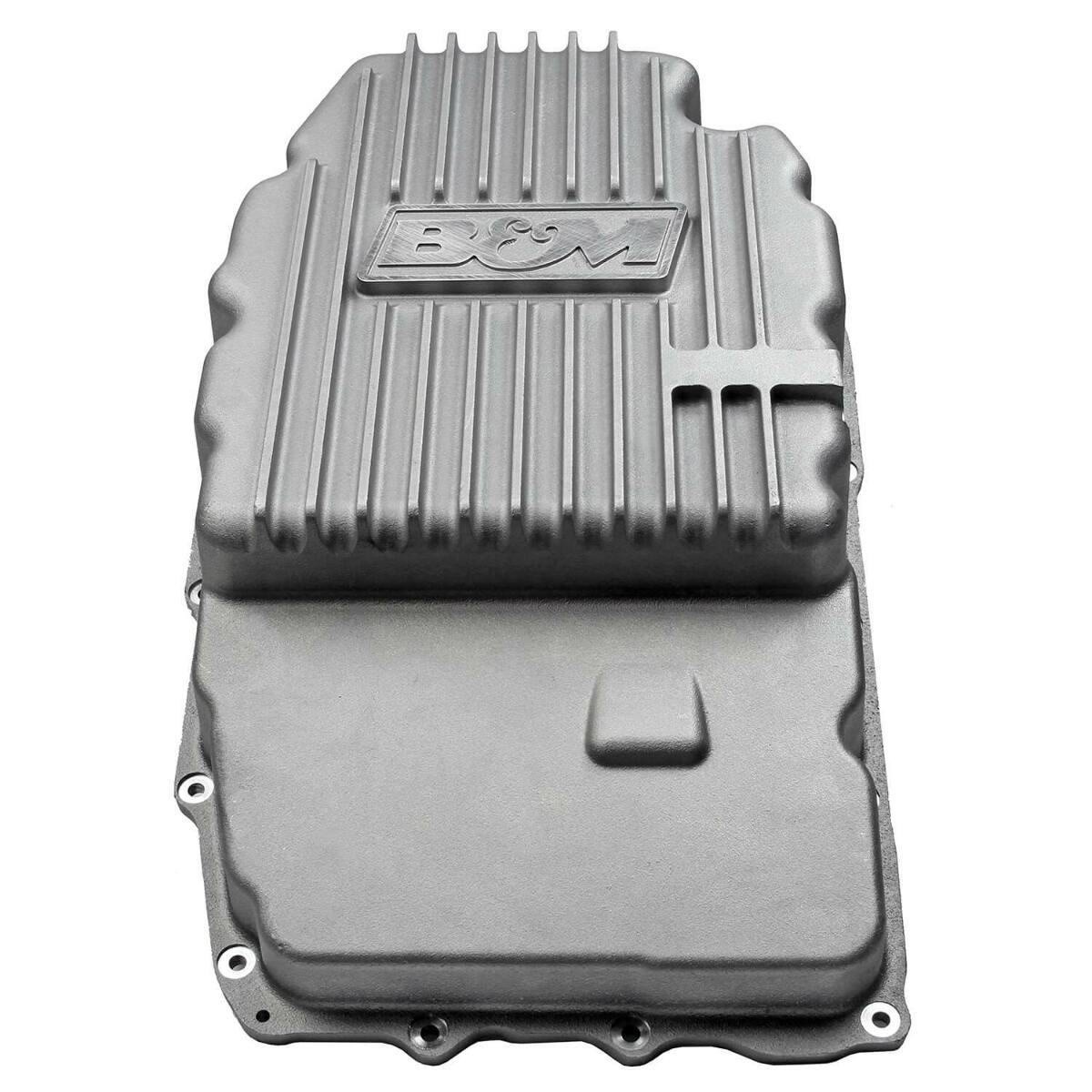

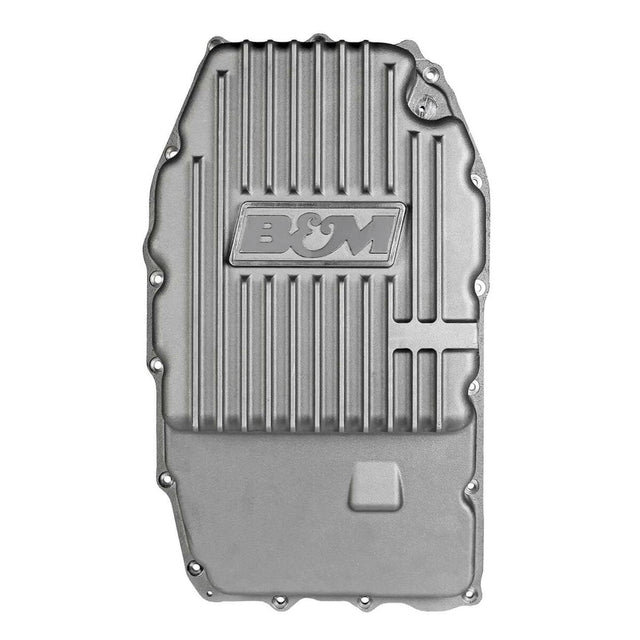

Our Hi-Tek deep transmission pans are constructed from A356-T6 aluminum and are cast with thick internal and external fins, adding additional strength and increased cooling properties. The deep pan design increases fluid capacity by 3.4 quarts over the stock O.E. steel pan. All these features combined help dissipate heat quicker netting lower transmission and fluid temperatures prolonging the life of your transmission, transmission fluid and corresponding components. Other features for this popular pan include a drain port and the pan accepts the two factory magnets to capture wear materials protecting the transmission and for clean and easy servicing. Also includes 1/8 inch npt temperature sensor port for easily adding a temp gauge for monitoring transmission temperatures while daily driving, towing or racing. Includes detailed instructions with all necessary hardware for an easy at home installation. Note: Does Not fit 2010-2015 Camaro 8L90E transmissions. See Part# 70391 for 2010-2015 Camaro 8L90E transmission pan.
Features:
- Magnetic Drain Plug for Easy Servicing
- Adds 3.4-quarts of Transmission Fluid
- Includes Temperature Sensor Port
- Internal & External Cooling Ribs
- Increased Cooling Properties
- Lifetime Limited Warranty
- Custom B&M Logo
Application:
| Year | Make | Model | Submodel | Engine Size |
|---|---|---|---|---|
| 2016 - 2018 | Chevrolet | Silverado 1500 | LT | |
| 2015 - 2018 | Chevrolet | Silverado 1500 | LTZ | |
| 2015 - 2018 | Chevrolet | Silverado 1500 | High Country | |
| 2015 - 2018 | GMC | Sierra 1500 | SLT | |
| 2015 - 2018 | GMC | Sierra 1500 | Denali | |
| 2015 - 2017 | GMC | Yukon | Denali | |
| 2015 - 2017 | GMC | Yukon XL | Denali | |
| 2017 - 2018 | Chevrolet | Express 2500 | ||
| 2017 - 2018 | Chevrolet | Express 3500 | ||
| 2017 - 2018 | GMC | Savana 2500 | ||
| 2017 - 2018 | GMC | Savana 3500 |
Specs:
| Additonal Fluid Capacity (qts) | 3.4 |
|---|---|
| Bolt Count | 15 |
| Bolt/Studs Included | Yes |
| Brand | B&M |
| California Proposition 65 Chemical Name | Chromium (hexavalent compounds) |
| California Proposition 65 Required | Yes |
| Color/Finish | Natural |
| Drain Plug Included | Yes |
| Emission Code | 5 |
| Filler Plug Included | No |
| Finish | Zinc |
| Fits Trans Models | 8L90E |
| Gasket Included | No |
| Material | A356.0-T6 Alumininum |
| Product Type | Automatic Transmission Pan |
| Transmission Type | GM 8L90E |
| Warning | California Proposition 65 |
