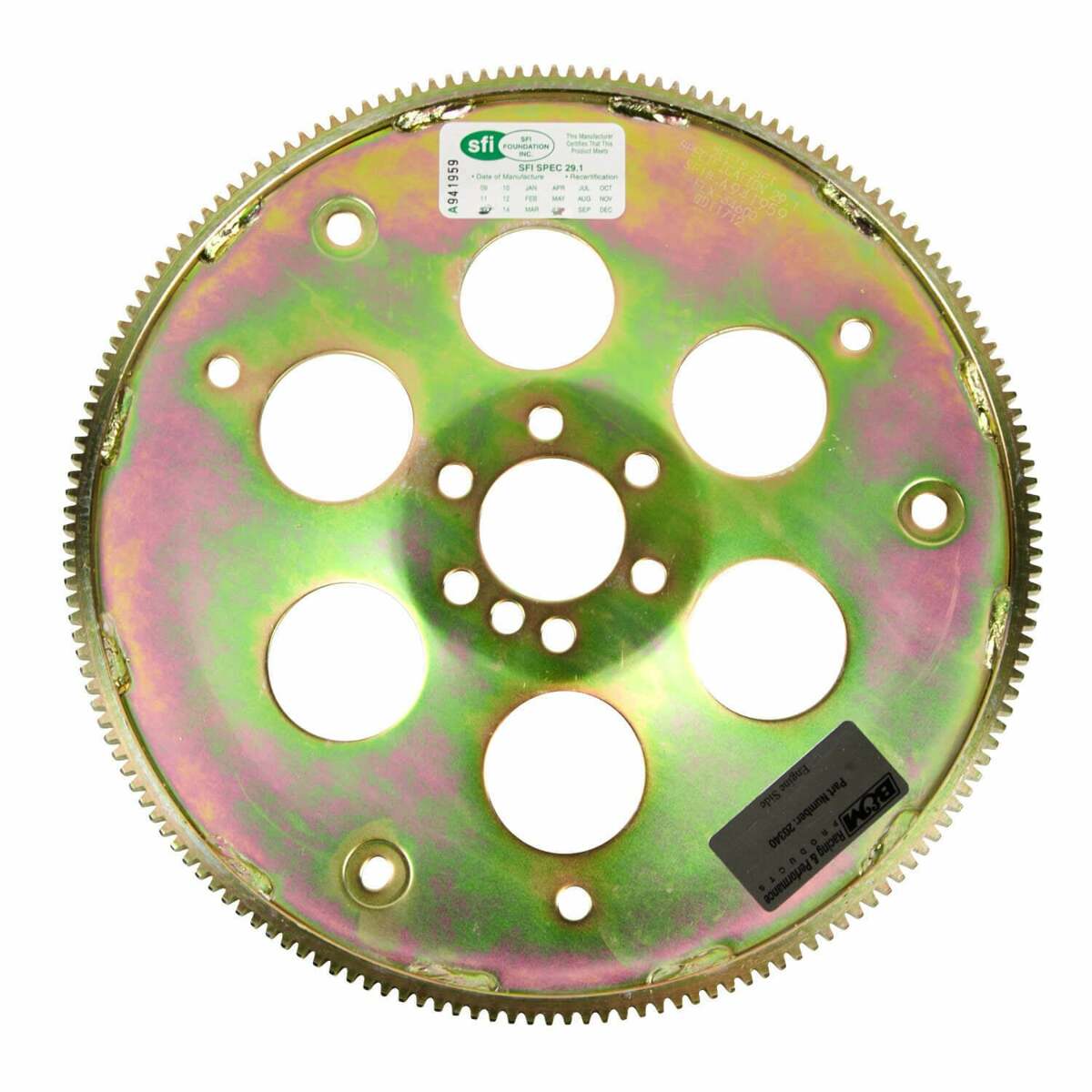

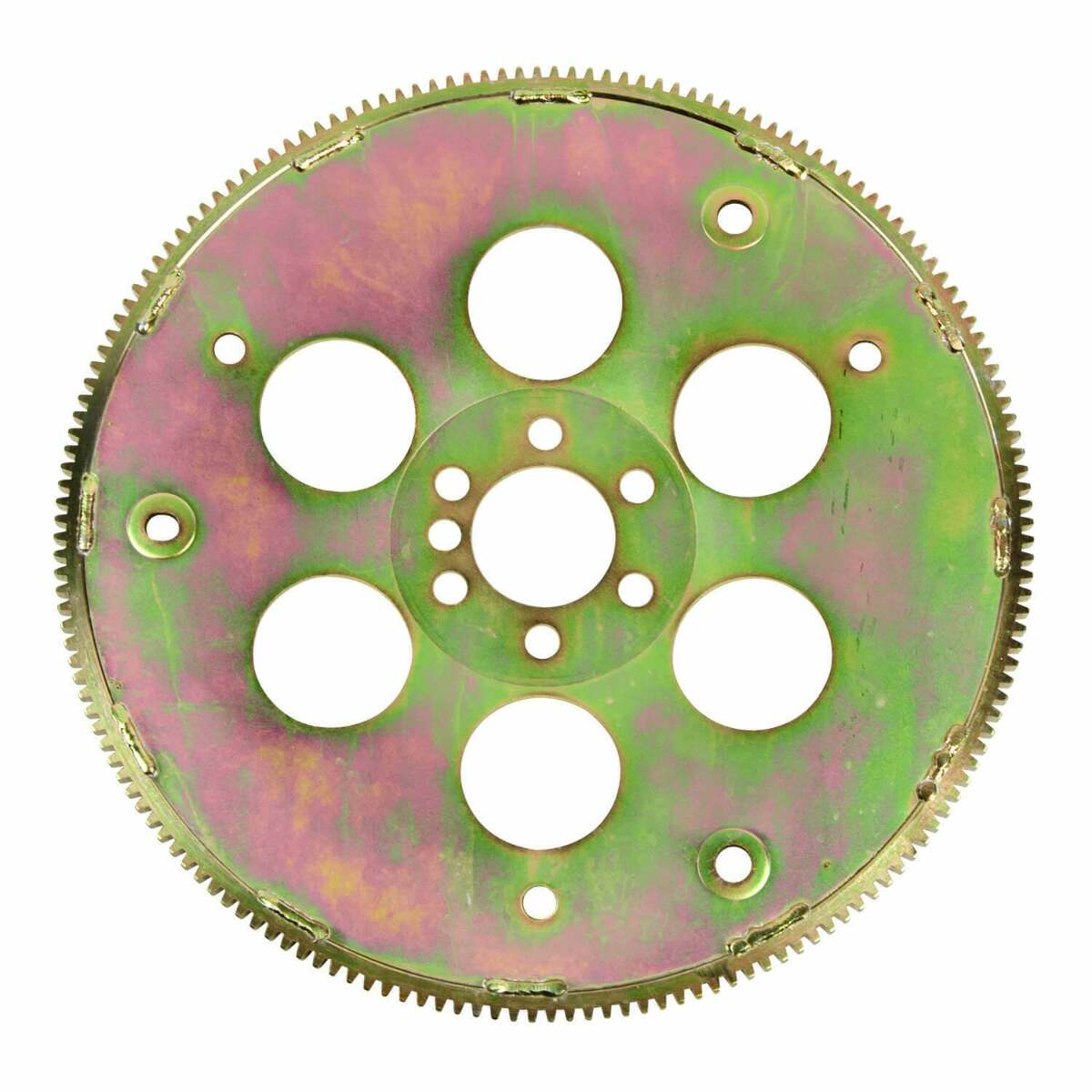

B&M Steel SFI Certified Flexplate - GM LS Engines - 20340
B&M Steel SFI Certified Flexplate - GM LS Engines - 20340 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Fitment
Fitment
Warranty Information
Warranty Information
Customer service is our top priority and because we value your time and energy we ask you to visit our Contact Us page and reach out so that we may assist you in finding the correct warranty for your product. Please include your name, the name on the order, the order number, and the SKU of the product to ensure the quickest and most accurate response to your inquiry.
Description
Description
Overview:
As performance levels increase, an O.E. style flexplate just won't cut it and a stronger option is a necessity to prevent transmission and/or converter failure. B&M has you covered with our high performance flexplate designed for GM 1998-up 4.8L, 5.3L, 5.7L & 6.0L LS engines with 6-bolt crankshaft flange, including 2010-15 Camaro with L99 engine. Features include high tensile strength steel construction to resist elongation and cracking, 10.75 and 11.06-inch converter mounting locations, 168 tooth ring gear with double-sided welds for added strength and comes with SFI 29.1 safety certification insuring the ultimate in safety and performance. The assembly is finished with a Zinc plating and Chromate Conversion Coating for added corrosion resistance and durability. B&M SFI approved flexplates are ideal for extreme duty race applications as well as street cars, tow vehicles or other vehicles needing the added protection and toughness that B&M has been delivering since 1953. Note: Will not fit 1999-00 6.0L applications with 0.400 inch extended crank flange/flat flexplate or 1999-00 4.8L engines that originally came with a manual transmission. A flexplate spacer is required for retrofitting Non LS era transmissions to LS engines.
Features:
- 10.75, 11.06 Inch Bolt Pattern Convertor Mount
- Includes SFI 29.1 Certification Sticker
- Zinc Plated Chromate Finish
- 168 Tooth Ring Gear
- B&M Quality
Application:
| Year | Make | Model | Submodel | Engine Size |
|---|---|---|---|---|
| 2003 | Chevrolet | Corvette | 50th Anniversary Edition Pace Car | |
| 2001 - 2004 | Chevrolet | Corvette | Base | |
| 2003 | Chevrolet | Corvette | 50th Anniversary Edition | |
| 2005 - 2008 | Pontiac | Grand Prix | GXP | 325/5.3 V8 |
| 2006 - 2009 | Chevrolet | Impala | SS | 325/5.3 V8 |
| 2006 - 2007 | Chevrolet | Monte Carlo | SS | 325/5.3 V8 |
| 1997 - 2000 | Chevrolet | Corvette | 350/5.7 V8 | |
| 1997 - 2002 | Pontiac | Firebird | Formula | 350/5.7 V8 |
| 1997 - 2002 | Pontiac | Firebird | Trans Am | 350/5.7 V8 |
| 2004 | Pontiac | GTO | 350/5.7 V8 | |
| 1998 - 2002 | Chevrolet | Camaro | Z28 | 350/5.7 V8 |
| 1998 - 2002 | Chevrolet | Camaro | Z28 SS | 350/5.7 V8 |
| 2005 - 2006 | Pontiac | GTO | 364/6 V8 | |
| 2006 - 2007 | Chevrolet | Corvette | Base | 364/6 V8 |
| 2008 - 2009 | Pontiac | G8 | GT | 364/6 V8 |
| 2008 - 2012 | Chevrolet | Corvette | Base | 376/6.2 V8 |
| 2009 | Pontiac | G8 | GXP | 376/6.2 V8 |
| 2010 - 2012 | Chevrolet | Camaro | SS | 376/6.2 V8 |
| 2010 - 2012 | Chevrolet | Corvette | Grand Sport | 376/6.2 V8 |
| 2012 | Chevrolet | Camaro | ZL1 | 376/6.2 V8 |
Specs:
| # of Teeth | 168 |
|---|---|
| Brand | B&M |
| California Proposition 65 Chemical Name | Cadmium and cadmium compounds |
| California Proposition 65 Required | Yes |
| Crankshift Bolt Hole Count | 6 |
| Dual Pattern | Yes |
| Emission Code | 5 |
| IHRA Legal | Yes |
| NHRA Legal | Yes |
| Outside Diameter (in) | 14.13 |
| Product Type | Automatic Transmission Flexplate |
| SFI Approved | Yes |
| SFI Certification | 29.1 |
| SFI Certification Sticker | Included |
| Warning | California Proposition 65 |
| Weight (lb) | 6 |
