B&M Street/Strip Automatic Transmission - GM 4L80E - 118001BM
B&M Street/Strip Automatic Transmission - GM 4L80E - 118001BM is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Fitment
Fitment
Warranty Information
Warranty Information
Customer service is our top priority and because we value your time and energy we ask you to visit our Contact Us page and reach out so that we may assist you in finding the correct warranty for your product. Please include your name, the name on the order, the order number, and the SKU of the product to ensure the quickest and most accurate response to your inquiry.
Description
Description
Overview:

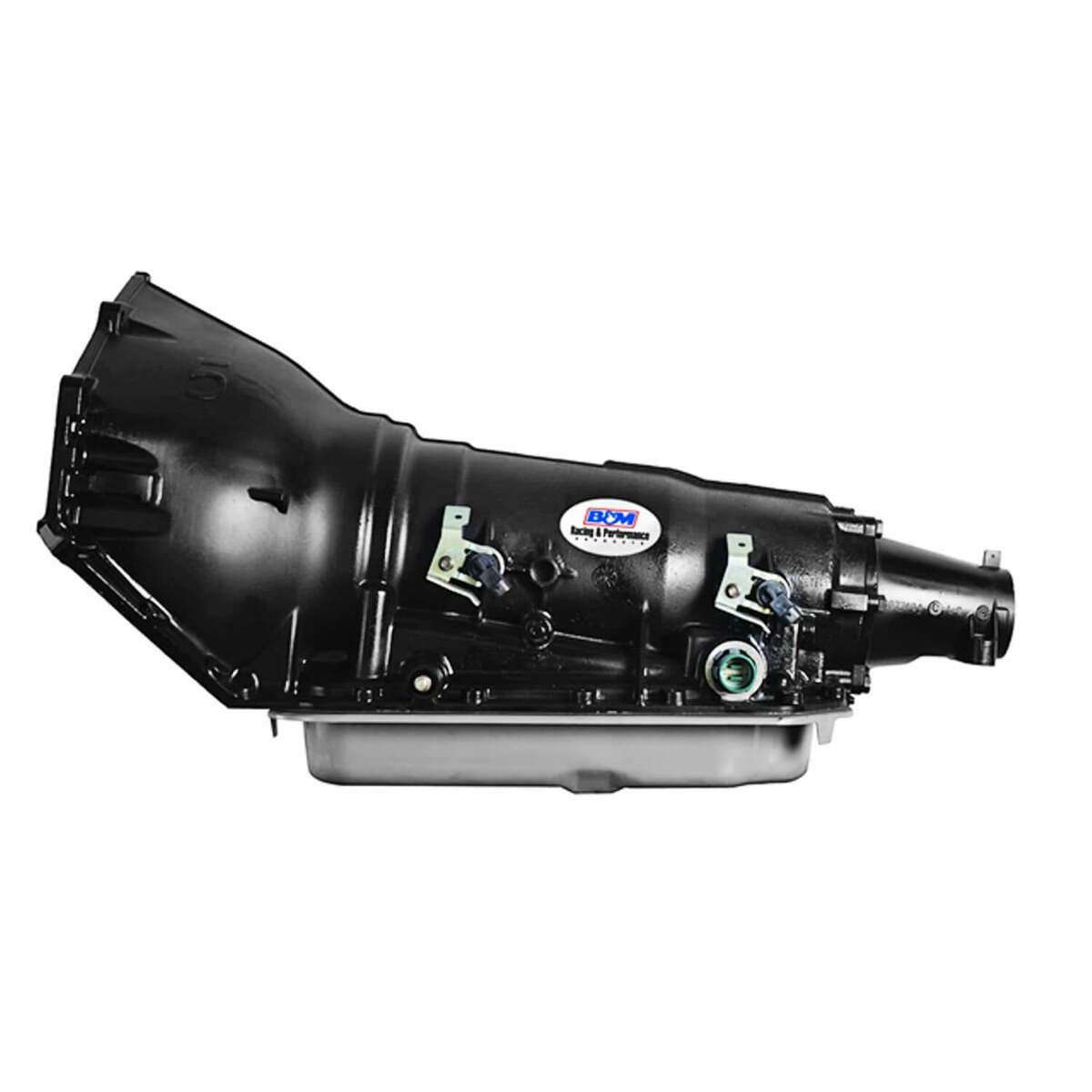

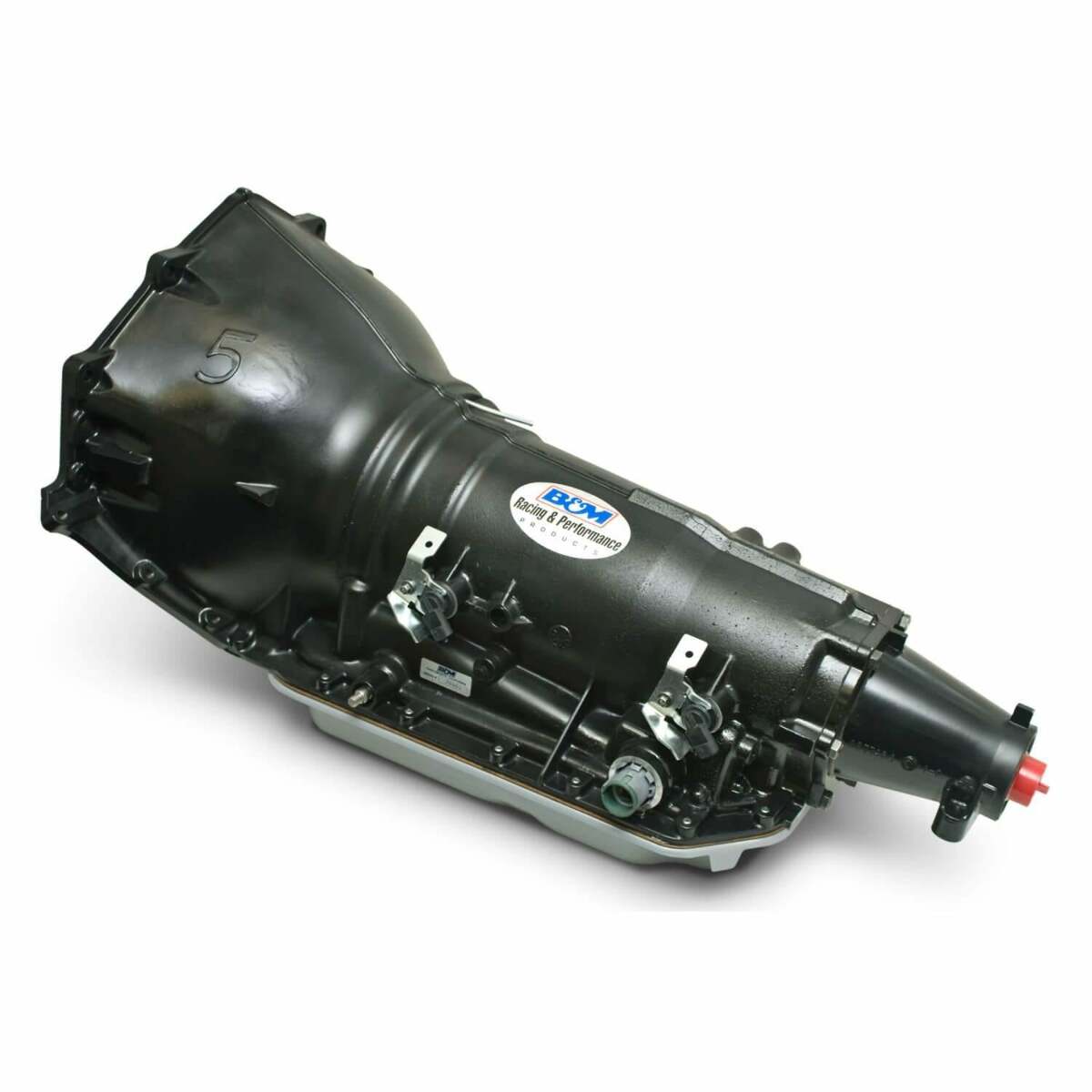

B&M Racing's GM 4L80E Street/Strip transmission is a complete ready to run unit (less converter) for high performance Street/Strip use for GM model years 1993 to 1996. The Street/Strip 4L80E transmission is packed with performance features such as providing firm shifts, a high energy intermediate band, new overdrive sprag assembly, new low roller assembly and all new performance friction materials. Other features include all new steel forward hub, solenoids, wiring harness, re-calibrated forward pattern automatic valve body and performance pump assembly. This transmission is built to handle up to 800 HP/650 lb-ft of torque. Notes: For transplant applications, this transmission requires an electronic controller such as B&M ShiftPlus2 transmission controller #120001. Carbureted applications will require a throttle position sensor (TPS) #120002. To prevent contamination of worn parts circulating through your new B&M transmission, we strongly suggest replacing or adding a new B&M SuperCooler transmission cooler.
Features:
- B&M Racing Recalibrated Valve Body
- 34 Element Intermediate Sprag
- B&M Rebuilt Performance Pump
- Max 800 HP / 650 lb-ft
Application:
| Year | Make | Model | Submodel | Engine Size |
|---|---|---|---|---|
| 1993 - 1996 | GMC | C2500 | ||
| 1993 - 1996 | GMC | C2500 Suburban | ||
| 1993 - 1996 | GMC | C3500 | ||
| 1996 | GMC | Savana 1500 | ||
| 1996 | GMC | Savana 2500 | Base | |
| 1996 | GMC | Savana 2500 | SLE | |
| 1993 - 1996 | GMC | G3500 | ||
| 1996 | GMC | Savana 3500 | ||
| 1993 - 1996 | GMC | K1500 | ||
| 1993 - 1996 | GMC | K1500 Suburban | ||
| 1993 - 1996 | GMC | K2500 | ||
| 1993 - 1996 | GMC | K2500 Suburban | ||
| 1993 - 1996 | GMC | K3500 | ||
| 1993 - 1996 | GMC | P3500 | ||
| 1993 - 1996 | GMC | Yukon | ||
| 1993 | Chevrolet | C1500 | Cheyenne | |
| 1993 | Chevrolet | C1500 | Silverado | |
| 1993 | Chevrolet | C1500 | 454 SS | |
| 1993 | Chevrolet | C1500 | WT | |
| 1994 - 1996 | Chevrolet | C1500 | ||
| 1993 - 1996 | Chevrolet | C1500 Suburban | ||
| 1993 - 1996 | Chevrolet | C2500 | ||
| 1993 - 1996 | Chevrolet | C2500 Suburban | ||
| 1993 - 1996 | Chevrolet | C3500 | ||
| 1996 | Chevrolet | Express 2500 | ||
| 1996 | Chevrolet | Express 3500 | ||
| 1993 - 1996 | Chevrolet | G30 | ||
| 1993 - 1996 | Chevrolet | K1500 | ||
| 1993 - 1996 | Chevrolet | K1500 Suburban | ||
| 1993 - 1996 | Chevrolet | K2500 | ||
| 1993 - 1996 | Chevrolet | K2500 Suburban | ||
| 1993 - 1996 | Chevrolet | K3500 | ||
| 1993 - 1996 | Chevrolet | P30 | ||
| 1995 - 1996 | Chevrolet | Tahoe | ||
| 1993 - 1996 | GMC | C1500 | ||
| 1993 - 1996 | GMC | C1500 Suburban |
Specs:
| 2WD/4WD | 2WD |
|---|---|
| Automotive Item Grade | High Performance |
| Brake Included | No |
| Brand | B&M |
| Built-In Transmission Shield | No |
| California Proposition 65 Chemical Name | Benzene |
| California Proposition 65 Chemical Name | Chromium (hexavalent compounds) |
| California Proposition 65 Chemical Name | Lead |
| California Proposition 65 Required | Yes |
| Case Material | Cast Aluminum |
| Color | Black |
| Control Type | Electronic |
| Cooler included | No |
| Core Change Applicable | No |
| Dipstick included | No |
| Disclaimer | Transmission shipped without speedometer driven gear or housing |
| Drive Type | RWD |
| Emission Code | 5 |
| Friction Plates | New |
| Gear Ratio-First | 2.48 |
| Gear Ratio-Fourth | 0.75 |
| Gear Ratio-Second | 1.48 |
| Gear Ratio-Third | 1 |
| Horsepower Rating (HP) | 800 |
| Input Shaft Spline Count | 32 |
| Input Spline Count | 32 |
| Manual Valve Body | No |
| Part Type | High Performance |
| Product Type | Automatic Transmission Assembly |
| Reverse Gear Ratio | 2.08 |
| Reverse Pattern | No |
| Torque Converter Included | No |
| Torque Rating (Ft/Lbs) | 650 |
| Transbrake | No |
| Transmission Model | 4L80E |
| Transmission Pan Finish | Chrome |
| Transmission Pan Material | Steel |
| Transmission Pan Type | Stamped |
| Transmission Series | Street/Strip |
| Transmission Speeds | 4 |
| Transmission Type | 4L80E |
| Valve Body Configuration | Recalibrated |
| Valve Body Pattern | Forward |
| Valve Body Type | Automatic |
| Warning | California Proposition 65 |
