Holley EFI | SKU:
534-285

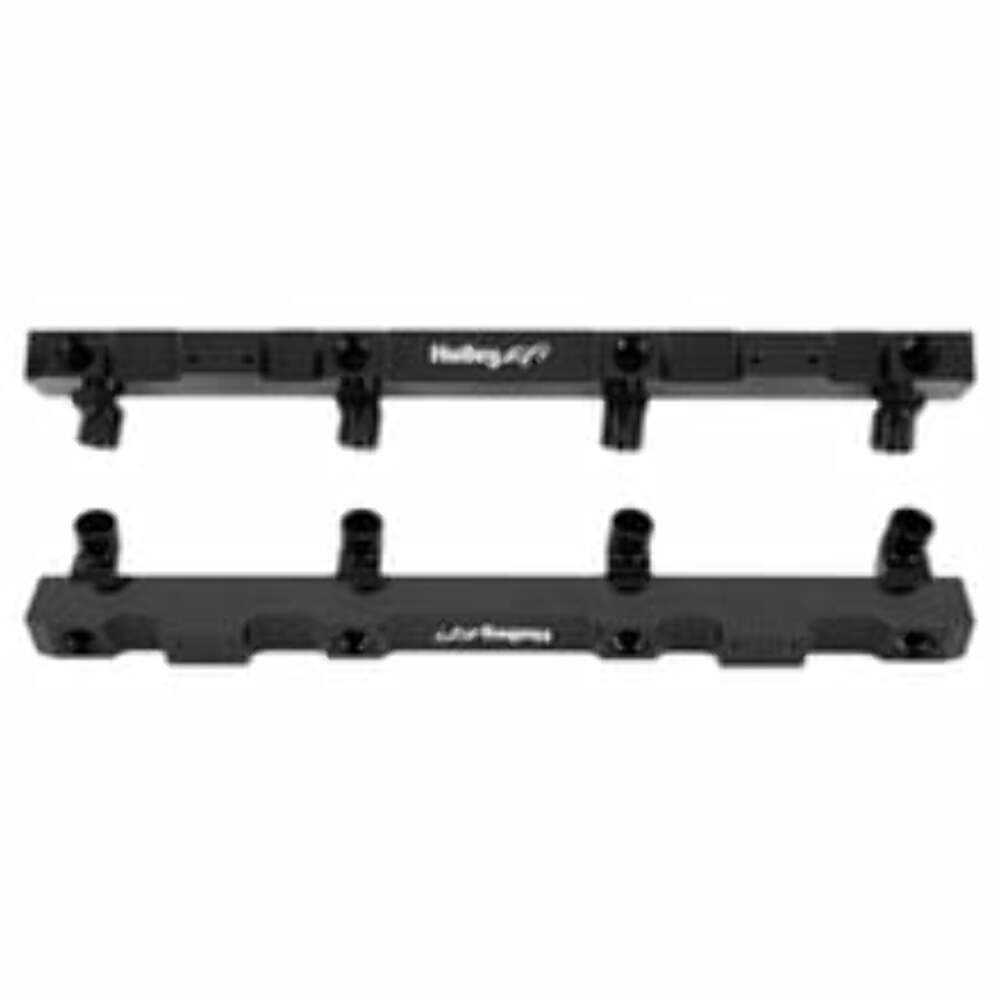

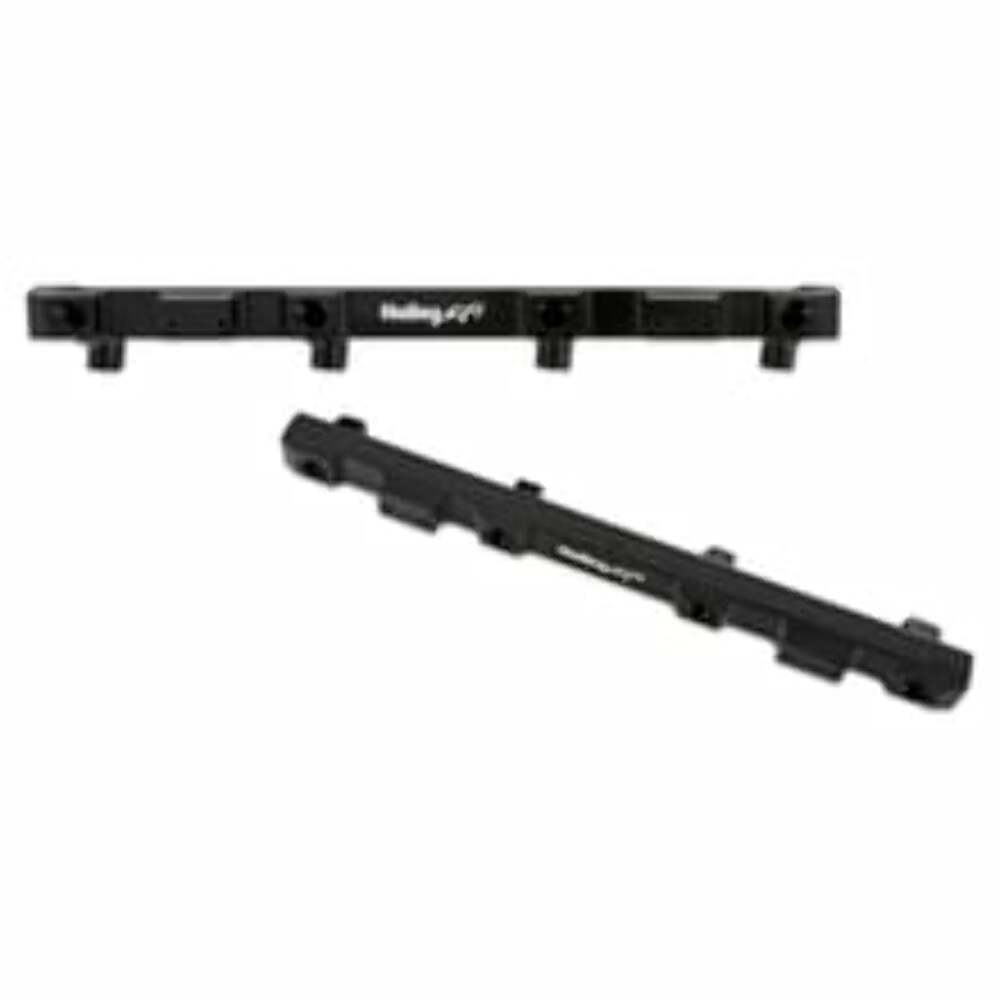

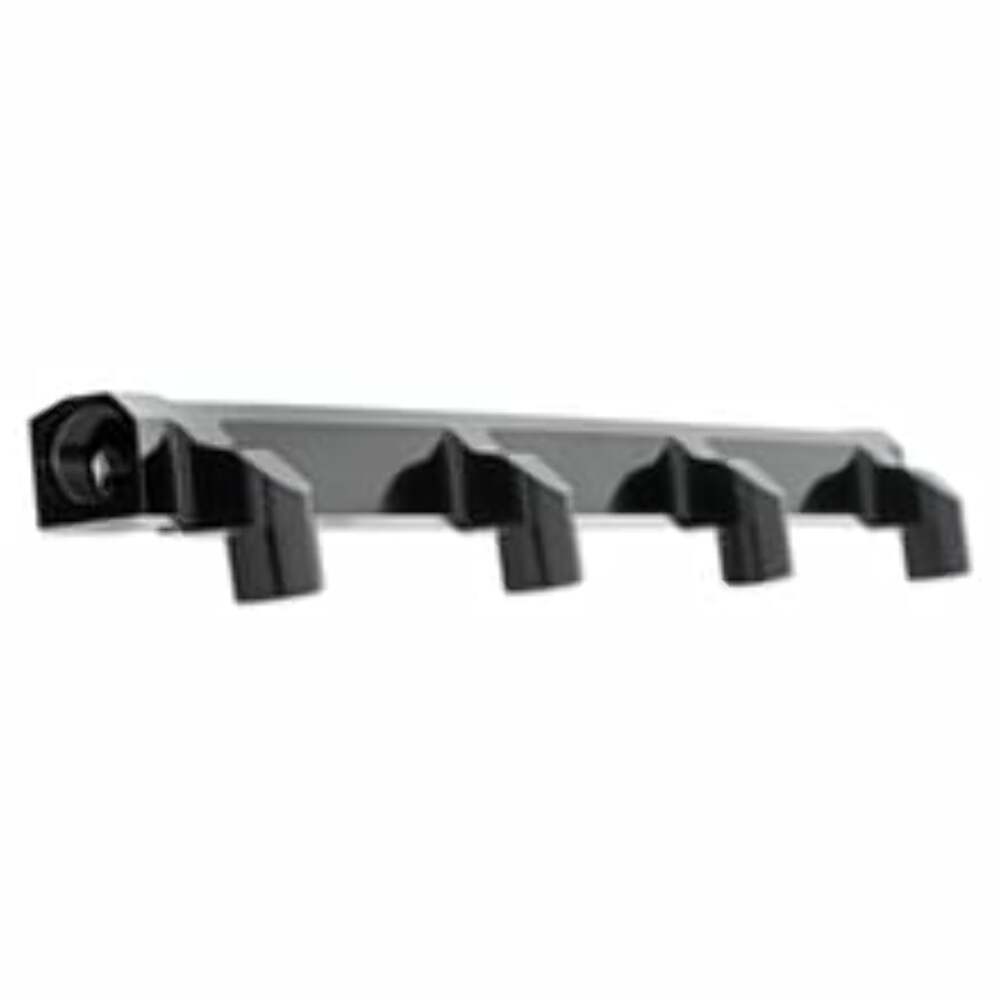

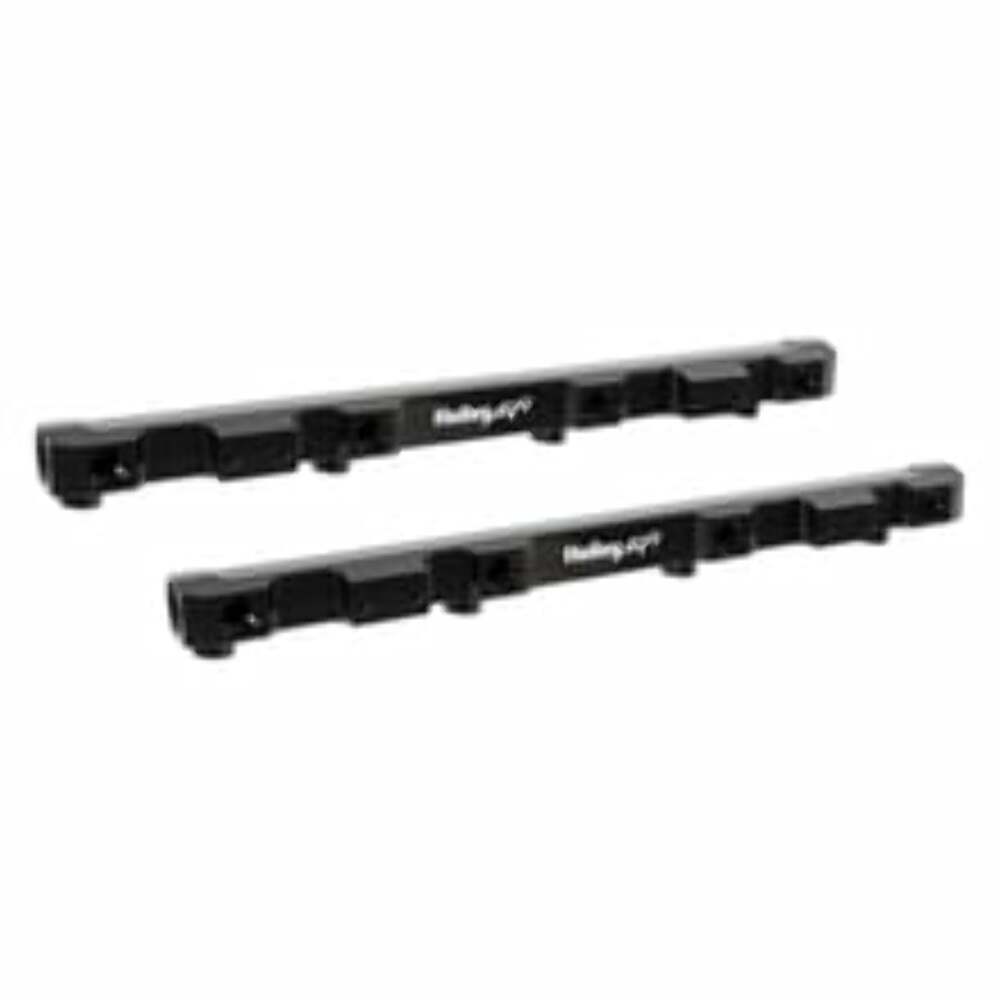

Billet Fuel Rail Kit - LSA and LS9 534-285
Regular price
$301.45 USD
Unit price
/
Unavailable
Shipping calculated at checkout.
Billet Fuel Rail Kit - LSA and LS9 534-285 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Fitment
Fitment
Warranty Information
Warranty Information
Customer service is our top priority and because we value your time and energy we ask you to visit our Contact Us page and reach out so that we may assist you in finding the correct warranty for your product. Please include your name, the name on the order, the order number, and the SKU of the product to ensure the quickest and most accurate response to your inquiry.
Description
Description
Fits LSA and LS9 Engines
Features:
- Direct replacement for the OEM rails on the factory blower or any other supercharger that was designed to use OEM rails
- Bright dip, black anodized finish with laser etched EFI logo for long-lasting good looks
- Fuel rails are machined to accept -8 (3/4-16) ORB ports which use O-ring fittings
- Fuel rails are also machined in the center with four -6 (9/16-18) ORB ports to accept O-ring fittings (sold separately). Qty. 8 -6 ORB port plus also included to seal unused ports
- -6 (9/16-18) ORB ports can be used as fuel gauge/sensor locations by using a -6 ORB to 1/8 NPT adapter (sold separately). Can also be used for fuel pulse damper (sold separately) mounting locations
- 21/32? (0.656?) diameter fuel passage provides the flow capacity for high horsepower applications
- ?? (0.25?) diameter fuel passage feeding each injector

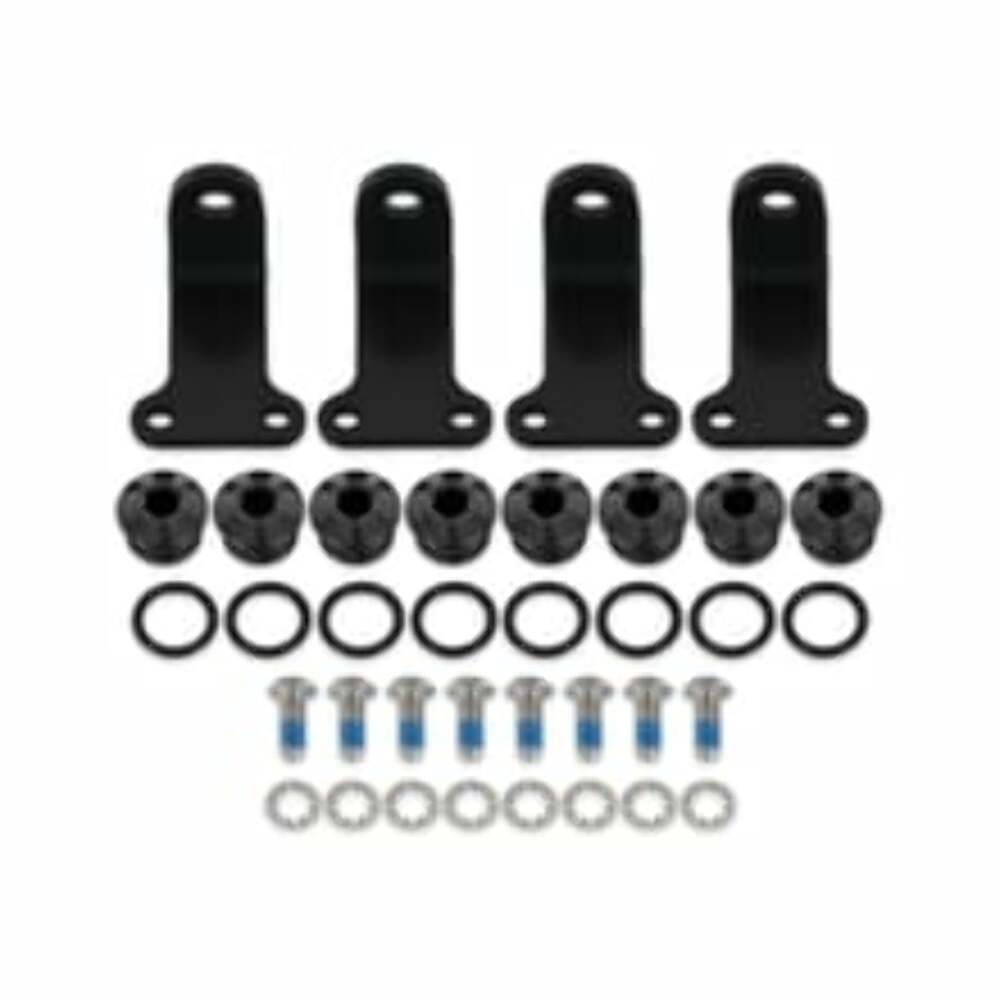

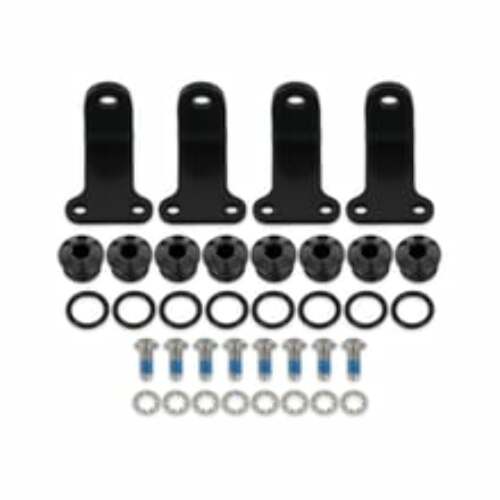

- Brackets are included for factory height injectors (33.60mm)
- Compatible with factory fuel line quick-connect by using P/N 534-211 adapter kit (sold separately)
Specs:
| Brand | Holley EFI |
|---|---|
| Category Filter | Intake Manifolds |
| Clearance Category | Intake Manifolds |
| Color | Black |
| Emission Code | 5 |
| Engine | GM LSA/LS9 |
| Fuel Injection Type | Port |
| Fuel Injectors Included | No |
| Fuel System Type | EFI |
| Gasket Or Seal Included | No |
| Grade Type | Performance |
| Material | Aluminum |
| Product Type | Fuel Rail Kit |
| Warning | California Proposition 65 |
Application:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2009-2015 | Cadillac | CTS | V |
| 2012-2015 | Chevrolet | Camaro | ZL1 |
| 2009-2013 | Chevrolet | Corvette | ZR1 |
