Cast Aluminum 4500 EFI Throttle Body Intake Elbow-LS - 300-248
Cast Aluminum 4500 EFI Throttle Body Intake Elbow-LS - 300-248 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Fitment
Fitment
Warranty Information
Warranty Information
Customer service is our top priority and because we value your time and energy we ask you to visit our Contact Us page and reach out so that we may assist you in finding the correct warranty for your product. Please include your name, the name on the order, the order number, and the SKU of the product to ensure the quickest and most accurate response to your inquiry.
Description
Description
Overview:

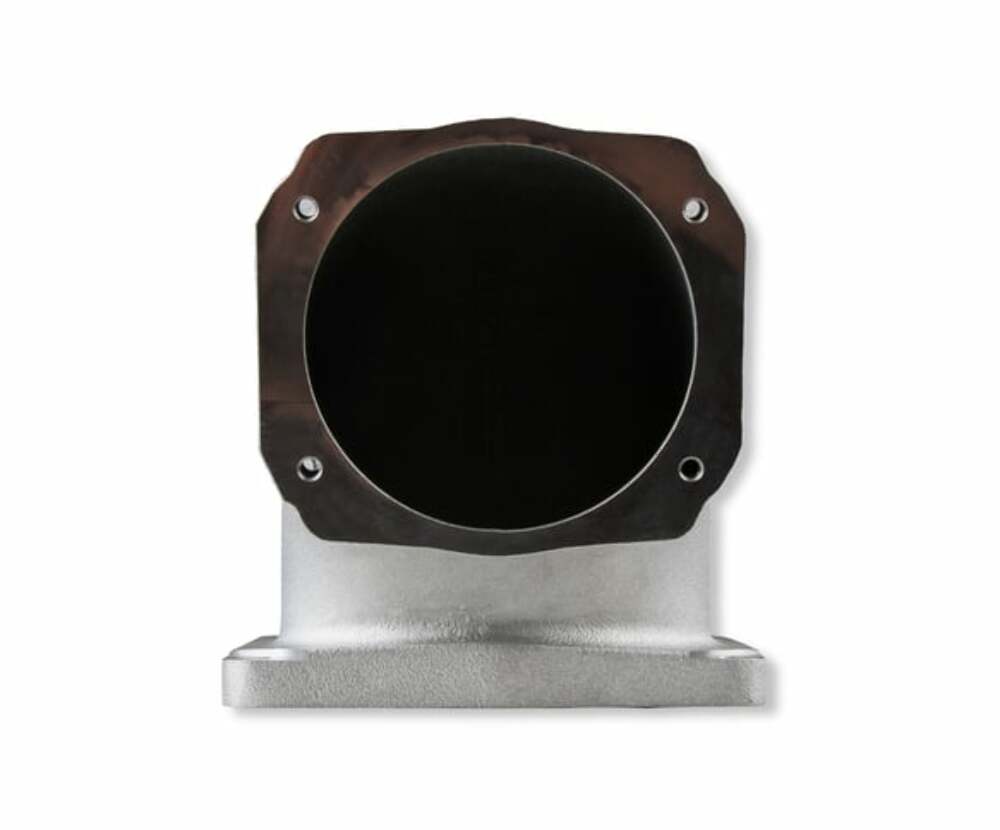

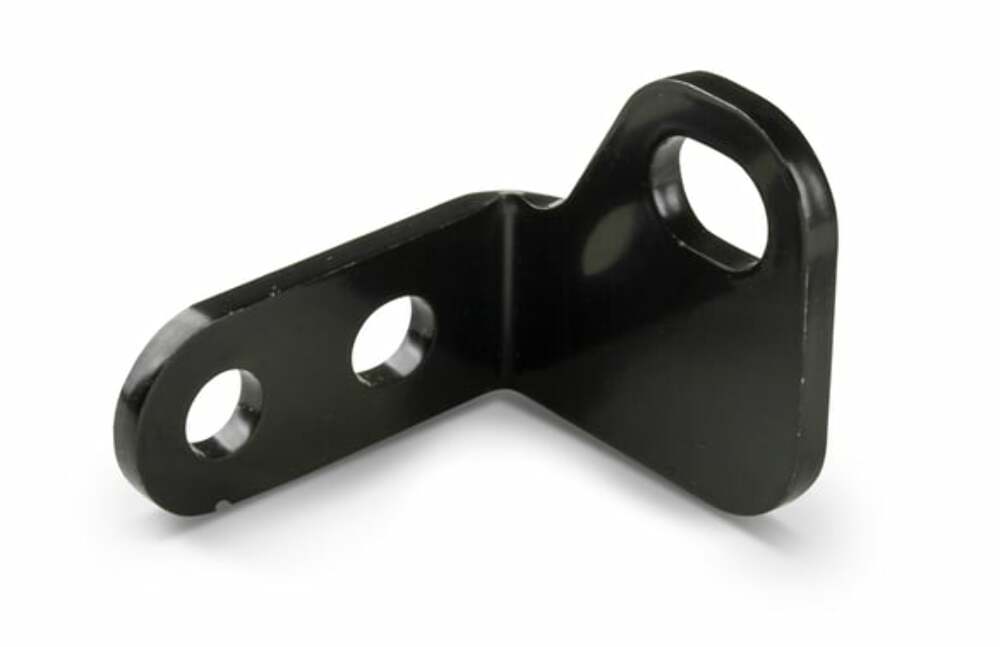

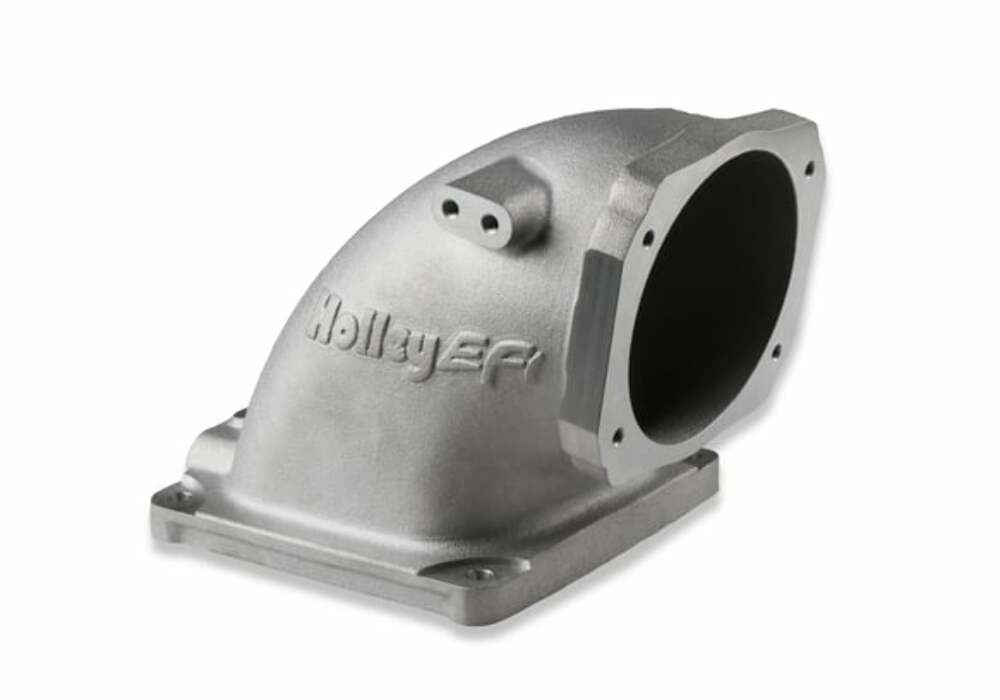

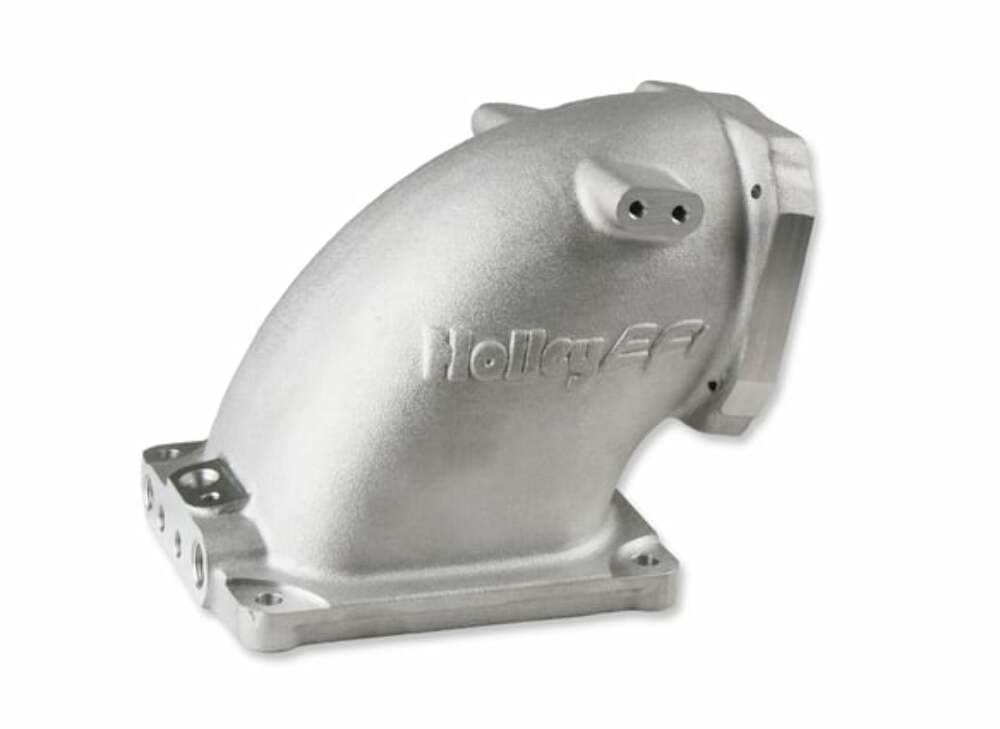

These cast aluminum EFI intake elbows allow the use of GM LS throttle bodies on any intake manifold w/ the 4500 mounting flange. Our design incorporates an optimized transition from the throttle body to the intake plenum for maximum airflow and distribution. Dual throttle cable mounting bracket bosses are included while the 4500 flange pattern allow the elbow & throttle body to be mounted forward, sideways, or rearward. The throttle bracket is included.

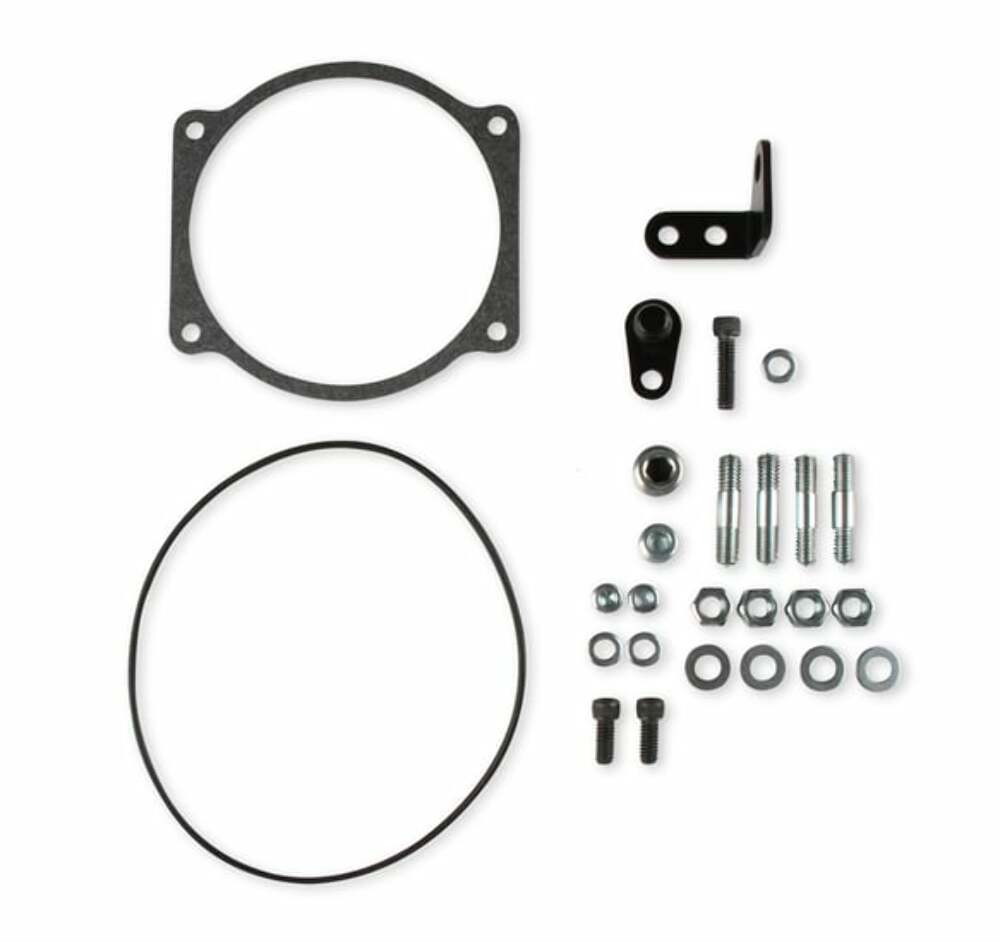

Features (4) vacuum ports, MAP sensor port, machined / port matched to 4500 gasket, and 100° throttle body angle for extra hood clearance. Includes billet MAP sensor port cover, gaskets & hardware. The port design spacing will also allow a transducer to be used if a MAP sensor is not needed. The intake flange has an o-ring groove for a positive flange seal and the o-ring is included as well.
Features:
- Fits GM LS Throttle Bodies

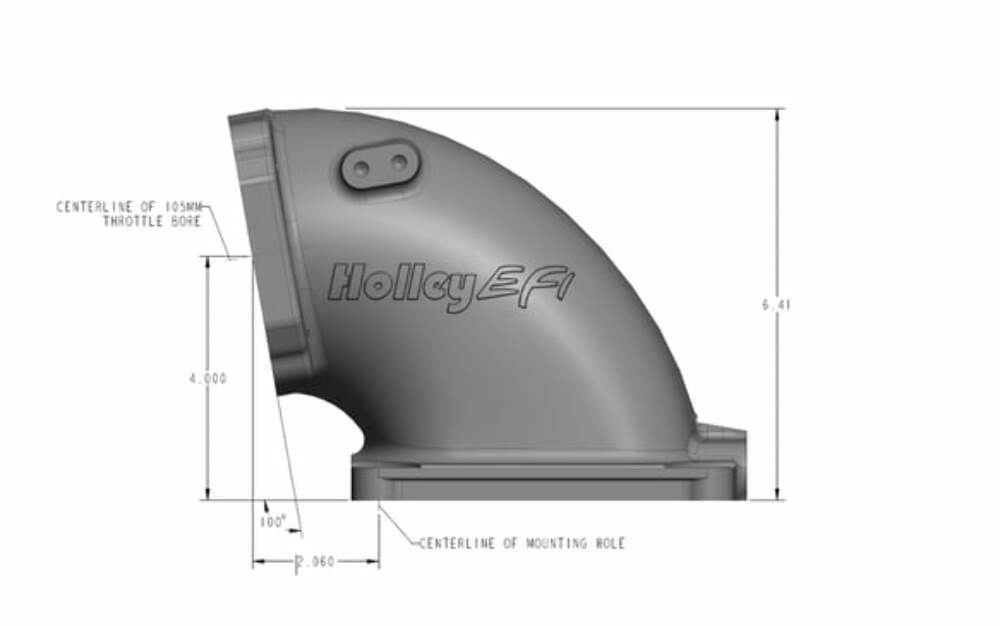

- 105mm Throttle Body Opening - 100° Mounting Angle

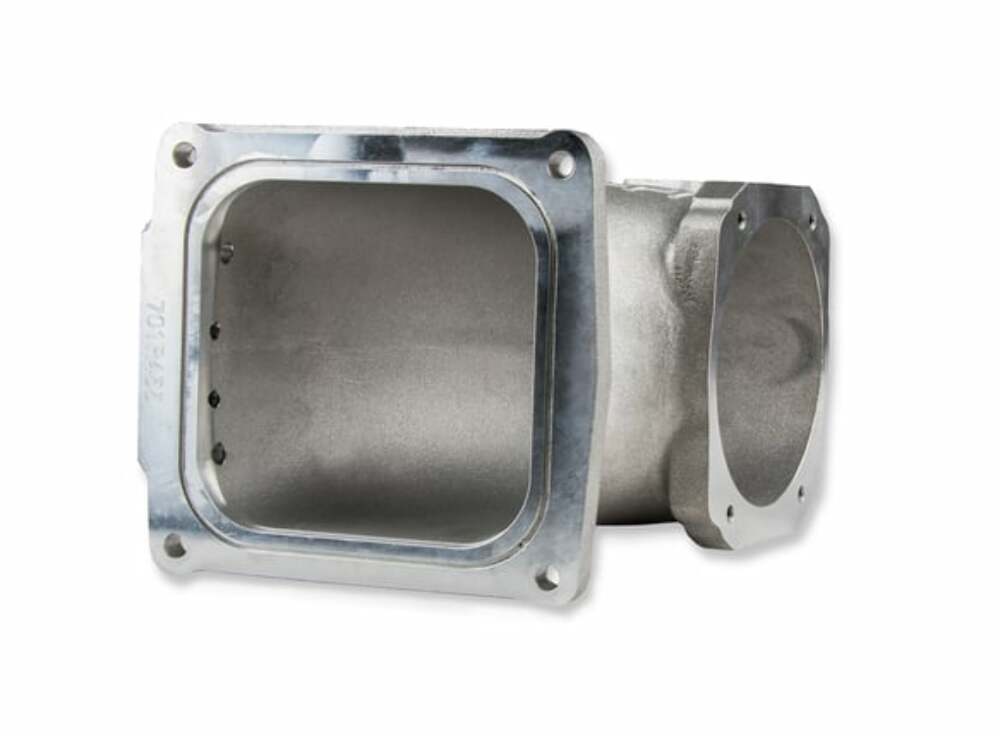

- Fits Intakes w/ 4500 Flange- designed to use the included o-ring for sealing
- The 4500 square flange pattern allows Forward, Sideways or Rearward Throttle Body Mounting
- LS3 Style MAP Sensor Mounting

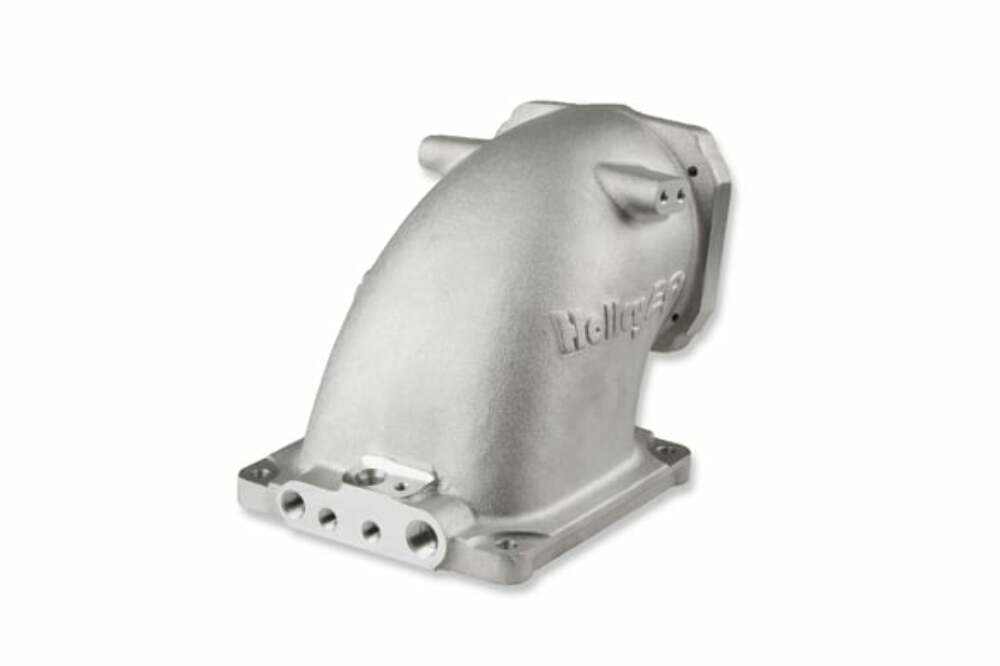

- (4) Vacuum Ports – (1) Each 1/4” NPT & 3/8” NPT & (2) 1/8” NPT
- (2) Throttle Linkage Mounting Bosses
- Cast aluminum finish
- Overall Height 6.4”
Application:
| Year | Make | Model | Submodel | Engine Size |
|---|---|---|---|---|
| Universal |
Specs:
| Brand | Holley EFI |
|---|---|
| Color | Natural |
| Emission Code | 3 |
| Engine | GM Small Block Gen III/IV (LS Based) |
| Finish | Satin |
| Fuel System Type | EFI |
| Height | 6.4 inch |
| Material | Cast Aluminum |
| Product Type | Intake Elbow |
| Throttle Bore | 105mm |
| Warranty | Limited 90 Day |
