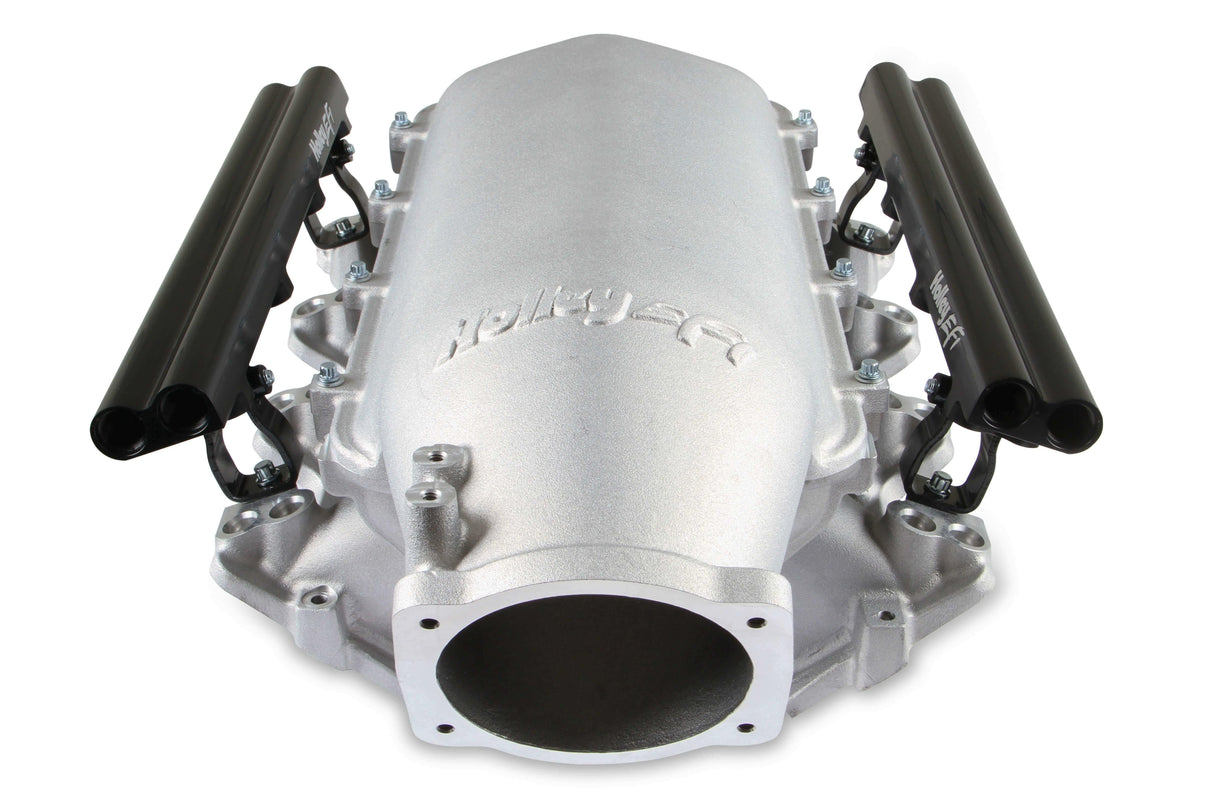

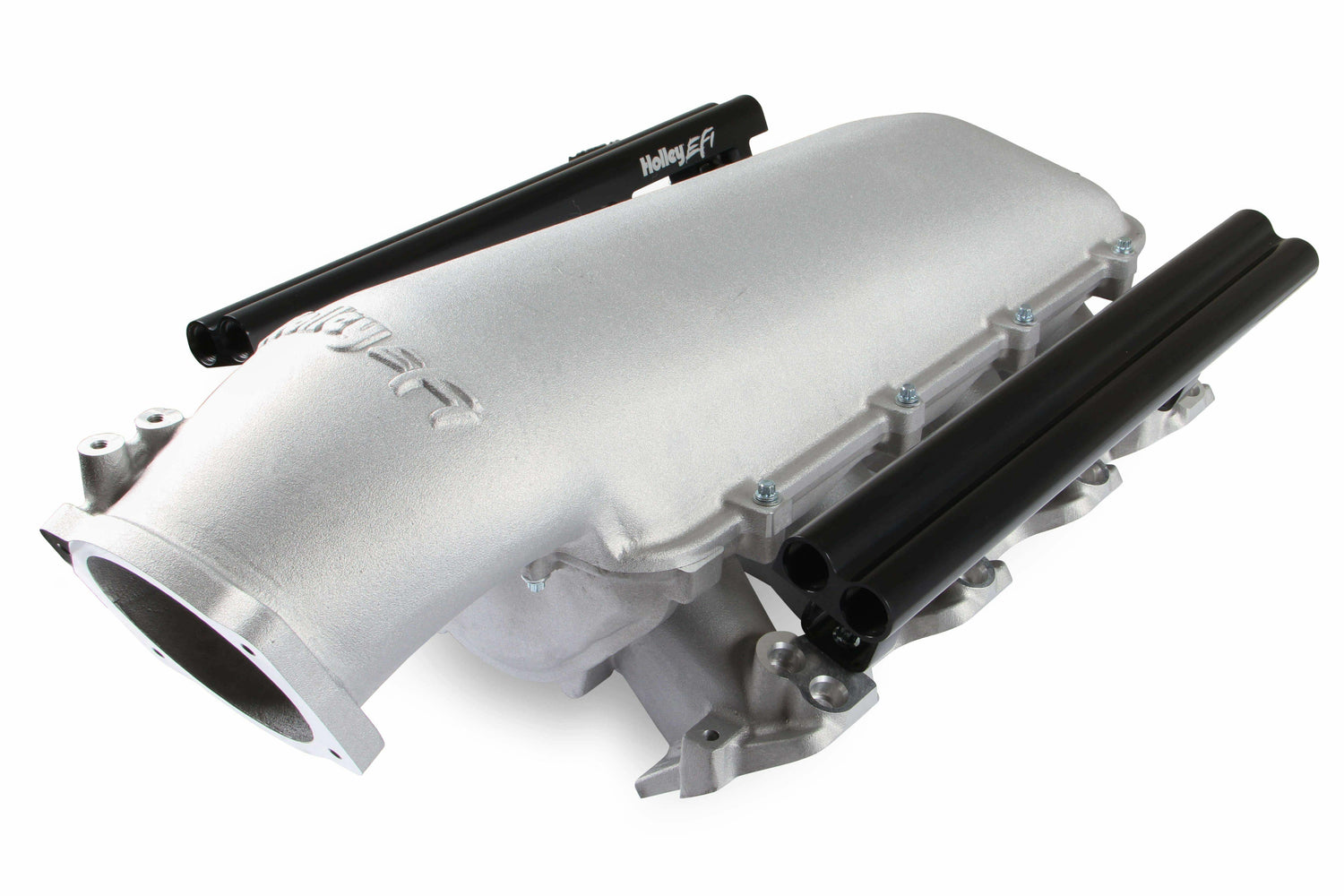

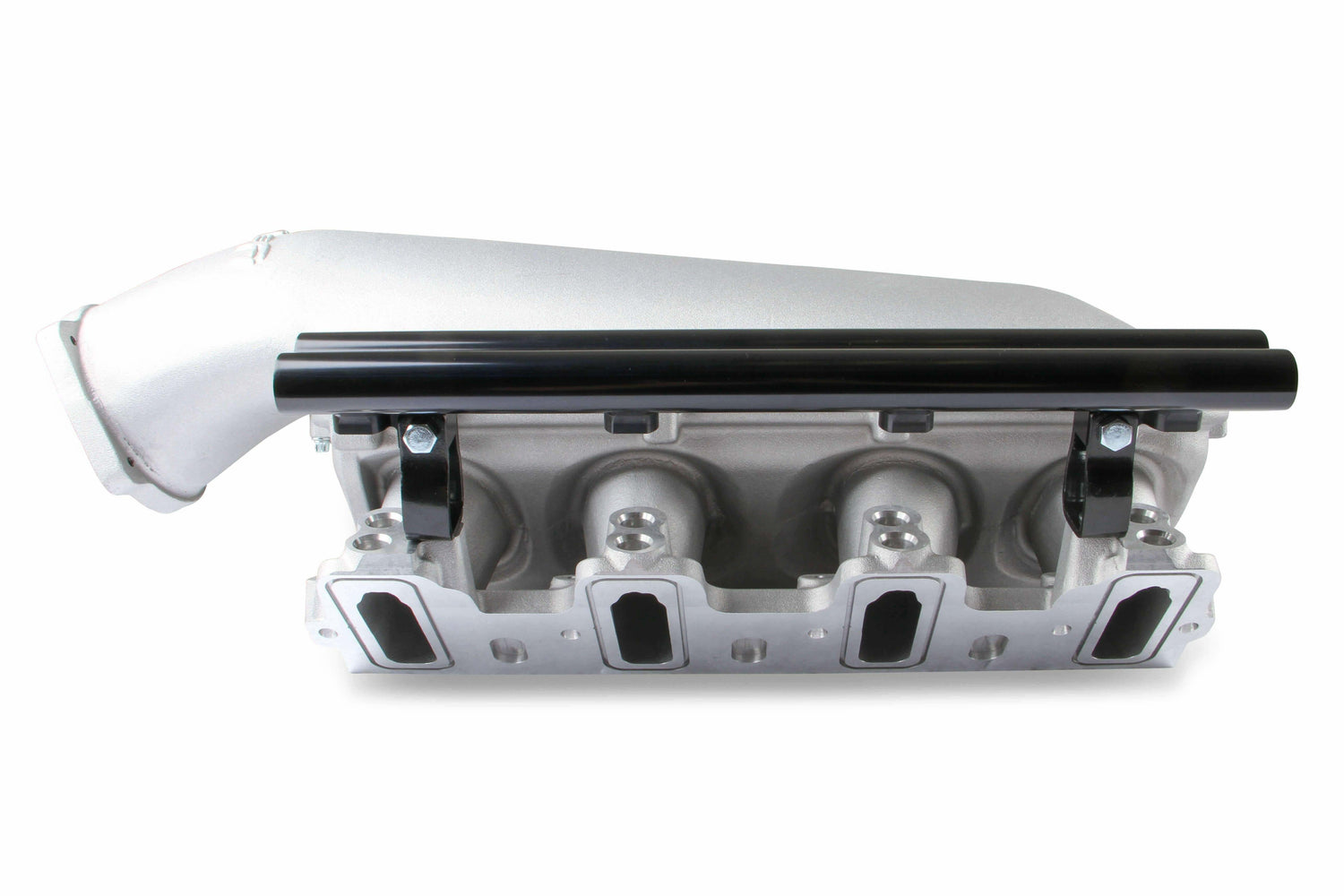

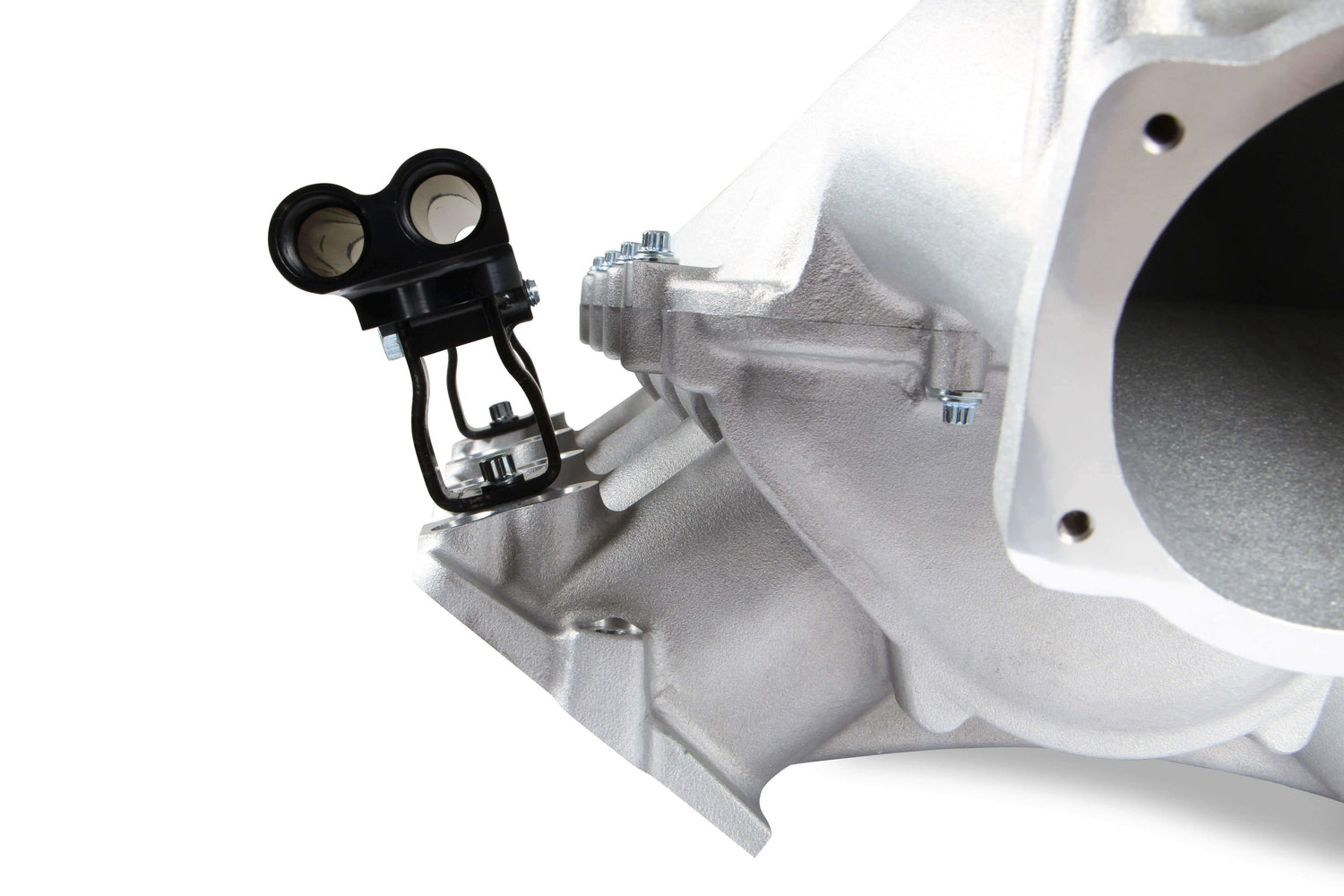

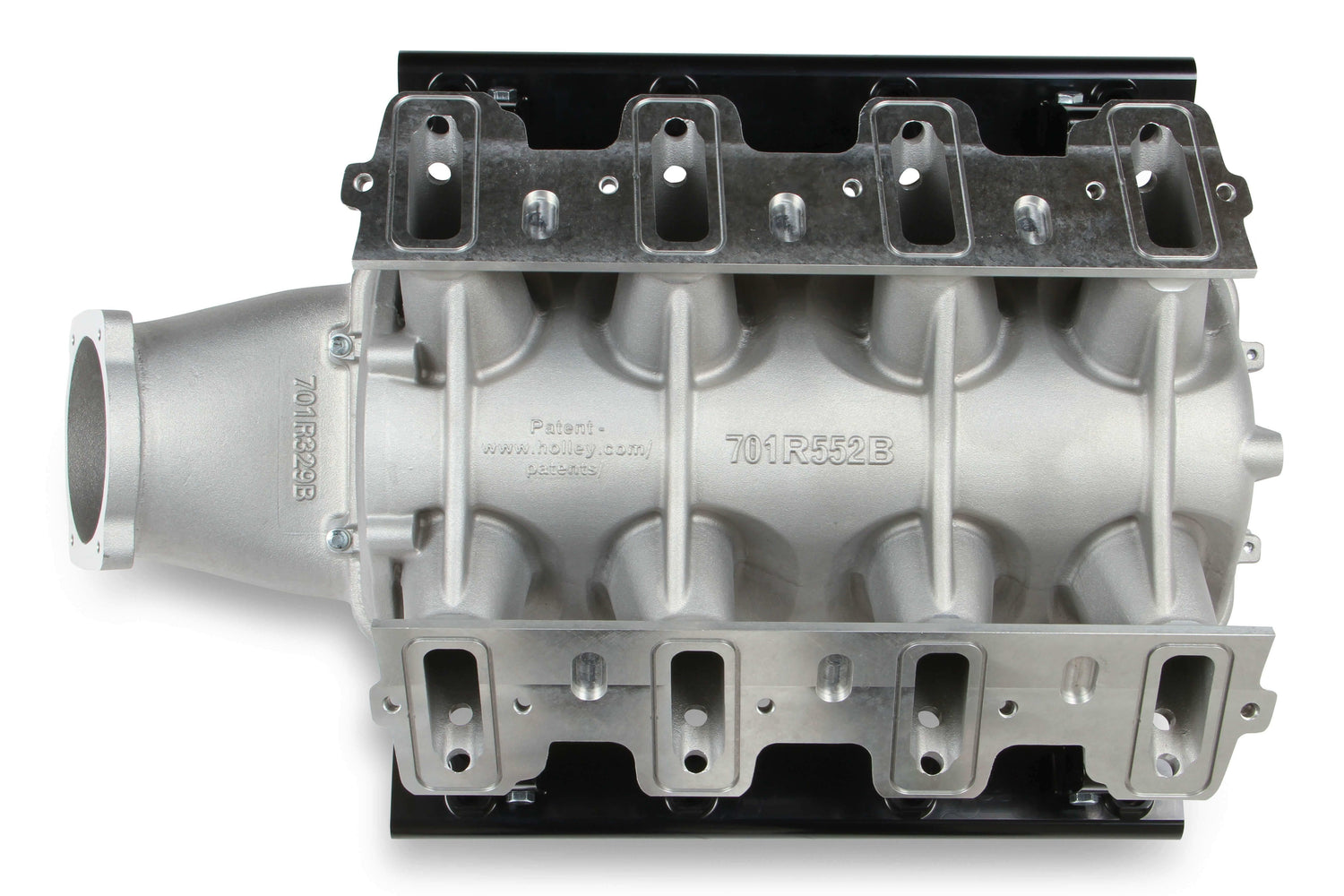

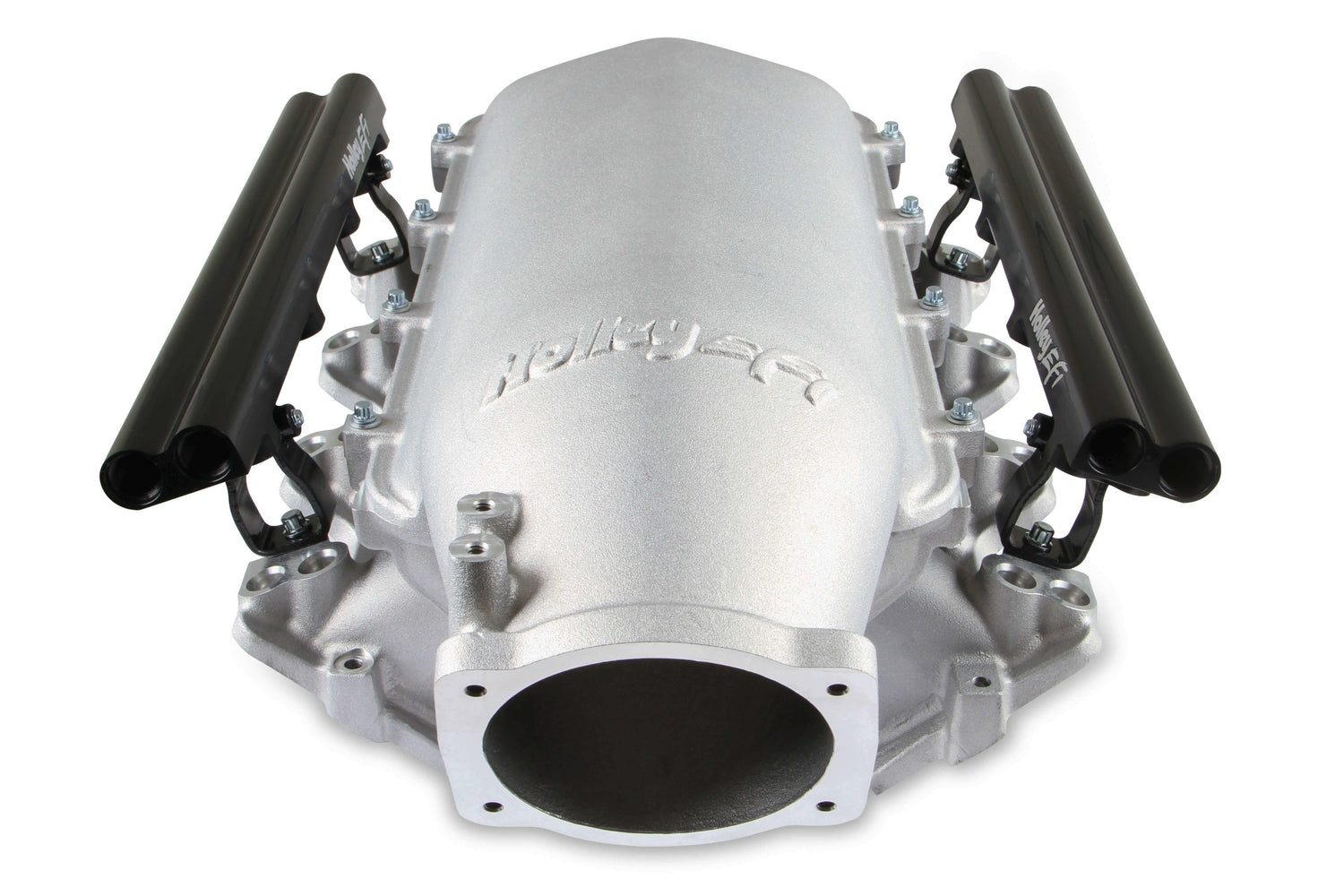

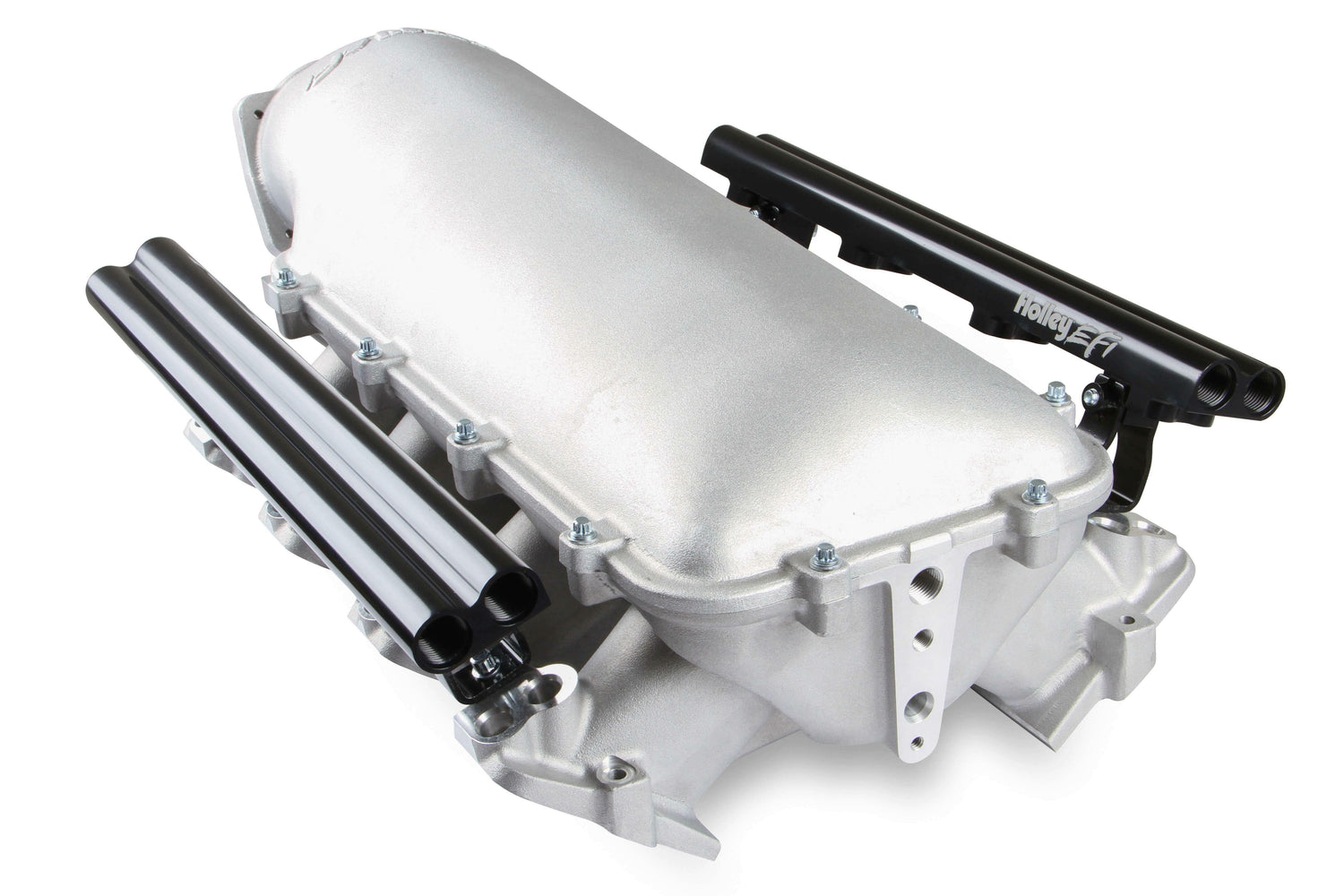

Dual Fuel Injector LS1 Lo-Ram Top-Feed EFI Intake Manifold Kit - 300-624
Dual Fuel Injector LS1 Lo-Ram Top-Feed EFI Intake Manifold Kit - 300-624 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Fitment
Fitment
Warranty Information
Warranty Information
Customer service is our top priority and because we value your time and energy we ask you to visit our Contact Us page and reach out so that we may assist you in finding the correct warranty for your product. Please include your name, the name on the order, the order number, and the SKU of the product to ensure the quickest and most accurate response to your inquiry.
Description
Description
Overview:
The Holley LS1/2/6 Lo-Ram intake manifold kits are designed for GM LS Gen III and IV engines equipped with GM LS1/2/6 (cathedral port) cylinder heads. These intake manifold and rail kits will work with OE (Original Equipment) or aftermarket cylinder heads.
The 300-624(satin) & 300-624BK(black) top-feed intake manifold kit provides two injectors per cylinder for hi-volume fuel demands, flexible fuel supply strategies, and dual-fuel capability. The top-feed, short runner, low-profile base intake manifold was conceived to package plenum mounted intercoolers for high-boost turbocharged or supercharged induction systems with a shorter overall height not possible with other existing intake manifolds. The plenum top is configured to be fitted with 105 mm throttle body part number 112-581 or similar models. The dual fuel injector fuel rail kits come with two sets of brackets. A set for long (usually standard length) fuel injectors and a set for short (such as Pico, or LS7) fuel injectors.
Available in satin and black finishes.
Holley Lo-Ram intake manifold kits include all the sealing o-rings, plugs, and fasteners required for the installation of the kit.
Features:
- Designed for GM LS Gen III and IV engines equipped with GM LS1/2/6 (cathedral port) cylinder heads
- Provides best performance for forced induction (supercharged or turbocharged) engine applications with peak power at 7000-8000 rpm, depending on the application
- Dual-injector, separate-passage, high-volume fuel rails with mounting hardware, dual-fuel capable, 8 AN o-ring ports
- Low height to aid the packaging of a plenum mounted air-to-water intercooler in a top-feed configuration or to fit under a stock or mildly modified hood in the front-feed configuration
- Available with both as-cast satin and black power-coat finishes
Application:
| Year | Make | Model | Submodel | Engine Size |
|---|---|---|---|---|
| Universal |
Specs:
| Brand | Holley EFI |
|---|---|
| Color | Silver |
| Construction | Cast |
| Emission Code | 3 |
| Engine | GM Small Block Gen III/IV (LS Based) |
| Finish | Satin |
| Flange Style | EFI |
| Front Height | 9.07" without Intercooler |
| Fuel System Type | EFI |
| Manifold Type | Lo-Ram |
| Product Type | Manifold |
| Warranty | Limited 90 Day |
