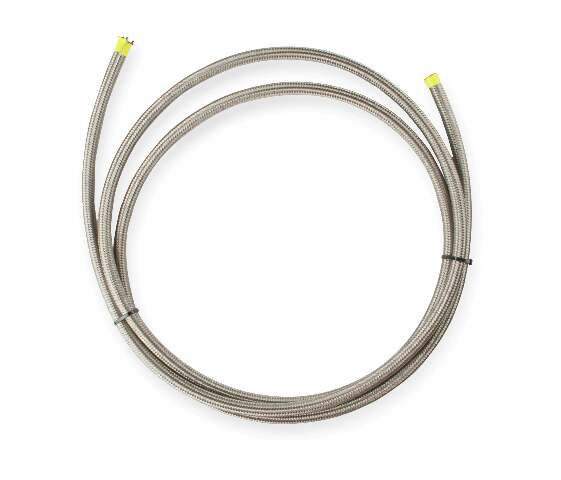

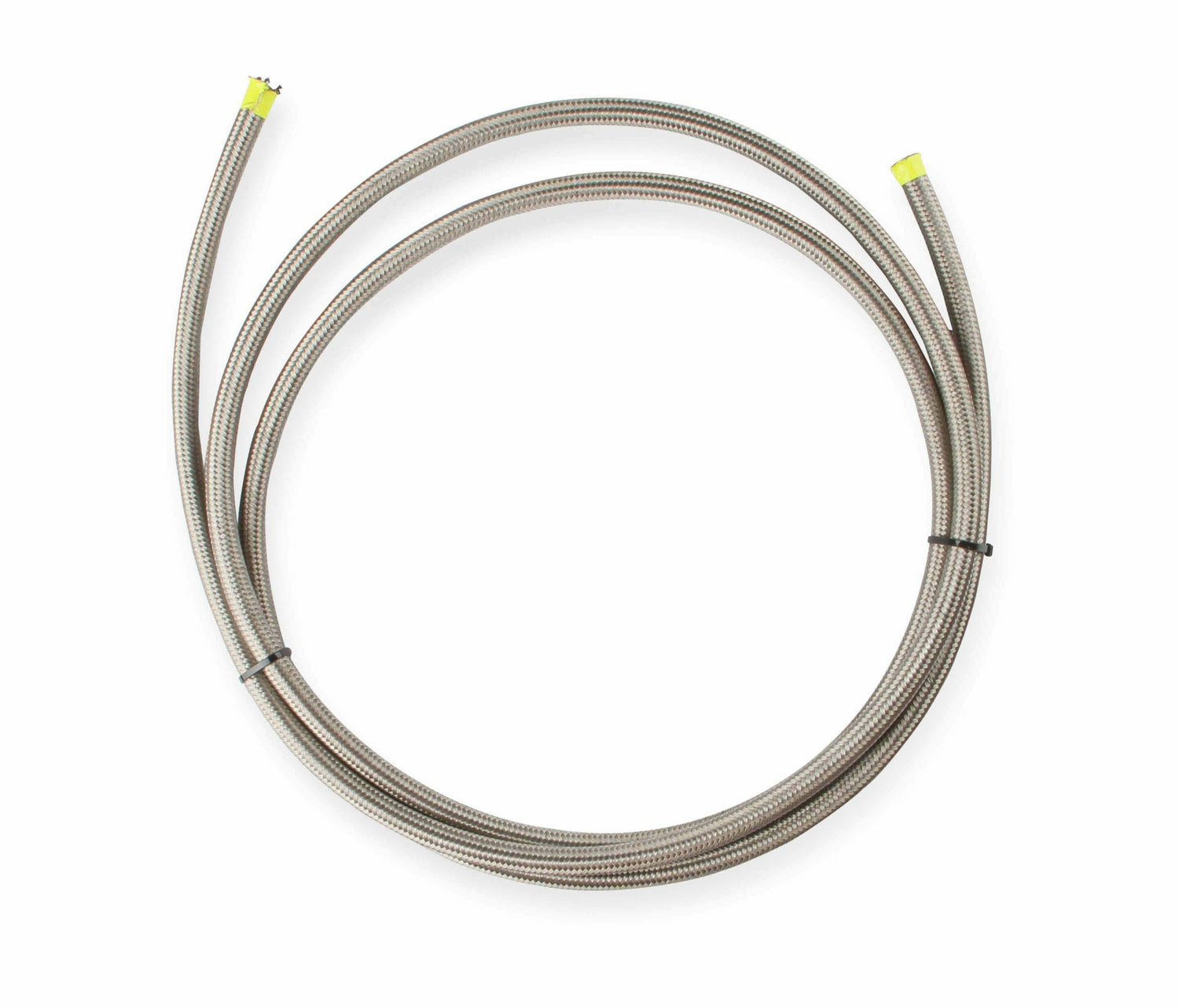

Earls Auto-Flex Hose- Size6 -Sold per Foot Continuous Length upto 50'- 300006ERL

Overview:

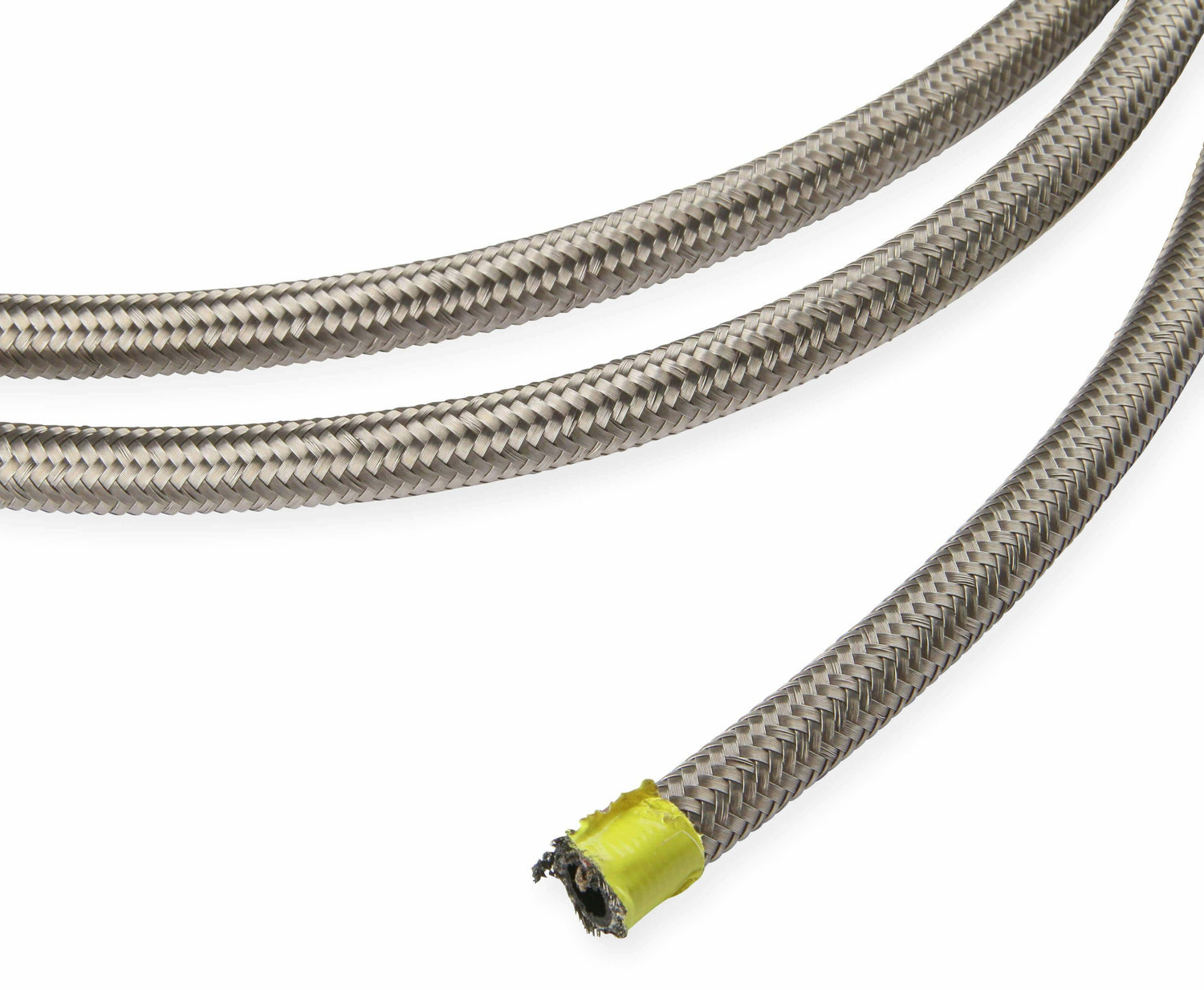

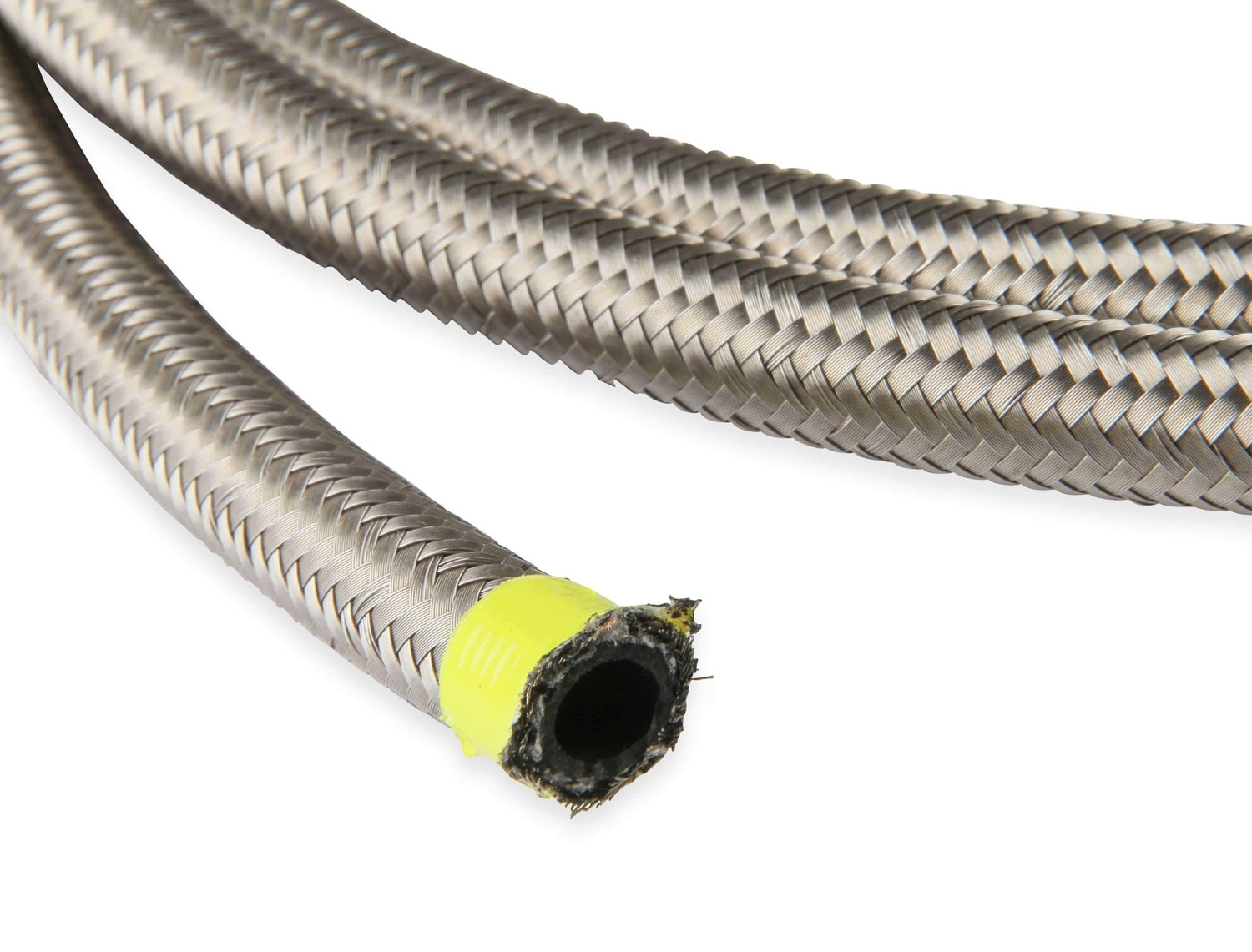

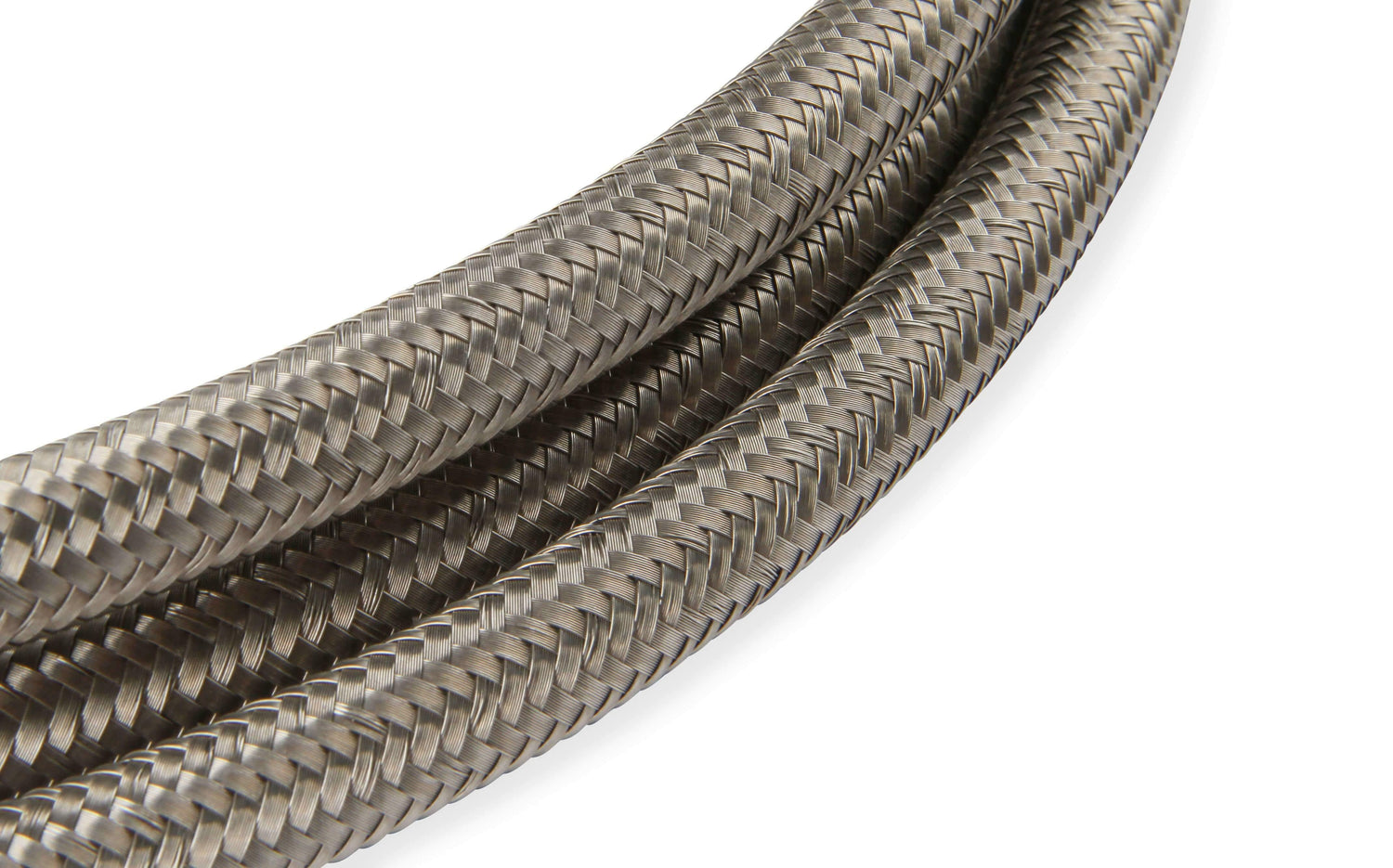

A high quality stainless steel braided hose at a price competitive with the imports. Earl's AUTO-FLEX stainless steel braid-protected synthetic rubber hose is manufactured to our specifications in the U.S.A. Earl's AUTO-FLEX hose features a recommended temperature range and maximum operating pressure equal to our racing premium quality Perform-O-Flex hose...at a much better price. A partial coverage textile inner braid is imbedded in the liner during manufacture. The hose is finished with a full coverage stainless steel braid which is bonded to the reinforced liner. The liner is known as H.T.E ( not to be confused with PTFE ) and it is the highest quality of synthetic neoprene liner on the market. Continuous use temperature rating is - 40 to + 350 degrees F. Auto-Flex hose is intended for use with Swivel-Seal, Auto-Fit and Auto-Crimp hose ends only. No other Earl's hose ends are intended for use with Auto-Flex hose. The use of other manufacturers hose ends is also not recommended with this hose as it does not work with lower quality import fittings. PSI rating is determined by many factors including hose end in use and assembly method.

Features:

• Stainless Braid
• Protects Synthetic Rubber Hose
• Competitive Price
• Made in the USA
• Textile Braid Imbedded in Hose Liner
• Clean and Fast Flowing
• Sold per foot

Application:

Year	Make	Model	Submodel	Engine Size
Universal

Specs:

Brand	Earls
Compatible Hose Ends	Auto-Crimp
Compatible Hose Ends	Auto-Fit
Compatible Hose Ends	Econ-O-Fit
Compatible Hose Ends	Swivel-Seal
Emission Code	5
Fluid Type	Automatic Transmission Fluid
Fluid Type	Coolant
Fluid Type	Oil
Fluid Type	Race Gas
Fluid Type Rating - Automatic Transmission Fluid	5 out of 5 Rating
Fluid Type Rating - Coolant	5 out of 5 Rating
Fluid Type Rating - Diesel	2 out of 5 Rating
Fluid Type Rating - E85	2 out of 5 Rating
Fluid Type Rating - Methanol/Alcohol	1 out of 5 Rating
Fluid Type Rating - Oil	5 out of 5 Rating
Fluid Type Rating - Pump Gas	2 out of 5 Rating
Fluid Type Rating - Race Gas	3 out of 5 Rating
Fluid Type Rating - Vacuum	5 out of 5 Rating
Hose Family	Auto-Flex
Hose Length	BULK
Hose Outer Material	Stainless Steel
Hose Size	6 AN
I.D. to O.D. Concentricity Range	.020"
Inside Diameter	.329" TO .369"
Max Vacuum	27 in Hg
Max Working PSI	1500 PSI
Maximum Continuous Length	50 Feet
Min. Bend Radius	2.5"
Outside Diameter	.527" TO .570"
Product Type	Hose
Submersible in Fuel	No
Temperature Range	-40° to 350° F
Warning	California Proposition 65
