Earls Billet Fuel Log - AT105008ERL
Earls Billet Fuel Log - AT105008ERL is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Fitment
Fitment
Warranty Information
Warranty Information
Customer service is our top priority and because we value your time and energy we ask you to visit our Contact Us page and reach out so that we may assist you in finding the correct warranty for your product. Please include your name, the name on the order, the order number, and the SKU of the product to ensure the quickest and most accurate response to your inquiry.
Description
Description
Overview:

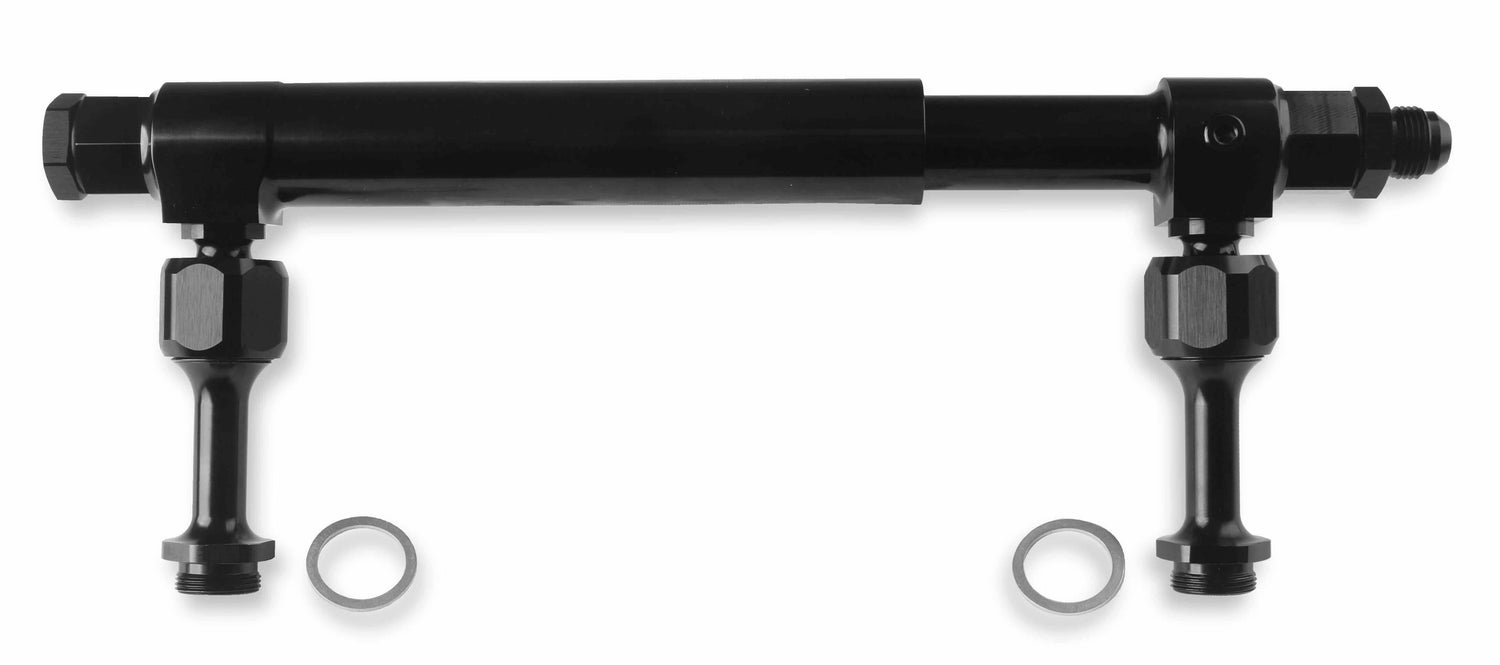

Earl's adjustable fuel log is designed for use with most dual inlet Holley carburetors w/ 7/8"-20 threads on the fuel bowls. The bowl extension adapters pivot at the fuel log end and this provides extra clearance & easier assembly. Includes fuel rail assembly w/ -8 AN Male Flare Inlet adapter, -10 AN O-ring plug, (2) 1/8" NPT Plugs, and sealing washers for the fuel bowls. Black anodized finish.
Features:

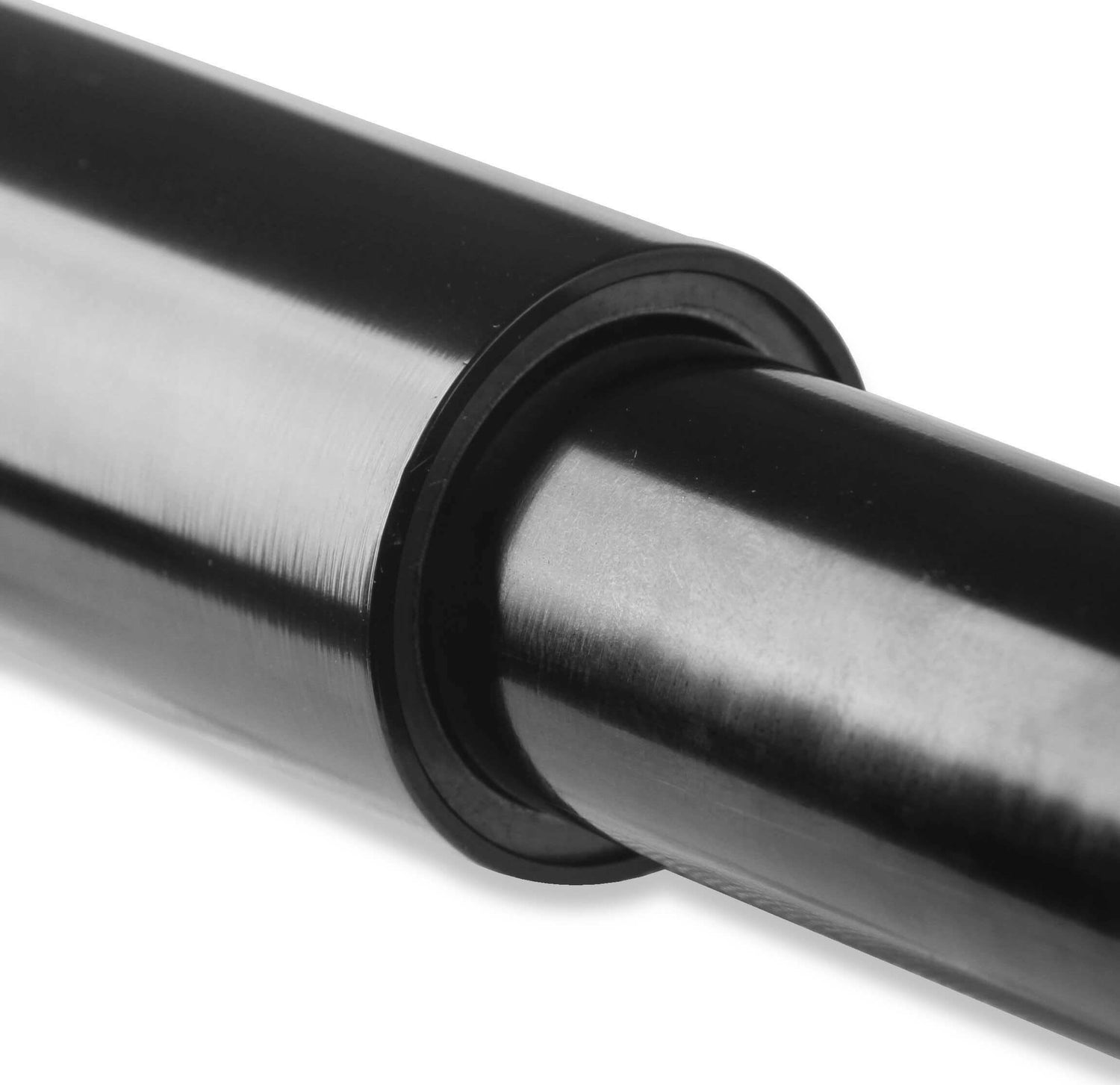

- Adjustable Billet Aluminum Fuel Log – 8-1/2” to 11-3/4” Length c/l to c/l

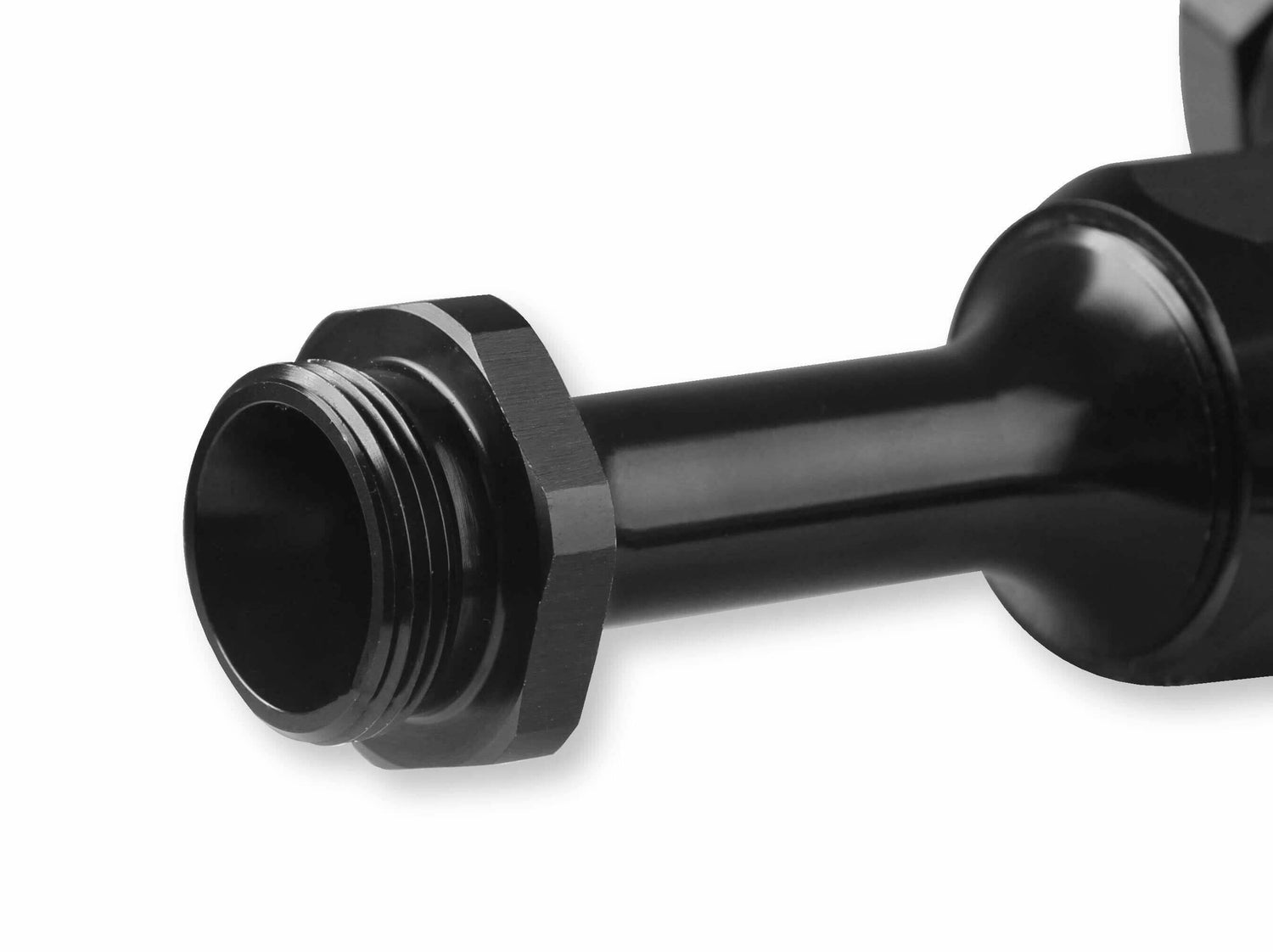

- Fits Most Holley Dual Inlet Carburetors w/ 7/8”-20 threads on Fuel Bowls

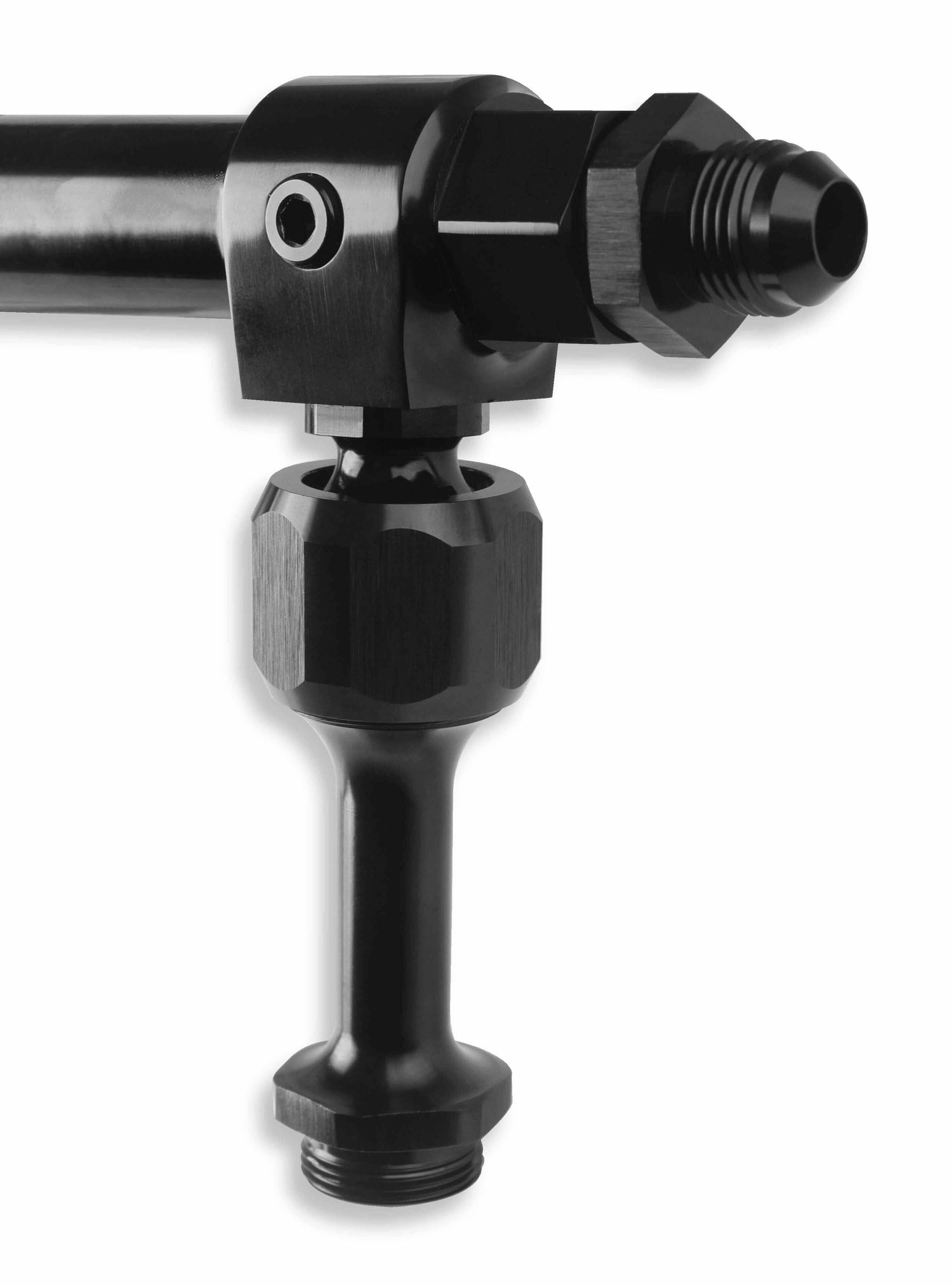

- Swivel Extensions – Allow Adjustment & Easier Assembly
- Adjustable Length Fits All Dual Inlet Holley Carburetors (up to 4500 Series)
- Fuel Log Inlets & Outlets: -10 AN O-Ring Female on Each End of Fuel Log
- Fuel Inlet Fitting: -8 AN Male to -10 AN O-Ring Port

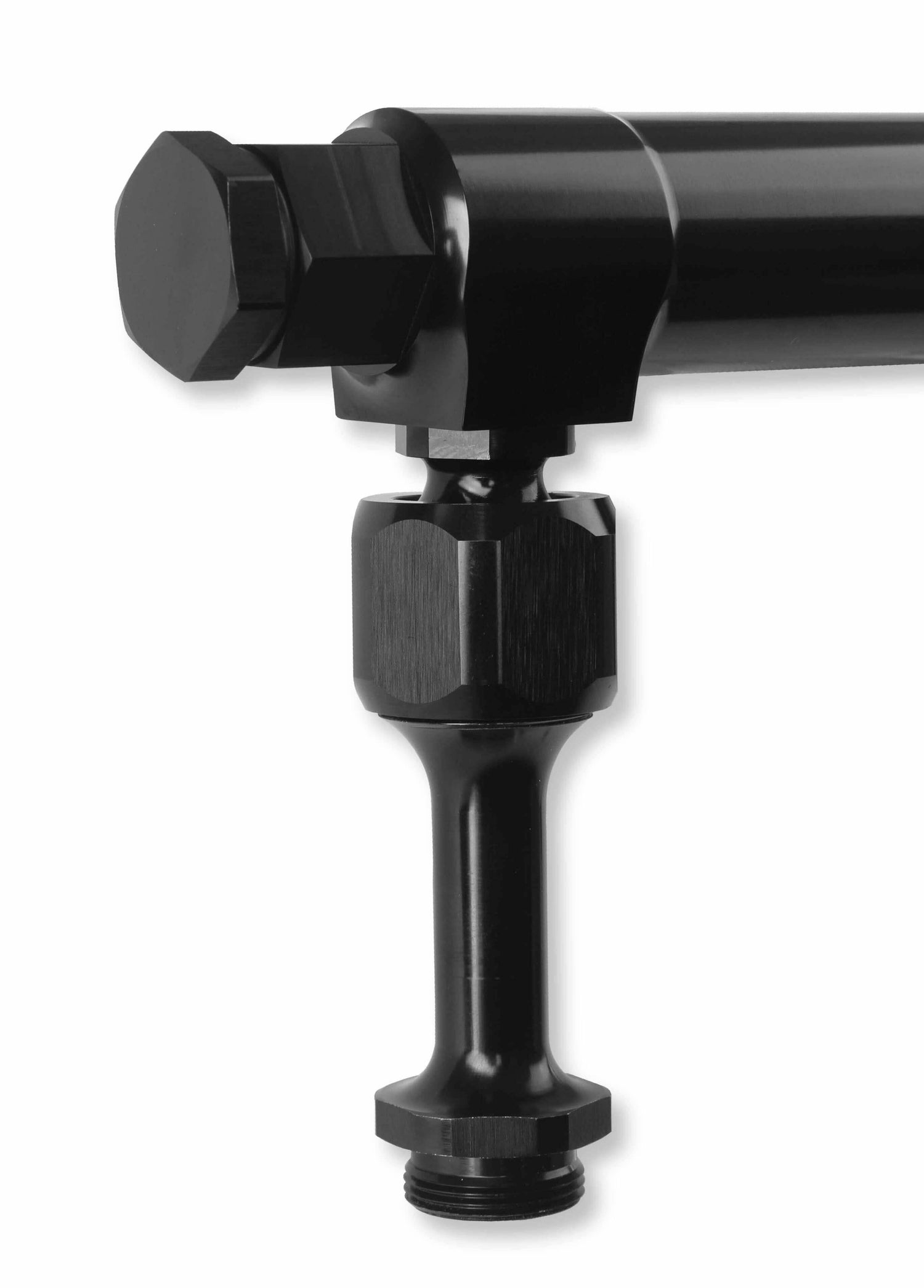

- Fuel Log Outlet: -10 O-Ring Port Plug
- Plug Can be Removed for use w/ Return Style Fuel Pressure Regulator

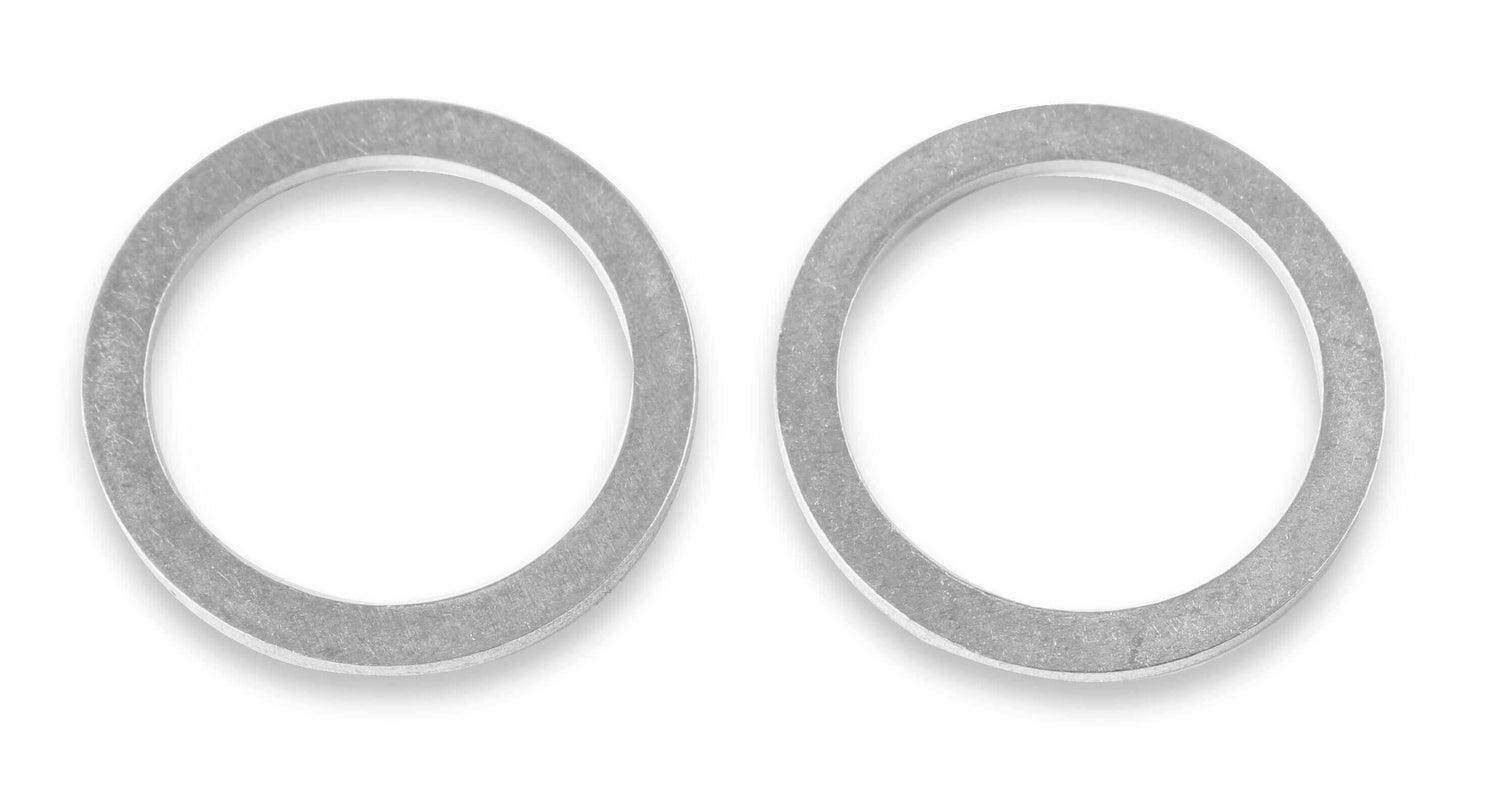

- (2) Sealing Washers for Fuel Bowls
- (2) 1/8” NPT Ports for Fuel Pressure Gauge
- Black Anodized Finish
- Fits Holley 4150, 4160 & 4500 Carburetors
Application:
| Year | Make | Model | Submodel | Engine Size |
|---|---|---|---|---|
| Universal |
Specs:
| Adapter AN Size ( A ) | 10 AN FEMALE |
|---|---|
| Adapter AN Size ( B ) | 10 AN FEMALE |
| Adapter NPT Size ( C ) | 1/8 NPT FEMALE |
| Brand | Earls |
| Emission Code | 5 |
| Finish | Anodized Black |
| Inlet Size | 8 AN Male |
| Material | Aluminum |
| Max Working PSI | 250 PSI |
| Model | 4150 |
| Model | 4160 |
| Model | 4500 |
| Outlet Thread | 7/8"-20 |
| Product Type | Fuel Log |
| Warranty | Limited 90 Day |
