Earl's Billet Remote Oil Filter Mount - 2188ERL
Earl's Billet Remote Oil Filter Mount - 2188ERL is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Fitment
Fitment
Delivery and Shipping
Delivery and Shipping
Same day shipping, if ordered by 9:00 AM ET M-F
*Select products are made to order and ship within 4 business days.
Warranty Information
Warranty Information
Customer service is our top priority and because we value your time and energy we ask you to visit our Contact Us page and reach out so that we may assist you in finding the correct warranty for your product. Please include your name, the name on the order, the order number, and the SKU of the product to ensure the quickest and most accurate response to your inquiry.
Description
Description
Overview:

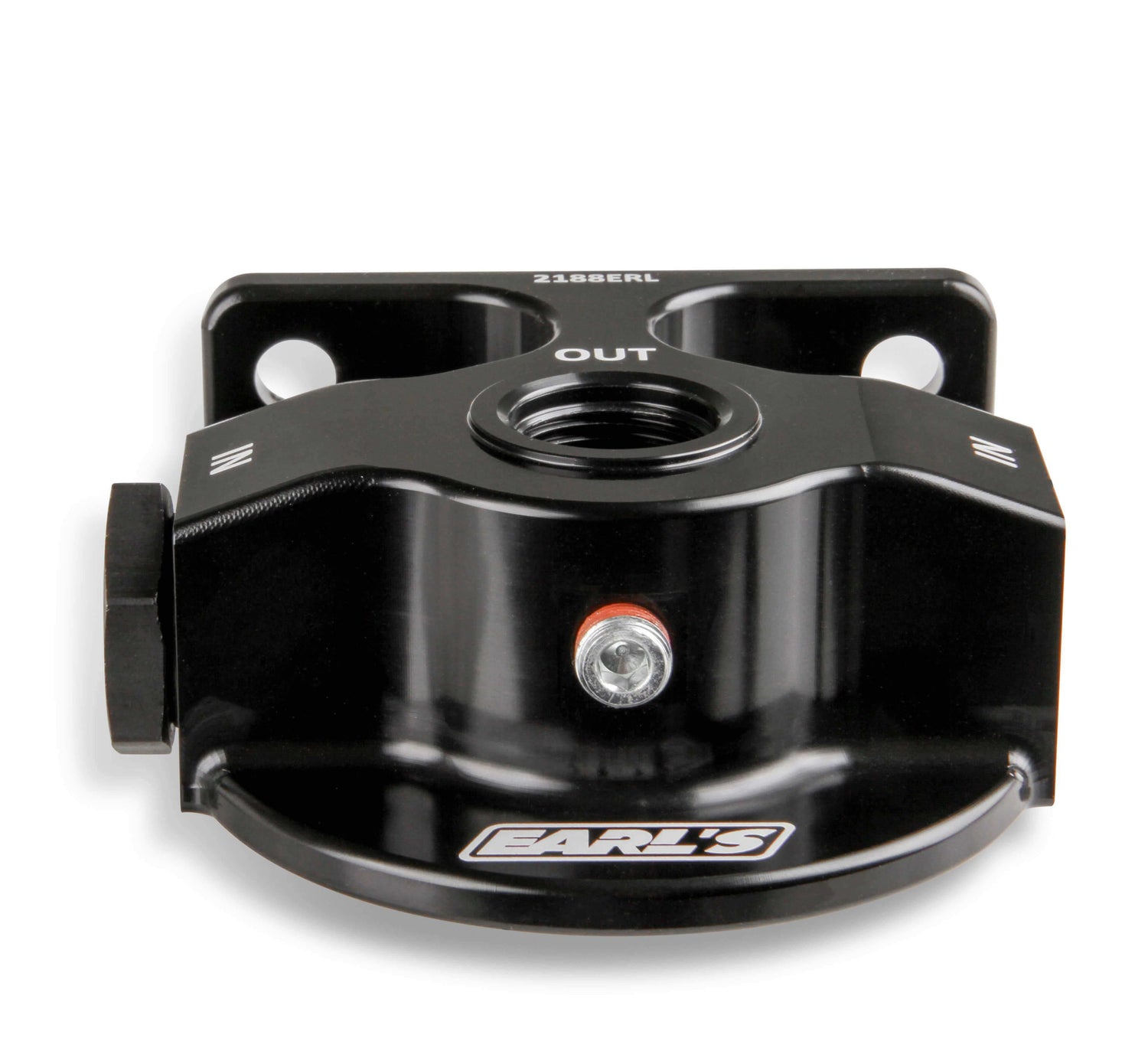

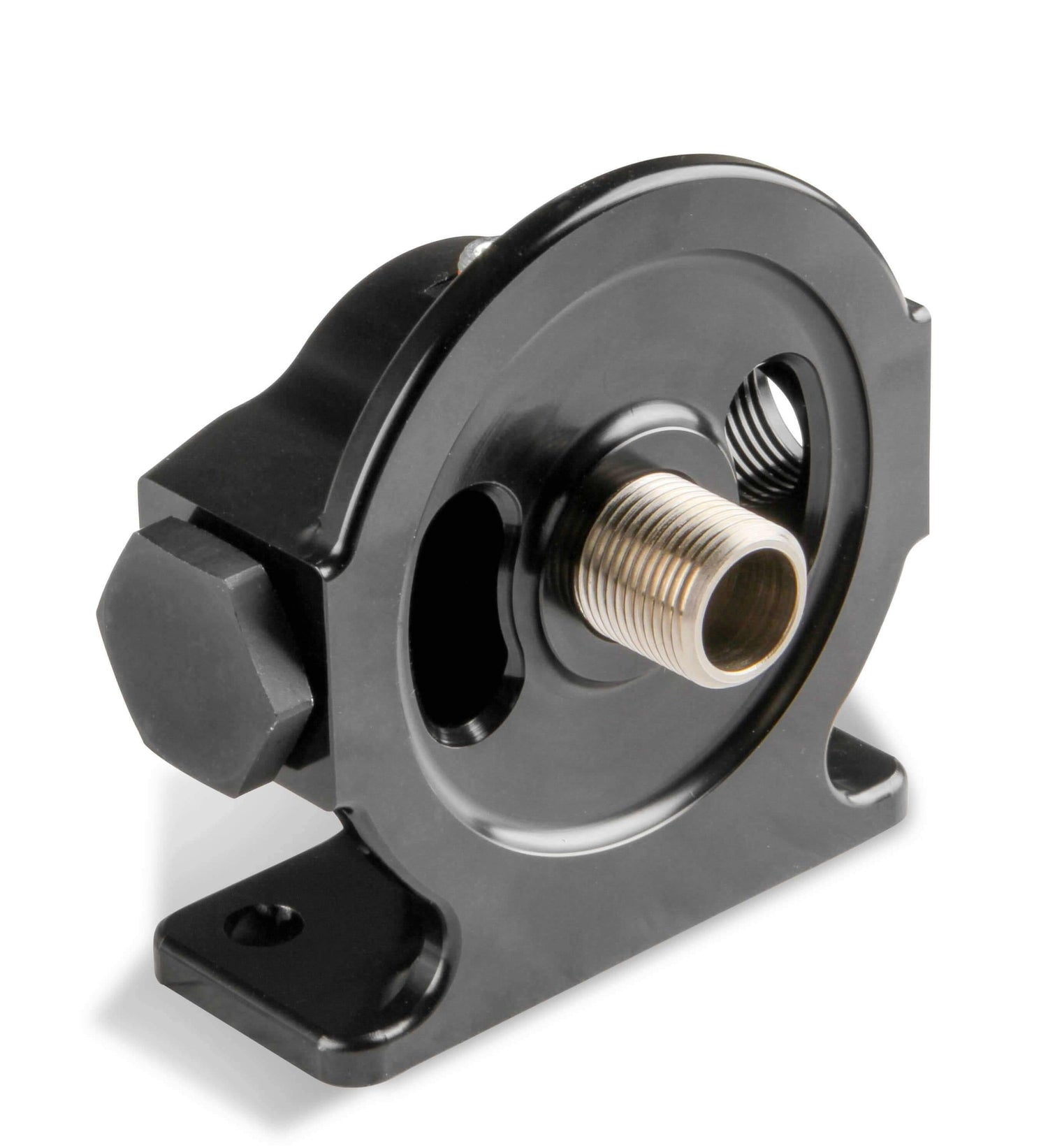

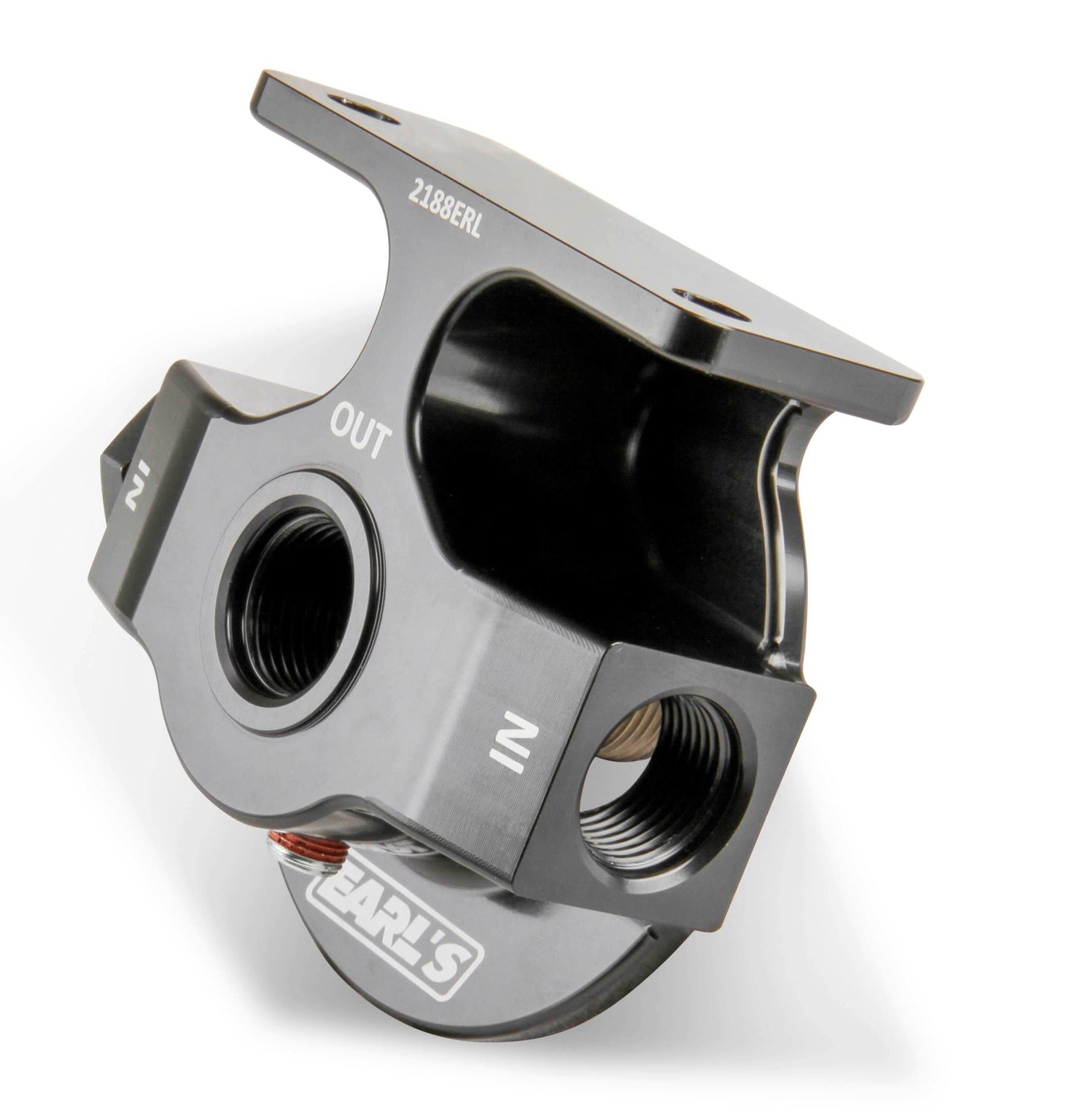

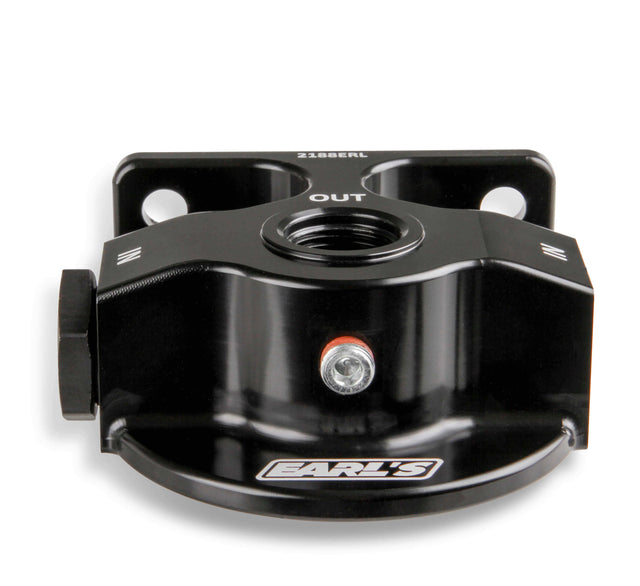

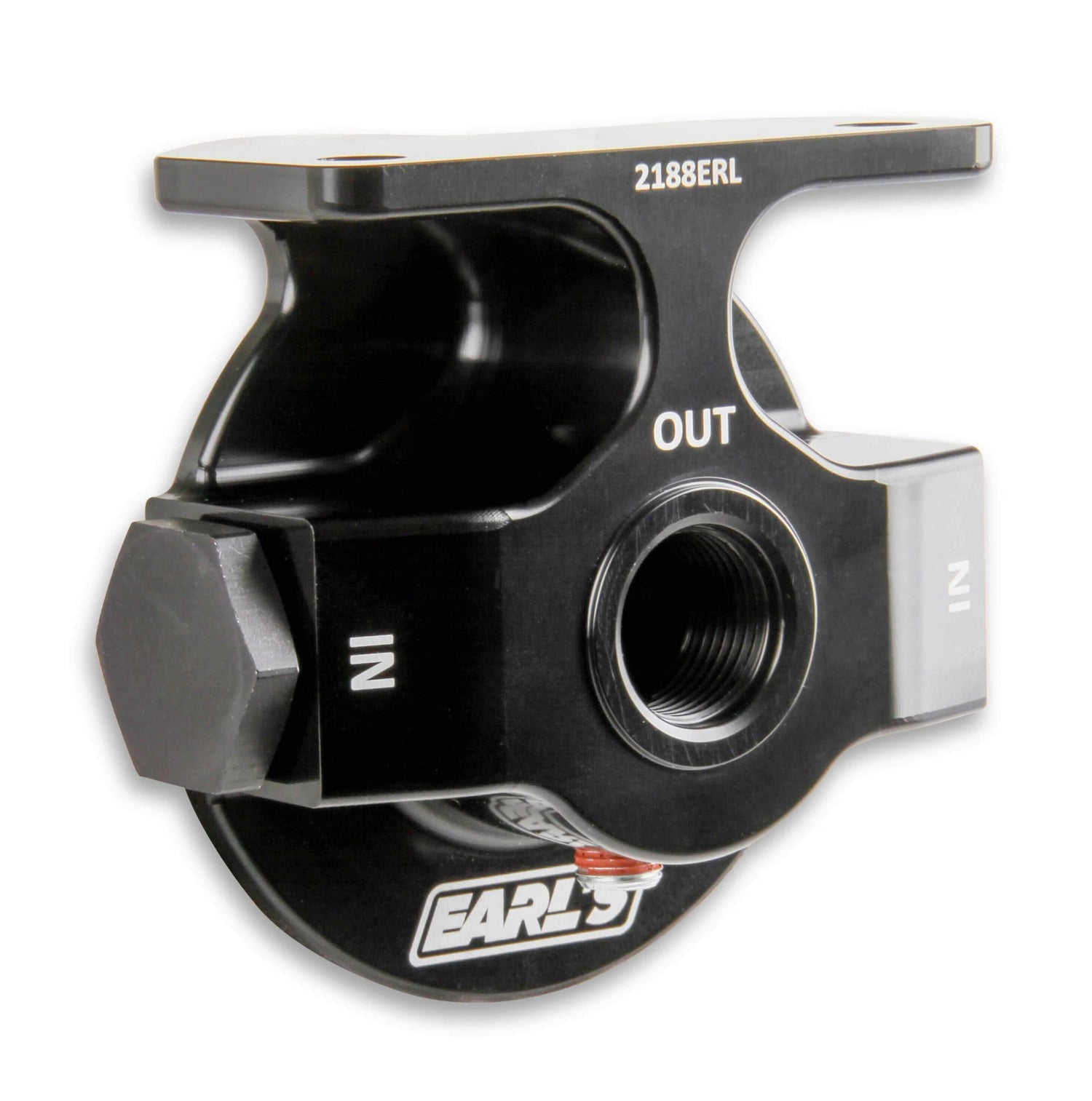

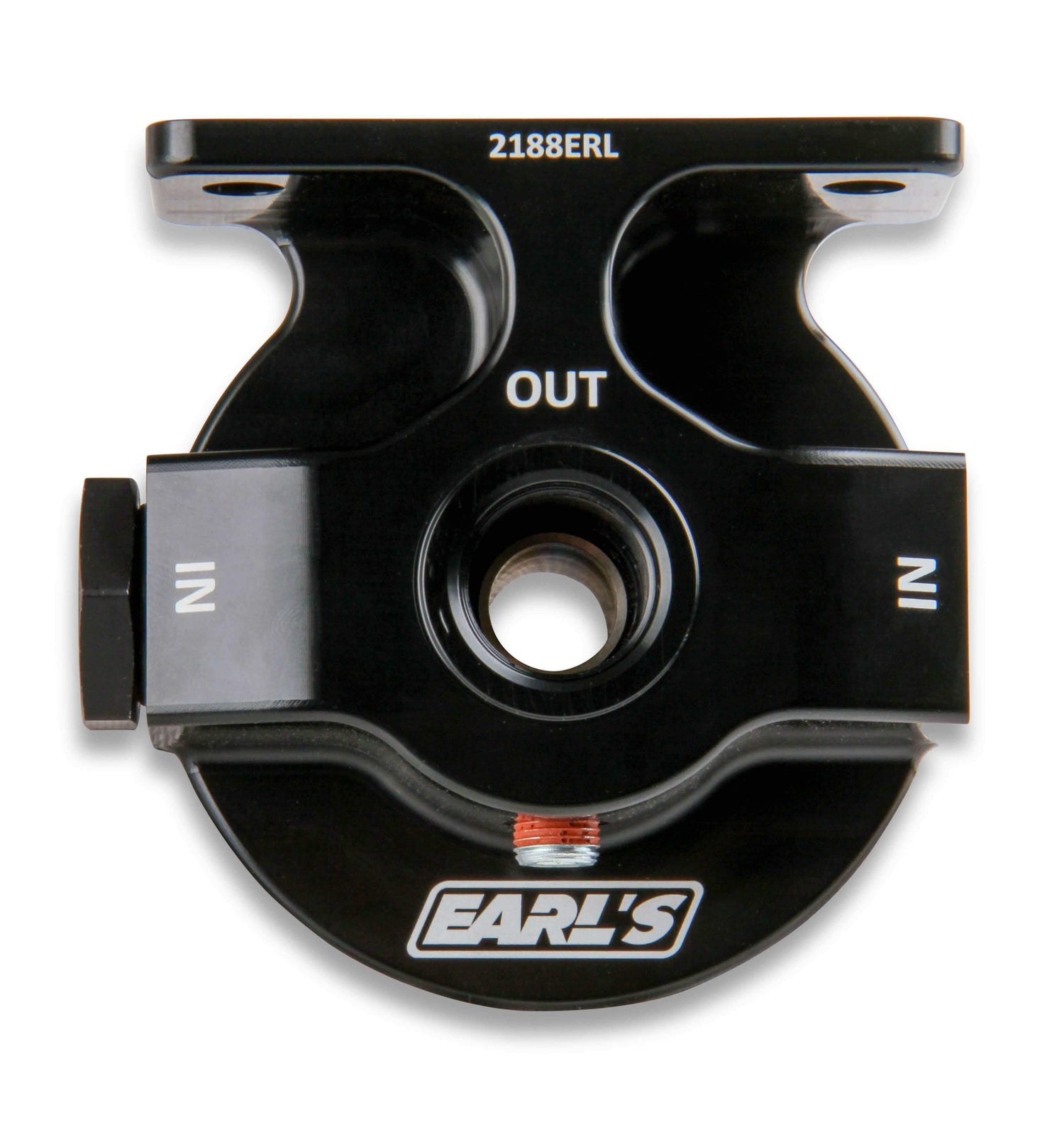

Move your oil filter to an easy to reach location with Earl's new Billet Remote Oil Filter Mount. This new filter mount features 10 AN O-ring ports, 1/8" NPT port, and dual inlets w/ top outlet for easy plumbing from either side. The kit includes the filter mount, plugs, and hardware. Lightweight aluminum with black anodized finish.Features:
- Billet Aluminum
- Fits 13/16"-16 Oil Filter (fits Fram PH5 or HP4 Oil Filters)
- (3) 10 AN O-Ring Ports
- 2-Bolt Mounting
- Inlet Ports on Both Sides for Easy Routing of Hoses
- Outlet Port on the Top
- 1/8” NPT Port
- Black Anodized

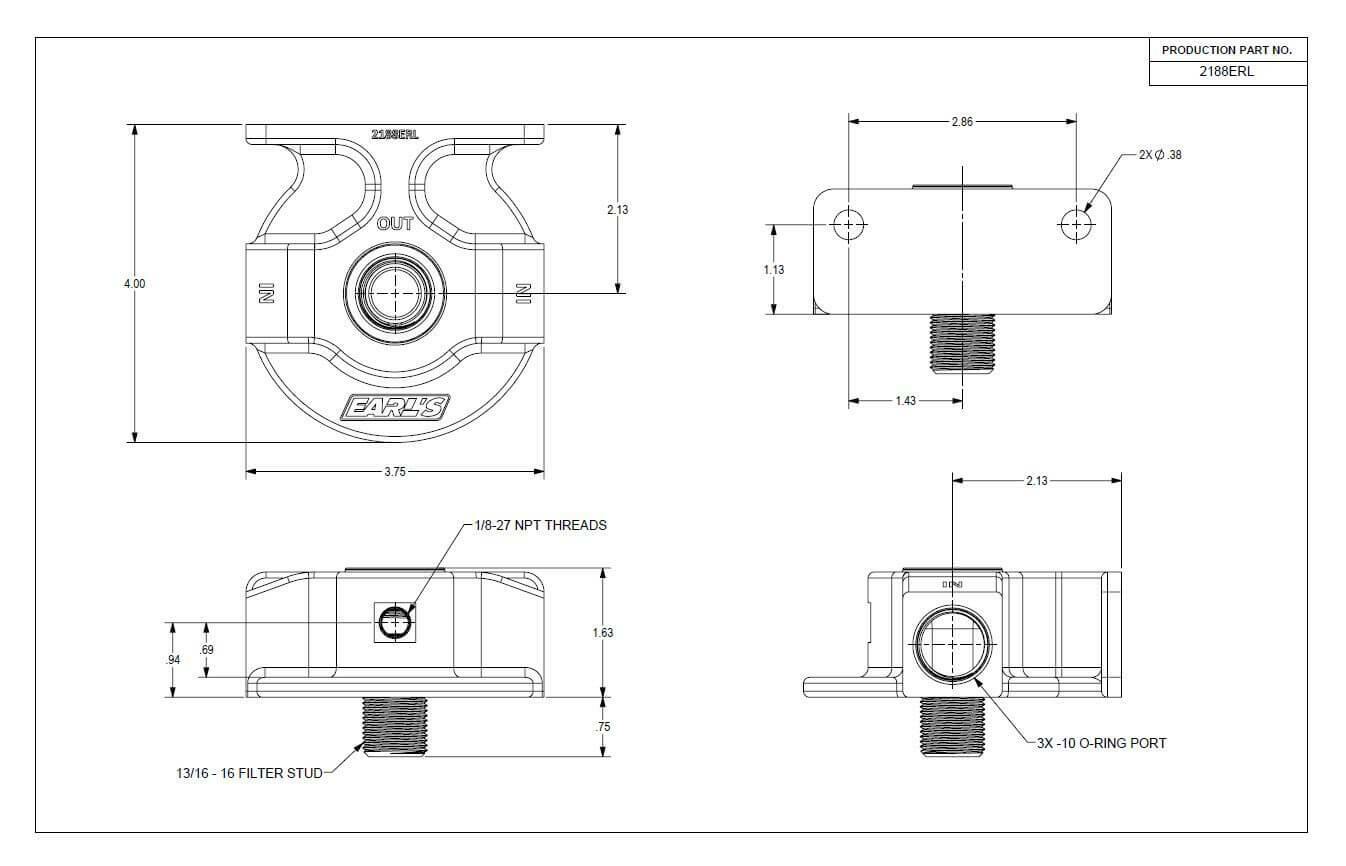

- Dimensions: 3.750" Wide x 4.000" Long x 1.630" Tall
- Bolt Spacing: 2-Bolt w/ 2.860" c/l to c/l
Application:
| Year | Make | Model | Submodel | Engine Size |
|---|---|---|---|---|
| Universal |
Specs:
| Brand | Earls |
|---|---|
| Center Stud Size | 13/16-16 |
| Emission Code | 5 |
| Filter Type | Fram PH5 or HP4 or Equivalent |
| Finish | Black Anodized |
| Height | 1.630" |
| Length | 4.000" |
| Material | Billet Aluminum |
| Mount Hole Diameter | 3/8" |
| Mounting Bolt Pattern | 2.860" |
| O-Ring Diameter | 3.185" |
| Port Size | 7/8-14 Female (-10 O-Ring Boss) |
| Product Type | Oil Filter Mounts |
| Warning | California Proposition 65 |
| Width | 3.750" |
