Earls Brake Tee w/ 1/8" NPT Port - 972052BERL

972052BERL
Regular price
$15.71
Regular price
Sale price
$15.71
Unit price
per
Availability
Sold out
Payment Forms Accepted at Checkout

Overview:

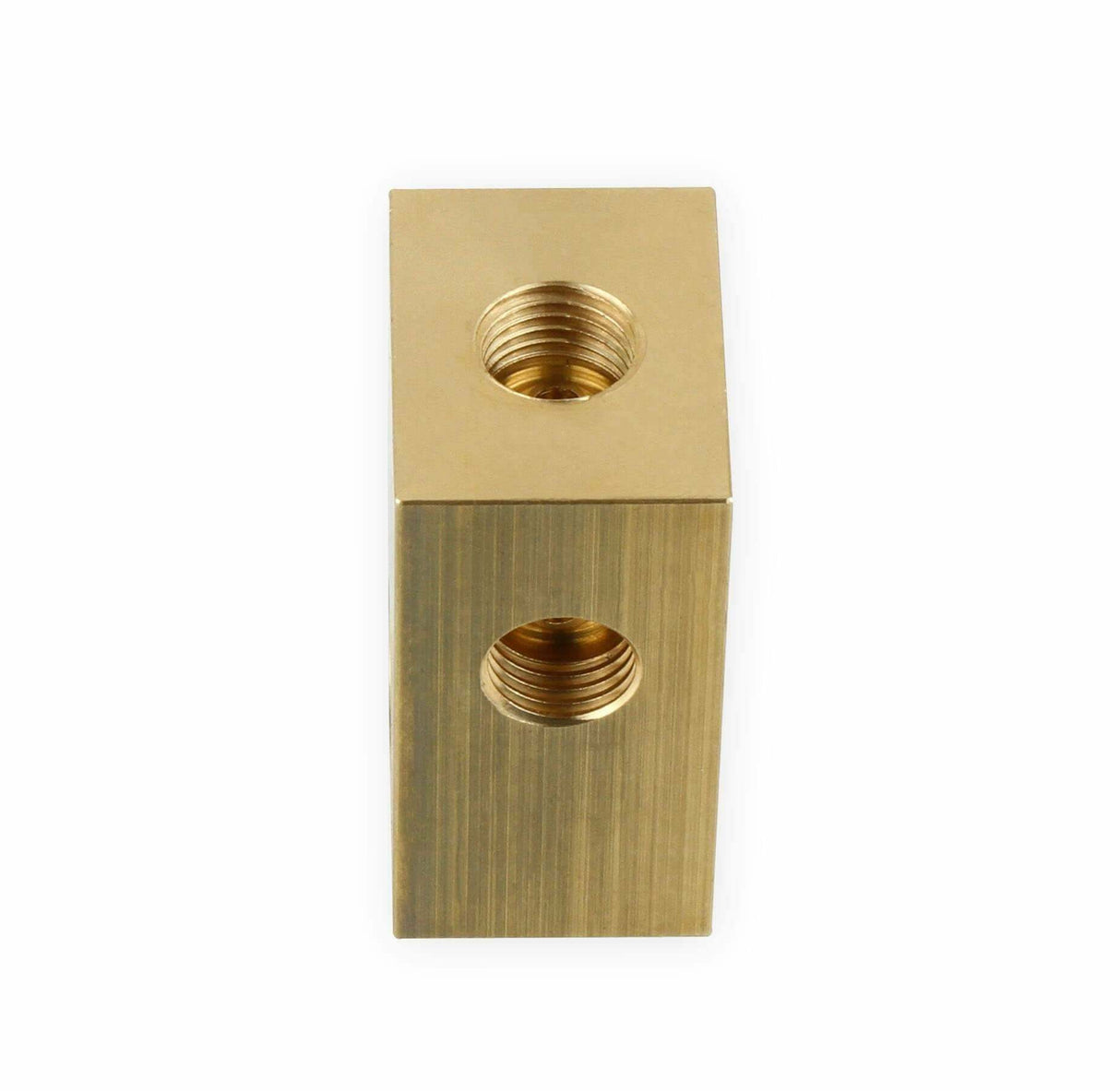

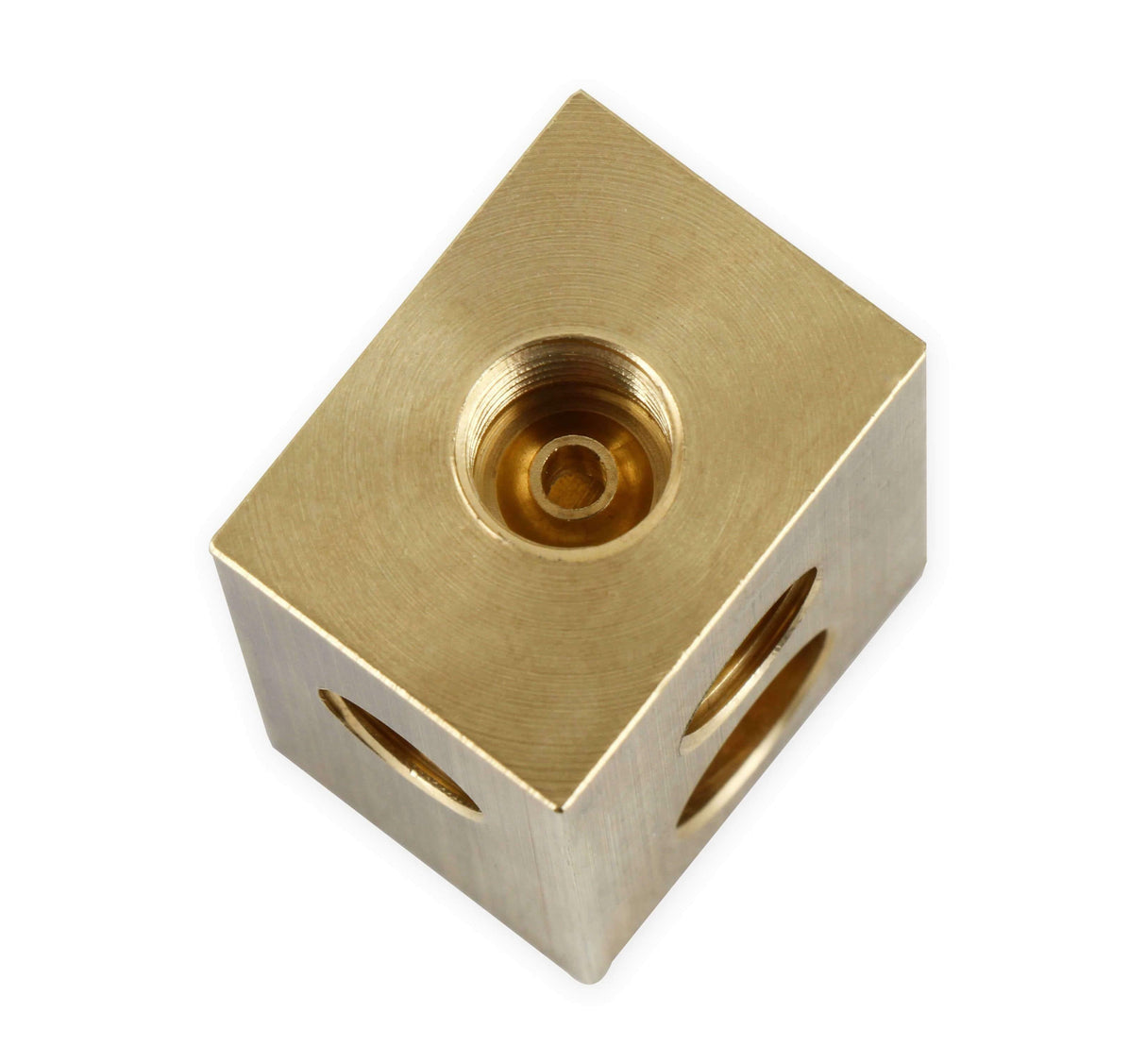

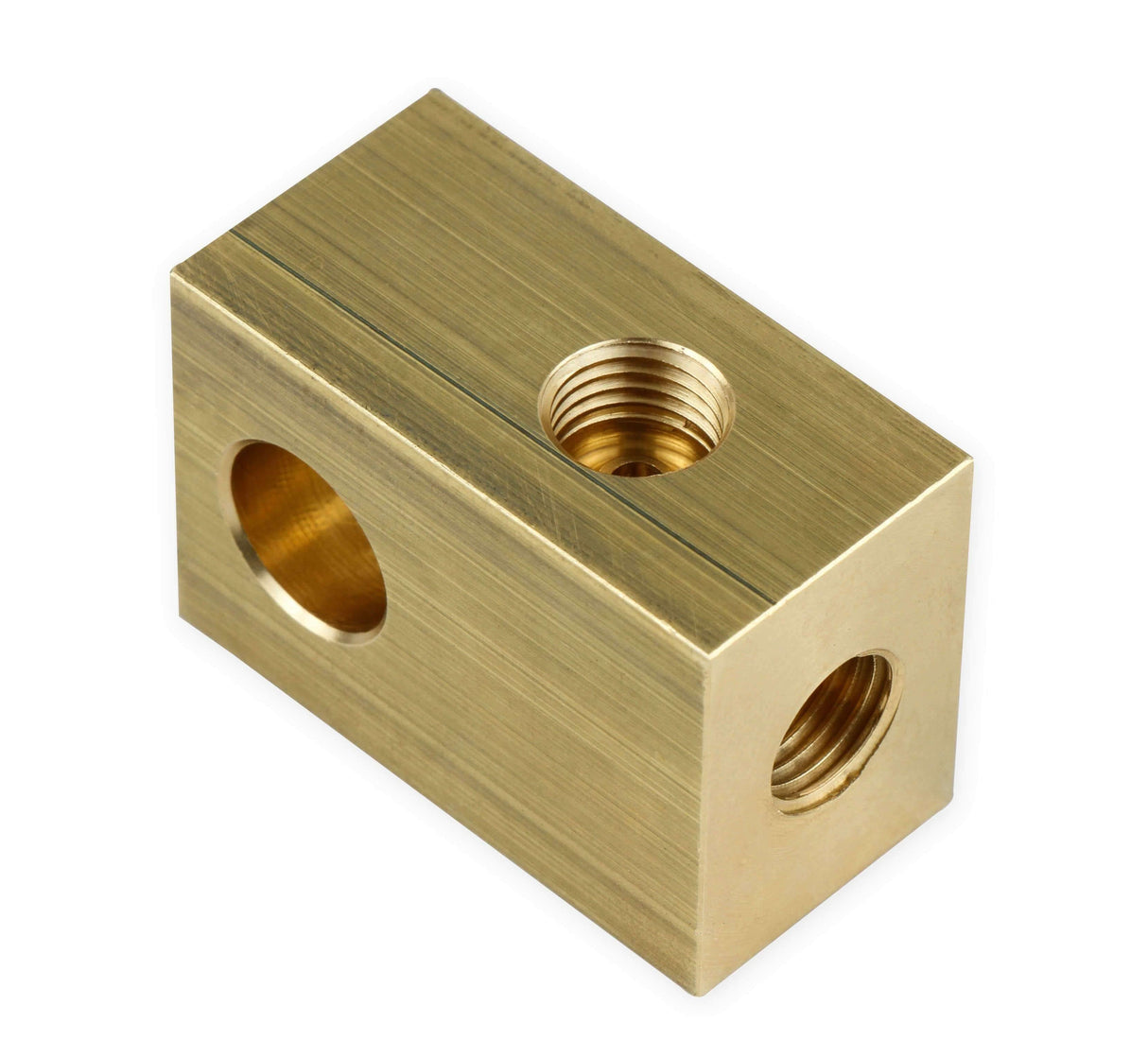

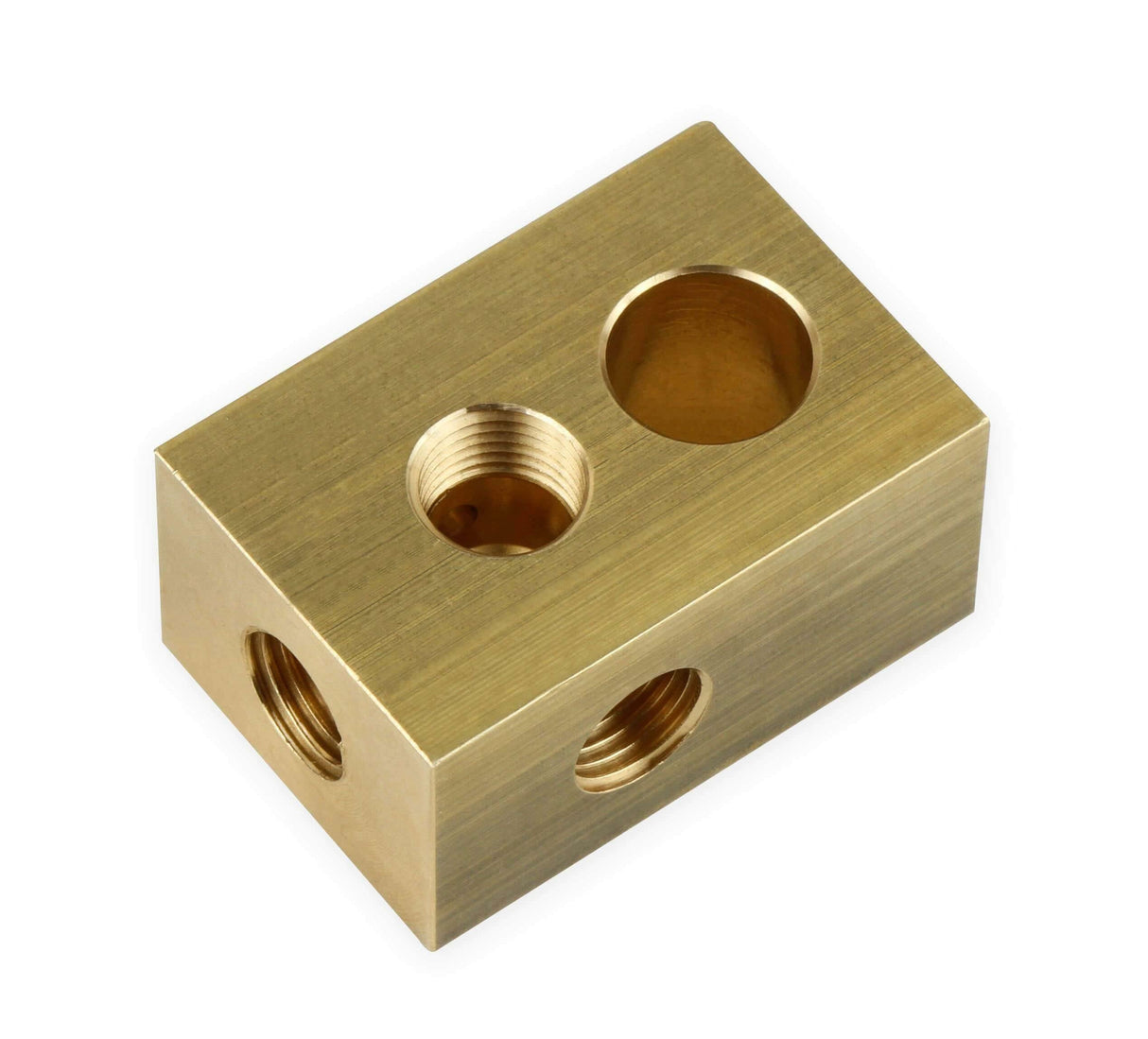

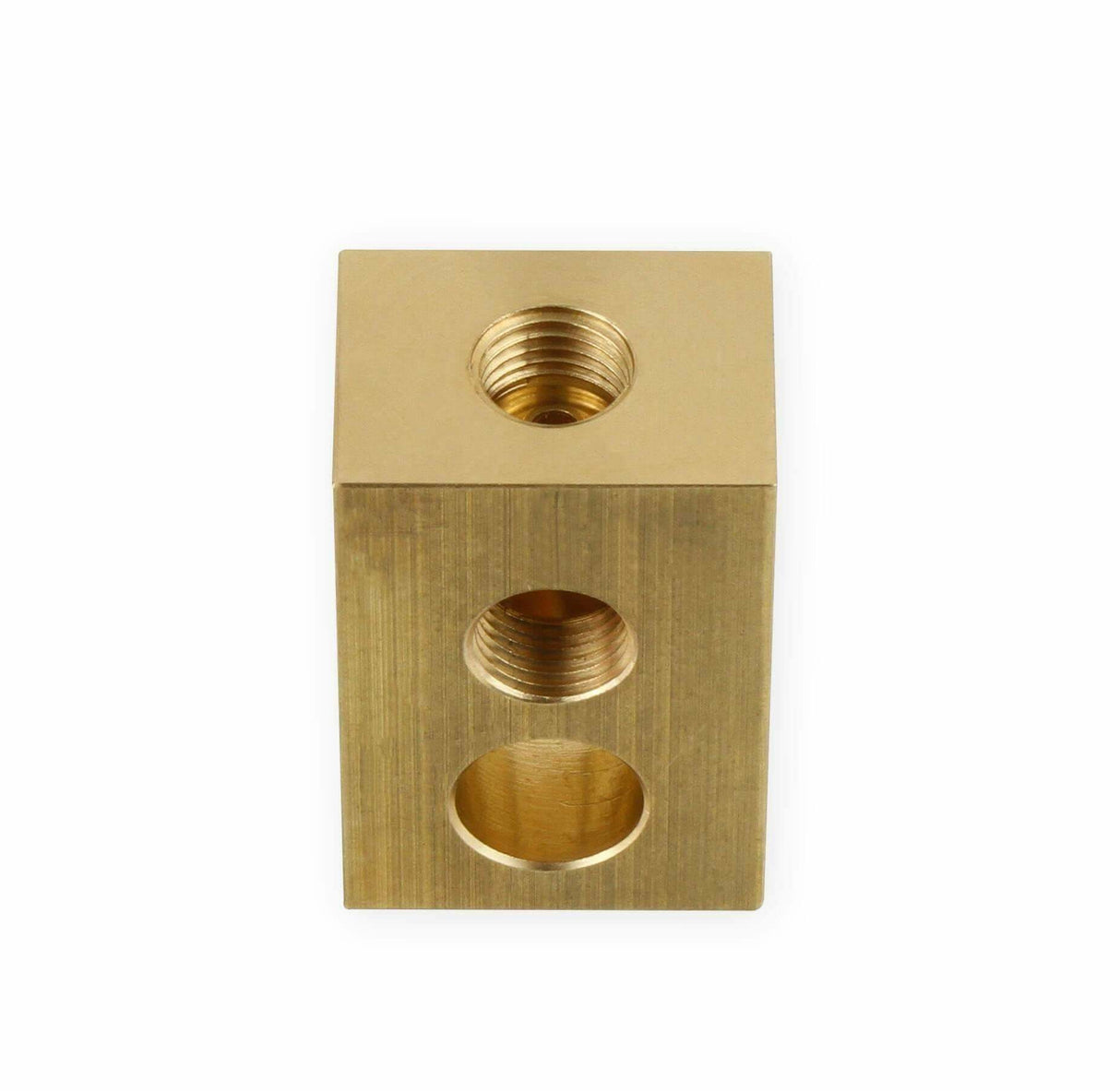

This new brake tee is a simple & easy way to add a pressure activated brake light switch on your vehicle. The tee is designed for use with 3/16" hardline & has (3) 3/8"-24 inverted flare female ports and one 1/8" NPT port for the brake light switch (use with switch part # 100186ERL). Mount the tee anywhere you would normally branch off to the front or rear brakes (using the 7/16" mounting hole). Brass construction.

Features:

  • Hardline Brake Tee w/ 1/8” NPT Port
  • (3) 3/8”-24 Inverted Flare Female Ports – Use w/ 3/16” Hardline
  • (1) 1/8” NPT Port for Pressure Activated Brake Light Switch - Use switch 100186ERL (Available Separately)
  • 7/16” Mounting Hole
  • Dimensions: 1.475” Long x 1.000” Wide x .750” Height
  • Simple & Easy Way to Add Brake Lights to Your Vehicle

Year Make Model Submodel Engine Size
Universal

Adapter NPT Size ( A ) 1/8 NPT FEMALE
Adapter Size ( A ) 3/8-24 I.F.
Adapter Size ( B ) 3/8-24 I.F.
Adapter Size ( C ) 3/8-24 I.F.
Adapter Type Female Brake Tee
Brand Earls
Emission Code 5
Finish Natural
Height .750"
Length 1.475"
Material Brass
Mount Hole 7/16 inch
Product Type Tee
Warning California Proposition 65
Width 1.000"
