Earl's Breather Tank / Catch Can - CT101ERL
Earl's Breather Tank / Catch Can - CT101ERL is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Fitment
Fitment
Delivery and Shipping
Delivery and Shipping
Same day shipping, if ordered by 9:00 AM ET M-F
*Select products are made to order and ship within 4 business days.
Warranty Information
Warranty Information
Customer service is our top priority and because we value your time and energy we ask you to visit our Contact Us page and reach out so that we may assist you in finding the correct warranty for your product. Please include your name, the name on the order, the order number, and the SKU of the product to ensure the quickest and most accurate response to your inquiry.
Description
Description
Overview:

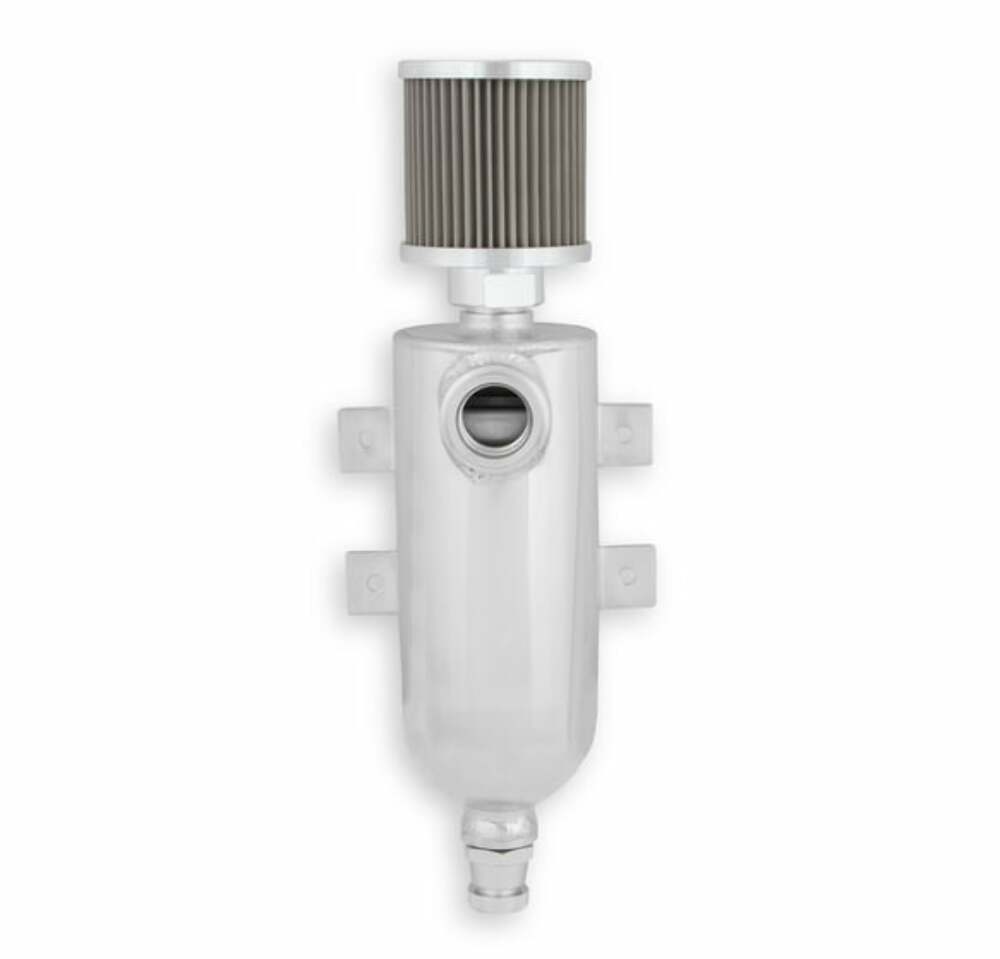

Earl's breather tanks are made from 6061 aluminum and have internal oil baffling. These tanks feature a -12 AN O-ring inlet port, knurled drain valve with an optional 1/8" NPT outlet port for use with a remote drain (or to drain back to the oil pan), w/ 4-bolt mounting brackets. Includes a heavy duty stainless steel mesh filter which has a billet aluminum housing to reduce weight. The filter may be removed to expose a -12AN Male. Ideal for use in all racing applications (i.e. engine PCV, dry sump tanks, transmissions, and rear-end venting). Choose from black anodized or polished aluminum finish.
Features:
- 6061 Aluminum Catch Tanks w/ Baffle Inside
- Choose from Polished Aluminum or Black Anodized Finish
- Dimensions: Overall Height 13.25” x Diameter 3.15” x Depth 3.20”

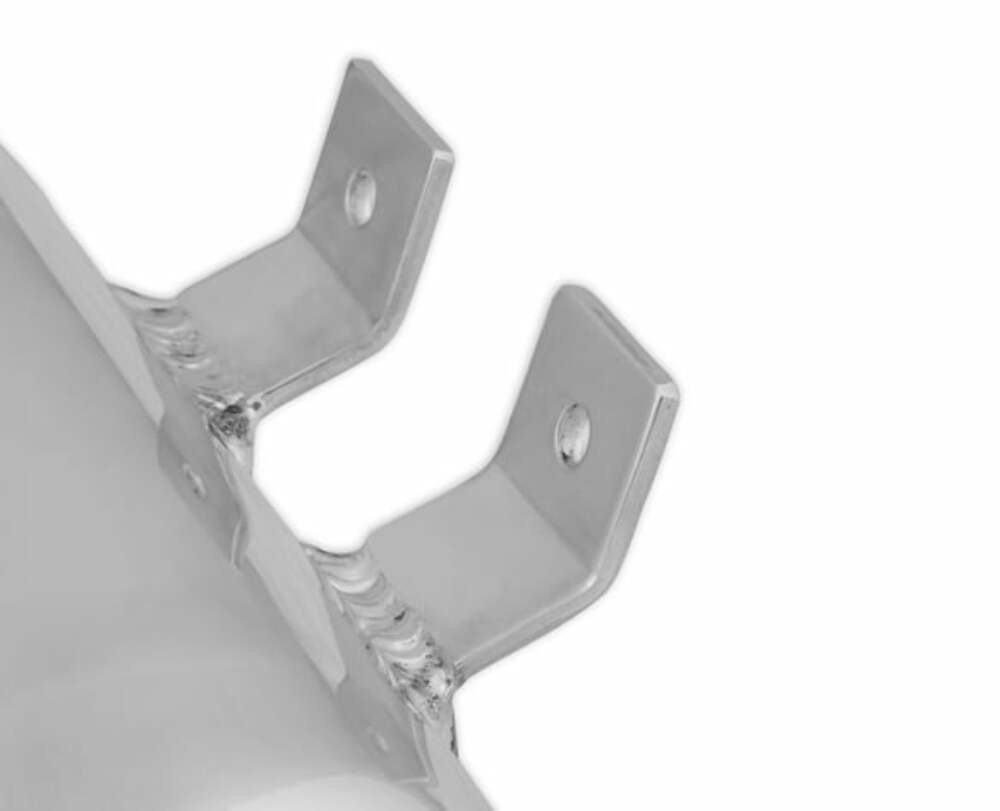

- 4-Bolt Mounting Brackets – Bolt Pattern 4.13” x 2.40”, Overall Bracket Width 5.07

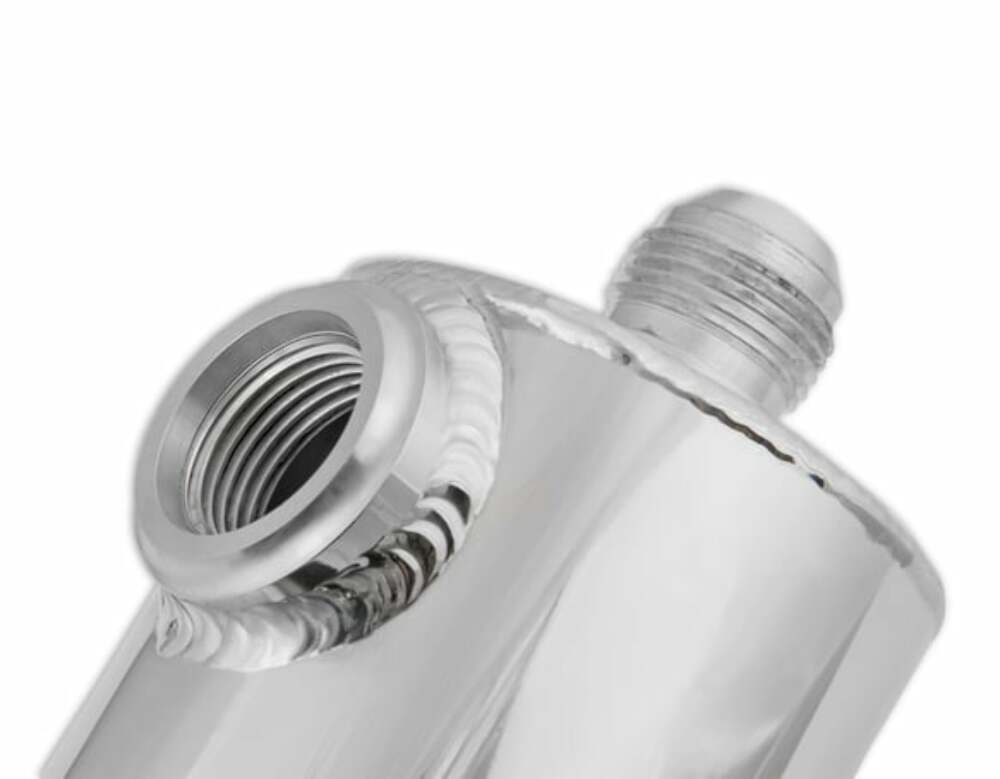

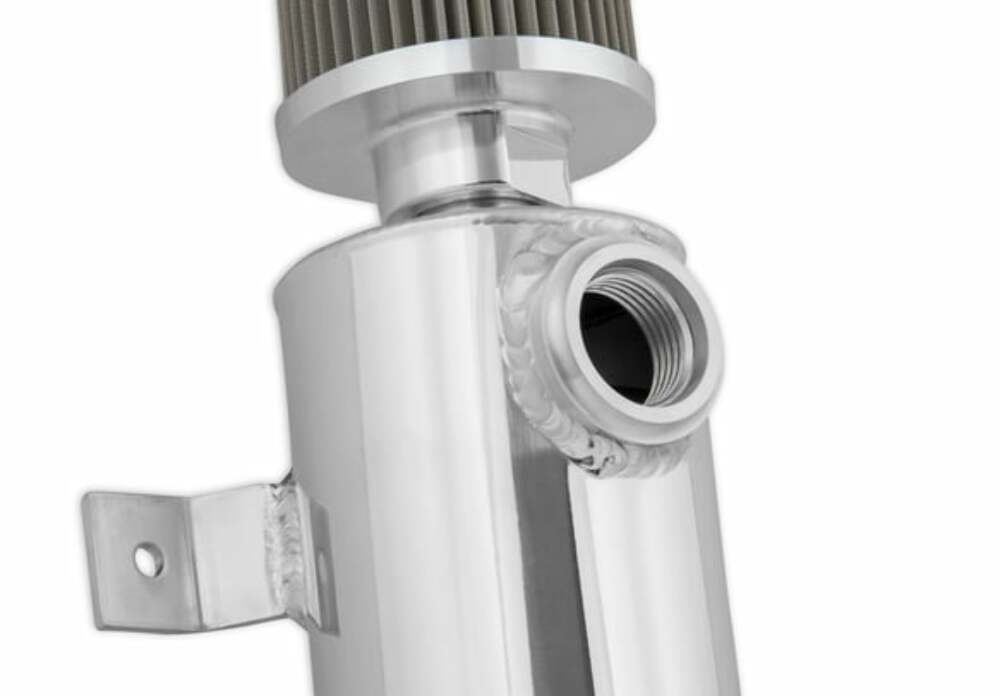

- Inlet: -12 AN ORB Female

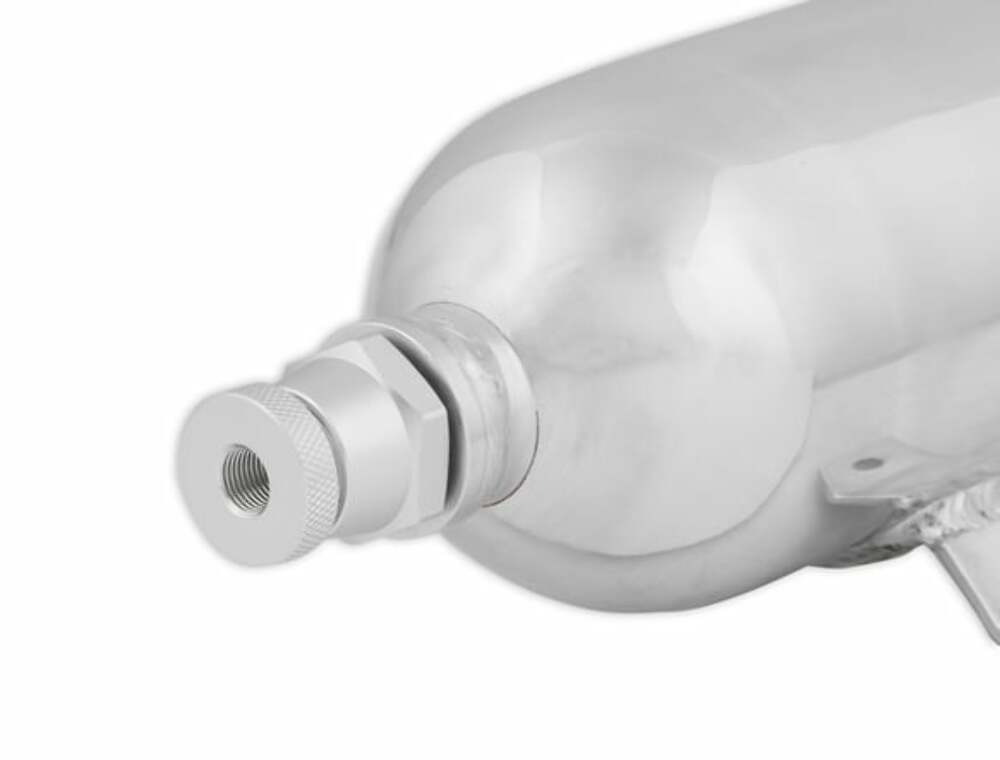

- Drain w/ Knurled Screw & 1/8” NPT Outlet (for optional remote drain)

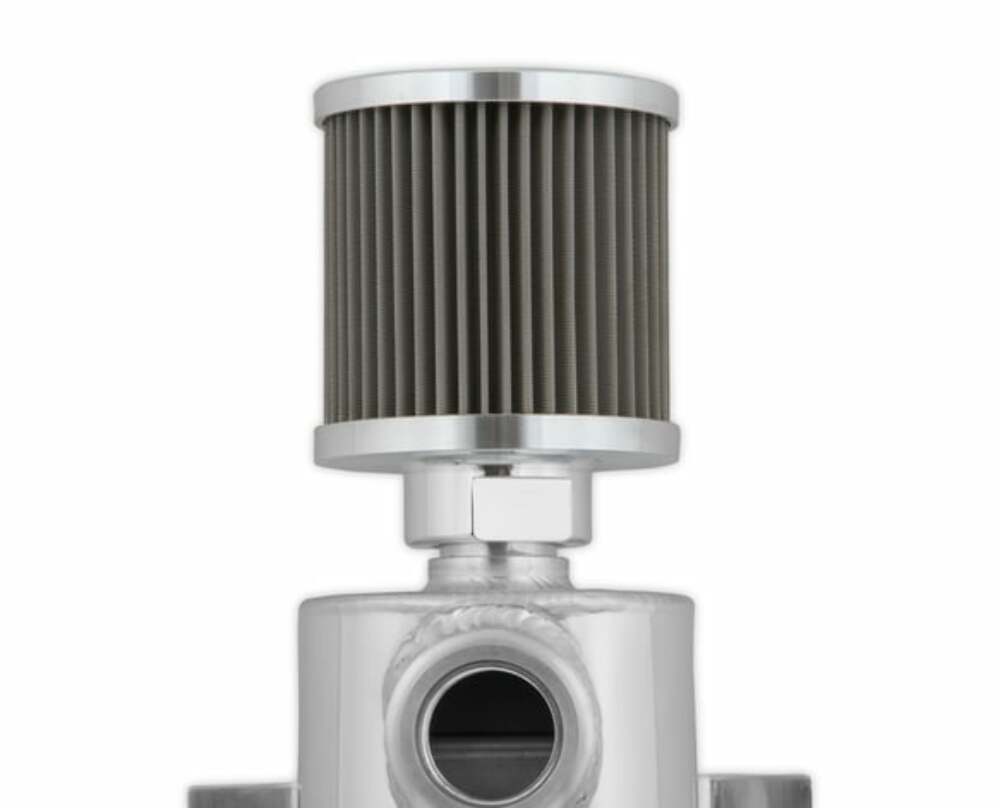

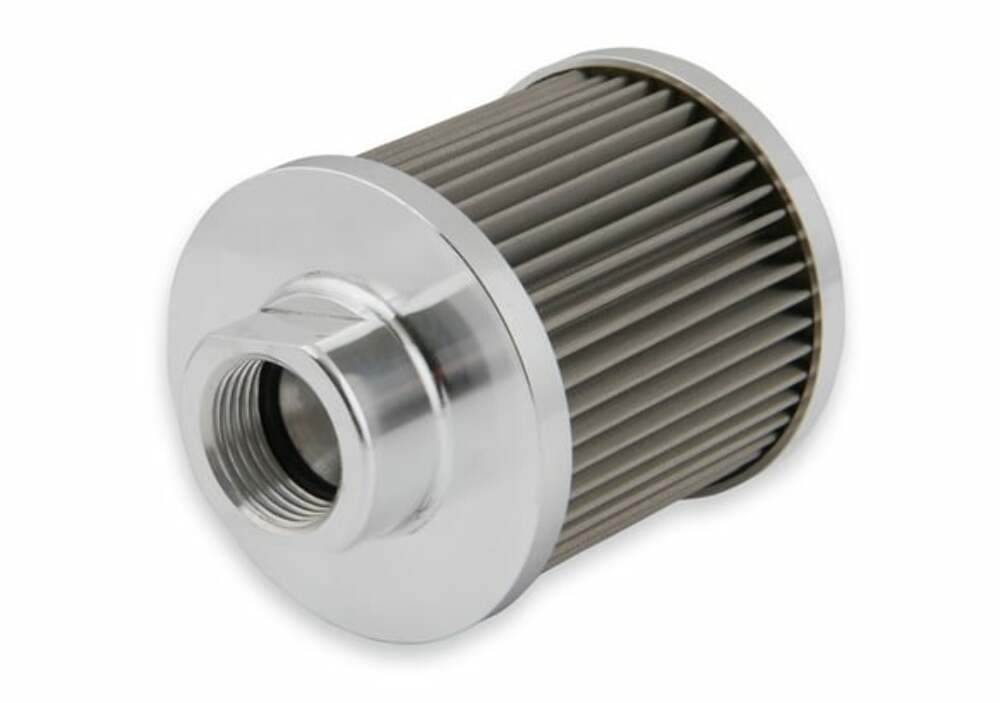

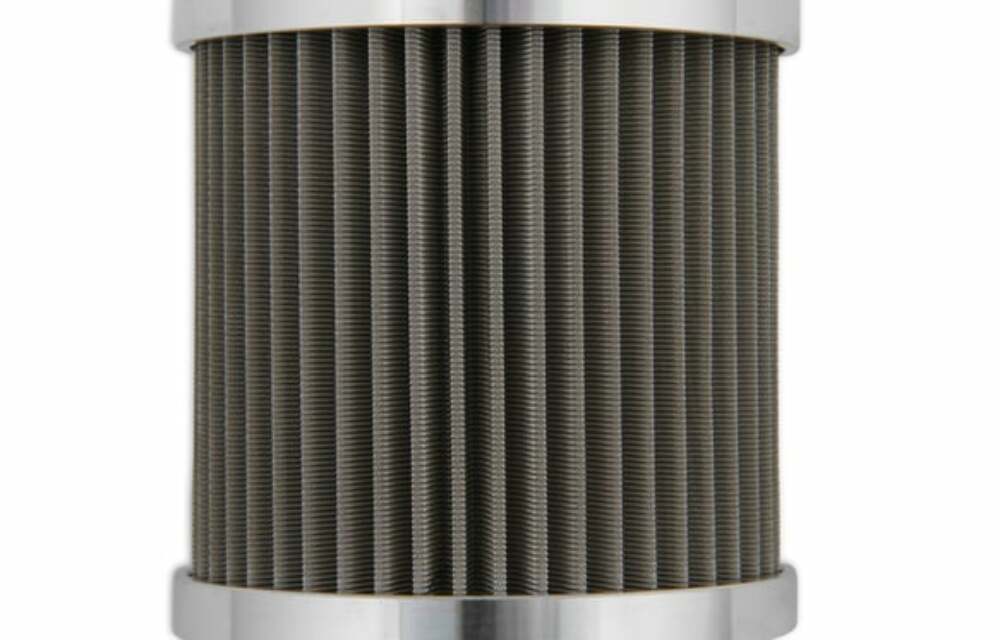

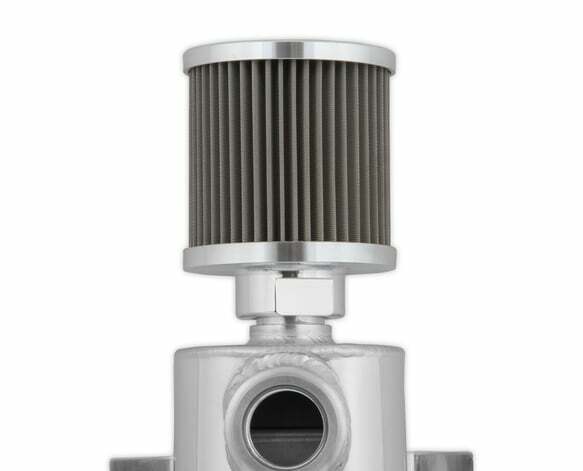

- Billet Aluminum Housing with Stainless Steel Mesh Filter w/ -12 AN Female Inlet
- Welded Construction
- Capacity: 0.75L
- Meets Requirements of Most Racing Sectioning Bodies – for Oil Catch Tank
- Weight: 1.5 LB
- Pressure Tested to 75psi
Application:
| Year | Make | Model | Submodel | Engine Size |
|---|---|---|---|---|
| Universal |
Specs:
| Adapter NPT Size ( B ) | 1/8 NPT MALE |
|---|---|
| Adapter Port Size (A) | 1-1/16-12 (AN 12) |
| Application | Universal |
| Brand | Earls |
| Capacity | .75L |
| Depth | 3.20" |
| Diameter | 3.15" |
| Emission Code | 4 |
| Filter Type | Steel Mesh |
| Finish | Polished aluminum |
| Material | 6061 Aluminum |
| Overall Height | 13.25" |
| Product Type | Catch Tanks |
| Warning | California Proposition 65 |
| Width | 5.07" |
