Earls Electric Oil Pump - 12 VDC - OP111ERL
Earls Electric Oil Pump - 12 VDC - OP111ERL is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Fitment
Fitment
Warranty Information
Warranty Information
Customer service is our top priority and because we value your time and energy we ask you to visit our Contact Us page and reach out so that we may assist you in finding the correct warranty for your product. Please include your name, the name on the order, the order number, and the SKU of the product to ensure the quickest and most accurate response to your inquiry.
Description
Description
Overview:

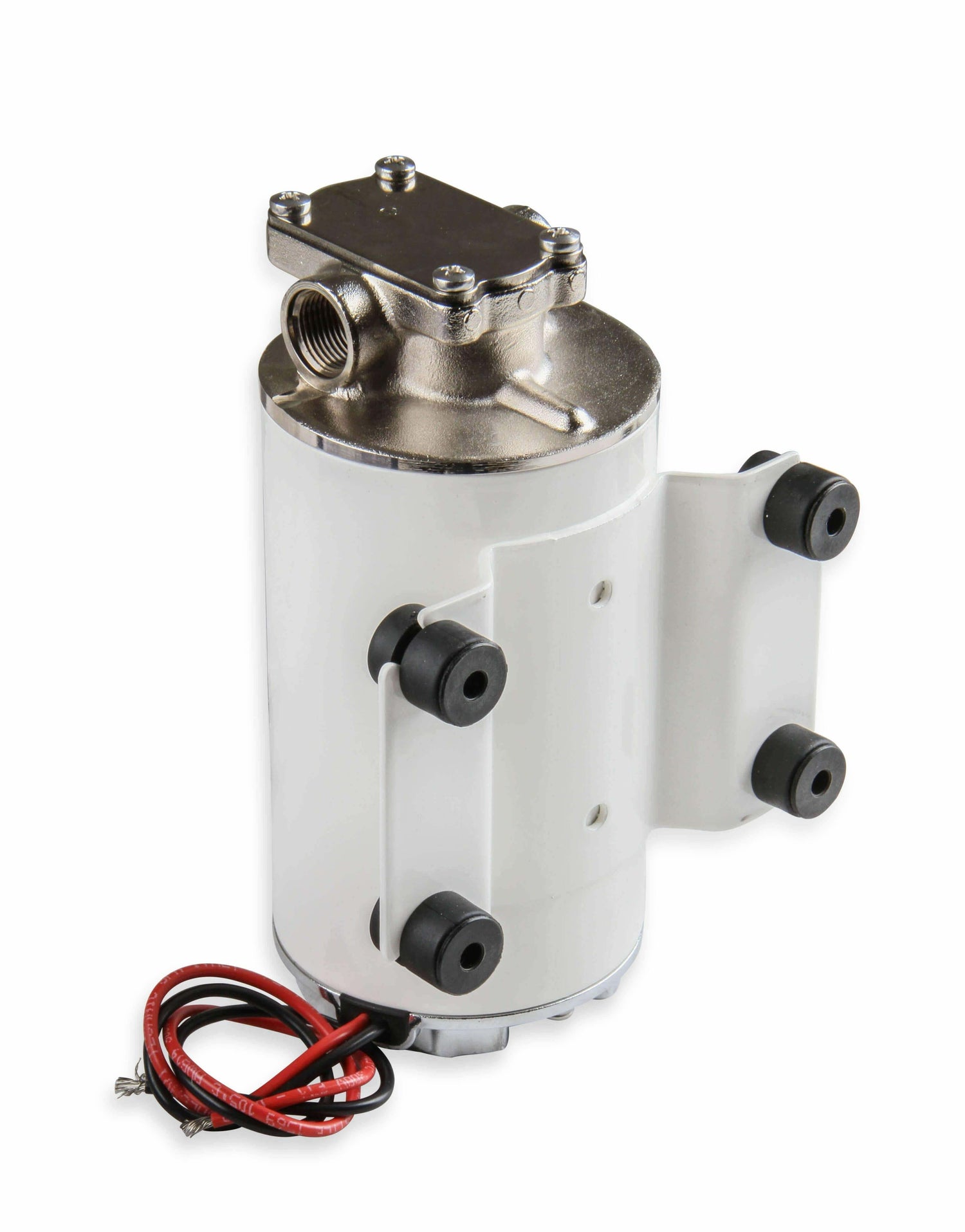

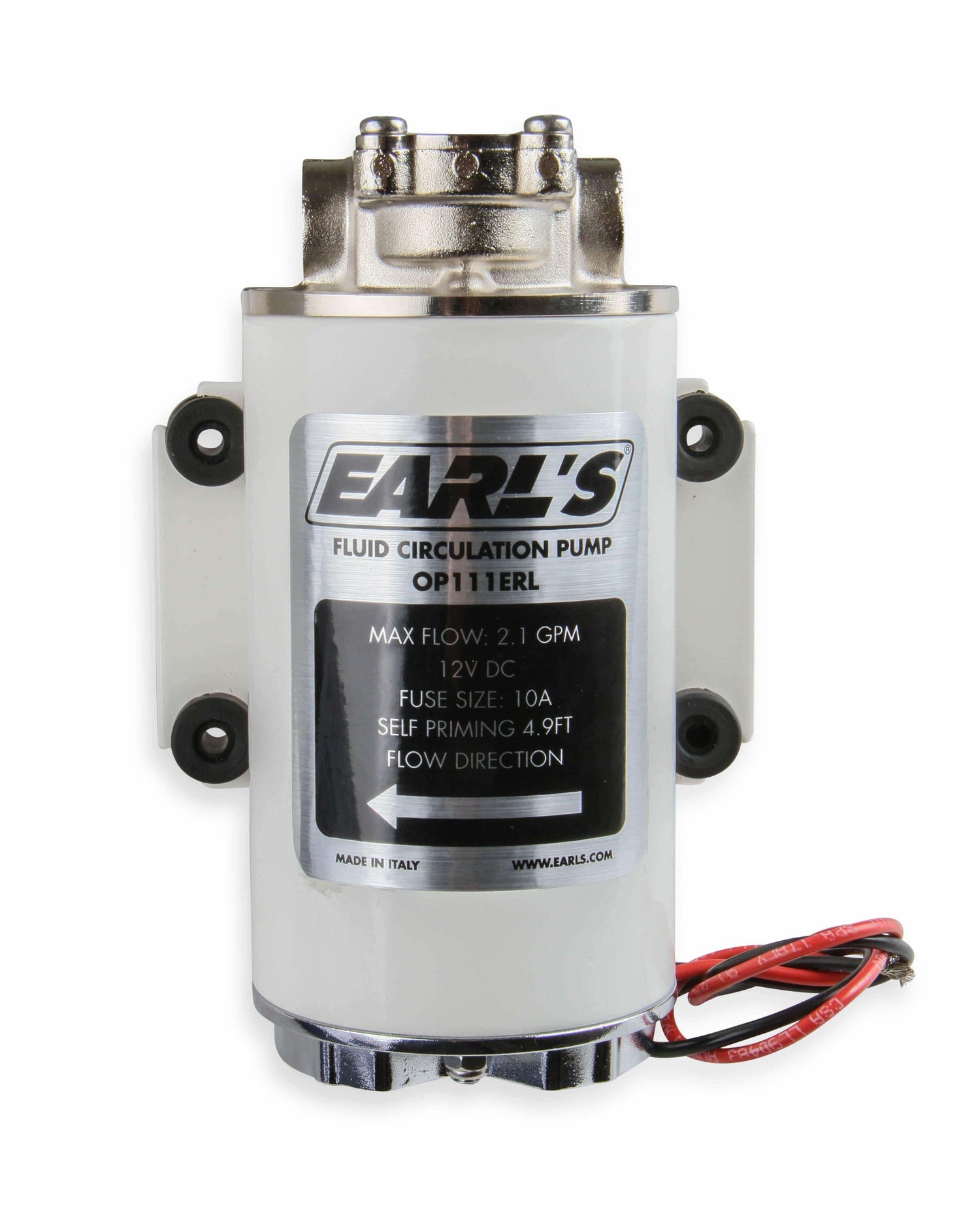

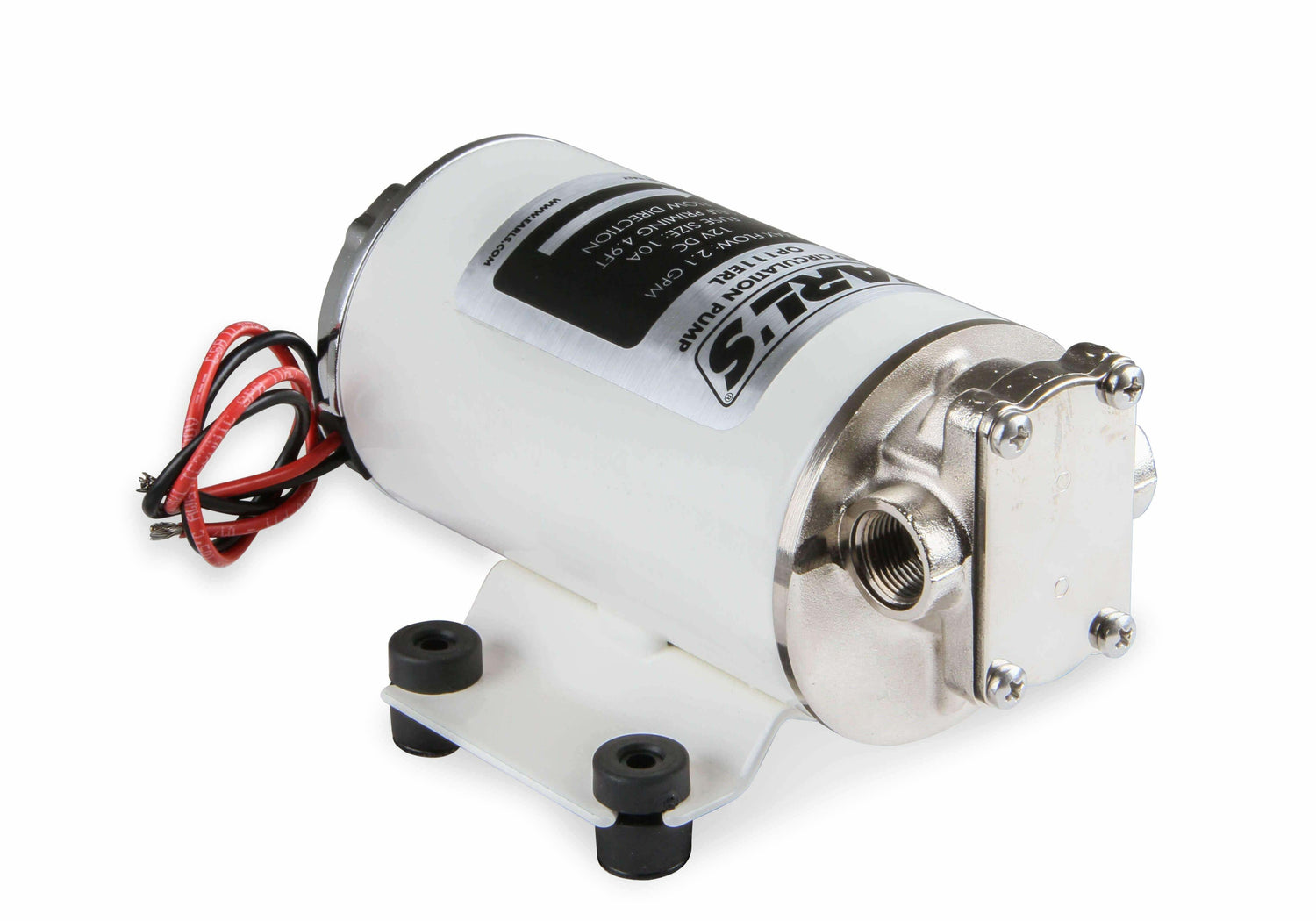

Earls electric oil pump is ideal for circulating the gear oil through an external oil cooler - for cooling the differential or manual transmission. This heavy duty pump features a metal housing & is self-priming w/ a flow rate of up to 2.1 gallons per minute. The compact design is durable and has a continuous duty rating (see temperature range shown below). This pump includes (2) -6 AN Male to BSPP adapter fittings. Ideal for use with Earl's UltraPro oil cooler along w/ AN hose & hose ends.
Features:
- Electric Oil Pump
- Amp Draw: 10 Amps
- Flow Rate: Up to 2.1 GPM (7.9 LPM)
- Pressure: 72.5 PSI (5 Bar) Max
- Maximum Oil Weight: 90W Gear Oil
- Weight 5.5 lb (2.5 kg)
- Voltage: 12-Volt DC
- Brass Housing w/ Nickel Plated Finish
- Temperature Range: 14 to 160° F (-10 to 71° C) Continuous Duty; 265° (130° C) Max -Intermittent Use
- Overall Dimensions: 6-1/2” Tall x 4-5/8” Wide x 3-3/4 Deep
- Mounting Bolt Pattern: 4-Bolt w/ 2-1/4” Tall x 3-3/4” Wide
- Rubber Vibration Isolators on Each Mount
- Ideal for Cooling Manual Transmission or Differential Using External Oil Cooler

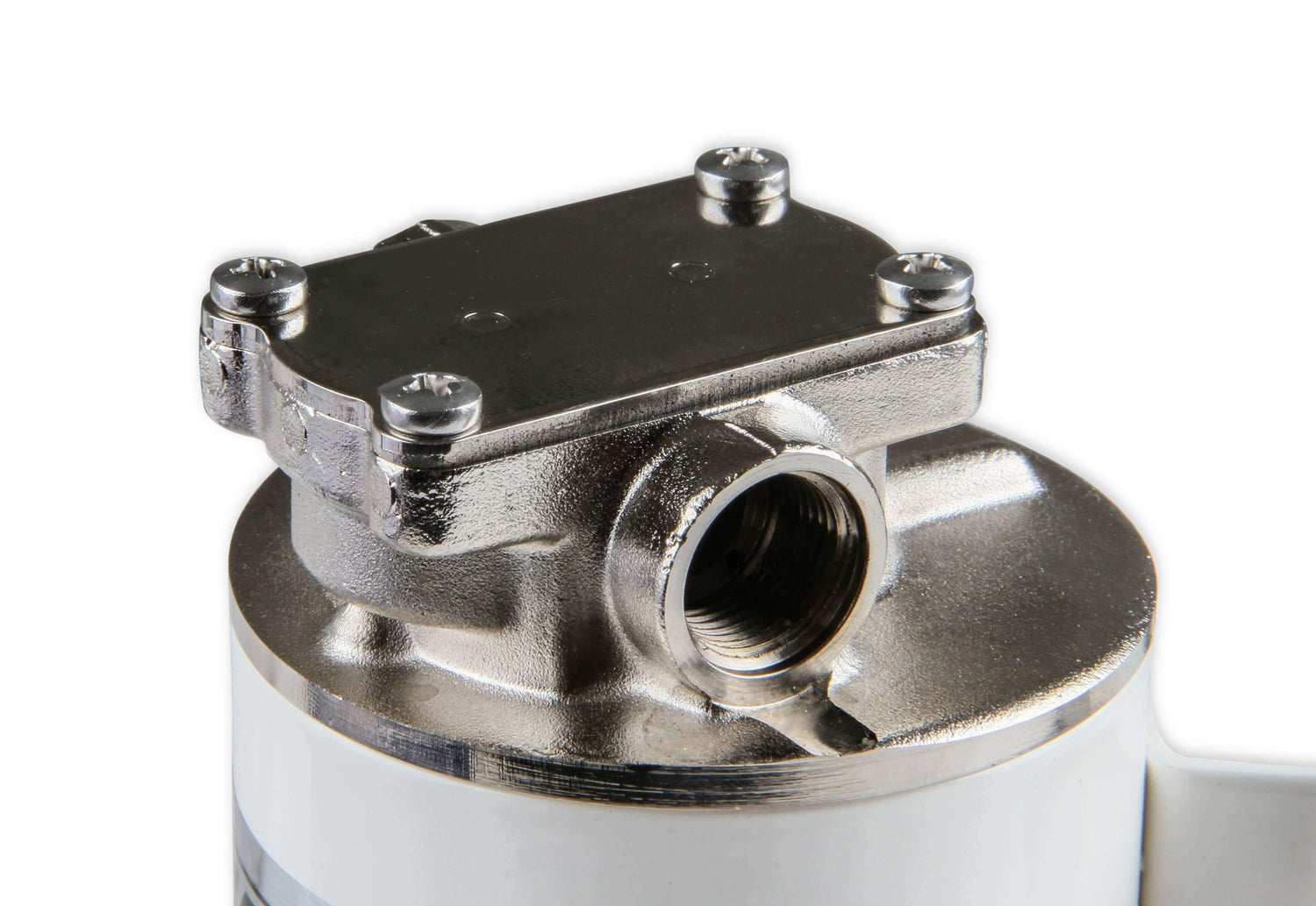

- Inlet & Outlet on Pump: 3/8 BSPP (British Standard Pipe Parallel) straight thread

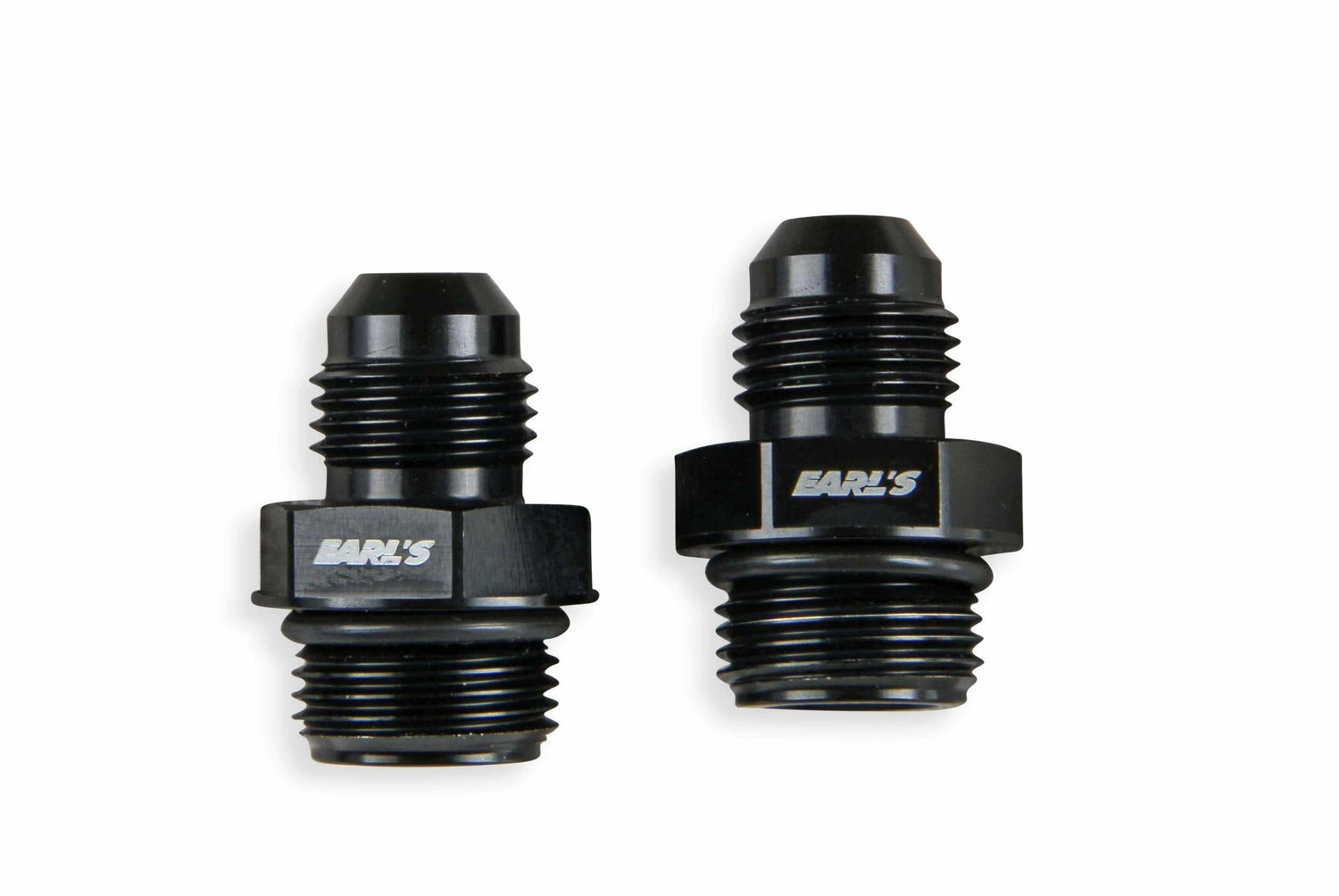

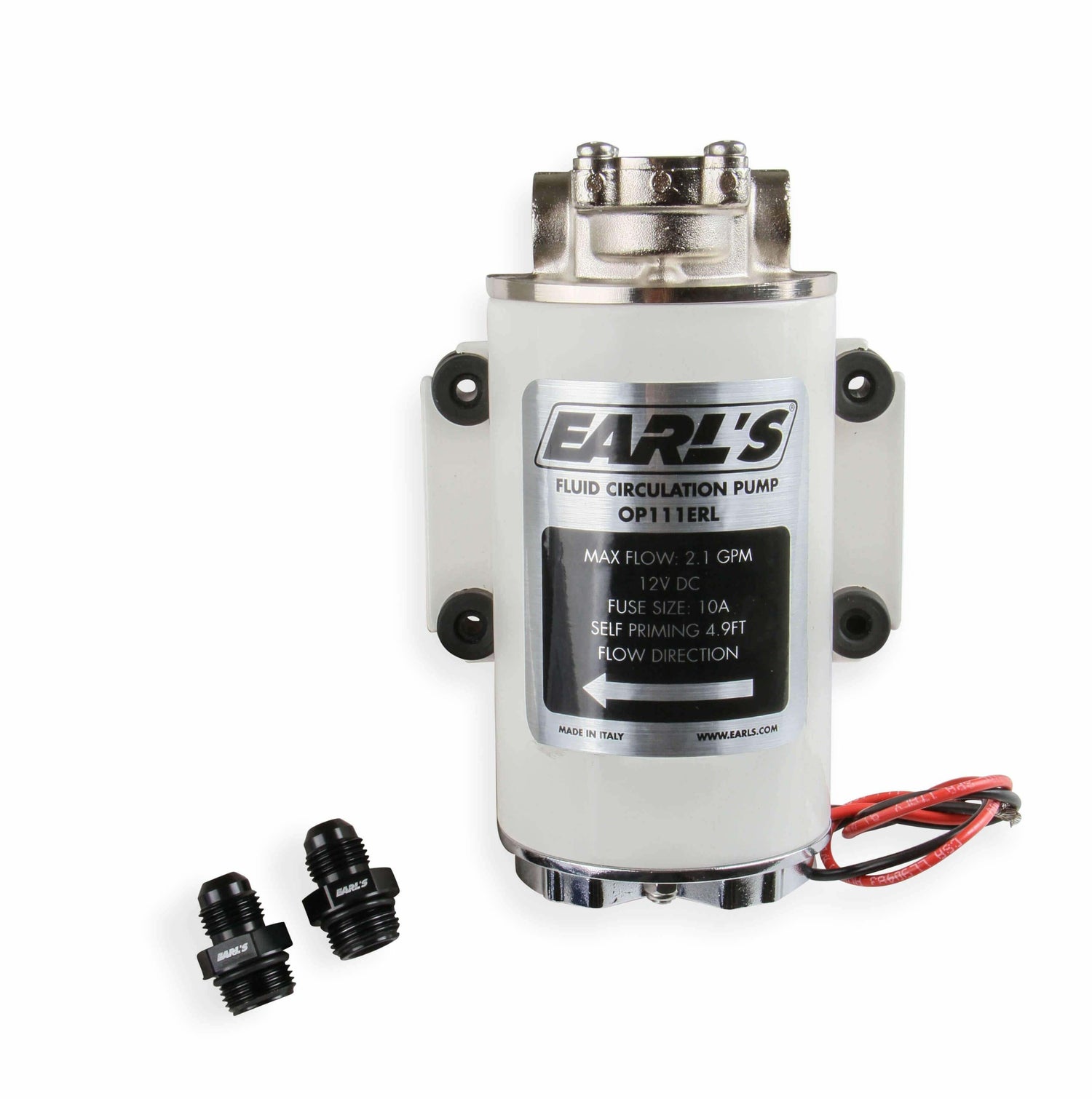

- Includes (2) -6 AN Male to 3/8 BSPP Adapter Fittings
- Self-Priming – Up to 4 Ft. of Vertical Height
- Seal Material: FKM Rubber
- Use w/ Relay & Fuse (available separately)
Application:
| Year | Make | Model | Submodel | Engine Size |
|---|---|---|---|---|
| Universal |
Specs:
| Adapter AN Size ( A ) | 6 AN MALE |
|---|---|
| Adapter Port Size ( B ) | 3/8 BSPP MALE |
| Amp Draw | 10 |
| Brand | Earls |
| Depth | 3.75" |
| Emission Code | 5 |
| Finish | White w/ Nickel Plating |
| Free Flow GPM (12v) | Up to 2.1 |
| Height | 6.5" |
| Material | Steel Pump w/ Brass Housing |
| Max Pressure | 72.5 PSI |
| Mounting Bolt Pattern | 4-Bolt 2.25" x 3.75" |
| Product Type | Oil Pump |
| Seal Material | FKM |
| Temperature Range | 14 to 265° F |
| Voltage | 12 VDC |
| Weight | 5.5 lb |
| Width | 4.625" |
