Earls GM LT Gen-V Oil Pressure Sensor Kit w/ Adapter & Plug - LT0004ERL
Earls GM LT Gen-V Oil Pressure Sensor Kit w/ Adapter & Plug - LT0004ERL is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Fitment
Fitment
Warranty Information
Warranty Information
Customer service is our top priority and because we value your time and energy we ask you to visit our Contact Us page and reach out so that we may assist you in finding the correct warranty for your product. Please include your name, the name on the order, the order number, and the SKU of the product to ensure the quickest and most accurate response to your inquiry.
Description
Description
Overview:
These Special Plugs and adapters are needed when you remove the vacuum pump on the GM LT Gen-V - 2014 & up engines. When the vacuum pump is removed, it exposes two passages in the oil galley. These passages are metric straight threads and they need to be plugged, or used for an oil pressure gauge, or pressure sensor w/ the Holley EFI system (i.e. Avenger, Terminator X, HP, or Dominator). Choose from an adapter w/ the 1/8" NPT Female Port, (2) Plugs, Adapter & Plug, or Oil Pressure Sensor for EFI System w/ Plug.
Features:

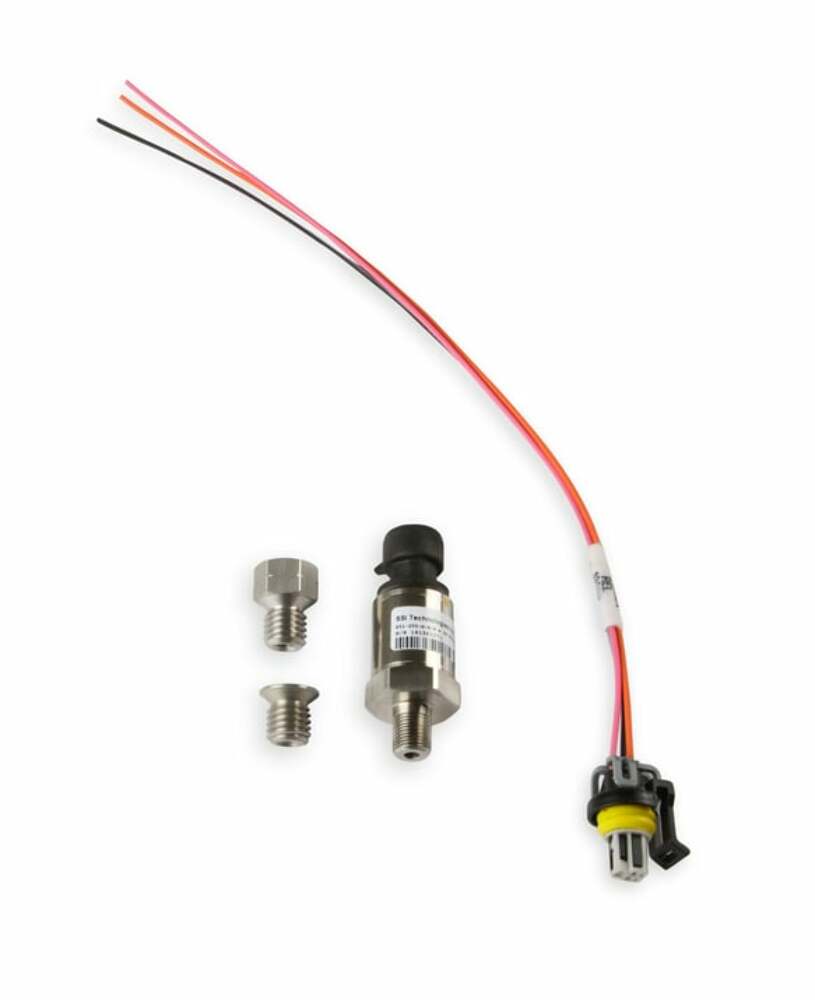

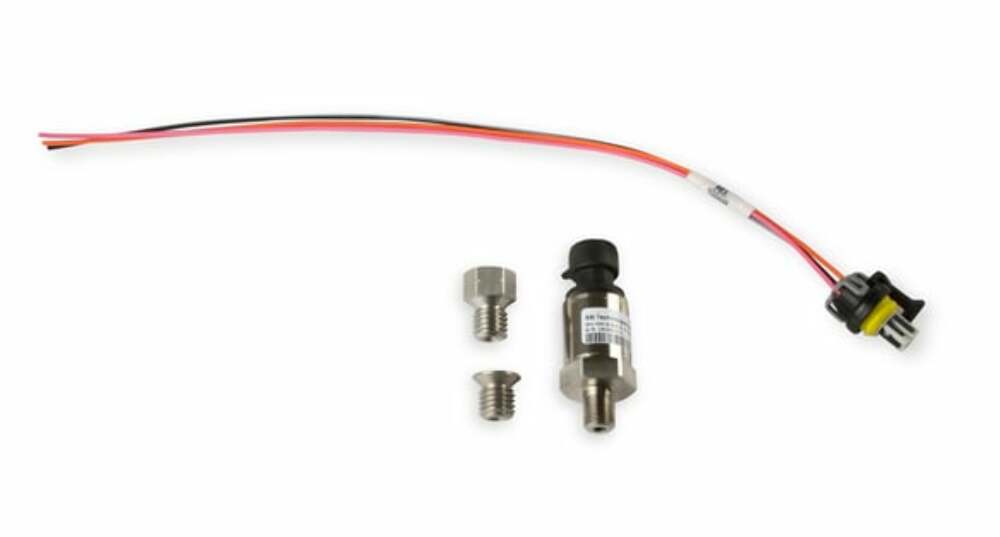

- Vacuum Pump Delete Adapter, Plug & Sensor for GM LT Gen-V Engines
- Material: Stainless Steel
- Metric Thread Size in Block: M12 x 1.75 Straight Thread w/ Tapered Seat

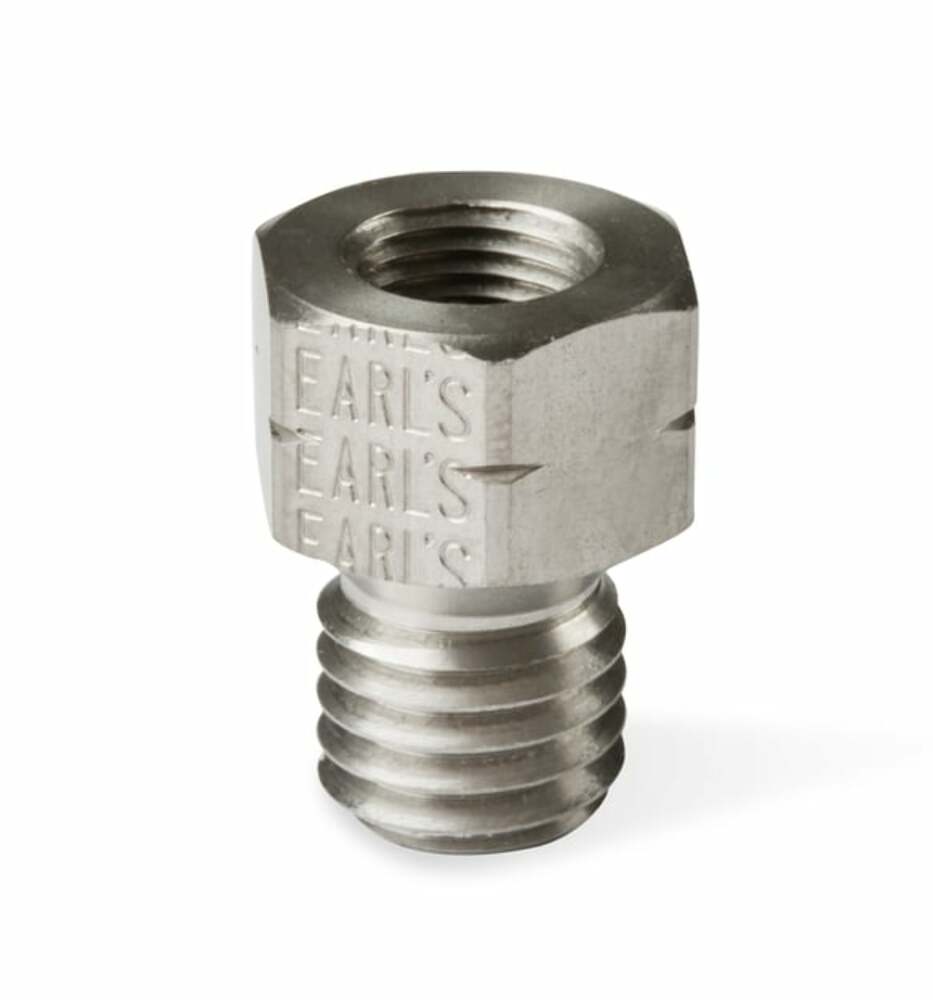

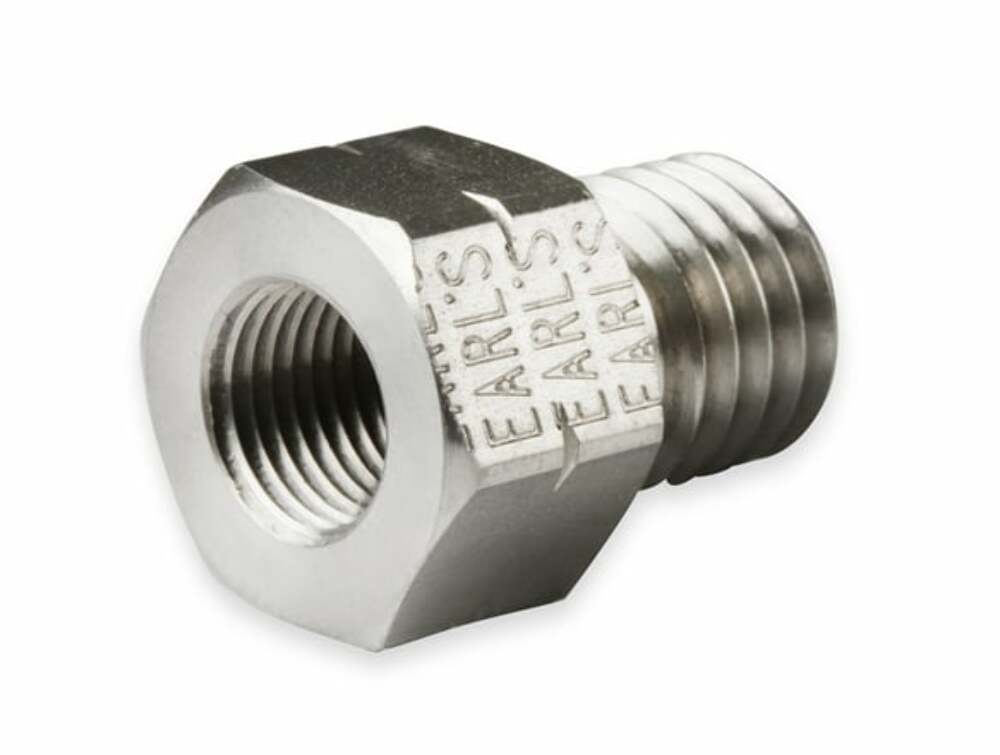

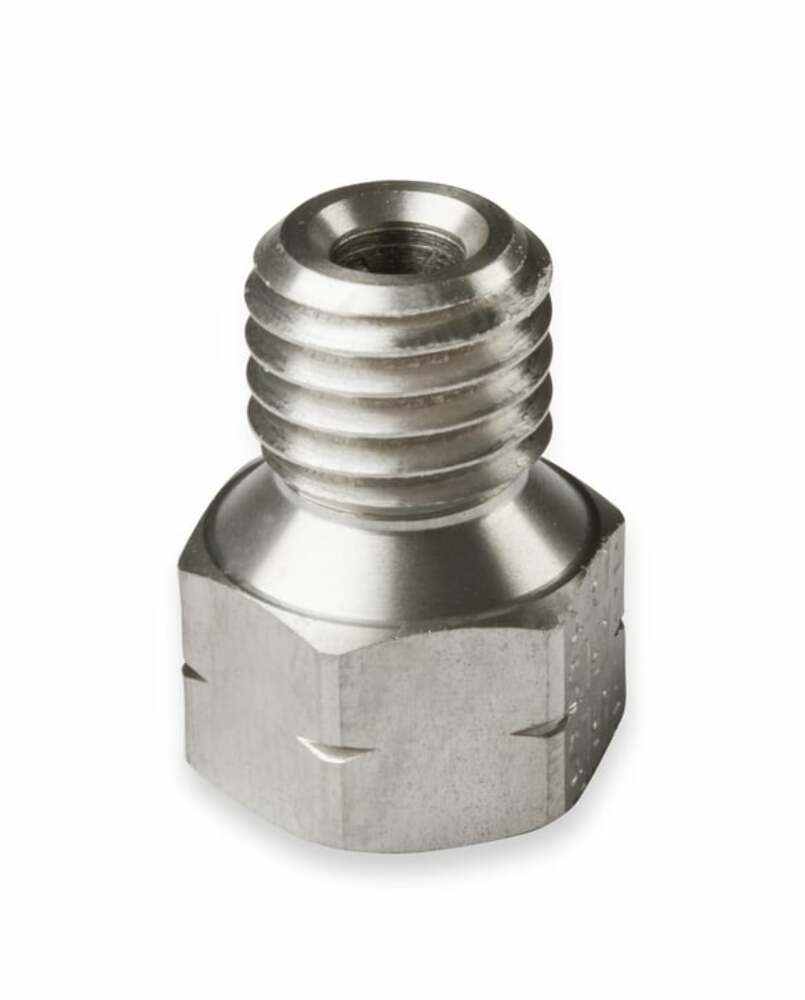

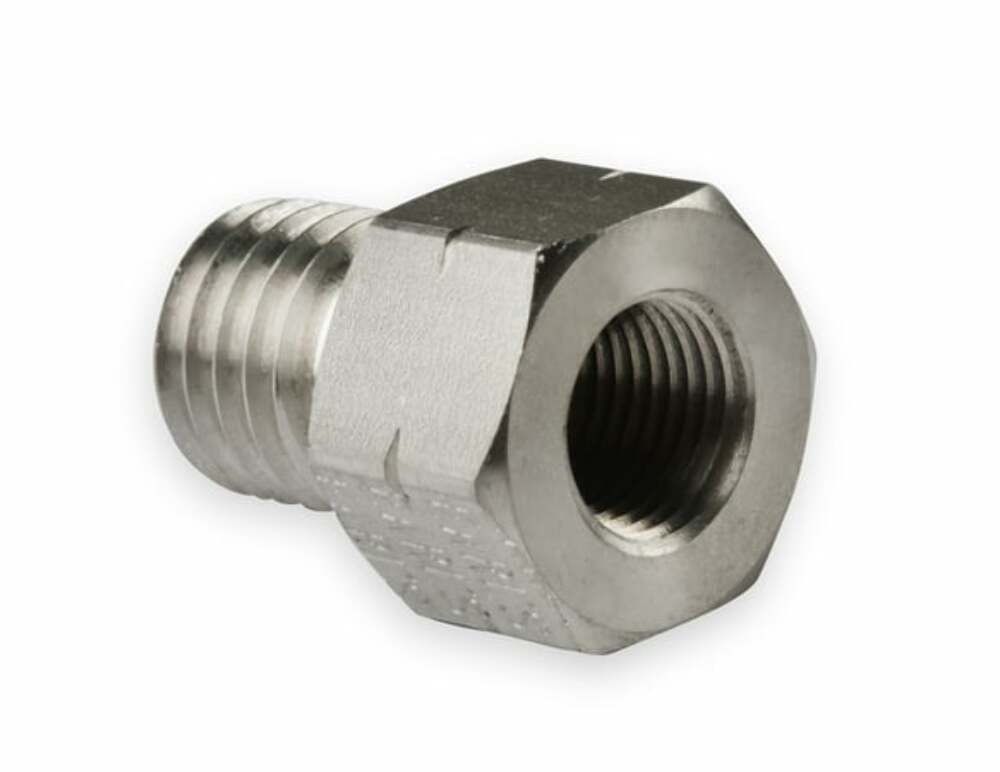

- (1) Adapter w/ Female 1/8” NPT Port - use w/ Sensor
- (1) Plug

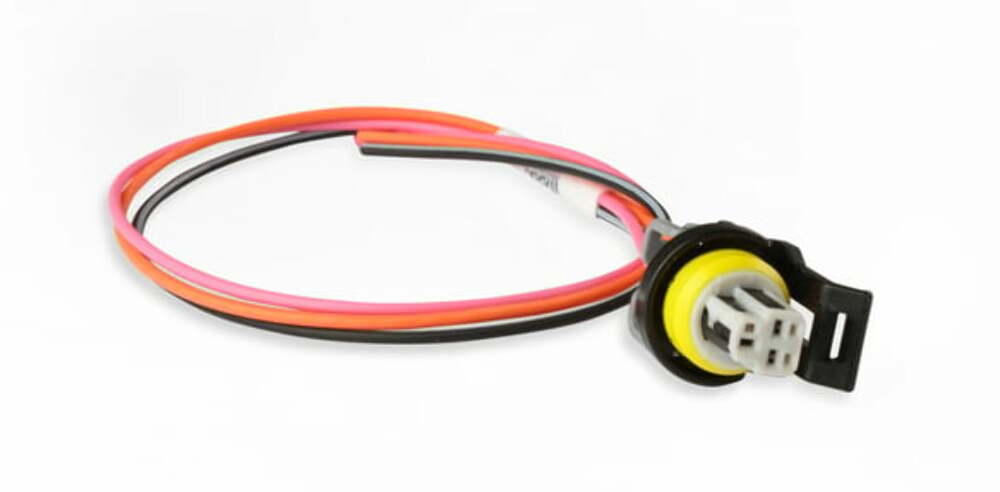

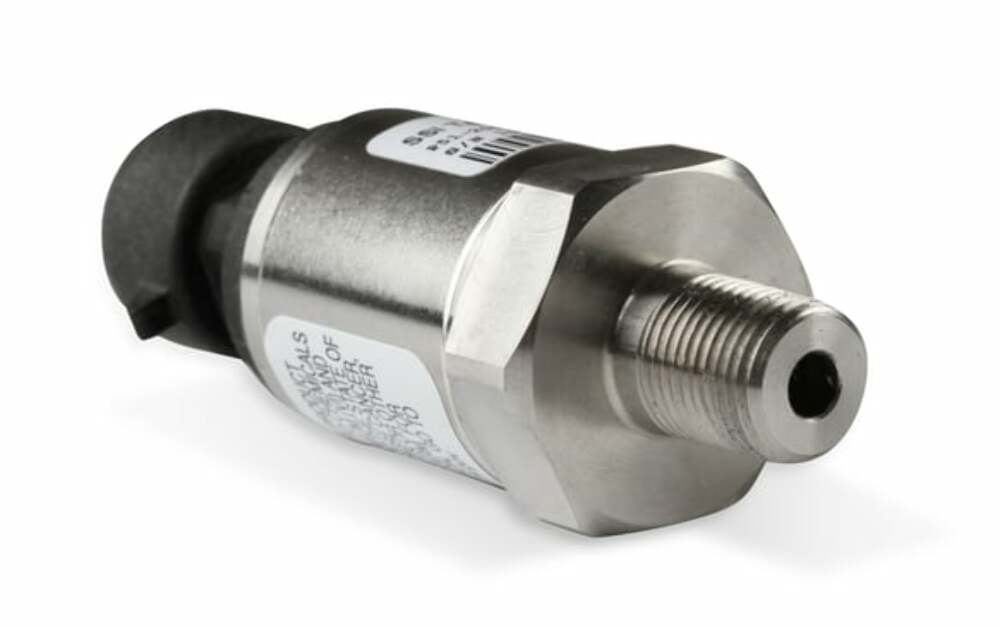

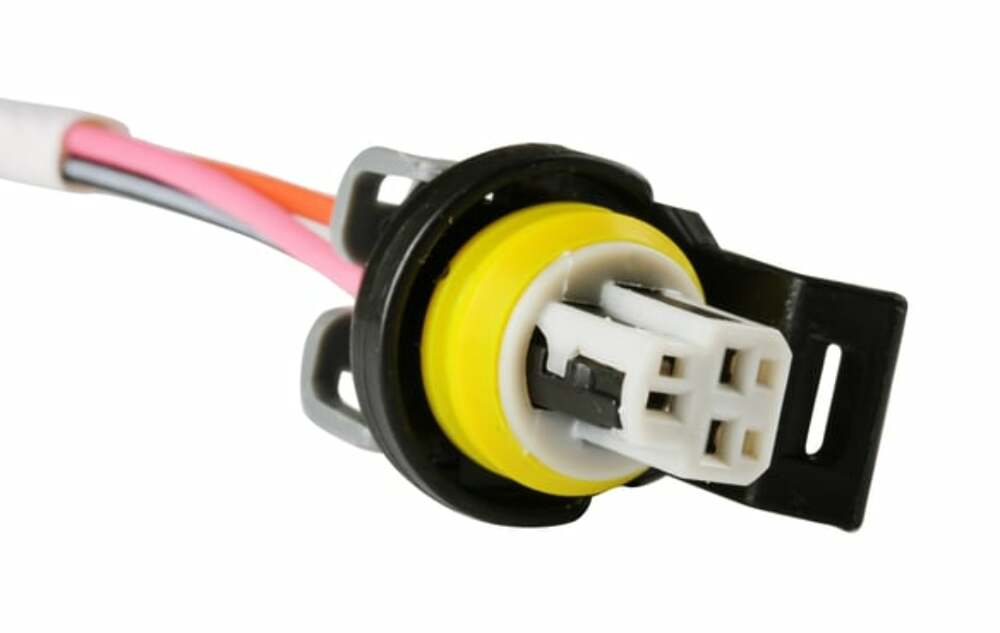

- (1) 200 PSI Oil Pressure Sensor w/ Pigtail Wiring Harness
- Ideal For Engine Swaps & Racing Applications that Don’t Use the OEM Vacuum Pump
- Sensor is Holley EFI Part # 554-103
Application:
| Year | Make | Model | Submodel | Engine Size |
|---|---|---|---|---|
| Universal |
Specs:
| Adapter NPT Size ( A ) | 1/8 NPT FEMALE |
|---|---|
| Adapter Type | Oil Pressure Adapter |
| Brand | Earls |
| Emission Code | 4 |
| Finish | Natural |
| Linear voltage output | .5 - 4.5 Volts |
| Material | Stainless Steel |
| Metric Thread ( B ) | 12MM x 1.75 |
| Pressure Range | 0-200 PSI |
| Product Line | Premium |
| Product Type | Gauge Adapter |
| Quantity Per Pkg. | 3 |
| reference voltage required | 5 Volts |
| Sensor Type | Oil Pressure Transducer |
| Warning | California Proposition 65 |
