Overview:
This plumbing kit simplifies the installation of a remote mounted electric water pump on the General Motors (GM) LS series engine. The special adjustable coolant cross-over tubes eliminate the Tees, Y-blocks & extra hose ends needed to make all the connections. The block adapters feature -12 AN O-ring ports for easy maintenance and a leak free seal. Kit includes (2) adjustable cross-over tubes, block adapters, (2) port fittings, and hardware. Billet aluminum construction w/ o-ring seals & black anodized finish.
Features:
- Simplifies the Plumbing of Remote Mounted Electric Water Pump by Eliminating Tees, Y-Blocks & Extra Hose Ends
- Billet Aluminum Construction w/ Black Anodized Finish – for a Great Look & Corrosion Protection

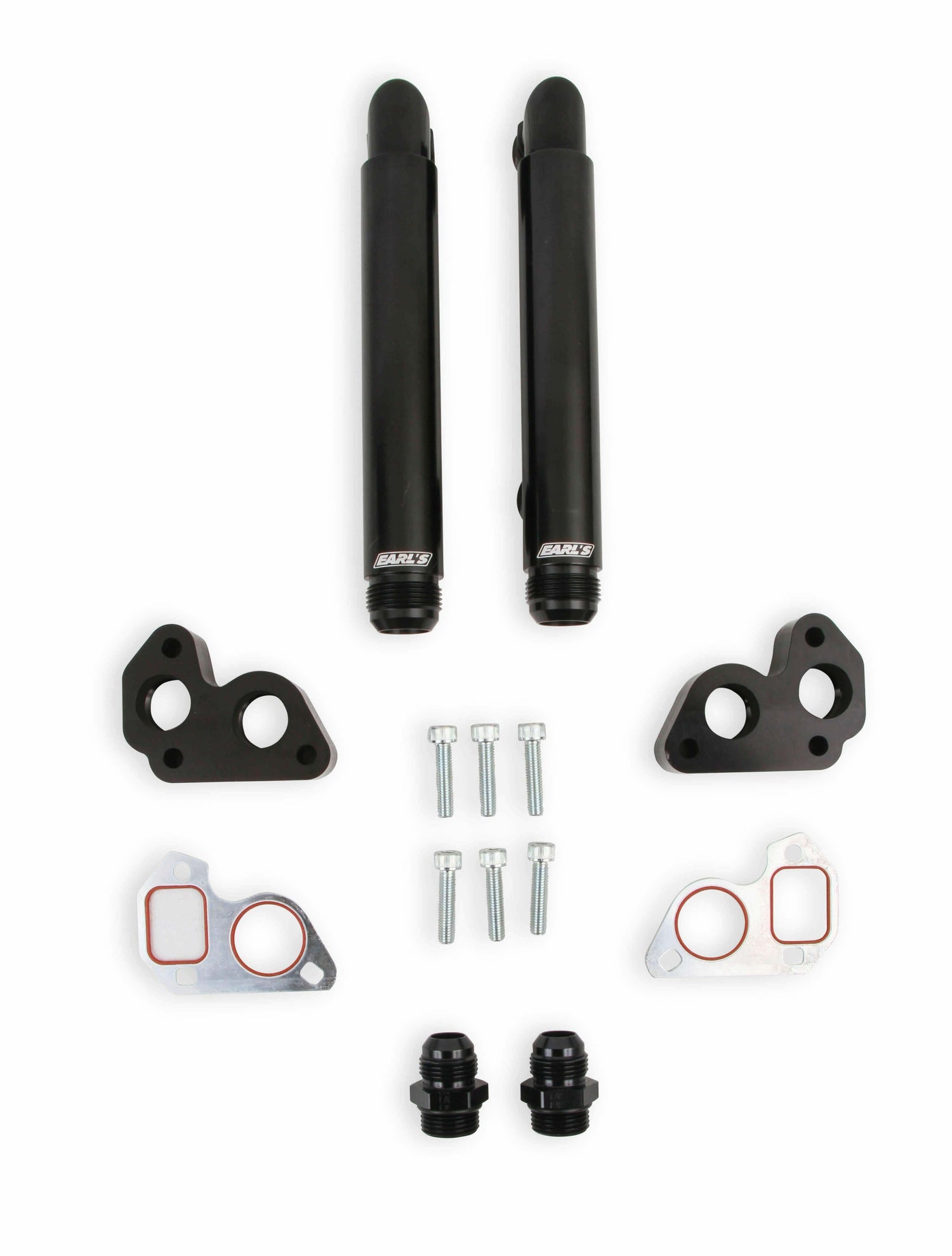

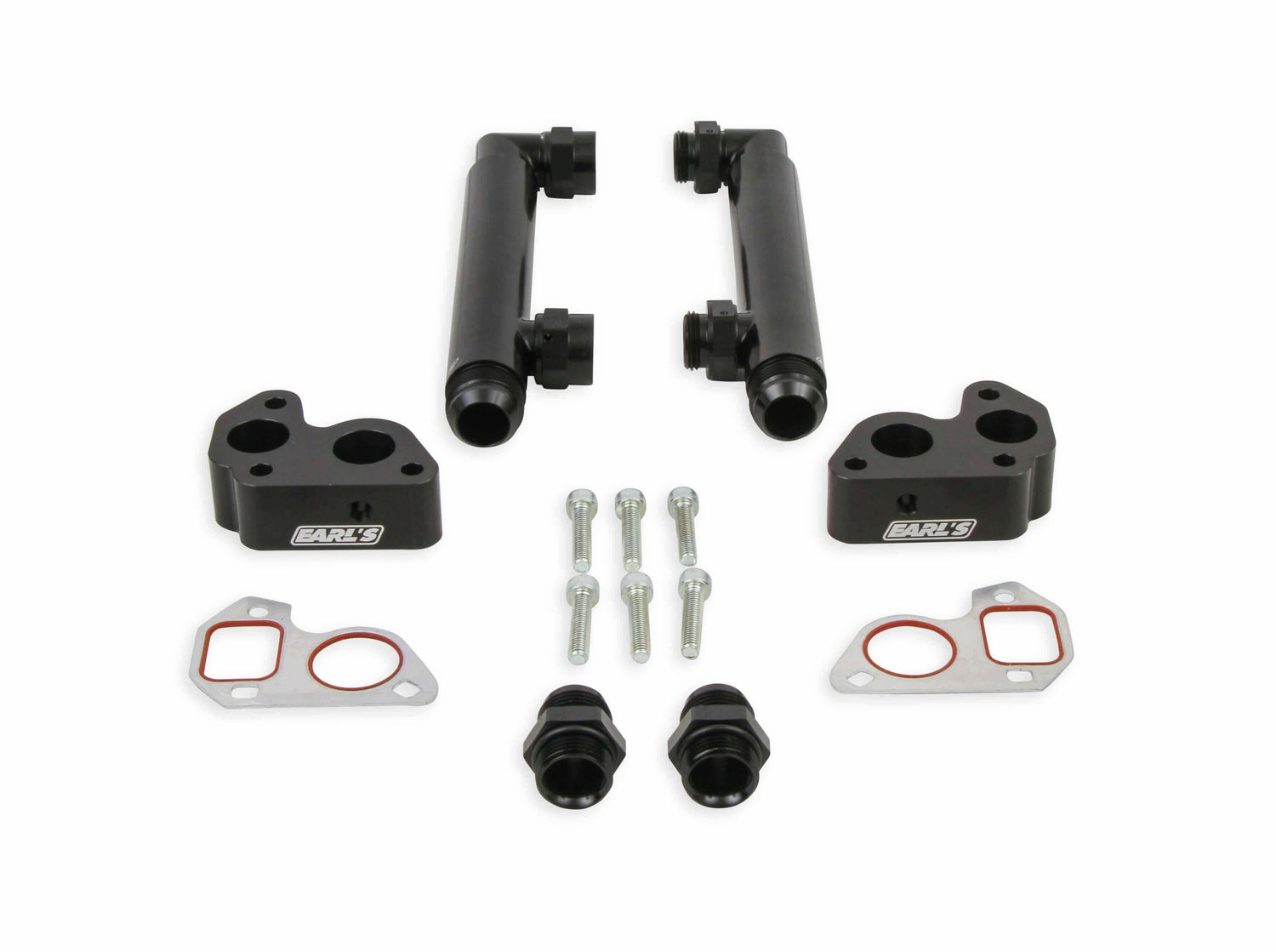

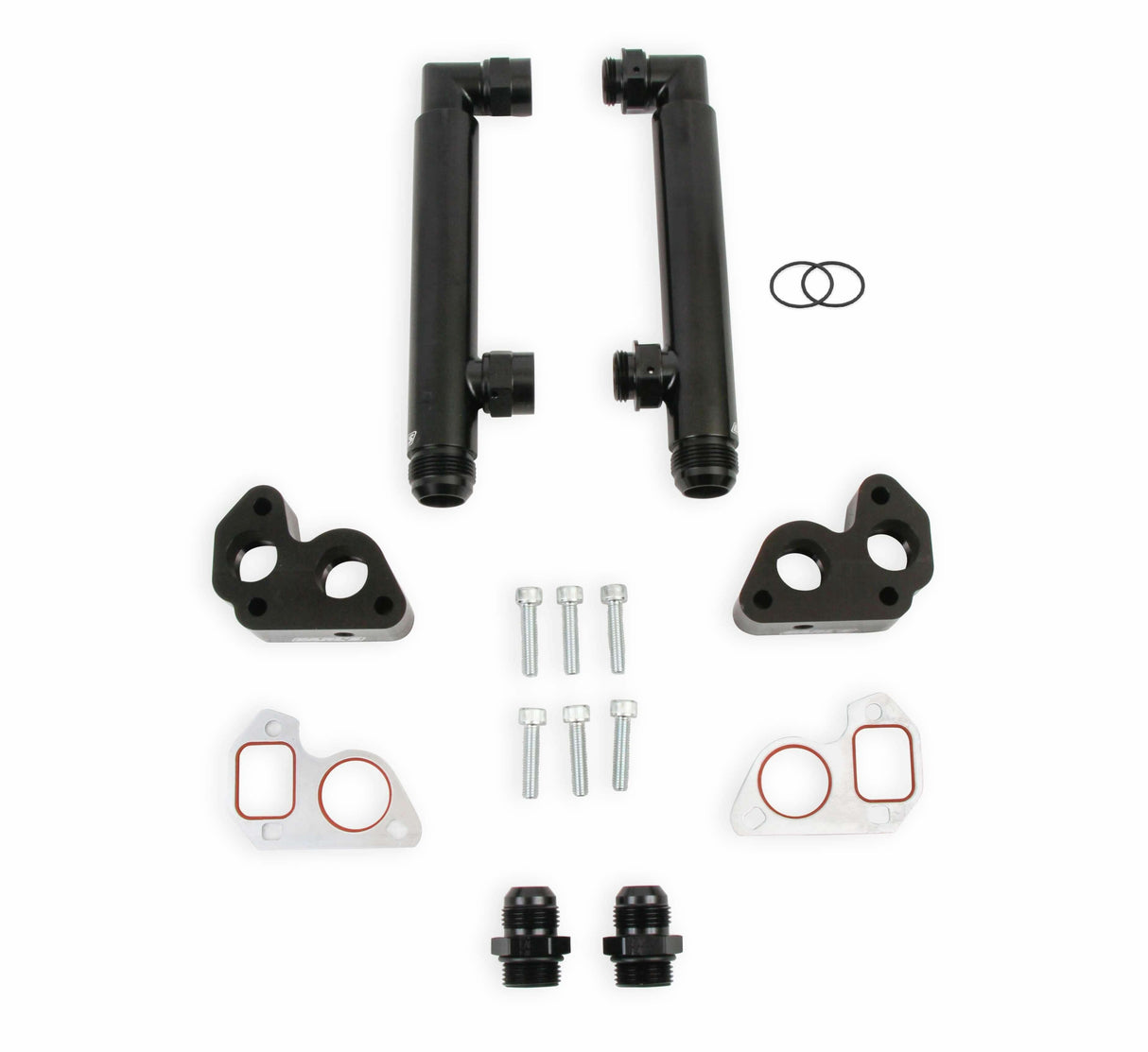

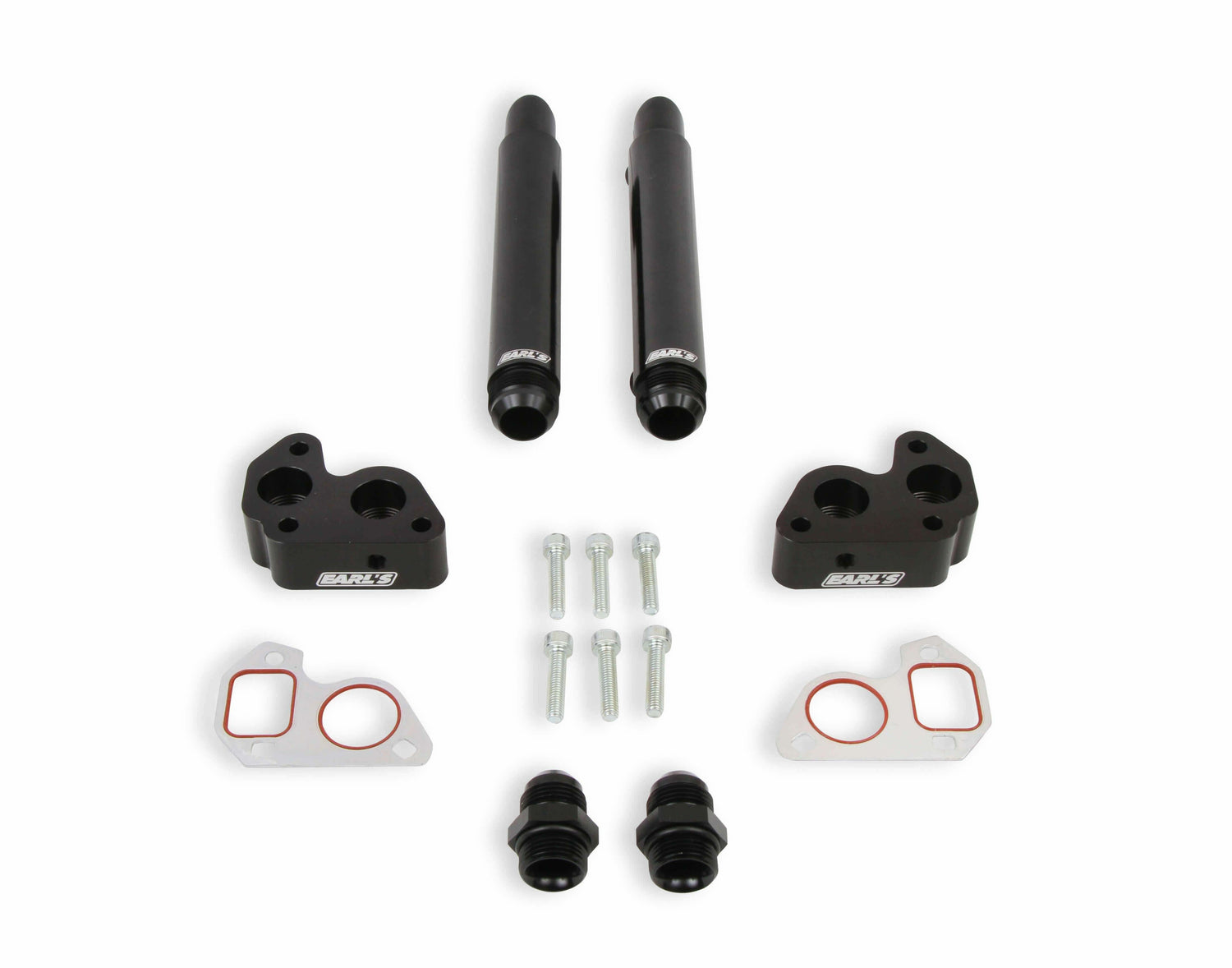

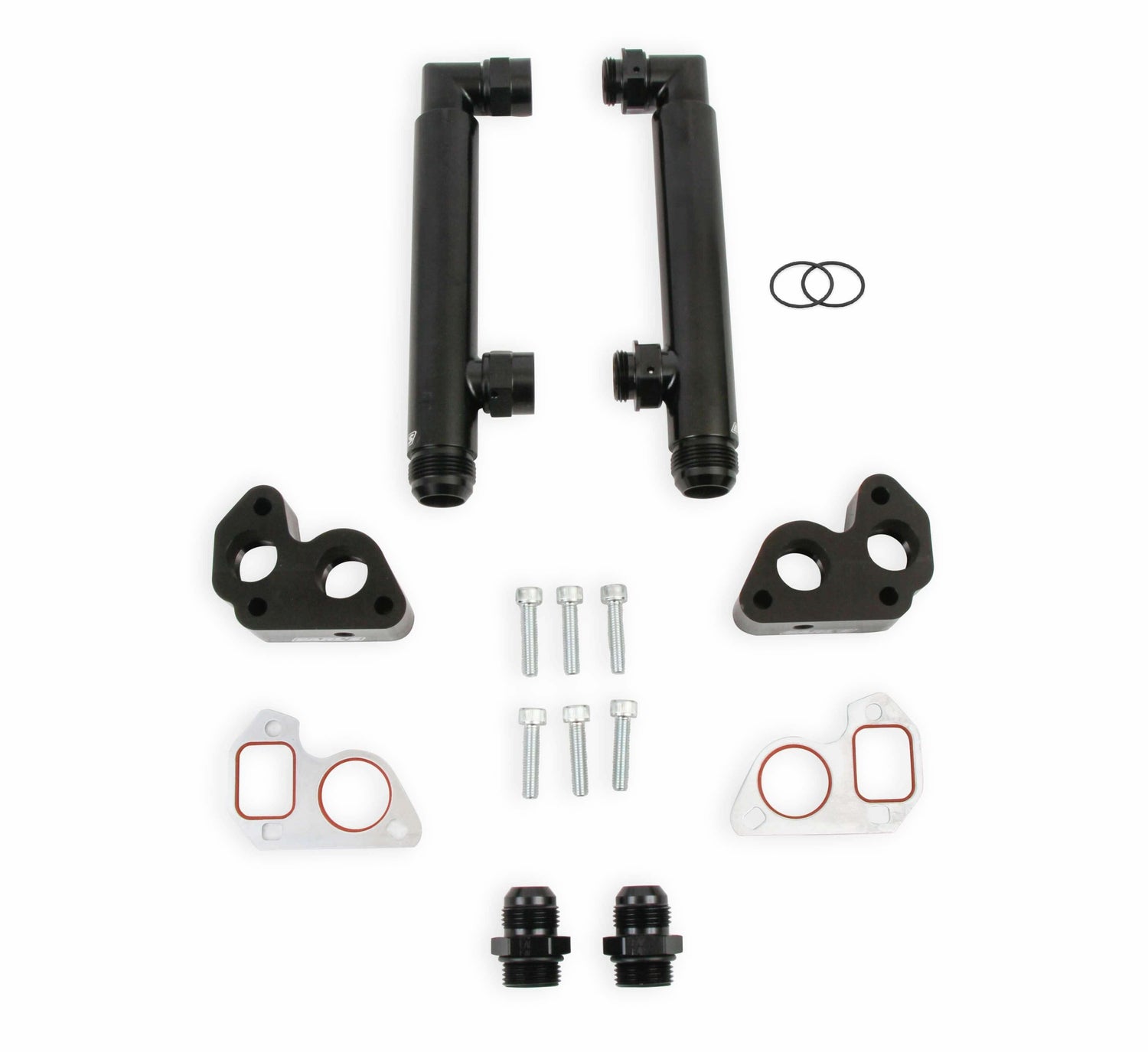

- Includes (2) Adjustable Coolant Cross-Over Tubes, Block Adapter Plates, (2) Port Fittings, and Hardware
- Inlet / Outlet Size: -16 AN Male Flares
- Flexible – Inlet & Outlet Can Be On Either Side of the Engine
- Simple & Clean Remote Electric Water Pump Plumbing for General Motors (GM) LS Series Engines
- Block Adapters Have 1/8” NPT Ports for Connection of the Steam Tube Hose
Application:
| Year | Make | Model | Submodel | Engine Size |
|---|---|---|---|---|
| Universal |
Specs:
| Adapter AN Size ( A ) | 12 AN FEMALE |
|---|---|
| Adapter AN Size ( B ) | 12 AN FEMALE |
| Adapter AN Size ( C ) | 16 AN MALE |
| Adapter Port Size ( B ) | 1-1/16-12 (AN 12) |
| Adapter Port Size (A) | 1-1/16-12 (AN 12) |
| Brand | Earls |
| Emission Code | 5 |
| Finish | Anodized Black |
| Fitting Centers | 6.8" to 10.5" |
| Material | Aluminum |
| Overall Length | 9.8" to 13.5" |
| Product Type | Water Pump Adapter |
