Earl's Performance | SKU:
610003ERL

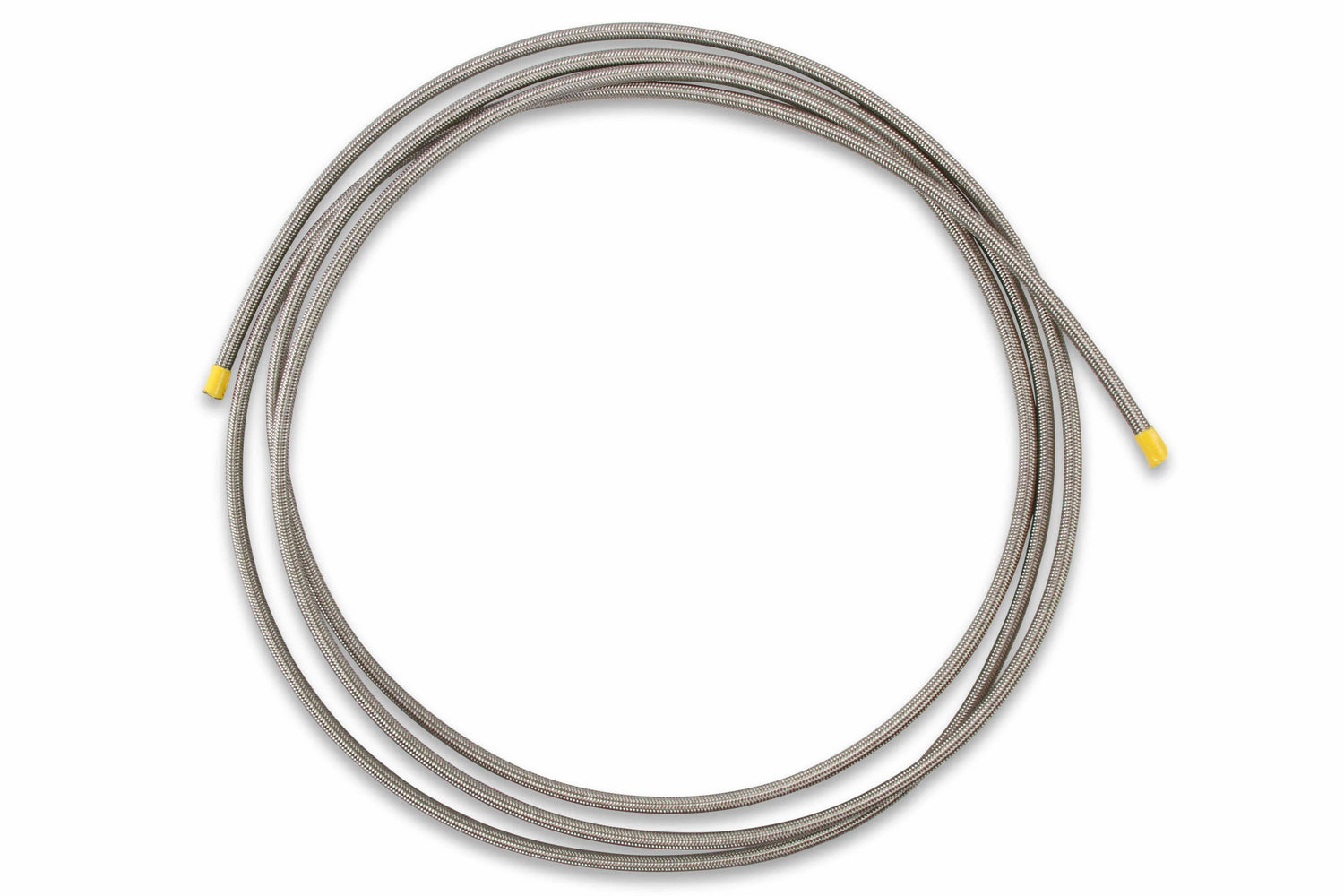

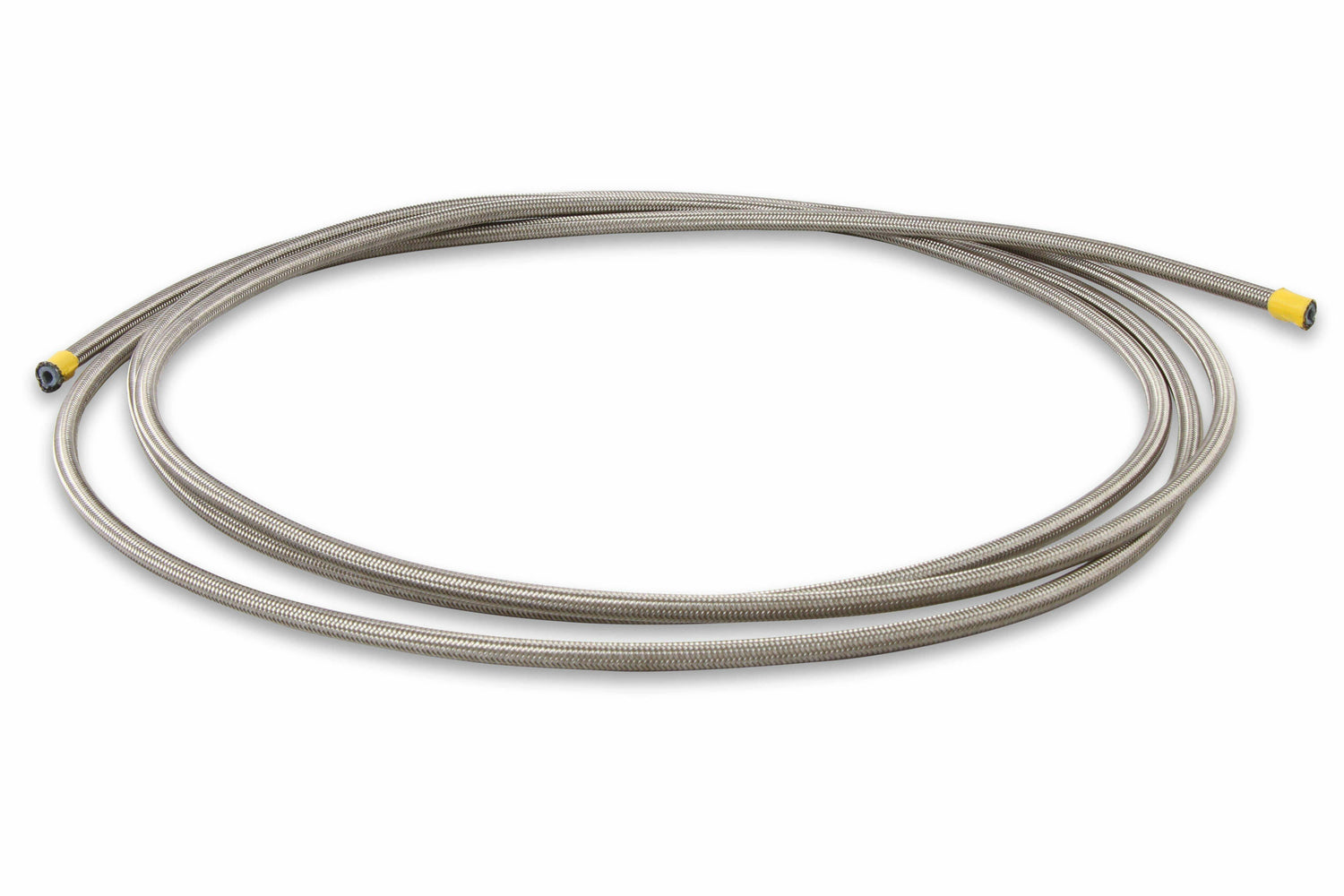

Earls Speed-Flex Hose Size -3 Stainless Steel Braid - 10 FT - 610003ERL
Regular price
$79.99 USD
Unit price
/
Unavailable
Shipping calculated at checkout.
Earls Speed-Flex Hose Size -3 Stainless Steel Braid - 10 FT - 610003ERL is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Fitment
Fitment
Warranty Information
Warranty Information
Customer service is our top priority and because we value your time and energy we ask you to visit our Contact Us page and reach out so that we may assist you in finding the correct warranty for your product. Please include your name, the name on the order, the order number, and the SKU of the product to ensure the quickest and most accurate response to your inquiry.
Description
Description
Overview:
Speed-Flex hose is intended for use with Speed-Seal hose ends only. No other Earl's hose end is intended for use with Speed-Flex hose. The use of other manufacturers hose ends is not recommended. The use of stainless braid protected PTFE lined brake hose assemblies will result in a firmer brake pedal, improved brake pedal "feel" and better brake modulation.Features:

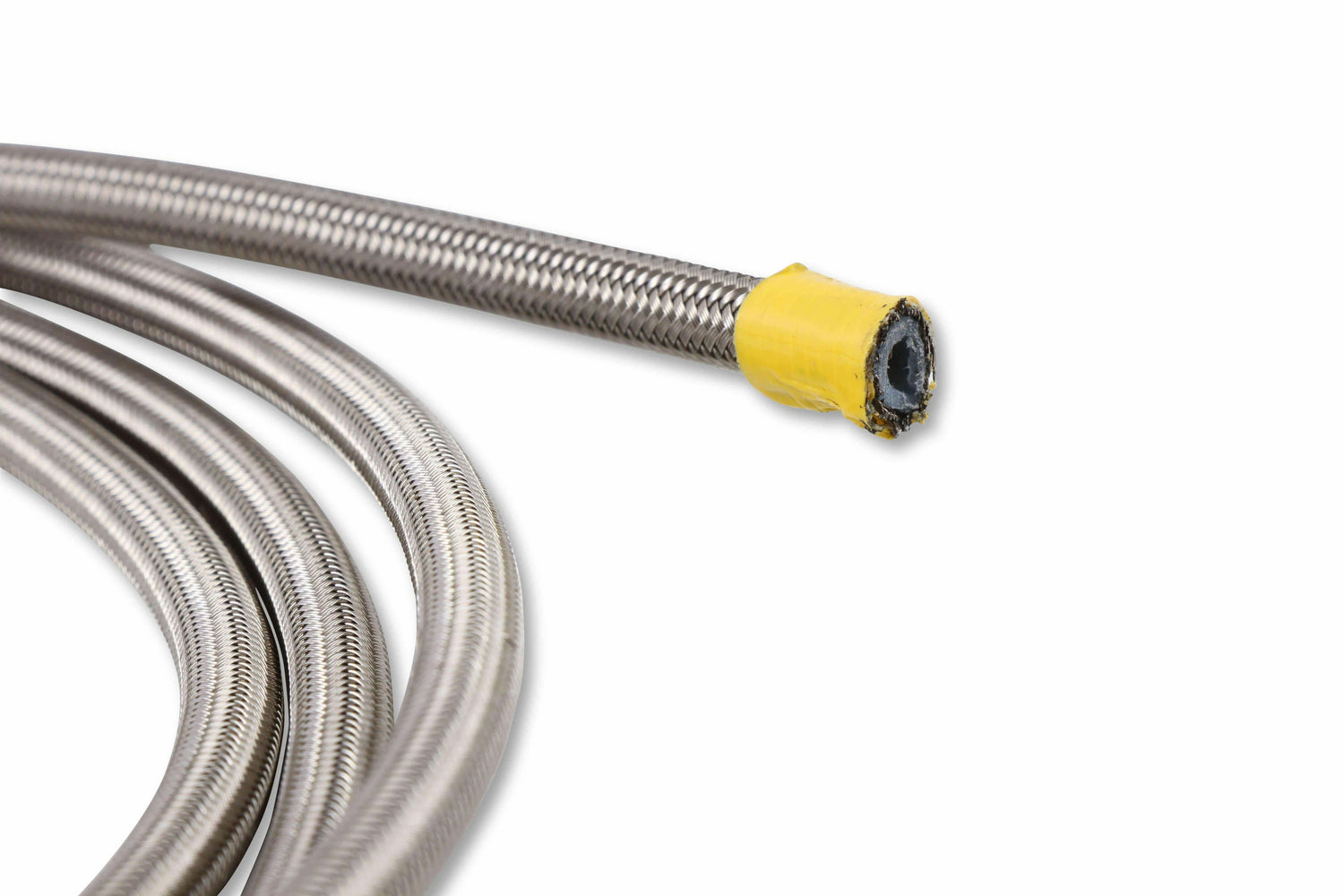

- Use Of Extruded PTFE

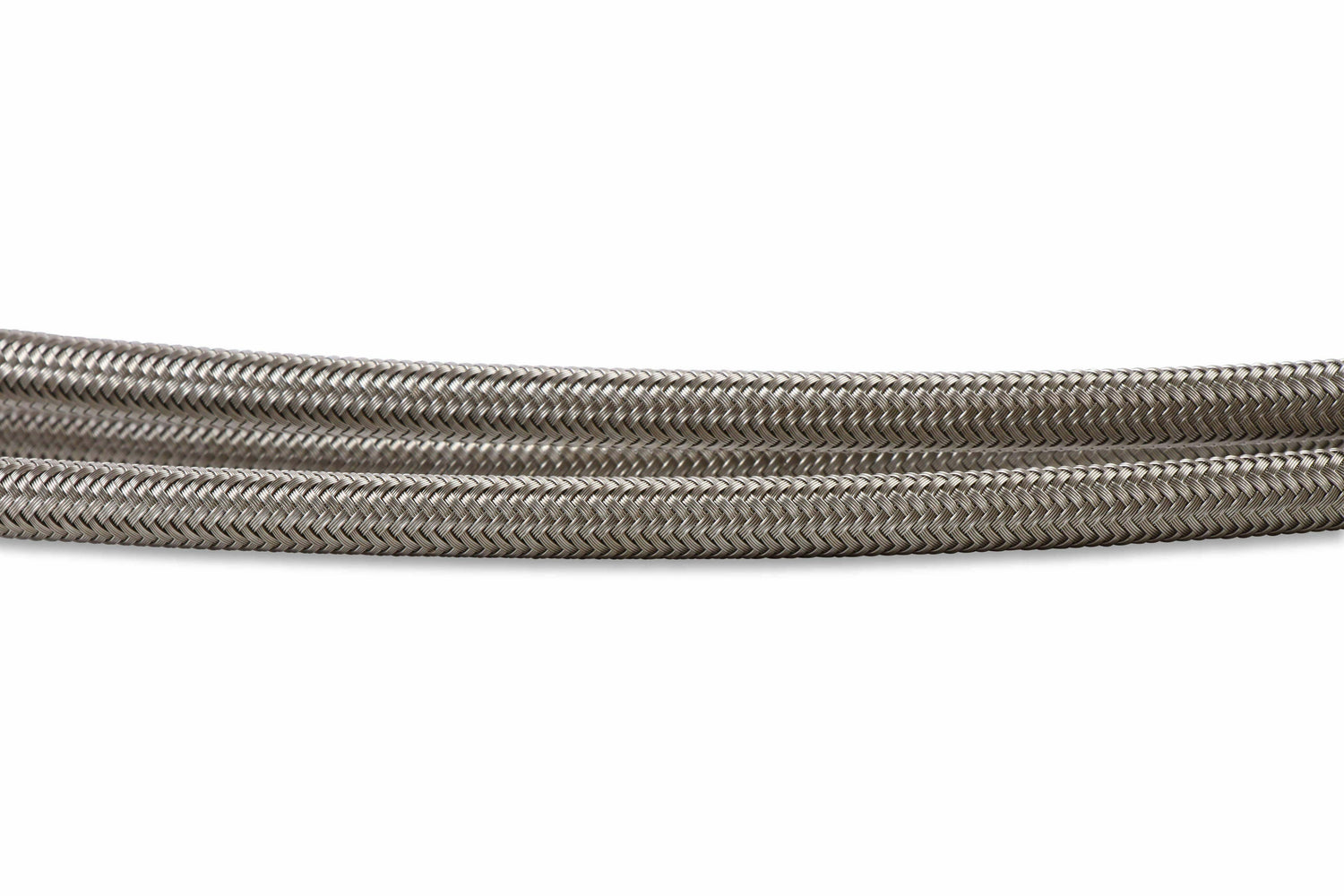

- Stainless Steel Outer Braid
- Solves Pedal Travel Problem
- Increased Brake Pedal Firmness
- Improved Abrasion Resistance
- Modulate Brakes Efficiently
- Increased Temp. Capacity
- Impervious To Any Fuel Blend
- -65° to +450° F Operating Temperature
Application:
| Year | Make | Model | Submodel | Engine Size |
|---|---|---|---|---|
| Universal |
Specs:
| Brand | Earls |
|---|---|
| Carbon Lined | No |
| Compatible Hose Ends | Speed-Seal |
| Emission Code | 5 |
| Fluid Type | Automatic Transmission Fluid |
| Fluid Type | Bio-Fuels |
| Fluid Type | Brake Fluid |
| Fluid Type | Coolant |
| Fluid Type | Diesel |
| Fluid Type | E85 |
| Fluid Type | Methanol/Alcohol |
| Fluid Type | Oil |
| Fluid Type | Pump Gas |
| Fluid Type | Race Gas |
| Fluid Type Rating - Automatic Transmission Fluid | 5 out of 5 Rating |
| Fluid Type Rating - Bio-Fuels | 5 out of 5 Rating |
| Fluid Type Rating - Brake Fluid | 5 out of 5 Rating |
| Fluid Type Rating - Coolant | 5 out of 5 Rating |
| Fluid Type Rating - Diesel | 5 out of 5 Rating |
| Fluid Type Rating - E85 | 5 out of 5 Rating |
| Fluid Type Rating - Methanol/Alcohol | 5 out of 5 Rating |
| Fluid Type Rating - Oil | 5 out of 5 Rating |
| Fluid Type Rating - Power Steering Fluid | 5 out of 5 Rating |
| Fluid Type Rating - Pump Gas | 5 out of 5 Rating |
| Fluid Type Rating - Race Gas | 5 out of 5 Rating |
| Fluid Type Rating - Vacuum | 1 out of 5 Rating |
| Hose Family | Speed-Flex |
| Hose Length | 10 Feet |
| Hose Outer Material | Stainless Steel |
| Hose Size | 3 AN |
| Inside Diameter | .120"-.143" |
| Max Pressure | 2000 psi |
| Max Working PSI | 2000 PSI |
| Min. Bend Radius | 1.5" |
| Outside Diameter | .214"-.258" |
| Product Type | Hose |
| PTFE Wall Thickness | .040" |
| Submersible in Fuel | Yes |
| Temperature Range | -65° to 450° F |
| Warning | California Proposition 65 |
