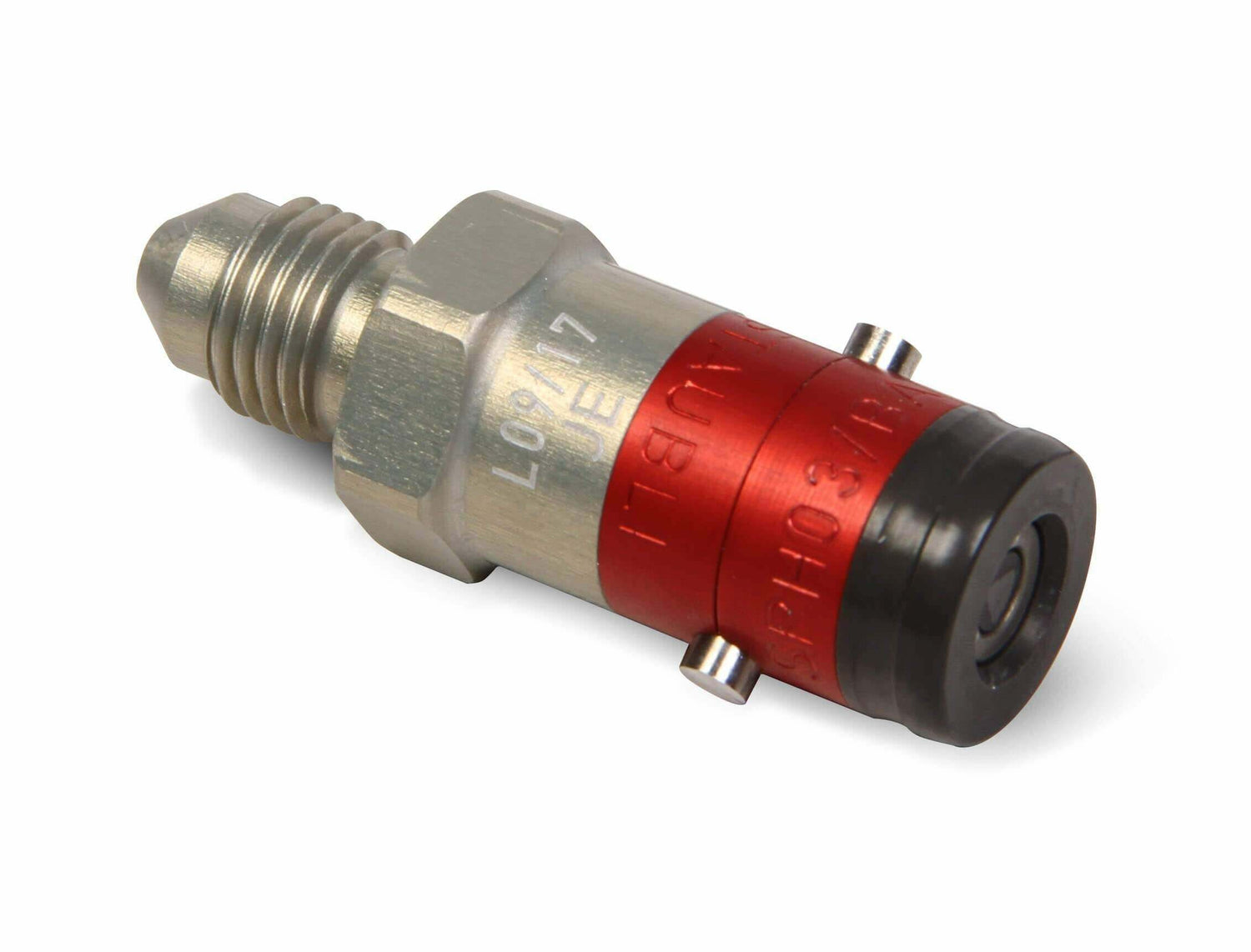

Earls SPH Bayonet Locking Dry Break - JE270103ERL
Earls SPH Bayonet Locking Dry Break - JE270103ERL is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Fitment
Fitment
Warranty Information
Warranty Information
Customer service is our top priority and because we value your time and energy we ask you to visit our Contact Us page and reach out so that we may assist you in finding the correct warranty for your product. Please include your name, the name on the order, the order number, and the SKU of the product to ensure the quickest and most accurate response to your inquiry.
Description
Description
Overview:
-3 AN Male Socket with 3/8-24 JIC End Fitting; EPDM Seals
Staubli SPH aluminum twist lock dry break couplings are available to transfer brake fluids, engine fuels and engine oils. The quick twist of the bayonet locks the coupler together. Available in standard and panel mount body styles in three different flow sizes. SPH flush face break couplers have a minimum loss of fluid leakage or air inclusion with double shut off ends which eliminates the need to purge the system. Internal design with large inside diameter provides optimal flow within the minimum outside diameter. Staubli SPH couplers that use Fluorocarbon (Viton)/FPM seals are for use with oils, fuels (non-ethanol), mineral greases and nitrogen and have an operating temperature -15F to 400F. Ethylene-Propylene seals (EPDM) are designed to work with all Glycol base brake fluids with operating temperature -4F to 302F.
Features:
- Non-Spill quick release design for added safety
- Light and compact
- Size range and compatibility to cover most, if not all, fluid and air application requirements
- High durability & dependability
Application:
| Year | Make | Model | Submodel | Engine Size |
|---|---|---|---|---|
| Universal |

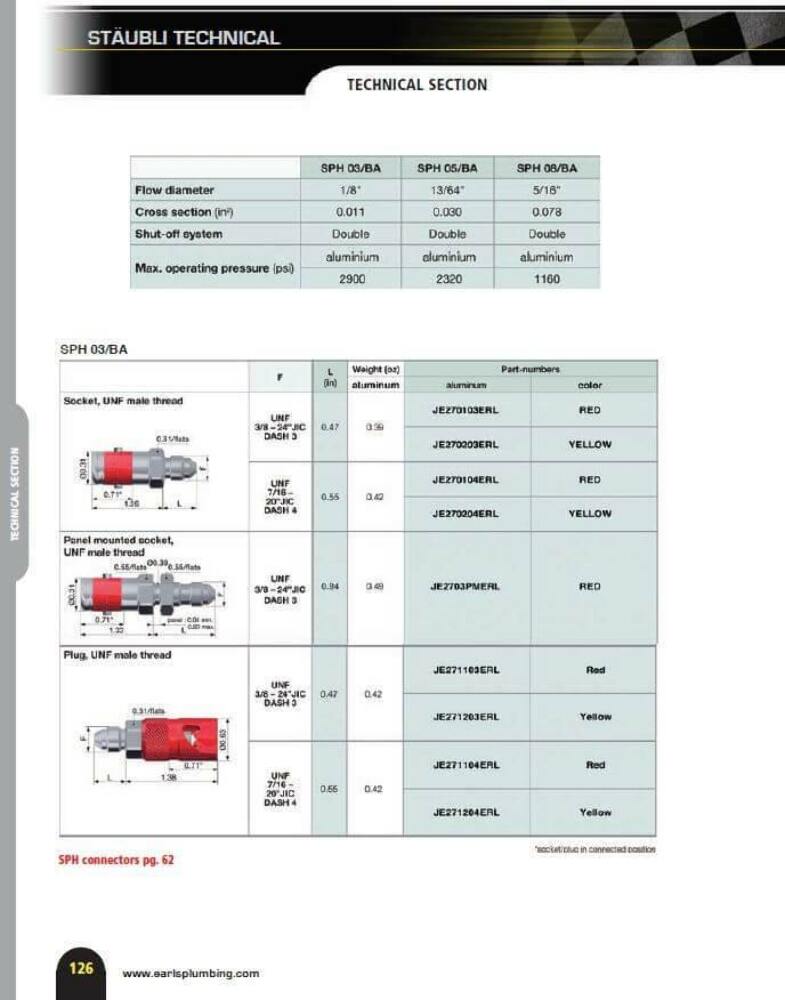

Specs:
| Adapter AN Size | 3 AN MALE |
|---|---|
| Adapter AN Size ( A ) | 3 AN MALE |
| Adapter Type | Dry Break Socket |
| Body Size | #3 |
| Brand | Earls |
| Dry Break Series | SPH |
| Emission Code | 5 |
| Finish | Anodized |
| Fluid Type | Brake Fluid |
| Inside Diameter | .125" |
| Material | Aluminum |
| Max Working Pressure | 2900 PSI |
| Product Type | Accessory |
| Seal Material | EDPM |
| Temperature Range | -4° F to 302° F |
| Warning | California Proposition 65 |
