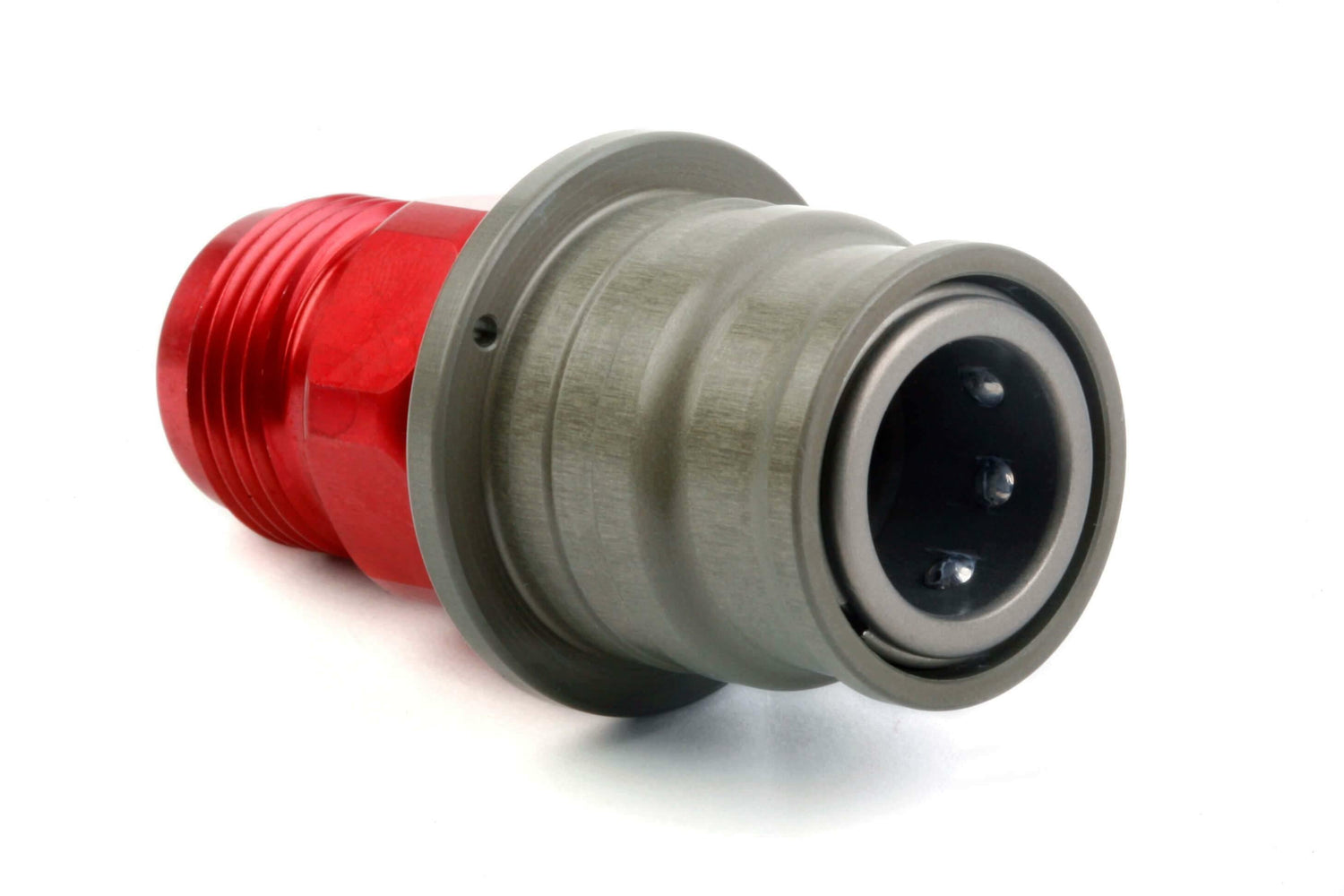

Earls SPT Ball Locking Dry Break - JKV280110ERL
Earls SPT Ball Locking Dry Break - JKV280110ERL is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Fitment
Fitment
Warranty Information
Warranty Information
Customer service is our top priority and because we value your time and energy we ask you to visit our Contact Us page and reach out so that we may assist you in finding the correct warranty for your product. Please include your name, the name on the order, the order number, and the SKU of the product to ensure the quickest and most accurate response to your inquiry.
Description
Description
Overview:
-10 AN Male SPT08 Scoket 7/8-14 JIC Kalrez Seals -10, JKV
Staubli SPT aluminum dry break couplings are available to transfer all types of fuel, ethanol & oil. The optional lanyard release feature ensures a safe fuel line break-away in accident situations. Flush face design ensures no leakage when disconnecting and the valve design ensures optimal flow with a minimum outside diameter. The compact size and light weight when combined with the high strength aluminum construction provides optimum performance. Seals for the SPT line are either Kalrez-Viton: Perfluoroelastomer in the fluid / Fluorosiliconelastomer (-45F to 500F) or Fluorocarbon (Viton)/FPM: all Fluorocarbons (-15F to 400F).
Features:
- Non-Spill quick release design for added safety
- Light and compact
- Size range and compatibility to cover most, if not all, fluid and air application requirements
- High durability & dependability
Application:
| Year | Make | Model | Submodel | Engine Size |
|---|---|---|---|---|
| Universal |
Specs:
| Adapter AN Size ( A ) | 10 AN MALE |
|---|---|
| Adapter Type | Dry Break Socket |
| Body Size | #8 |
| Brand | Earls |
| Dry Break Series | SPT |
| Emission Code | 5 |
| Finish | Anodized |
| Fluid Type | Oil |
| Fluid Type | Race Gas |
| Inside Diameter | .3125" |
| Material | Aluminum |
| Max Working Pressure | 174 PSI |
| Product Type | Accessory |
| Seal Material | Kalrez-Viton |
| Temperature Range | -45° F to 500° F |
| Warning | California Proposition 65 |
