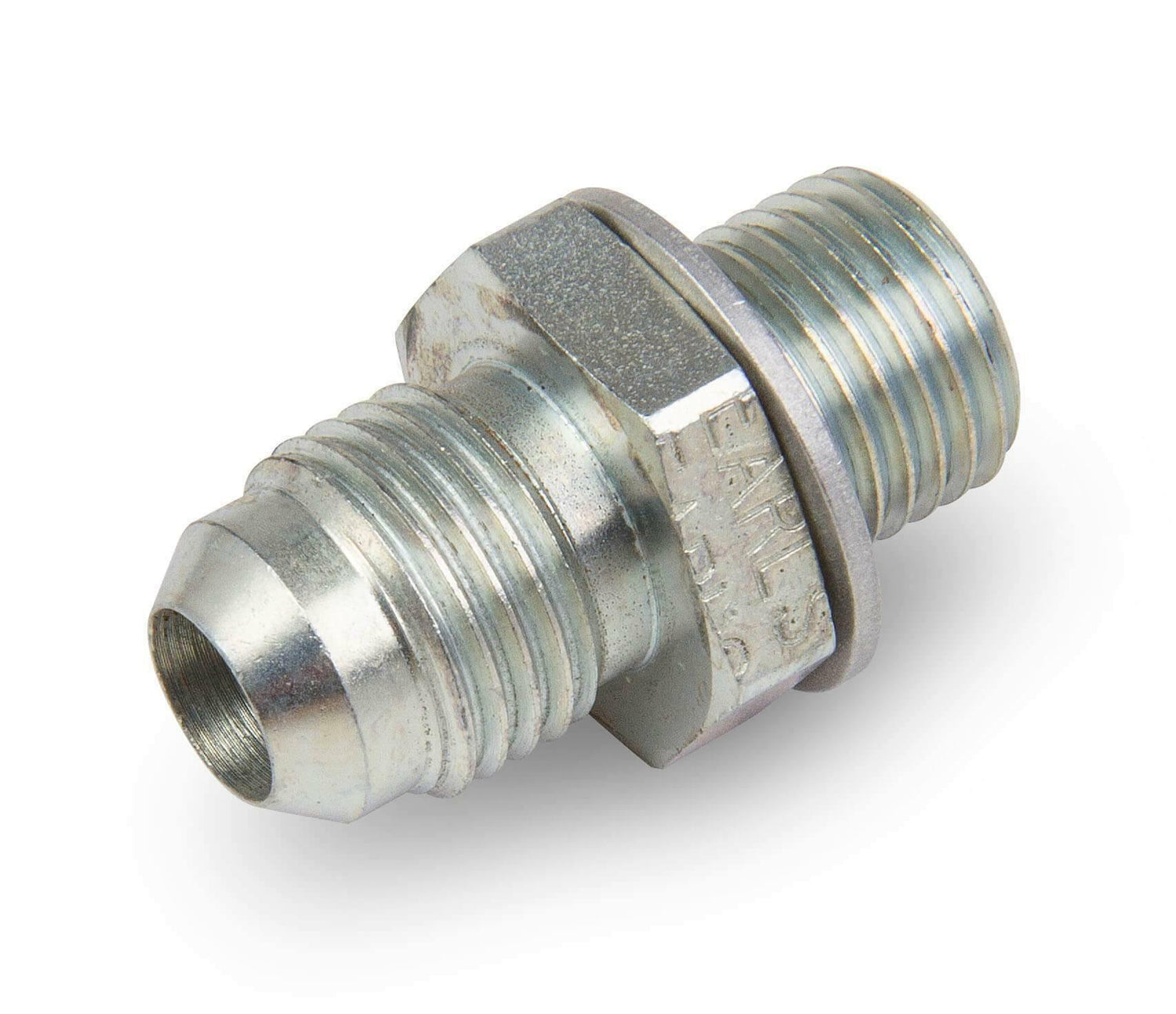

Earls Straight TransmissionAdapter-6 Male to1/4-18NPSM Male-ShortFront-961980ERL

Regular price
Regular price
Sale price
Unit price
Sold out


There are always clearance challenges when doing an engine swap. One of these is routing the transmission cooler lines off the side of the transmission while cleaning the trans tunnel. Earl's makes this easier with their line adapters. Integrating into the GM transmission and adapting to AN lines allows additional clearance and freedom that the original hard lines cannot. Adapters are available for the popular GM Transmissions 4L80E (Fits Transmissions w/ 1/4-18 NPSM Threads Short/Front). Order Two adapters (one short for the front and one long for the rear to match the threads on your transmission). The thread size varies depending on the application.


  • Nickel Plated Steel Construction
  • High Pressure Capabilities
  • Available for Any Plumbing Situation And Many Custom Applications.

Year Make Model Submodel Engine Size

Adapter AN Size ( A ) 6 AN MALE
Adapter NPT Size ( B ) 1/4-18 NPSM MALE
Adapter Type Transmission Cooler
Brand Earls
Emission Code 5
Finish Nickel
Material Steel
Product Type Transmission Cooler
Transmission 4L80E
Warning California Proposition 65
