Earls Ultra FlexHose Size10 Braid SoldPerFoot ContinuousLength upto25'-660010ERL
Earls Ultra FlexHose Size10 Braid SoldPerFoot ContinuousLength upto25'-660010ERL is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Fitment
Fitment
Warranty Information
Warranty Information
Customer service is our top priority and because we value your time and energy we ask you to visit our Contact Us page and reach out so that we may assist you in finding the correct warranty for your product. Please include your name, the name on the order, the order number, and the SKU of the product to ensure the quickest and most accurate response to your inquiry.
Description
Description
Overview:

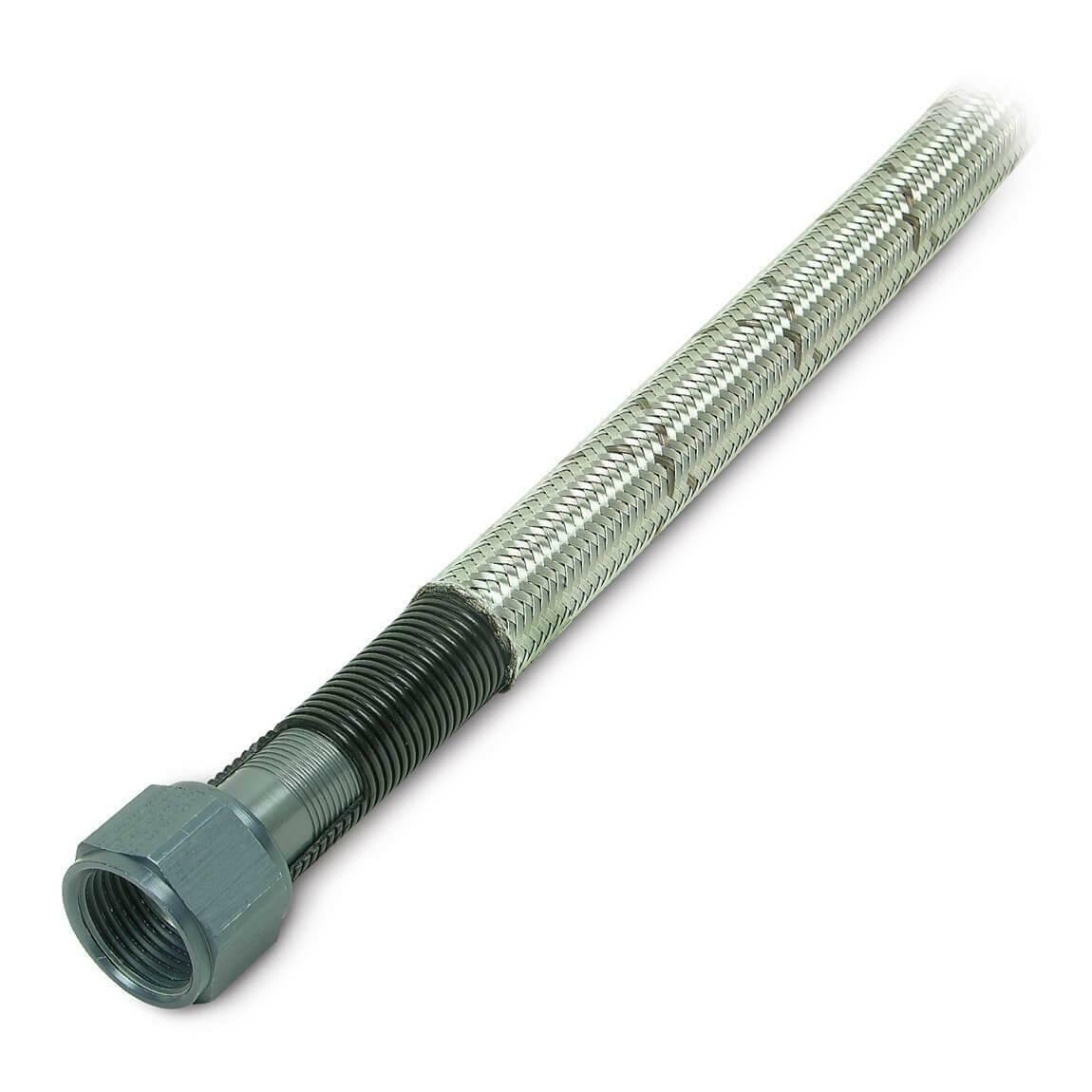

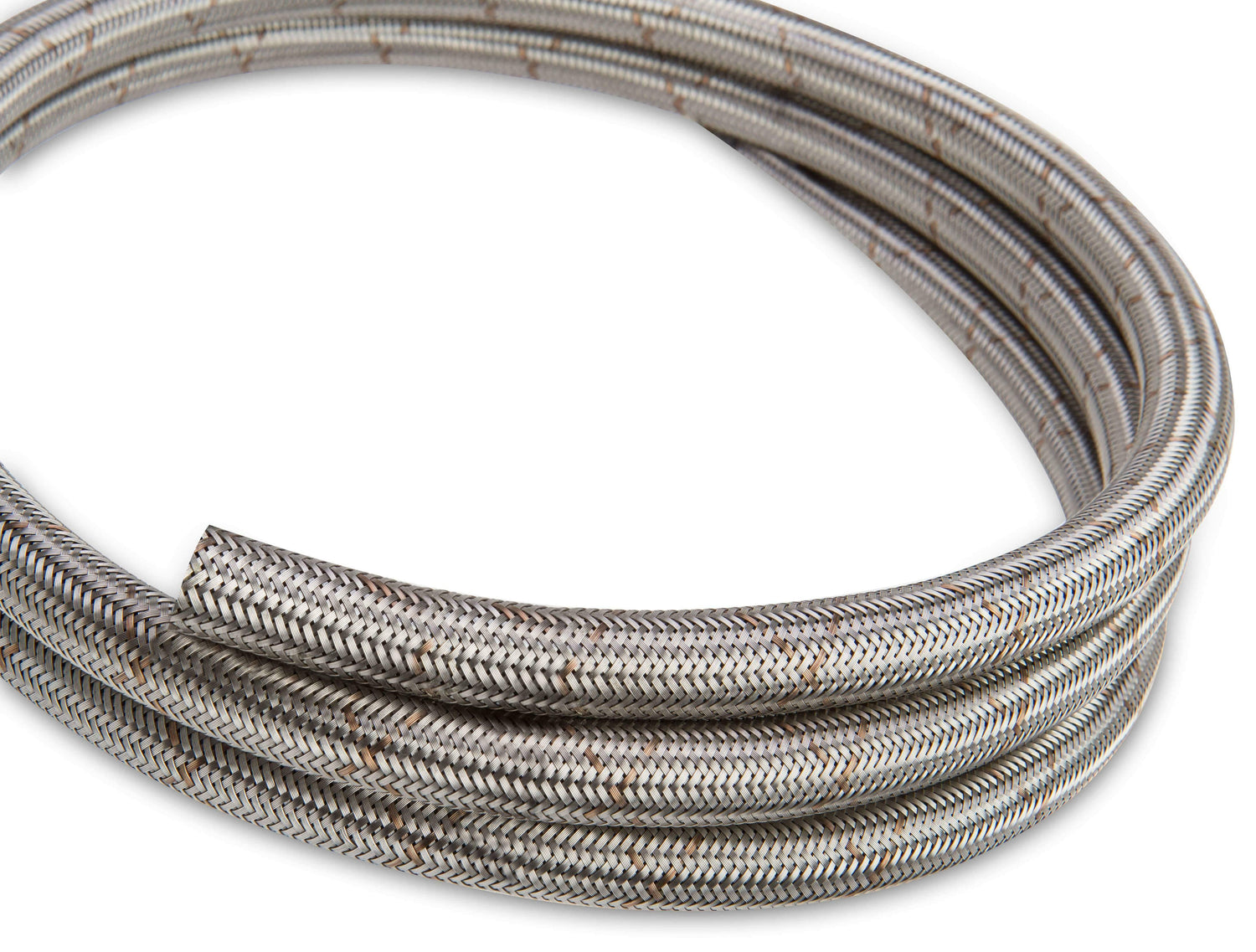

We have taken the same inner tubing of our Kevlar® hose, and covered it with a high tensile grade 304 stainless steel. You still get all of the same flow rate and flexibility advantages of the Kevlar® hose but with additional protection. The carbon lined inner tubing (for static dissipation) is smooth bore with large ID for maximum flow and convoluted exterior support for incredible flexibility. Ultra-Flex stainless is 40% lighter and has an average of 14% larger ID than our premium stainless braided rubber hose. Being made of PTFE resin, it has a large range of applications: Fuel, Oil, Water, Methanol, and Air as well as a very high vacuum rating - 29Hg. The new stainless hose also accepts all of the same hose ends and crimp collars made for the Kevlar® Ultra-Flex line. This means that the same crimper and dies used for the Kevlar® hose can be used with the new stainless, so your Earl's universal crimper and dies are all you need for all of your high end line assemblies.(All trademarks are property of their respective owners.)
Features:
- Covered in aircraft quality 304 grade stainless steel wire
- High-Temp. Smooth bore PTFE tubing
- Convoluted outer wall of inner tube for incredible flexibility
- Remains Flexible at Temperatures Between -94°F and +510°F
- Bend radius of 1.772"
- Clean and Fast Flowing
- Sold per foot
Application:
| Year | Make | Model | Submodel | Engine Size |
|---|---|---|---|---|
| Universal |
Specs:
| Brand | Earls |
|---|---|
| Compatible Hose Ends | Ultra-Flex |
| Crimping Die | 22MM - D10022BERL |
| Emission Code | 5 |
| Final Crimp O.D. Range | .925"-.937" |
| Fluid Type | Automatic Transmission Fluid |
| Fluid Type | Bio-Fuels |
| Fluid Type | Coolant |
| Fluid Type | Diesel |
| Fluid Type | E85 |
| Fluid Type | Methanol/Alcohol |
| Fluid Type | Oil |
| Fluid Type | Pump Gas |
| Fluid Type | Race Gas |
| Fluid Type Rating - Automatic Transmission Fluid | 5 out of 5 Rating |
| Fluid Type Rating - Bio-Fuels | 5 out of 5 Rating |
| Fluid Type Rating - Coolant | 5 out of 5 Rating |
| Fluid Type Rating - Diesel | 5 out of 5 Rating |
| Fluid Type Rating - E85 | 5 out of 5 Rating |
| Fluid Type Rating - Methanol/Alcohol | 5 out of 5 Rating |
| Fluid Type Rating - Oil | 5 out of 5 Rating |
| Fluid Type Rating - Pump Gas | 5 out of 5 Rating |
| Fluid Type Rating - Race Gas | 5 out of 5 Rating |
| Fluid Type Rating - Vacuum | 5 out of 5 Rating |
| Hose Family | Ultra-Flex |
| Hose Length | BULK |
| Hose Outer Material | Stainless Steel |
| Hose Size | 10 AN |
| Inside Diameter | .658" |
| Max Vacuum | 29 in Hg |
| Max Working PSI | 955 PSI |
| Maximum Continuous Length | 25 Feet |
| Min. Bend Radius | 1.772" |
| Outside Diameter | .819" |
| Product Type | Hose |
| Submersible in Fuel | Yes |
| Warning | California Proposition 65 |
