Earls UltraPro Ball Valve -6 AN Male to Male - 230506ERL

230506ERL
Regular price
$105.95
Regular price
Sale price
$105.95
Unit price
per
Availability
Sold out
Payment Forms Accepted at Checkout

Overview:

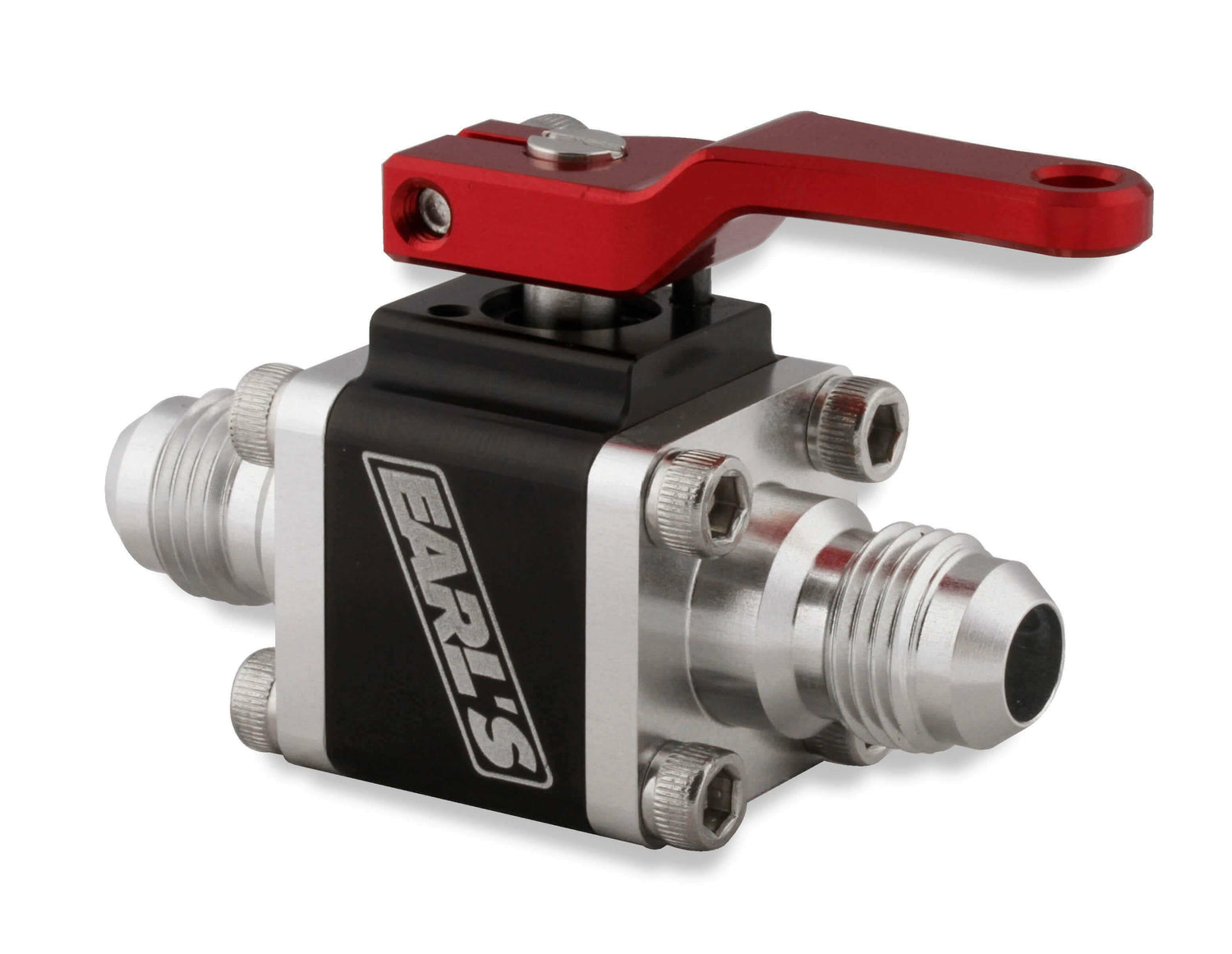

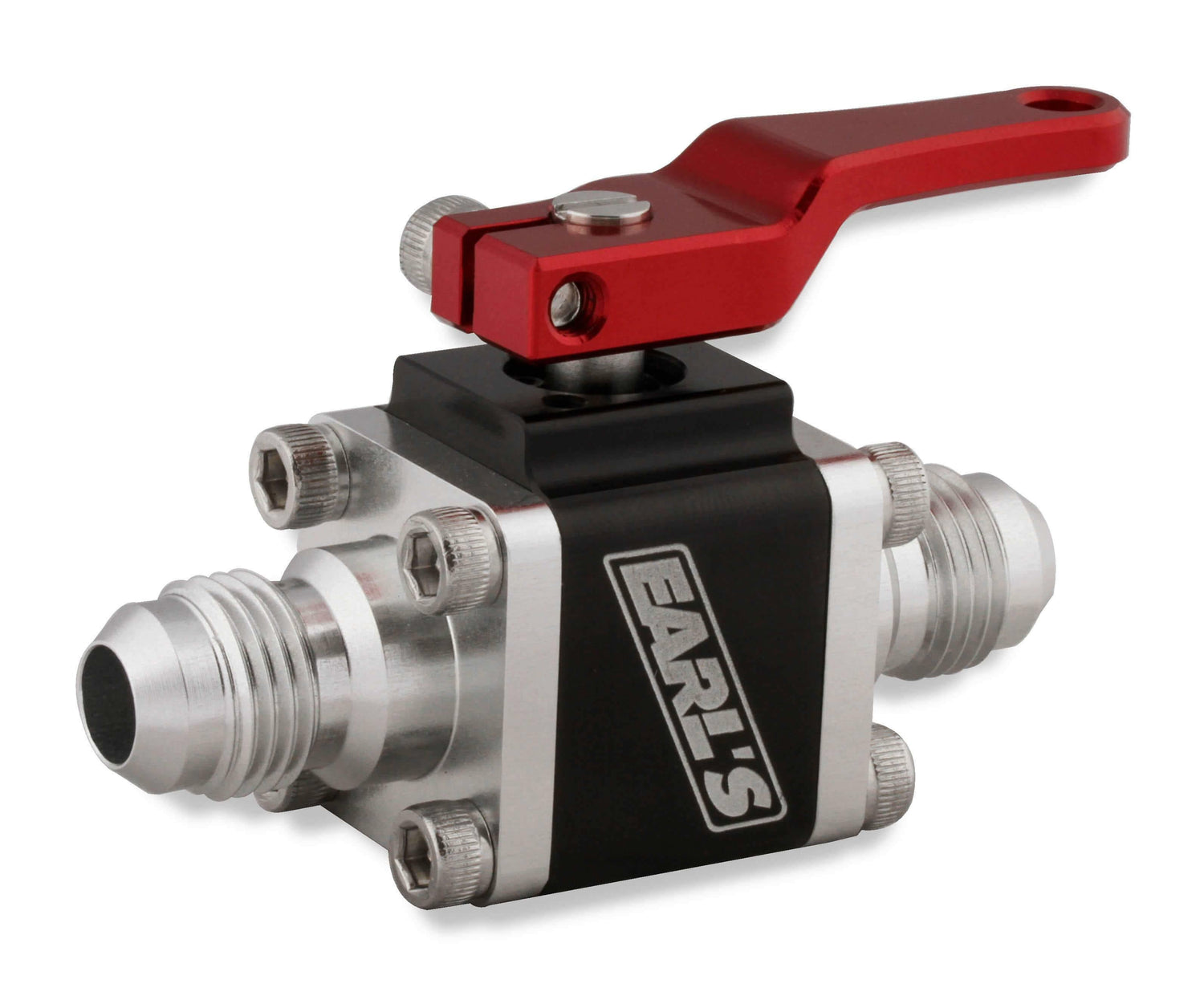

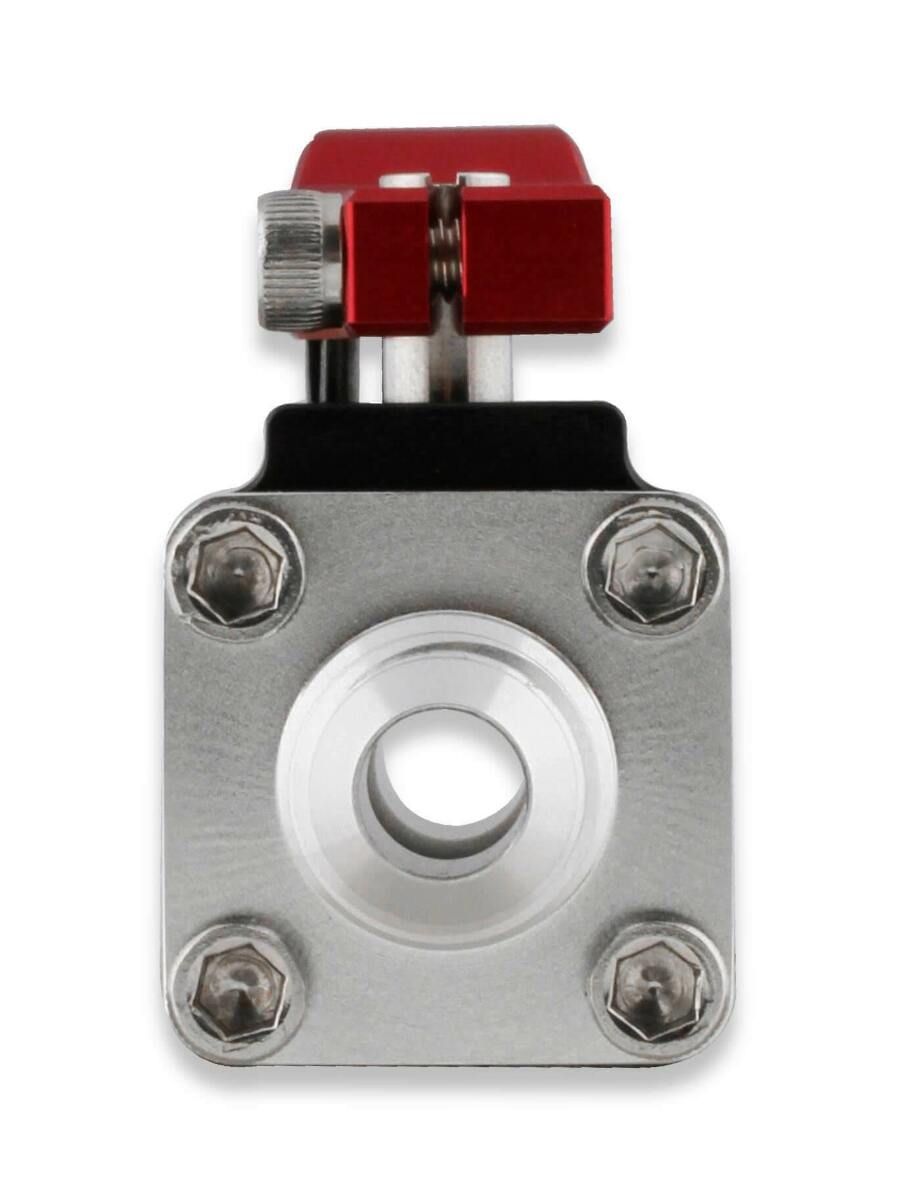

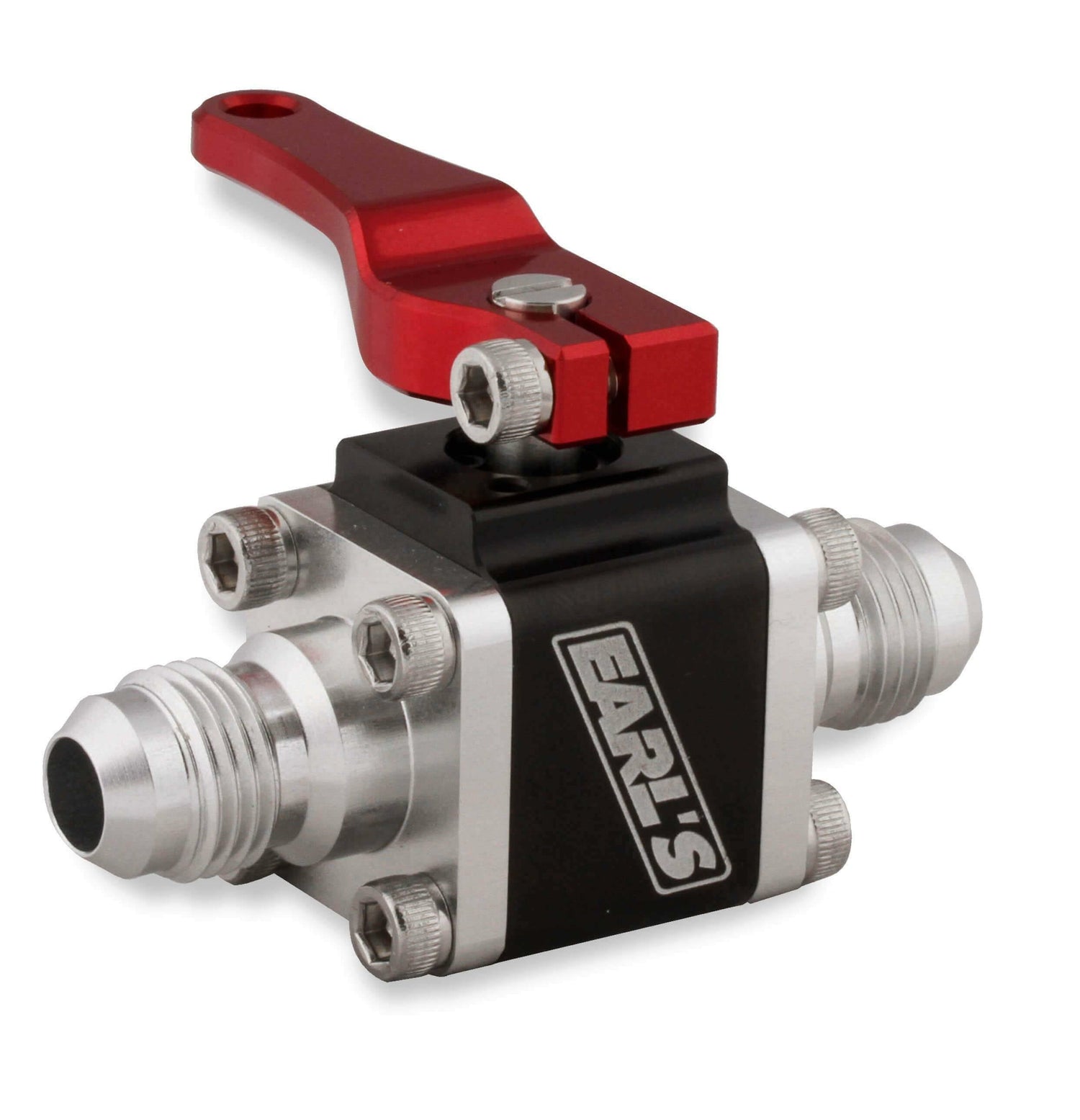

Earl's UltraPro ball valves are ideal for all racing applications & provide full uninterrupted flow when opened. The lightweight modular design is easy to rebuild and can be panel mounted using optional billet mounting brackets. The glass reinforced PTFE seals are compatible with gasoline, racing fuels, methanol, alcohol, E85, oil, water & coolant. The small body valves are available in -6 & -8 AN sizes, and the large body valves are available in -10 & -12 AN sizes (choose from male/male, or male/female styles). Attractive clear & black anodized finish w/ red handle. The handle features a 1/4" hole for cable operation & is curved outward from the body for easy operation w/ extra finger clearance (even w/ racing gloves). These racing ball valves are ideal for use in most fuel and oil systems (i.e. fuel shut-off valves, oil accumulators/accusump™ systems, and many other applications).

Features:

  • Light Weight Aluminum Billet Construction – 6061-T6 Aluminum & Stainless Steel Components
  • Hard Coated PTFE Aluminum Ball
  • Design Provides Full Uninterrupted Flow When Opened
  • Finish: Anodized in Clear & Black w/ Red Handle
  • Glass Reinforced PTFE Seals – Compatible w/ Methanol, Alcohol, Race Gas, Pump Gas, E85, Bio-Fuels, Diesel, Oil, ATF, and Coolant

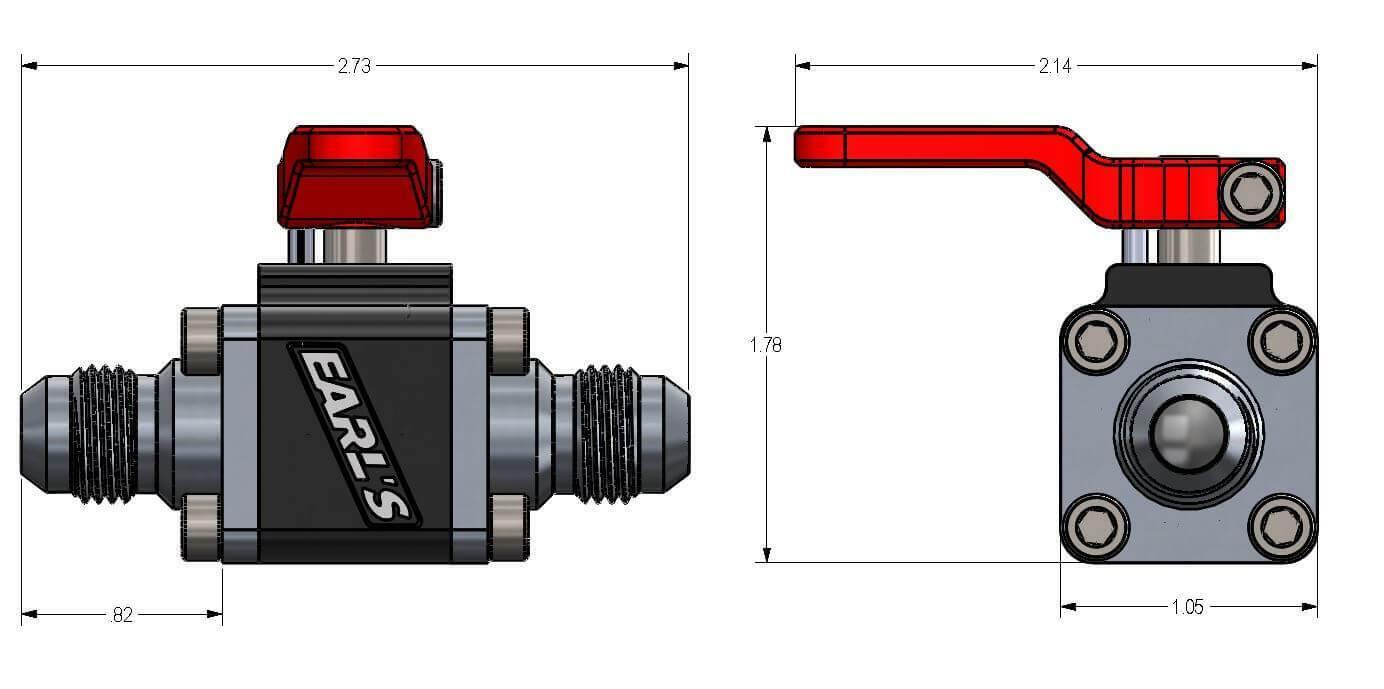

  • Small Body in -6 & -8 AN Sizes – Overall Dimensions: 2.73” Long x 1.05” Wide x 1.78” Tall
  • Large Body in -10 & -12 AN Sizes – Overall Dimensions: 3.25” Long x 1.45” Wide x 2.42” Tall
  • Choose from Male/Male, or Male/Female Styles

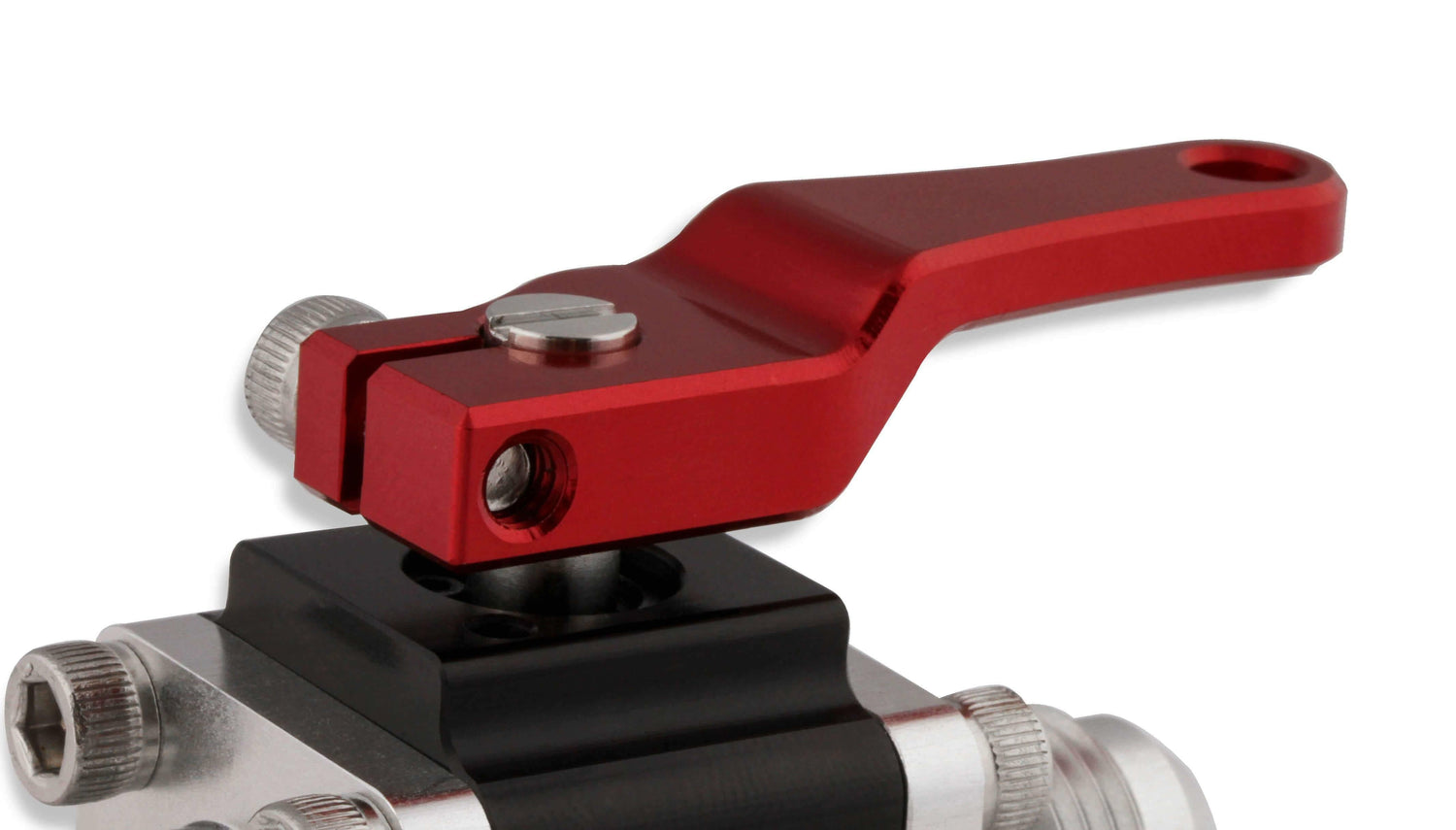

  • Curved Handle Provides Extra Finger Clearance – Even w/ Racing Gloves
  • Easy Panel Mounting w/ Optional Mounting Brackets (Clockable Every 90 Degrees)
  • Maximum Recommended Working Pressure: 200 PSI
  • Clamshell Packaging – Ideal for Retail Display
  • Ideal for All Racing Applications – Including Fuel & Oil Systems

Year Make Model Submodel Engine Size
Universal

Adapter AN Size ( A ) 6 AN MALE
Adapter AN Size ( B ) 6 AN MALE
Adapter Type Shut-Off Valve
Ball Material Stainless Steel
Brand Earls
Emission Code 5
Finish Anodized Clear, Black & Red
Fluid Type Automatic Transmission Fluid
Fluid Type Bio-Fuels
Fluid Type Coolant
Fluid Type Diesel
Fluid Type E85
Fluid Type Methanol/Alcohol
Fluid Type Oil
Fluid Type Pump Gas
Fluid Type Race Gas
Height 1.78"
Material 6061 Aluminim
Max Working PSI 200 PSI
Overall Length 2.73"
Product Type UltraPro Ball Valve
Seal Material Glass Reinforced PTFE
Size Small Body
Warning California Proposition 65
Width 1.05"
Width - With Handle 2.14"
