Earl's Performance | SKU:
213ERL

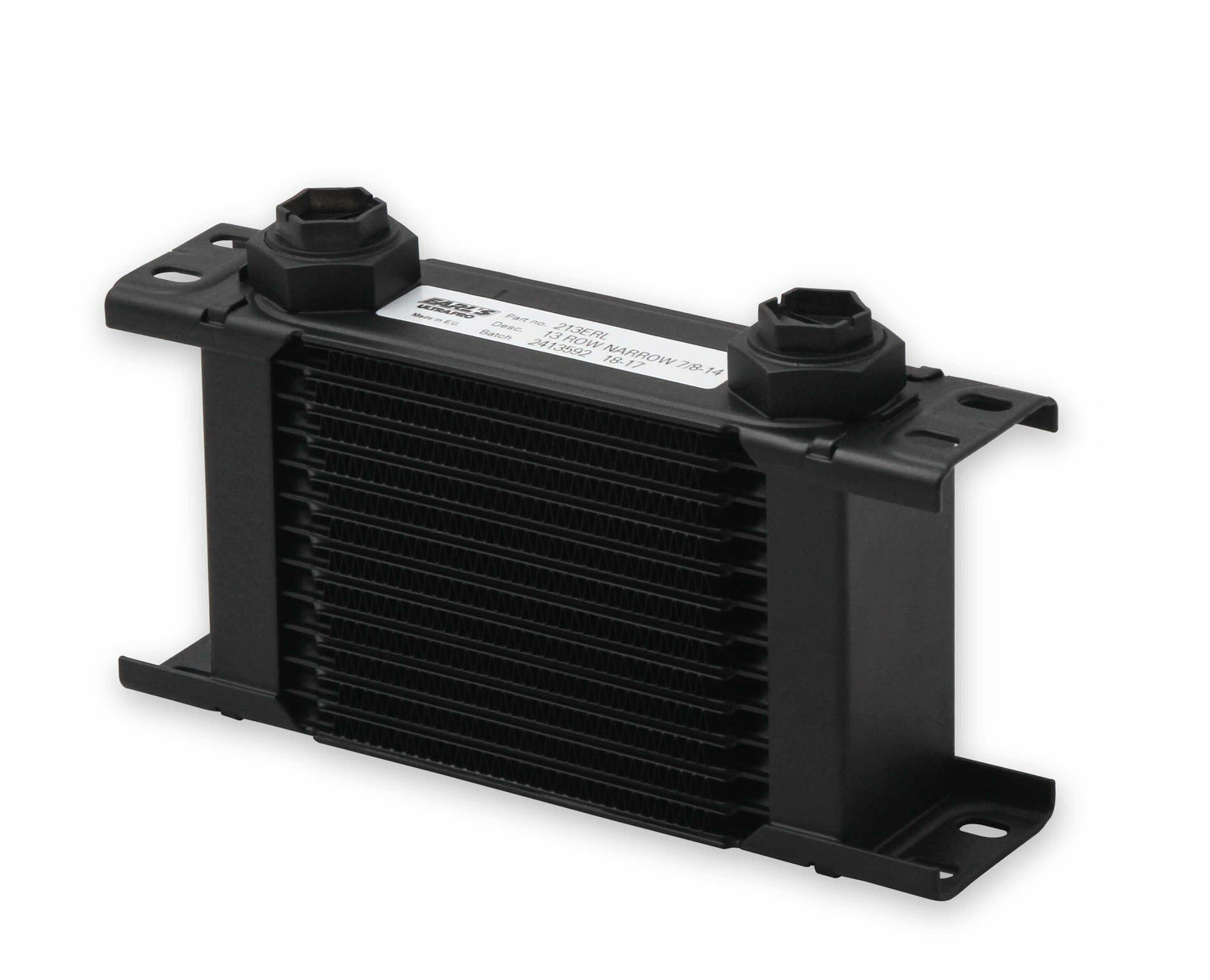

Earls UltraPro Oil Cooler 13 Row Narrow Cooler 10 O-Ring Boss Female Port 213ERL
Regular price
$249.95 USD
Unit price
/
Unavailable
Shipping calculated at checkout.
Earls UltraPro Oil Cooler 13 Row Narrow Cooler 10 O-Ring Boss Female Port 213ERL is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Fitment
Fitment
Warranty Information
Warranty Information
Customer service is our top priority and because we value your time and energy we ask you to visit our Contact Us page and reach out so that we may assist you in finding the correct warranty for your product. Please include your name, the name on the order, the order number, and the SKU of the product to ensure the quickest and most accurate response to your inquiry.
Description
Description
Overview:

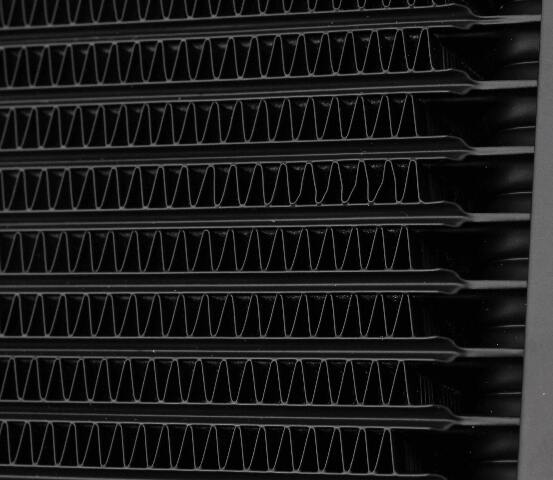

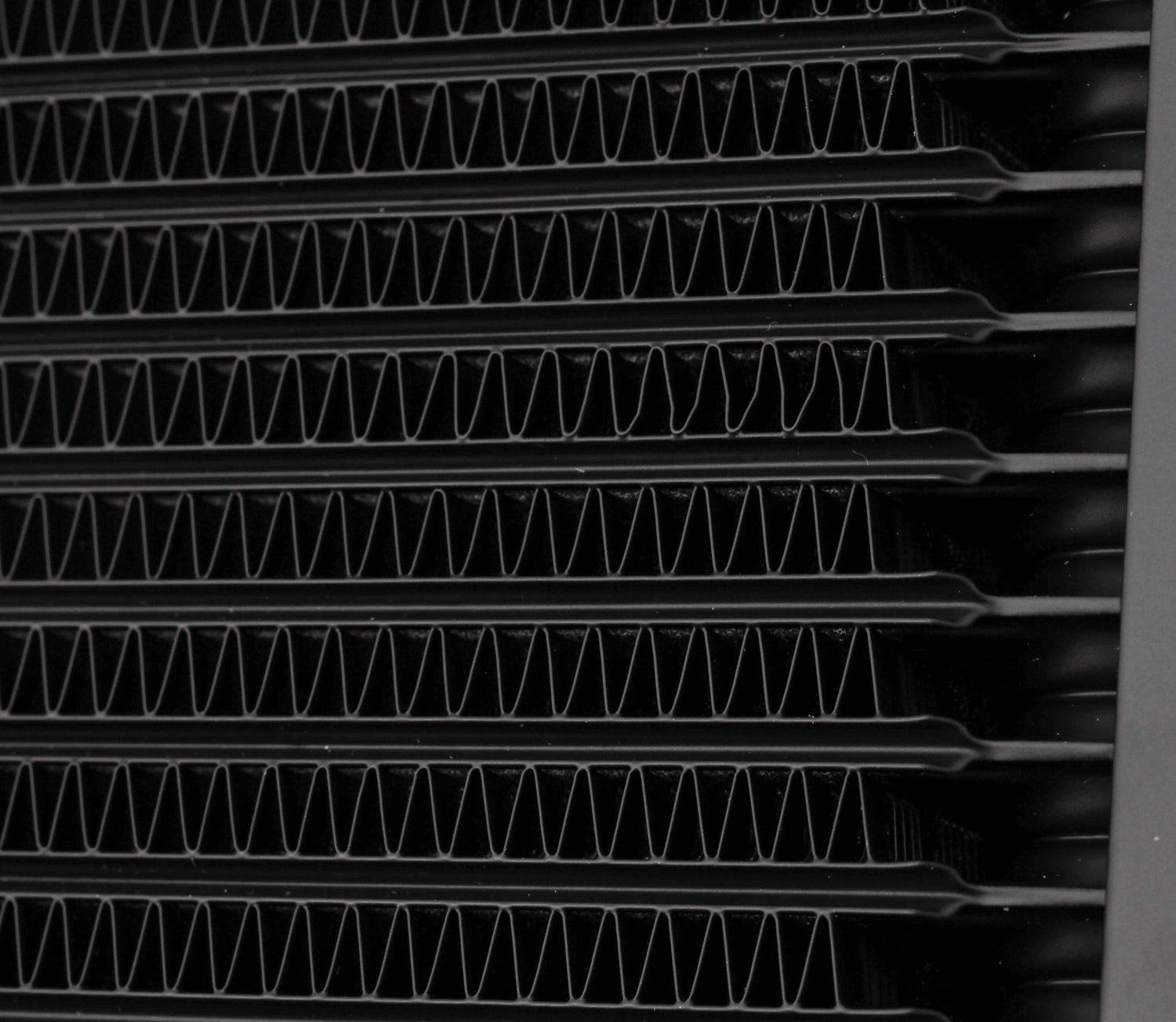

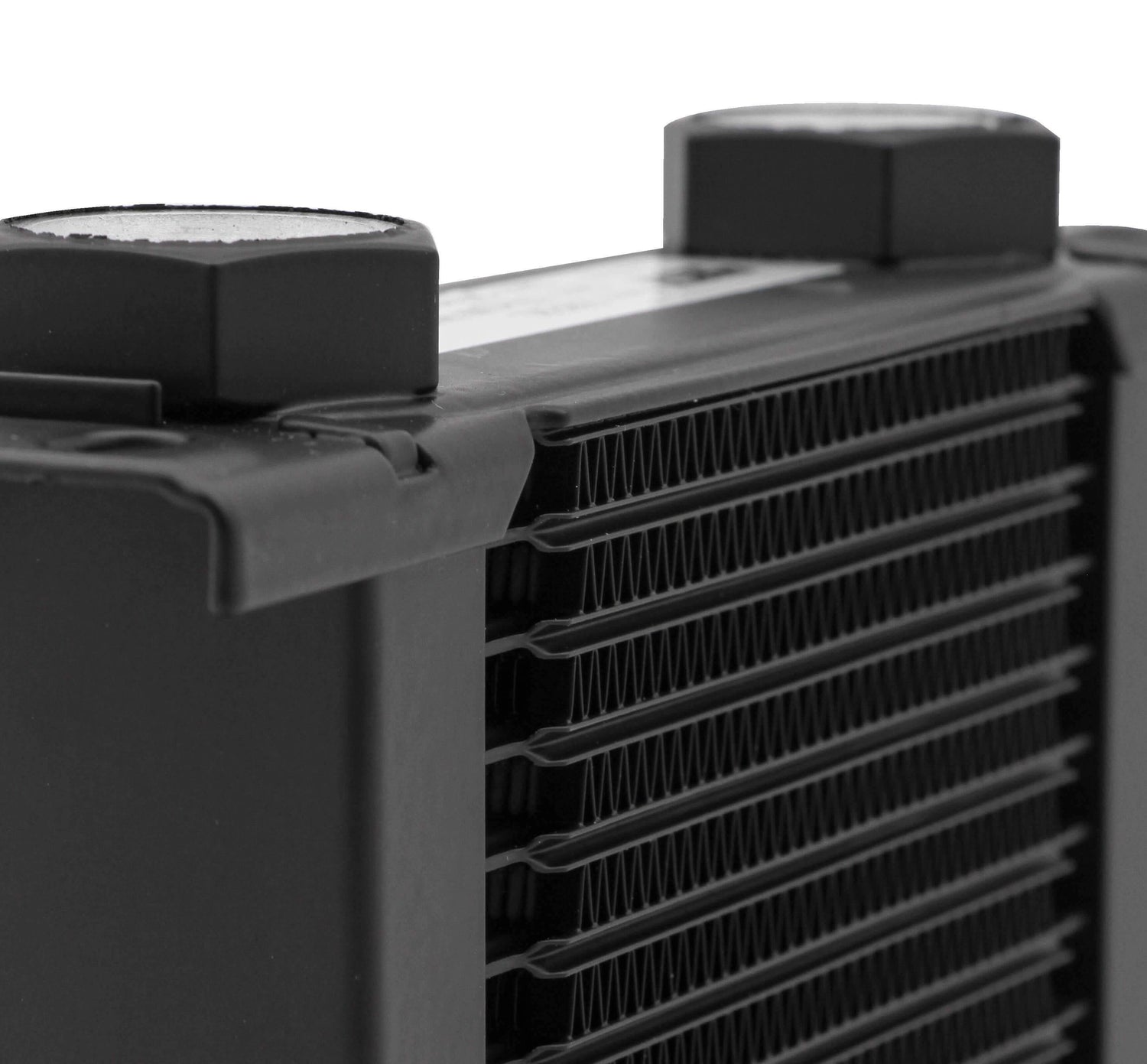

Earls new premium quality UltraPRO oil coolers are ideal for all high performance applications. These aluminum stacked plate style coolers are made using state of the art brazing techniques for a durable and long lasting premium cooler that is highly efficient w/ minimal pressure drop. These coolers are available in 30 sizes for all applications (i.e. engine oil cooler, transmission cooler, power steering cooler, valve spring cooler, differential / gearbox cooler, etc.). Three fan pack style coolers are now also available w/ a premium cooling fan & shroud. These coolers feature -10 AN O-ring female ports and are used with special ORB cooler fittings (-6 AN, -8 AN, -10 AN, or -12 AN) and AN hose ends. Earls will also now stock coolers w/ -16 AN male flares brazed on the cooler for applications that require larger ports for additional oil flow. Black Finish.Features:
- Premium Quality High Performance Stacked Plate Style Aluminum Oil Coolers
- Made Using State of the Art Brazing Technology
- Highly Efficient Design w/ Minimal Pressure Drop
- Extremely Durable Lightweight Aluminum Construction w/Black Finish
- (3) Width Options – Narrow 8.25”, Wide 12.99”, and Extra Wide 15.94” Overall Width
- (10) Height Options - w/ 7 to 60 Rows (2.09” to 18.31” Tall)
- (3) Fan Pack Style Coolers Include the Oil Cooler, Spal® Cooling Fan(s) & Shroud
- Port Sizes: 10 AN Female Ports (Uses Existing Earls Adapter Fittings) or 16 AN Male Ports
- (10) Select Sizes w/ 16 AN Male Ports Will Be Stocked (no longer special order)
- Optional Mounting Brackets – Sold Separately
Application:
| Year | Make | Model | Submodel | Engine Size |
|---|---|---|---|---|
| Universal |
Specs:
| Application | Differential Cooler |
|---|---|
| Application | Power Steering Cooler |
| Application | Transmission Cooler |
| Application | Valve Spring Cooler |
| Body Width (Overall) | 8.250" |
| Brackets Included | No |
| Brand | Earls |
| Construction | Stacked Plate - Brazed |
| Cooler Fittings | 585106ERL |
| Cooler Fittings | 585108ERL |
| Cooler Fittings | 585110ERL |
| Cooler Fittings | 585112ERL |
| Cooler Fittings | AT585106ERL |
| Cooler Fittings | AT585108ERL |
| Cooler Fittings | AT585110ERL |
| Cooler Fittings | AT585112ERL |
| Cooler Fittings Included | No |
| Emission Code | 5 |
| Finish | Black |
| Fitting Centers | 4.800" |
| Height | 3.940" |
| Material | Aluminum |
| Mounting Bracket Width | 7.500" |
| Mounting Brackets | 200ERL |

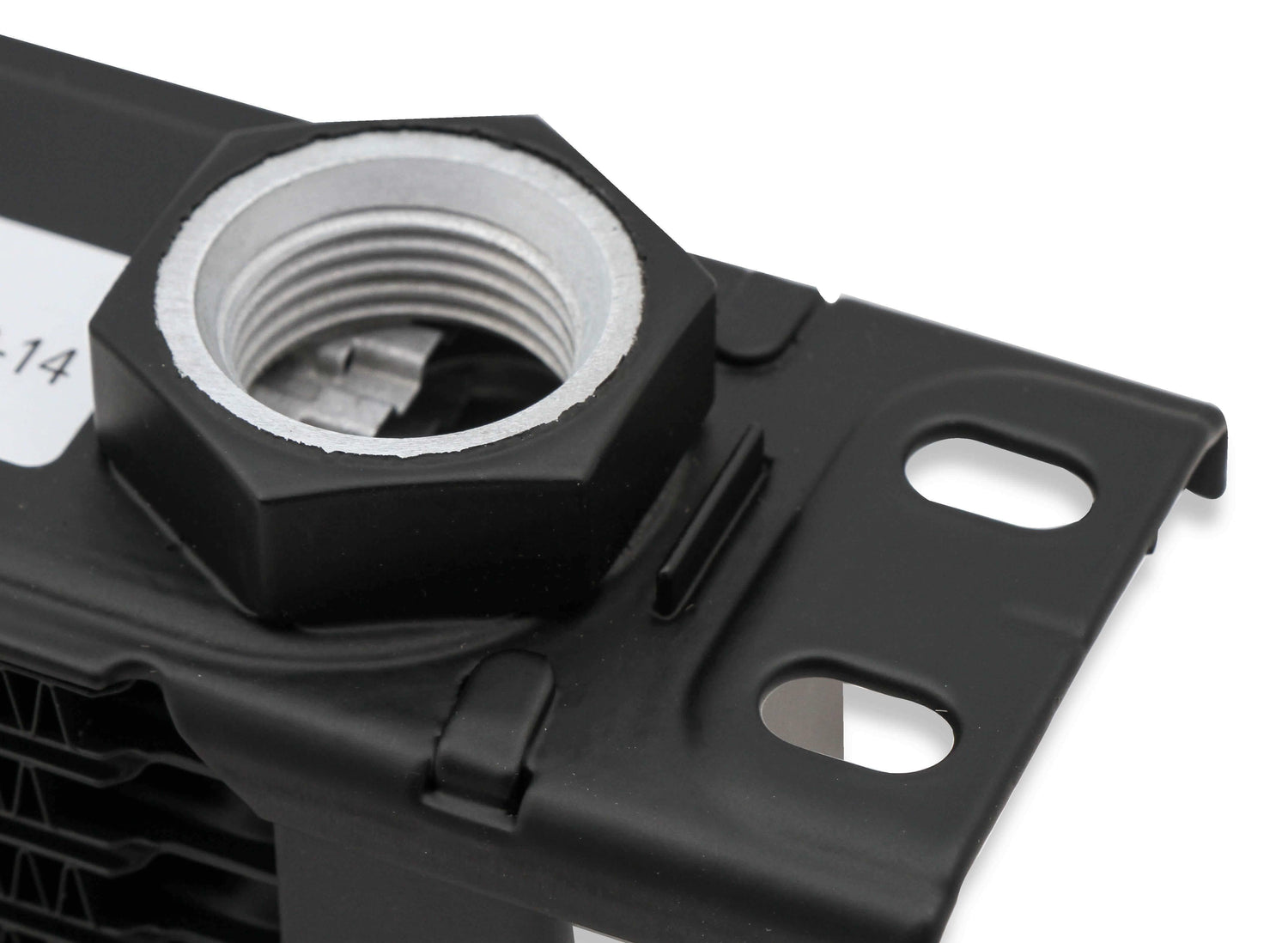

| Port Size | 7/8-14 Female (-10 O-Ring Boss) |
| Product Line | UltraPro |
| Product Type | Oil Cooler |
| Rows | 13 Rows |
| Temperature Range | -40° F to 302° F |
| Thickness | 2.000" |
| Transmission Fluid BTU Range | 7500 |
| Volume | .15 Quarts |
| Weight | 1.15 Lbs |
| Width | Narrow Cooler |
| Width (Less Mounting Ears) | 6.438" |
