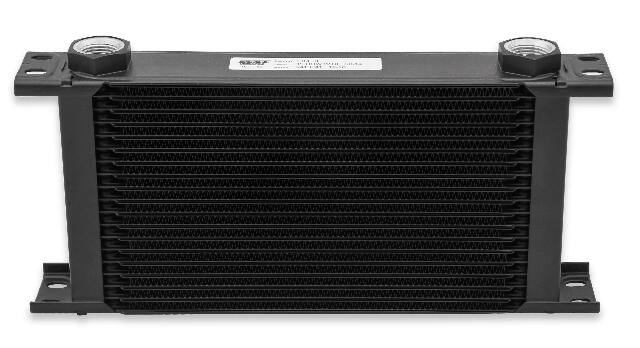

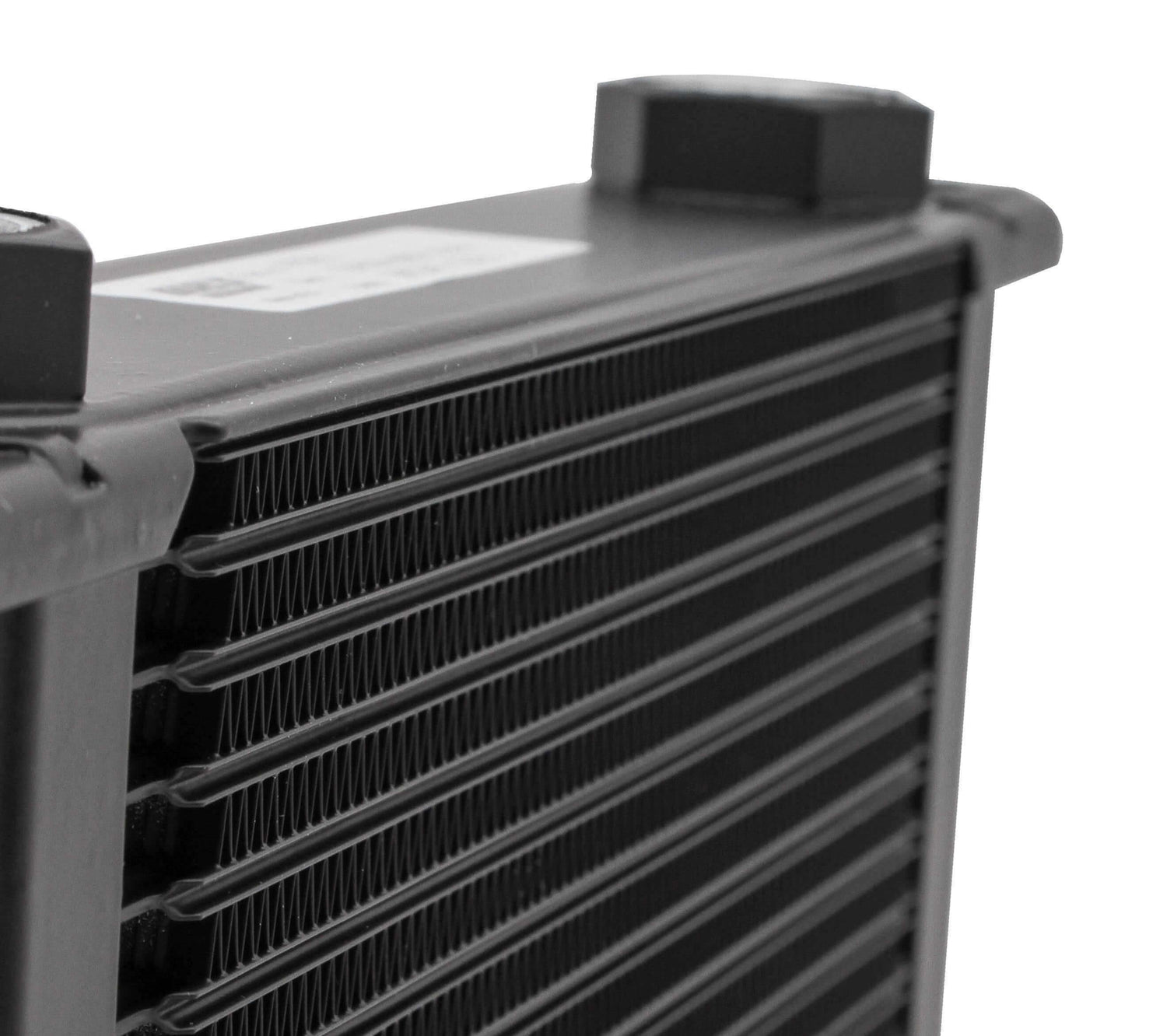

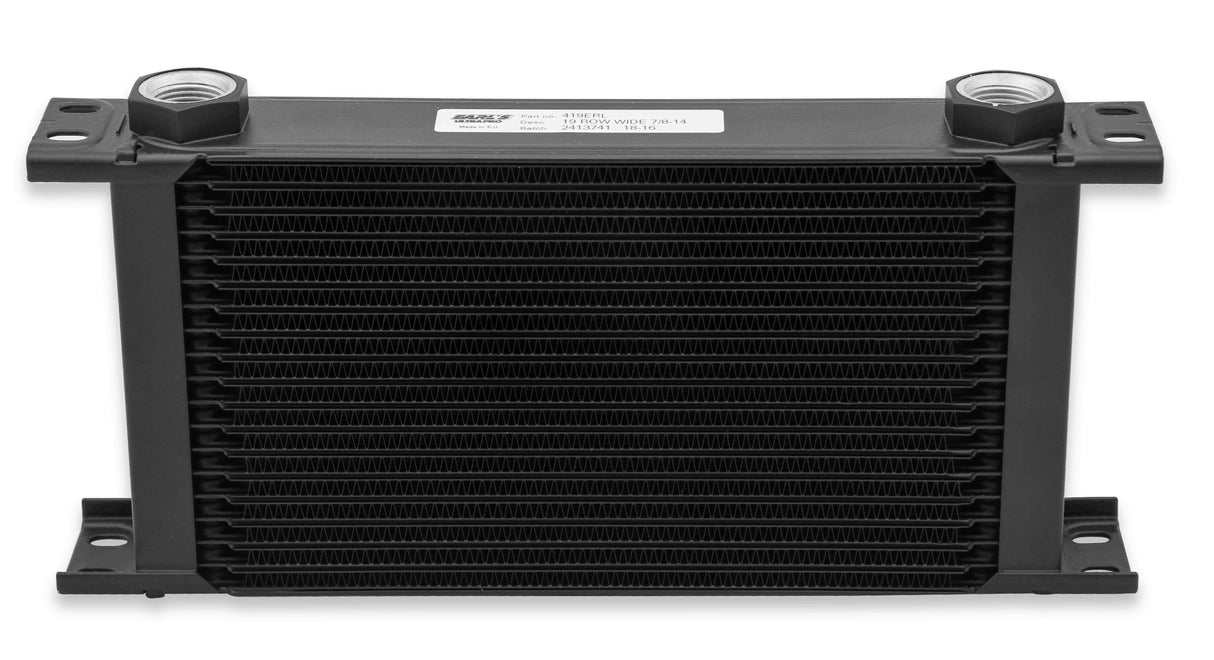

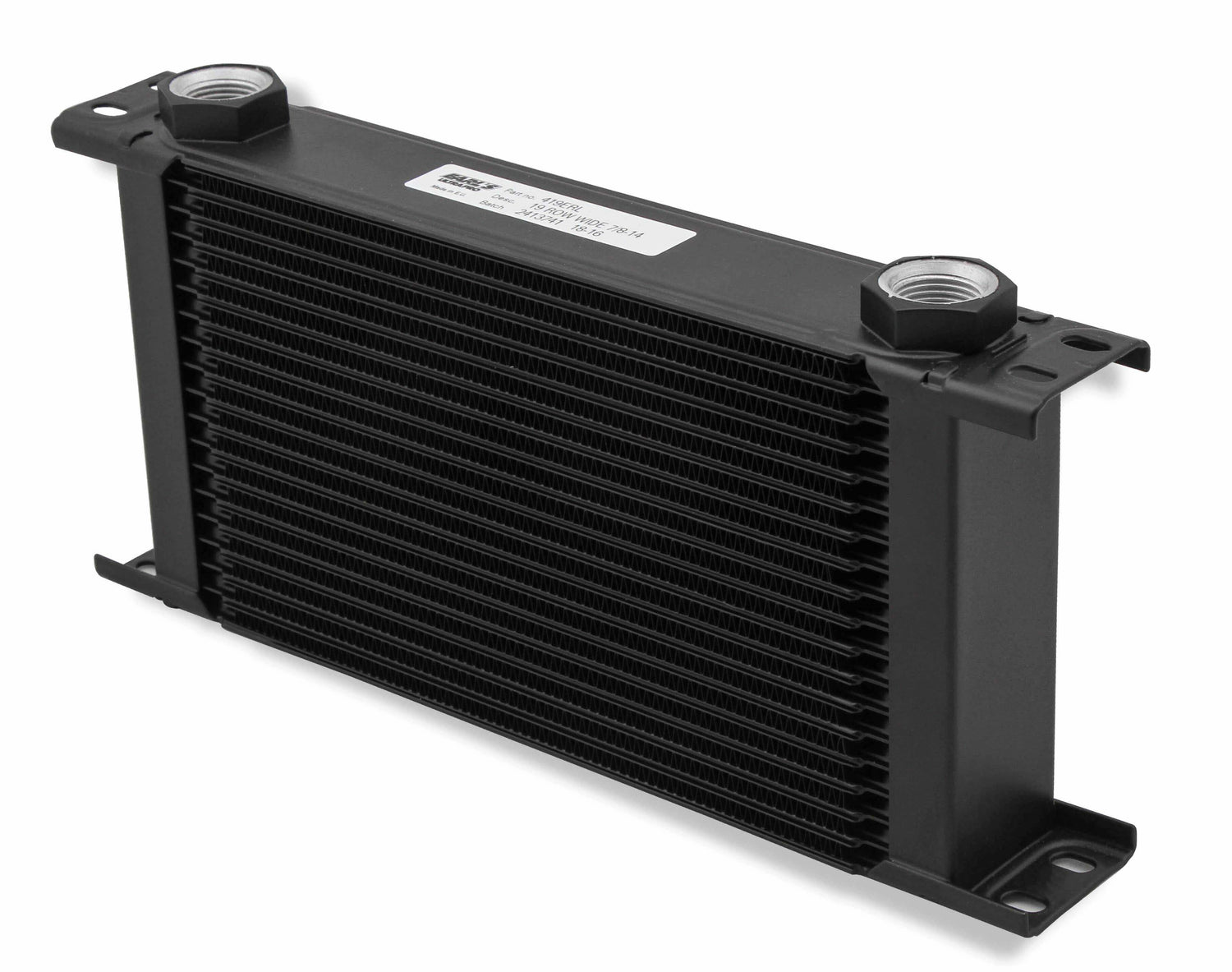

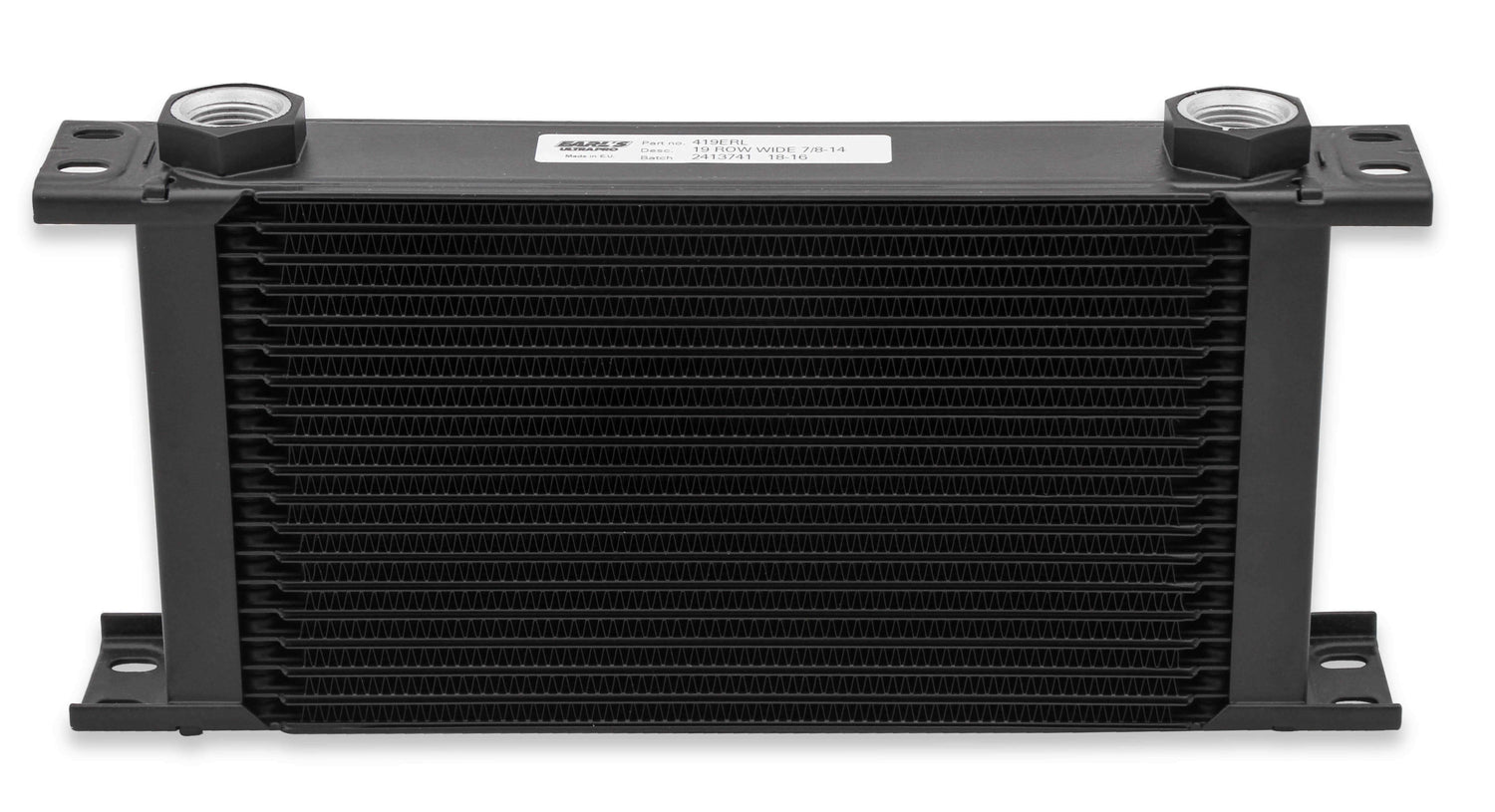

Earls UltraPro Oil Cooler 19 Rows Wide Cooler 10 O-Ring Boss Female Port -419ERL

Earls UltraPro Oil Cooler 19 Rows Wide Cooler 10 O-Ring Boss Female Port -419ERL

SKU: 419ERL
Regular price $279.95 USD
Regular price Sale price $279.95 USD
Sale Sold out

Overview:

Earls new premium quality UltraPro oil coolers are ideal for all high performance applications. These aluminum stacked plate style coolers are made using state of the art brazing techniques for a durable and long lasting premium cooler that is highly efficient w/ minimal pressure drop. These coolers are available in 30 sizes for all applications (i.e. engine oil cooler, transmission cooler, power steering cooler, valve spring cooler, differential / gearbox cooler, etc.). Three fan pack style coolers are now also available w/ a premium cooling fan & shroud. These coolers feature -10 AN O-ring female ports and are used with special ORB cooler fittings (-6 AN, -8 AN, -10 AN, or -12 AN) and AN hose ends. Earls will also now stock coolers w/ -16 AN male flares brazed on the cooler for applications that require larger ports for additional oil flow. Black Finish.

Features:

  • Premium Quality High Performance Stacked Plate Style Aluminum Oil Coolers
  • Made Using State of the Art Brazing Technology
  • Highly Efficient Design w/ Minimal Pressure Drop
  • Extremely Durable Lightweight Aluminum Construction w/Black Finish
  • (3) Width Options – Narrow 8.25”, Wide 12.99”, and Extra Wide 15.94” Overall Width
  • (10) Height Options - w/ 7 to 60 Rows (2.09” to 18.31” Tall)
  • (3) Fan Pack Style Coolers Include the Oil Cooler, Spal® Cooling Fan(s) & Shroud
  • Port Sizes: 10 AN Female Ports (Uses Existing Earls Adapter Fittings) or 16 AN Male Ports
  • (10) Select Sizes w/ 16 AN Male Ports Will Be Stocked (no longer special order)
  • Optional Mounting Brackets – Sold Separately

Year Make Model Submodel Engine Size
Universal

Application Differential Cooler
Application Engine Oil Cooler
Application Transmission Cooler
Body Width (Overall) 13.000"
Brackets Included No
Brand Earls

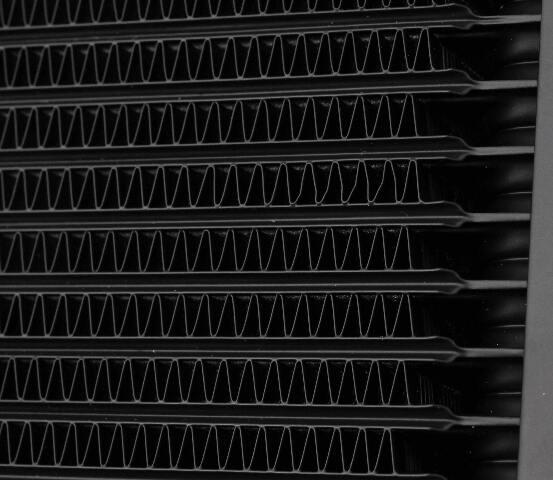

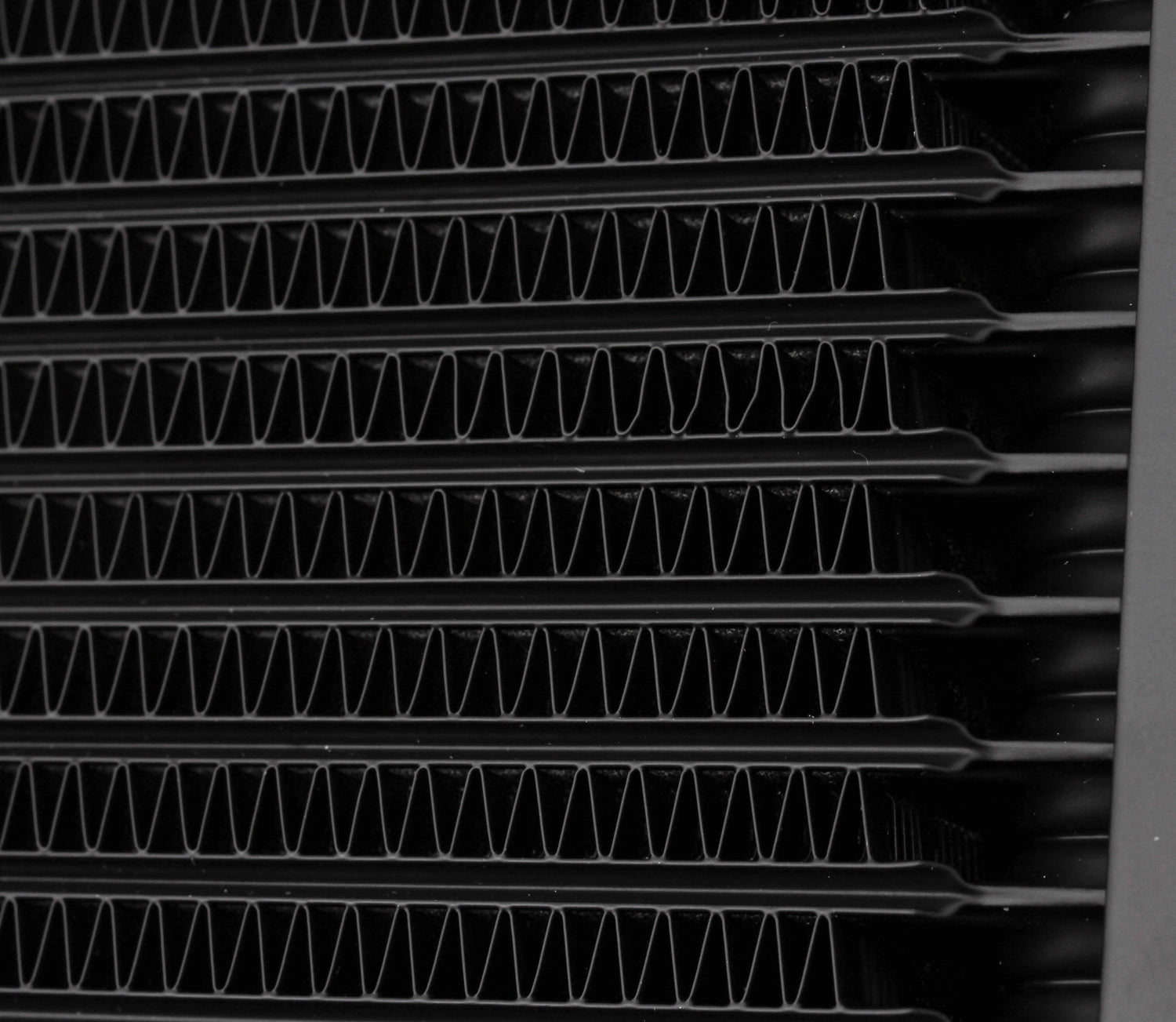

Construction Stacked Plate - Brazed
Cooler Fittings 585106ERL
Cooler Fittings 585108ERL
Cooler Fittings 585110ERL
Cooler Fittings 585112ERL
Cooler Fittings AT585106ERL
Cooler Fittings AT585108ERL
Cooler Fittings AT585110ERL
Cooler Fittings AT585112ERL
Cooler Fittings Included No
Emission Code 5
Engine HP Range 220-310 HP
Engine Oil BTU Range 27,000-37,000
Finish Black
Fitting Centers 9.530"
Height 5.750"
Material Aluminum
Mounting Bracket Width 12.200"
Mounting Brackets 400ERL

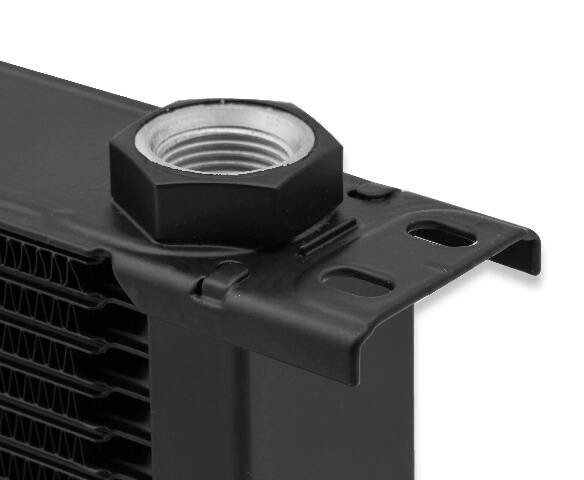

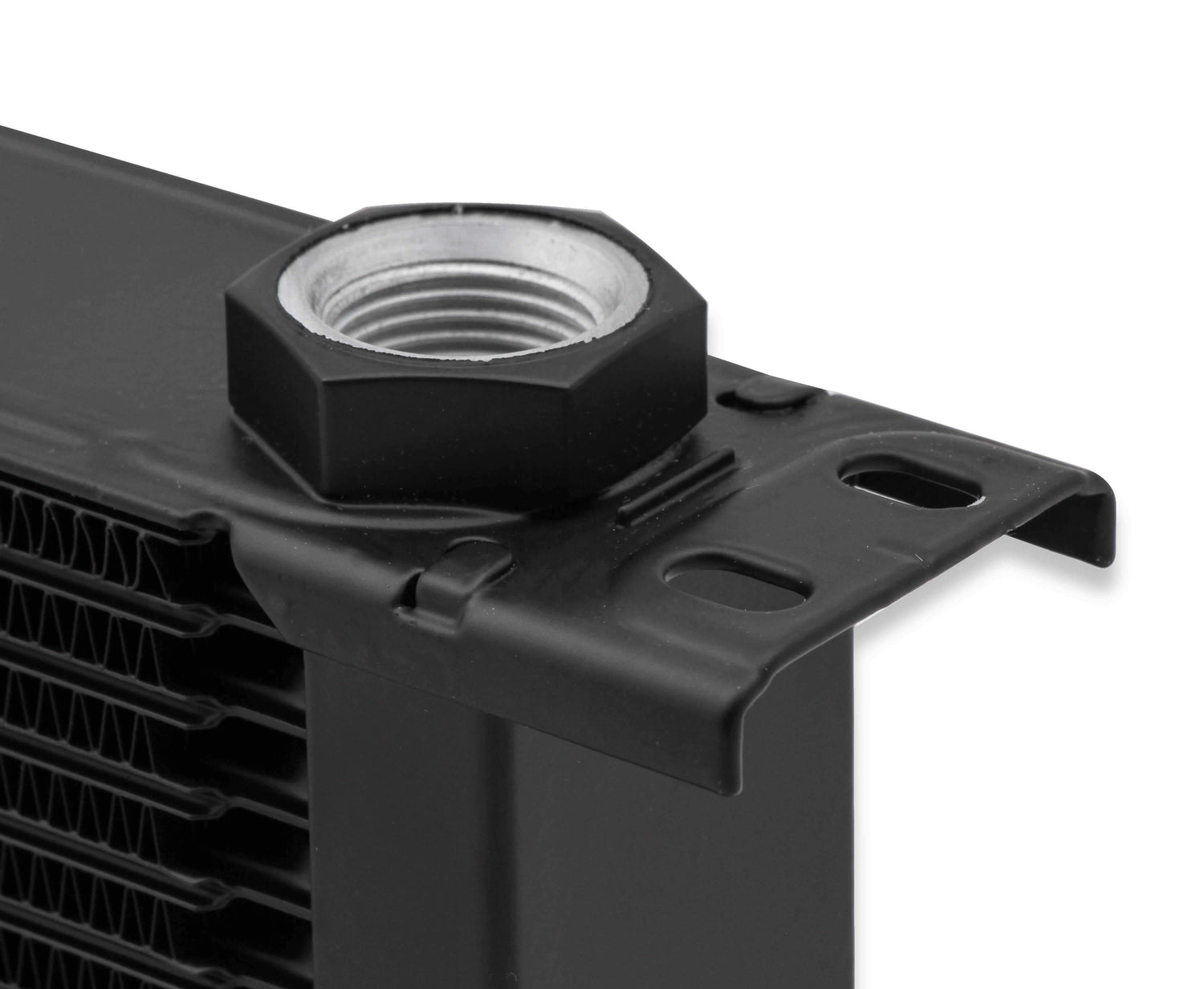

Port Size 7/8-14 Female (-10 O-Ring Boss)
Product Line UltraPro
Product Type Oil Cooler
Rows 19 Rows
Temperature Range -40° F to 302° F
Thickness 2.000"
Transmission Fluid BTU Range 14,000-23,000
Volume .40 Quarts
Weight 2.65 Lbs
Width Wide Cooler
Width (Less Mounting Ears) 11.125"
